Kubota LX4020HSDRC

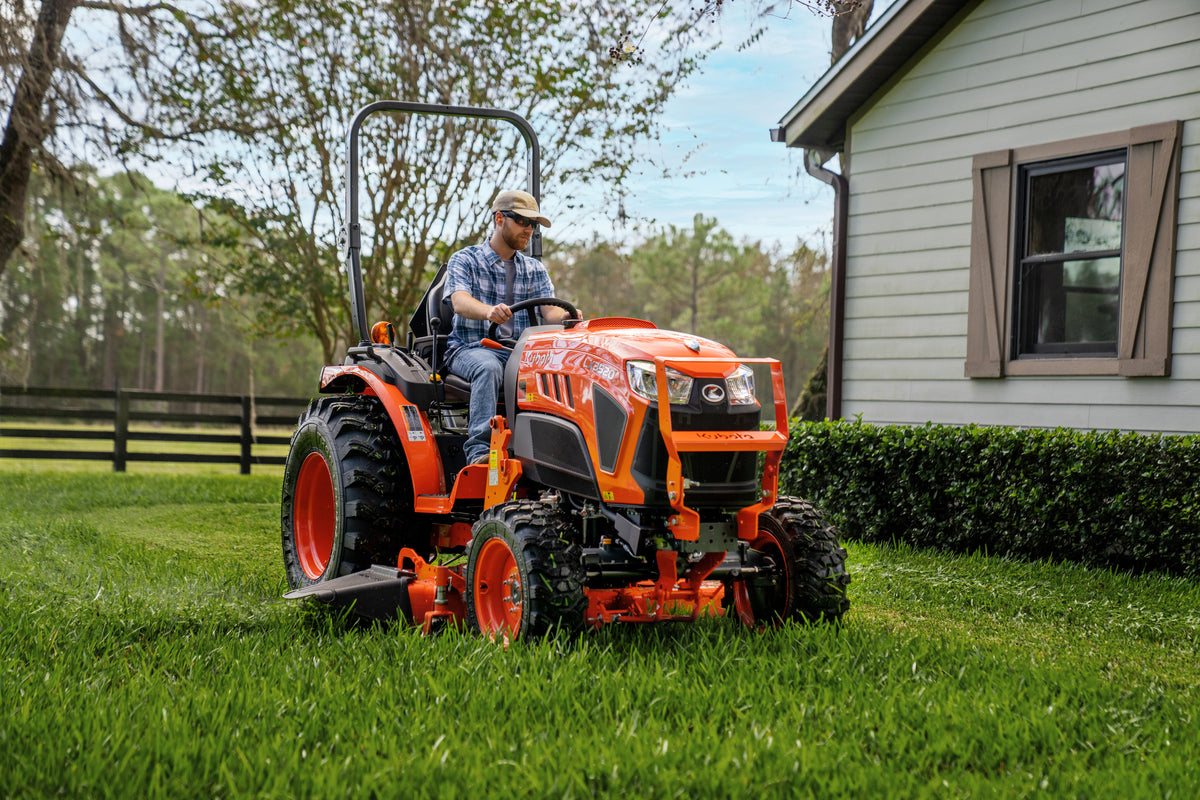

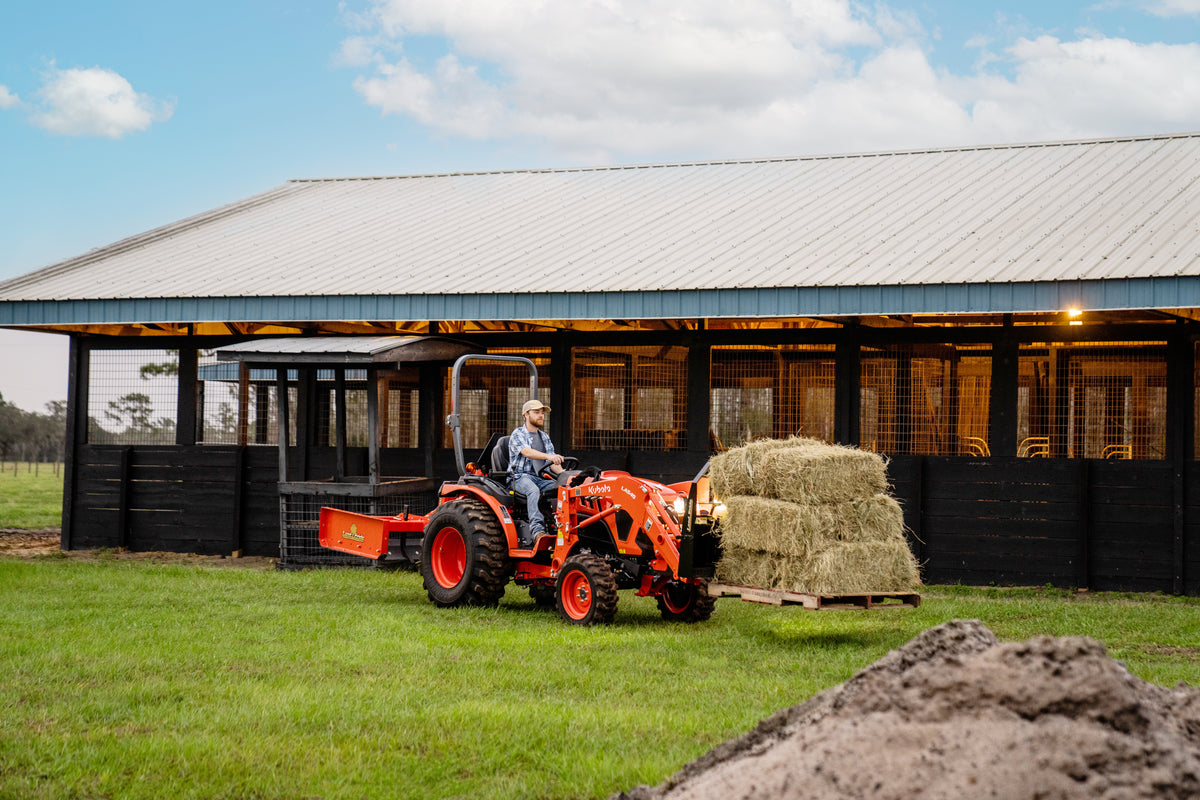

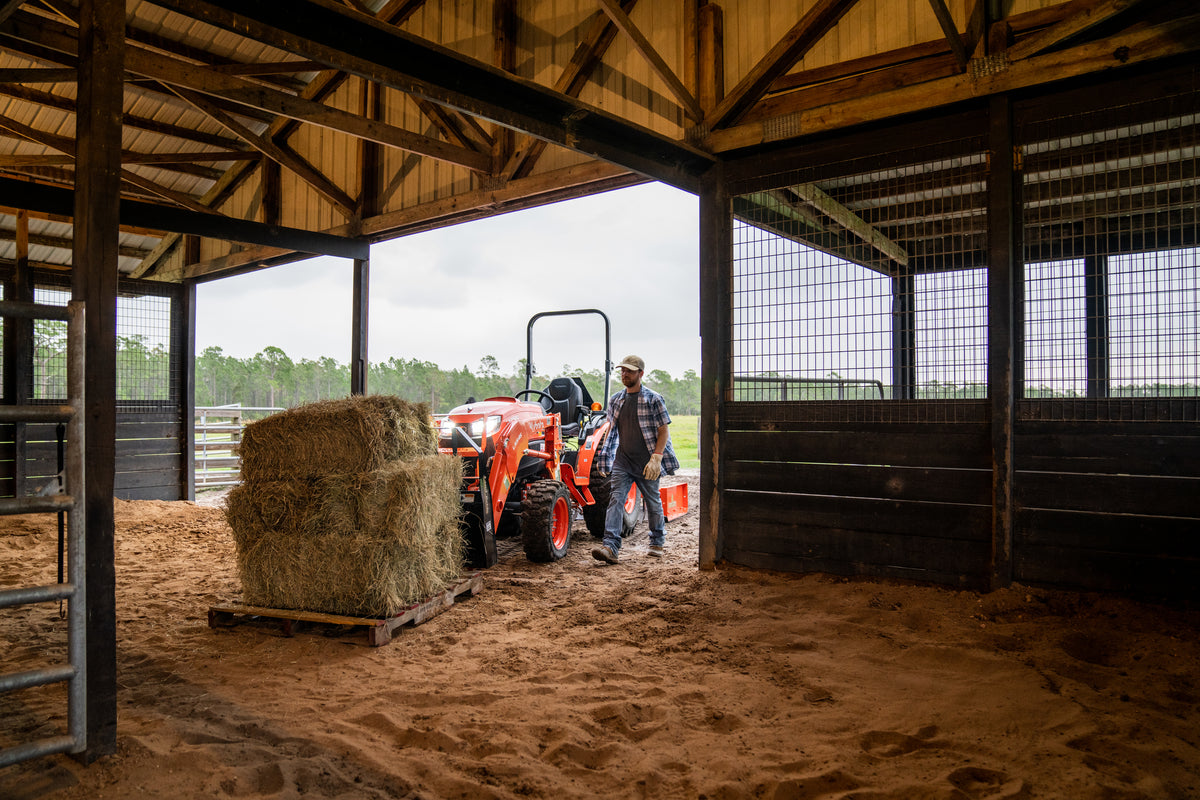

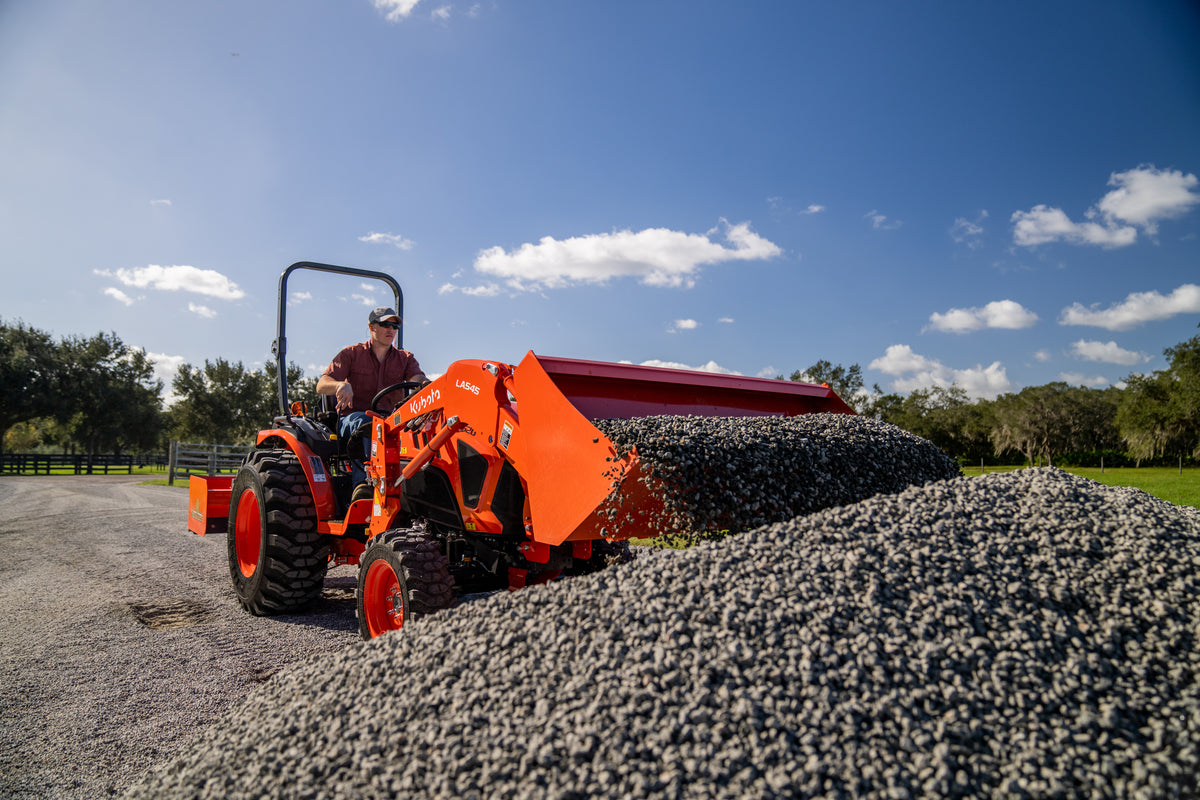

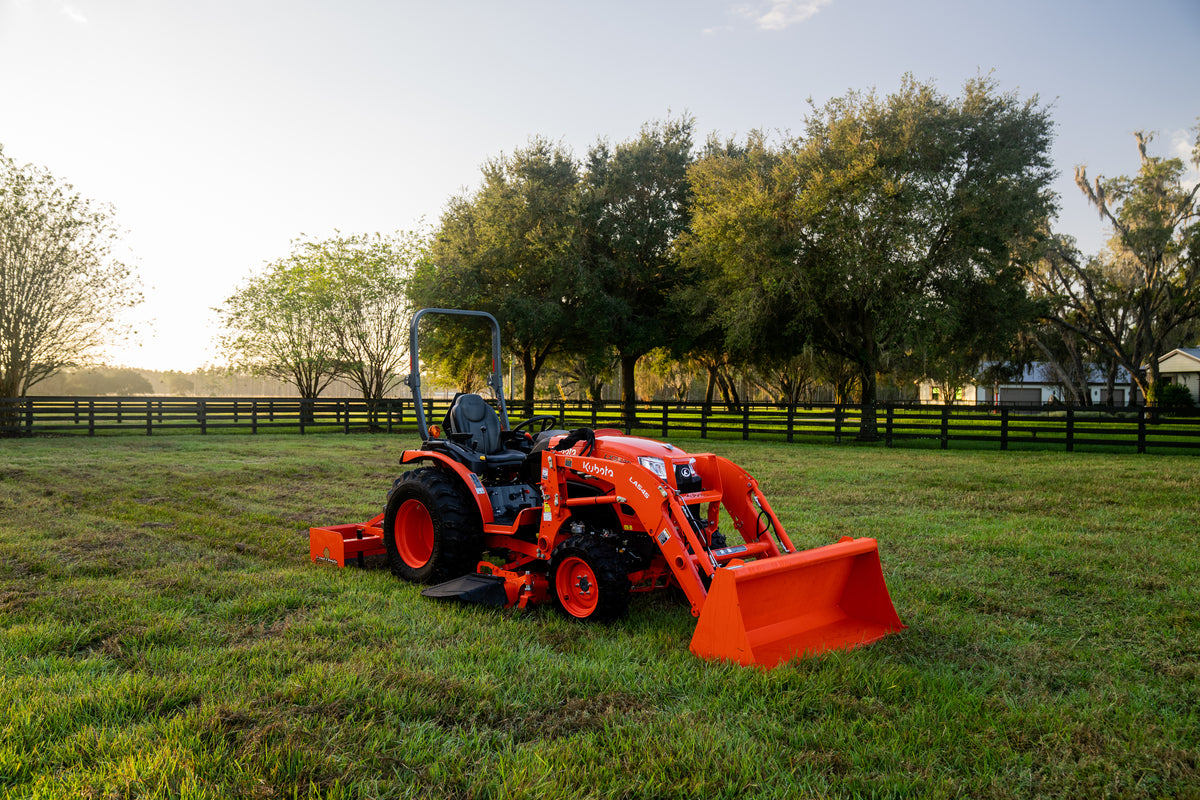

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
LX4020 key specs
| Engine power | 39.8 hp (29.7 kW) |
|---|---|
| PTO power | 32.6 hp (24.3 kW) |
| Transmission | HST (3 ranges) |
| 3-point lift, 24 in (610 mm) behind | 1,962 lb (890 kg) |
| Weight | 2,191 lb (994 kg) |
About the LX4020
LX4020 specifications
Engine16
| Engine type | Direct injection, vertical, water-cooled, 4-cylinder diesel with turbo charger |
|---|---|
| Engine model | V1505-CR-TE5-D40R5 |
| PTO power | 32.6 hp (24.3 kW) |
| Engine power, gross | 39.8 hp (29.7 kW) |
| Rated engine speed | 2,700 rpm |
| Bore | 3.1 in (78 mm) |
| Stroke | 3.1 in (78.4 mm) |
| Displacement | 1,498 cc (91.4 cu in) |
| Air pre-cleaner | Paper filter with (dual element) |
| Lubrication | Forced lubrication |
| Cooling system | Pressurized radiator |
| Radiator fan | Radial air flow |
| Fuel tank | 32 L (8.5 US gal) |
| Cooling system capacity | 4.3 L (4.5 US qt) |
| Engine lubricant oil capacity | 4.7 L (5 US qt) |
| Transmission oil capacity | 24 L (6.3 US gal) |
PTO3
| PTO type | Independent |
|---|---|
| Rear, PTO/engine speed | 540 rpm |
| Mid, rated engine speed | 2,460 rpm |
Transmission and drive7
| Clutch | N / A |
|---|---|
| Transmission | HST (3 ranges) |
| Differential lock | Standard |
| Brakes | Multi-plate wet disc |
| Final drive | Spur gear |
| Forward (R1) | 27.4 km/h (17 mph) |
| Reverse (R1) | 22.6 km/h (14 mph) |
Hydraulics9
| Hydraulic system | Open center |
|---|---|
| Pump type | Dual pump |
| Total pump output | 9.5 US gpm (35.8 L/min) |
| Hydraulic outlet | Rear outlet |
| 3-point hitch | Category I |
| Control system | Position control |
| Steering | Hydraulic power steering |
| 3-point lift capacity, at the lift points | 2,535 lb (1,150 kg) |
| 3-point lift capacity, 24 in (610 mm) behind the lift points | 1,962 lb (890 kg) |
Dimensions and weight13
| Standard tire size, front R1 | 7-12 |
|---|---|
| Standard tire size, front R4 | 23x8.50-14 |
| Standard tire size, front R14 | 23x8.50-14 |
| Standard tire size, rear R1 | 12.4-16 |
| Standard tire size, rear R4 | 12.4-16 |
| Standard tire size, rear R14 | 14-17.5 |
| Overall length, without the 3-point hitch | 101.6 in (2,580 mm) |
| Overall width, at the narrowest tread | 53.7 in (1,365 mm) |
| Overall height | 88.2 in (2,240 mm) |
| Wheelbase | 66.7 in (1,695 mm) |
| Ground clearance | 8.9 in (225 mm) |
| Weight | 2,191 lb (994 kg) |
| Turning radius, with brake | 7.5 ft (2.3 m) |
From Kubota Canada’s specifications for the LX4020, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
The LX20 series
LX2620HSD
- 23.3 hp
- 19.4 hp PTO
- 1,676 lb lift at 24 in

LX2620HSDCC
- 23.3 hp
- 19.4 hp PTO
- 1,676 lb lift at 24 in
LX2620SUHSD
- 23.3 hp
- 19.4 hp PTO
- 1,676 lb lift at 24 in

LX3520HSDCC
- 34.9 hp
- 28.7 hp PTO
- 1,962 lb lift at 24 in

LX3520HSDRC
- 34.9 hp
- 28.7 hp PTO
- 1,962 lb lift at 24 in

LX4020HSDCC
- 39.8 hp
- 31.2 hp PTO
- 1,962 lb lift at 24 in

LX4020HSDRC
- 39.8 hp
- 32.6 hp PTO
- 1,962 lb lift at 24 in
Implements matched to the LX4020
Kubota's matched-implement brochures and Land Pride's Kubota charts pair these implements with the LX4020. Each one is rated for the LX4020's horsepower and 3-point hitch.
-
NewClearance
Land Pride GS1560 Grading Scraper
The GS1560 is Land Pride's 60-inch grading scraper for tractors of 25 to 50 hp, on a Category I hitch or a Category I quick hitch. Two 1/2 x 6 inch high-carbon blades, one behind the other at a 5-degree angle, cut off high spots and fill ruts on lanes and g...
View unitQuote
-
New
Land Pride QH16 Quick Hitch
The QH16 is Land Pride's quick hitch for tractors with a Category I 3-point hitch: it lets you hook on to an implement, often without leaving the seat, and its locks close on the implement's lower pins by themselves. The top hook adjusts from 14-7/8 to 18-7...
View unitQuote
-
NewClearance
Land Pride RB1560 Rear Blade
The RB1560 is Land Pride's 60-inch rear blade for tractors of 17 to 40 hp, on a Category I hitch, and it fits Land Pride's Quick Hitch. The 14-inch moldboard angles forward up to 45 degrees in seven positions and backward up to 30 degrees, either way, and o...
View unitQuote
-
NewClearance
Land Pride RB1684 Rear Blade
The RB1684 is Land Pride's 84-inch rear blade for tractors of 20 to 40 hp, on a Category I hitch, and it fits Land Pride's Quick Hitch. The 14-inch moldboard angles forward up to 45 degrees in seven positions and backward up to 30 degrees, offsets 12 inches...
View unitQuote
-
NewClearance
Land Pride RCR1248 Rotary Cutter
The RCR1248 is Land Pride's 48-inch rotary cutter for subcompact and compact tractors of 20 to 60 hp, on a Category I hitch that is quick-hitch ready. It cuts grass, weeds and light brush at heights from 1-1/4 to 10 inches with two free-swinging heat-treate...
View unitQuote
-
NewClearance
Land Pride RCR1260 Rotary Cutter
The RCR1260 is Land Pride's 60-inch rotary cutter for compact tractors of 20 to 60 hp, on a Category I hitch that is quick-hitch ready. It cuts grass, weeds and light brush at heights from 1-1/4 to 10 inches with two free-swinging heat-treated blades, drive...
View unitQuote
-
NewClearance
Land Pride RTR1250 Rotary Tiller
The RTR1250 is Land Pride's 50-inch reverse-rotation rotary tiller for compact tractors of 15 to 40 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...
View unitQuote
-
New
Land Pride RTR1258 Rotary Tiller
The RTR1258 is Land Pride's 58-inch reverse-rotation rotary tiller for compact tractors of 20 to 50 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...
View unitQuote
-
NewClearance
Land Pride PD15 Post Hole Digger
The PD15 is a 3-point post hole digger for compact tractors of 20 to 40 hp with a Category I hitch. It runs 48-inch dirt augers in 6, 9 and 12 inch diameters, takes rock augers from 6 to 18 inches, and its Category II driveline carries a shear bolt that pro...
View unitQuote
-
New
Land Pride FSP700 Broadcast Spreader
The FSP700 is Land Pride's 3-point broadcast spreader for tractors of 18 hp and up, on a Category I hitch. Its one-piece polyethylene hopper holds about 9 cubic feet, up to 563 lb, and a spinner driven from the 540 rpm PTO spreads granular material 23 to 54...
Get pricingQuote
-
New
Land Pride FSP1000 Broadcast Spreader
The FSP1000 is Land Pride's largest 3-point broadcast spreader, for tractors of 20 hp and up, on a Category I hitch. Its one-piece polyethylene hopper holds about 12 cubic feet, up to 673 lb, and a spinner driven from the 540 rpm PTO spreads granular materi...
Get pricingQuote
-
New
Land Pride RB1672 Rear Blade
The RB1672 is Land Pride's 72-inch rear blade for tractors of 20 to 40 hp, on a Category I hitch, and it fits Land Pride's Quick Hitch. The 14-inch moldboard angles forward up to 45 degrees in seven positions and backward up to 30 degrees, offsets 12 inches...
Get pricingQuote
-
New
Land Pride RCR1272 Rotary Cutter
The RCR1272 is Land Pride's 72-inch rotary cutter for compact tractors of 25 to 60 hp, on a Category I hitch that is quick-hitch ready. It cuts grass, weeds and light brush at heights from 1-1/4 to 10 inches with two free-swinging heat-treated blades, drive...
Get pricingQuote
More implements matched to the LX Series are in Kubota's brochure. Kubota's LX Series matched-implement brochure (PDF) ↗
