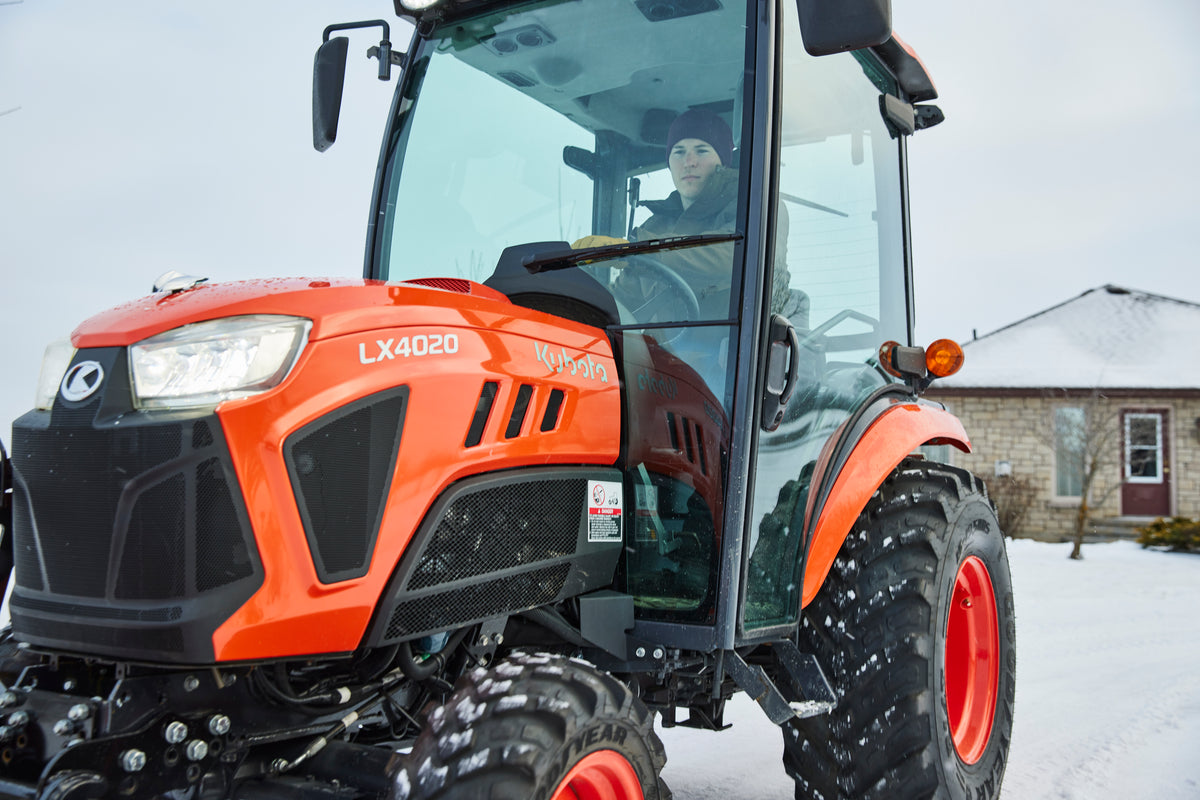

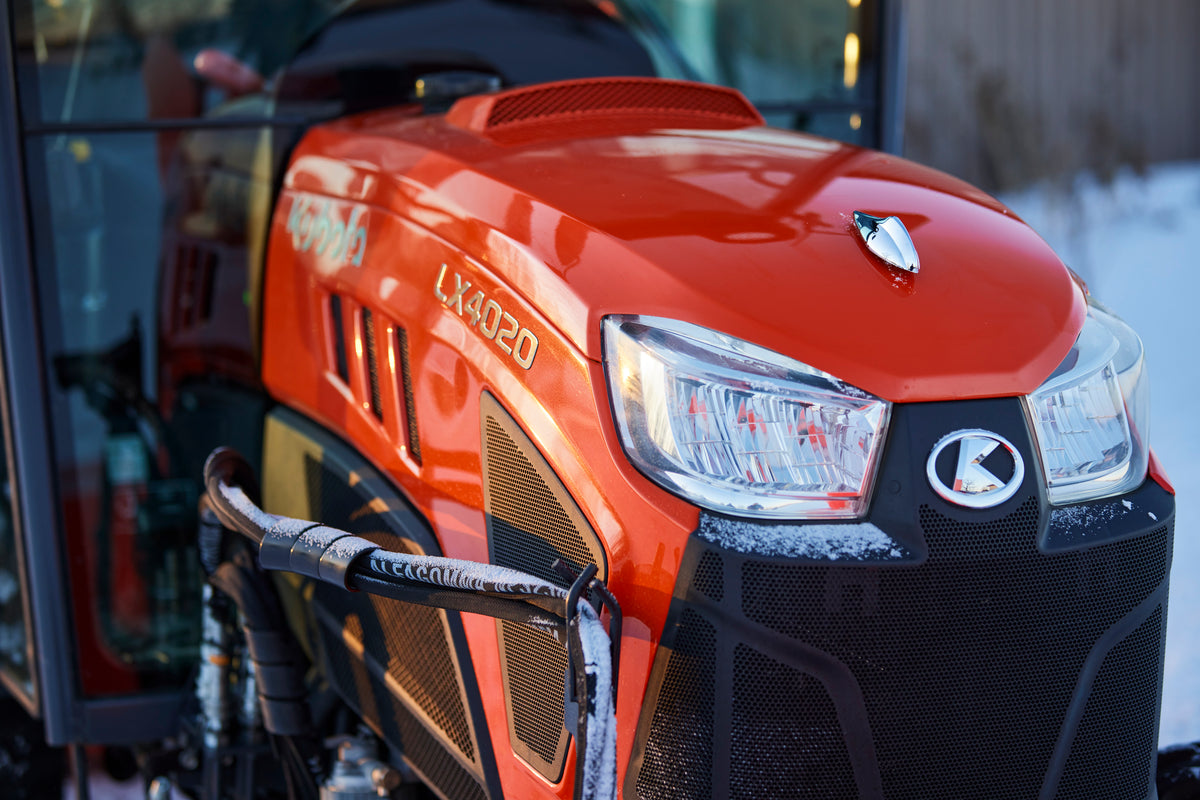

Kubota LX4020HSDCC

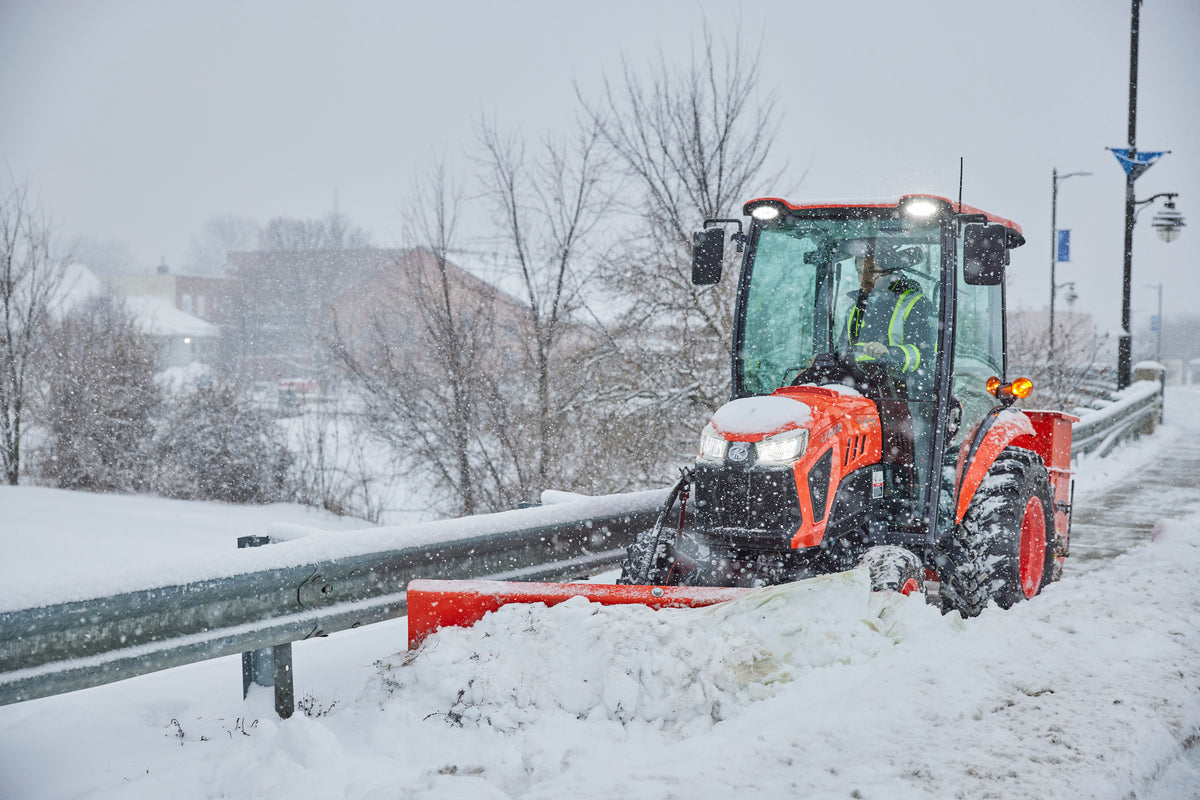

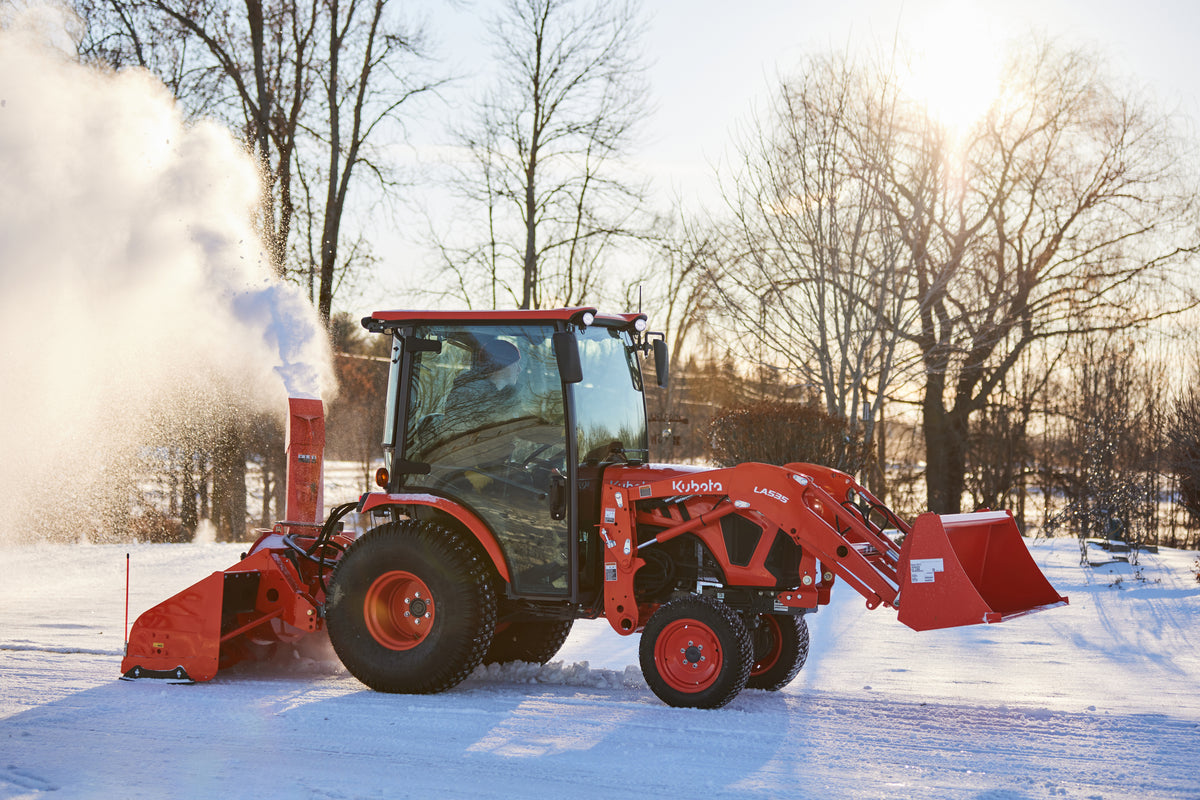

The LX4020 with Kubota's premium cab: wide doors, a four-pillar design with rounded glass for a roomy interior and a clear view all round. The largest LX20-series compact, for loader work, material handling, snow removal and property maintenance.

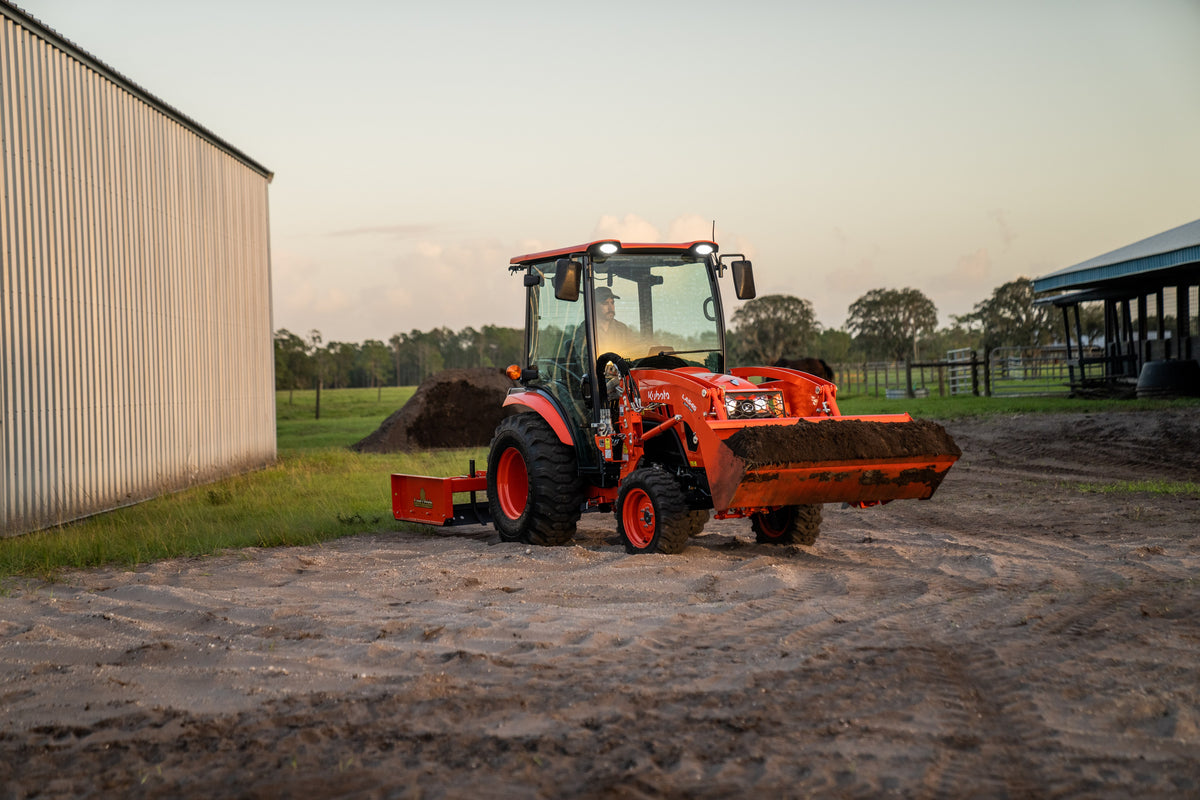

Representative photo of this model, not the machine on the yard.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
One in stock in Sexsmith.
Key specs
LX4020HSDCC key specs
| Engine power | 39.8 hp (29.7 kW) |
|---|---|
| PTO power | 31.2 hp (23.3 kW) |
| Transmission | HST (3 ranges) |
| 3-point lift, 610 mm (24 in) behind | 890 kg (1,962 lb) |
| Weight | 1,190 kg (2,624 lb) |
About this model
About the LX4020HSDCC

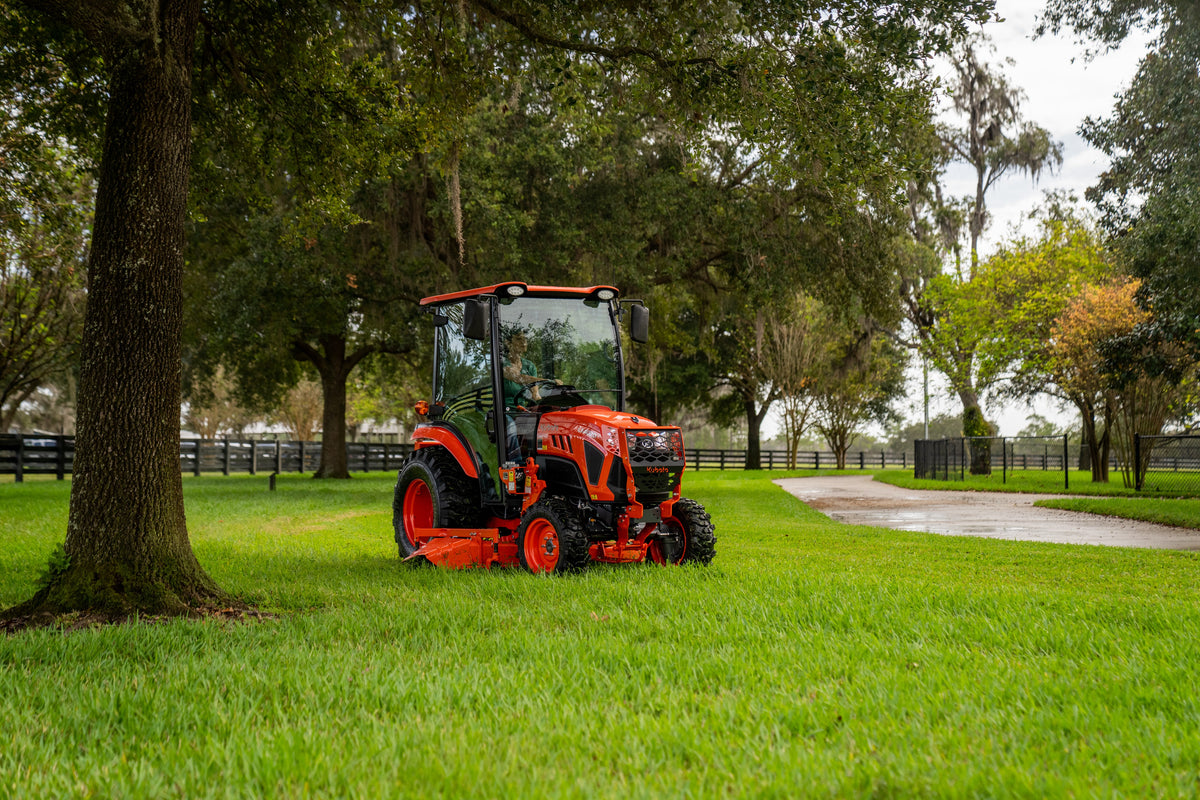

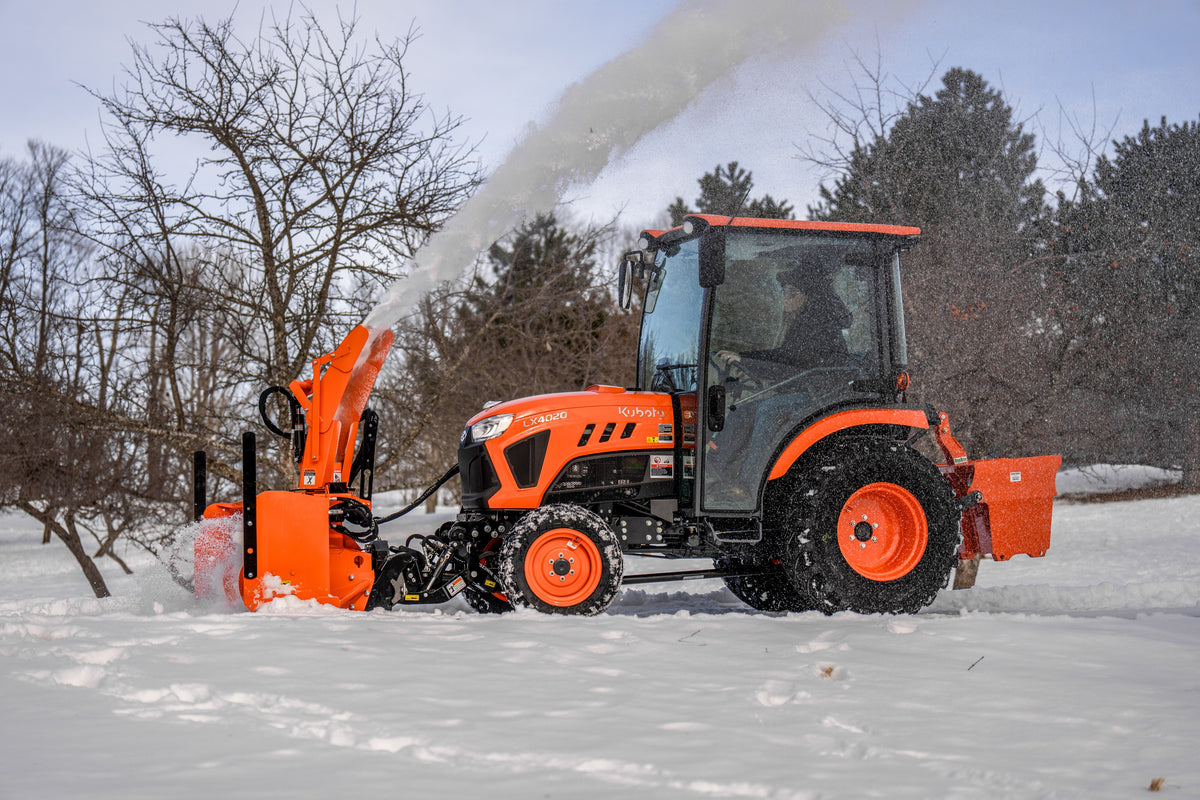

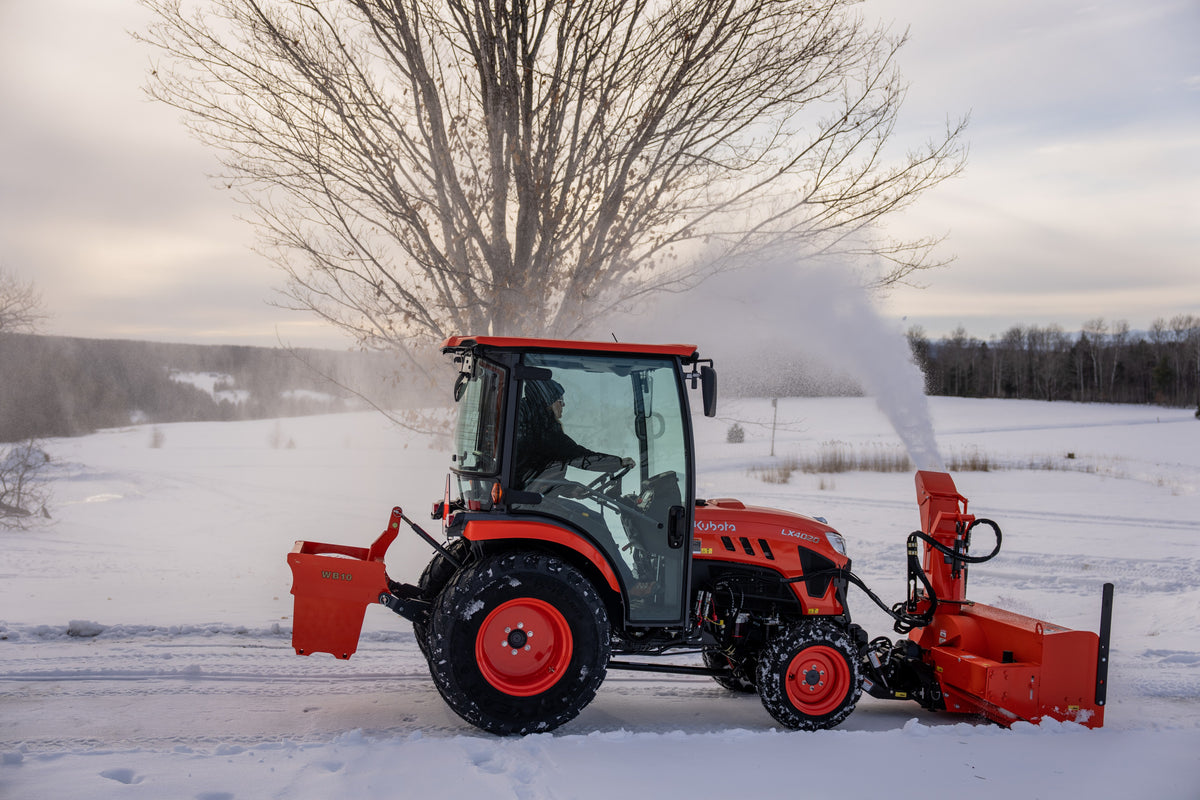

The LX20 gives you the versatility to do more with operability, comfort, and workability. Haul, dig, mow, and snowblow with a wide range of performance-matched implements, powered by a 39.8 gross hp Kubota diesel. With superior travel speed, all-day comfort, and a quiet cab you’ll take on the toughest jobs with ease. Not too big. Not too small. The LX20 is just right.
Specifications
LX4020HSDCC specifications
Engine16
| Engine type | Direct injection, vertical, water-cooled, 4-cylinder diesel with turbo charger |
|---|---|
| Engine model | V1505-CR-TE5-D40Q4 |
| PTO power | 31.2 hp (23.3 kW) |
| Engine power, gross | 39.8 hp (29.7 kW) |
| Rated engine speed | 2,700 rpm |
| Bore | 78 mm (3.1 in) |
| Stroke | 78.4 mm (3.1 in) |
| Displacement | 1,498 cc (91.4 cu in) |
| Air pre-cleaner | Paper filter with (dual element) |
| Lubrication | Forced lubrication |
| Cooling system | Pressurized radiator |
| Radiator fan | Radial air flow |
| Fuel tank | 32 L (8.5 US gal) |
| Cooling system capacity | 5.4 L (5.7 US qt) |
| Engine lubricant oil capacity | 4.7 L (5 US qt) |
| Transmission oil capacity | 24 L (6.3 US gal) |
PTO3
| PTO type | Independent |
|---|---|
| Rear, PTO/engine speed | 540 rpm |
| Mid, rated engine speed | 2,460 rpm |
Transmission and drive7
| Clutch | N / A |
|---|---|
| Transmission | HST (3 ranges) |
| Differential lock | Standard |
| Brakes | Multi-plate wet disc |
| Final drive | Spur gear |
| Forward (R1) | 27.4 km/h (17 mph) |
| Reverse (R1) | 22.6 km/h (14 mph) |
Hydraulics9
| Hydraulic system | Open center |
|---|---|
| Pump type | Dual pump |
| Total pump output | 35.8 L/min (9.5 US gpm) |
| Hydraulic outlet | Rear outlet |
| 3-point hitch | Category I |
| Control system | Position control |
| Steering | Hydraulic power steering |
| 3-point lift capacity, at the lift points | 1,150 kg (2,535 lb) |
| 3-point lift capacity, 610 mm (24 in) behind the lift points | 890 kg (1,962 lb) |
Dimensions and weight13
| Standard tire size, front R1 | 7-12 |
|---|---|
| Standard tire size, front R4 | 23x8.50-14 |
| Standard tire size, front R14 | 23x8.50-14 |
| Standard tire size, rear R1 | 12.4-16 |
| Standard tire size, rear R4 | 12.4-16 |
| Standard tire size, rear R14 | 14-17.5 |
| Overall length, without the 3-point hitch | 2,580 mm (101.6 in) |
| Overall width, at the narrowest tread | 1,365 mm (53.7 in) |
| Overall height | 2,175 mm (85.6 in) |
| Wheelbase | 1,695 mm (66.7 in) |
| Ground clearance | 225 mm (8.9 in) |
| Weight | 1,190 kg (2,624 lb) |
| Turning radius, with brake | 2.3 m (7.5 ft) |
From Kubota Canada’s specifications for the LX4020HSDCC, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
Compare
The LX20 series

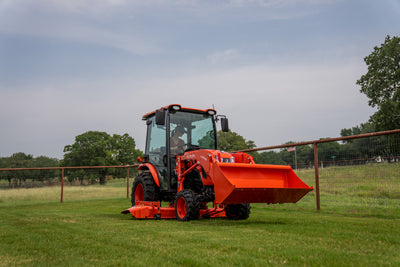

LX2620HSD
- 23.3 hp
- 19.4 hp PTO
- 760 kg lift at 24 in
LX2620HSDCC
- 23.3 hp
- 19.4 hp PTO
- 760 kg lift at 24 in
LX2620SUHSD
- 23.3 hp
- 19.4 hp PTO
- 760 kg lift at 24 in
LX3520HSDCC
- 34.9 hp
- 28.7 hp PTO
- 890 kg lift at 24 in
This model
LX4020HSDCC
- 39.8 hp
- 31.2 hp PTO
- 890 kg lift at 24 in
LX4020HSDRC
- 39.8 hp
- 32.6 hp PTO
- 890 kg lift at 24 in
