Kubota LX2620HSD

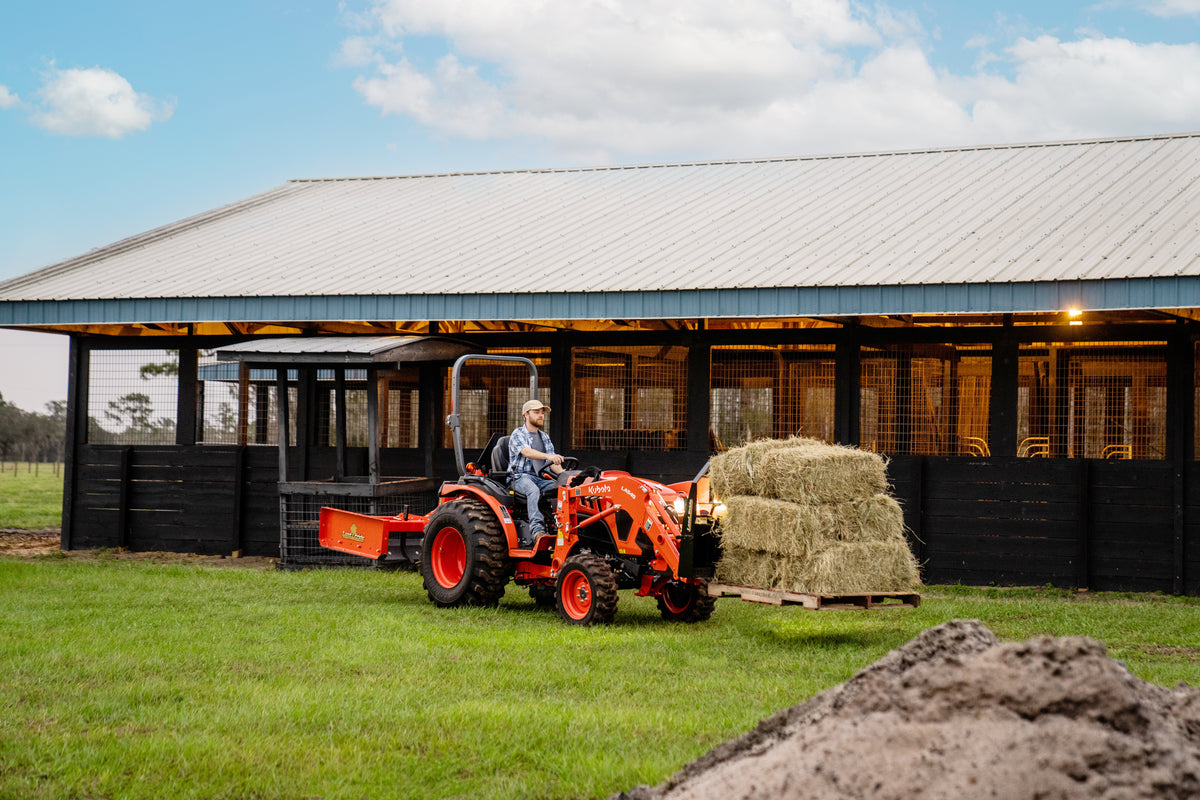

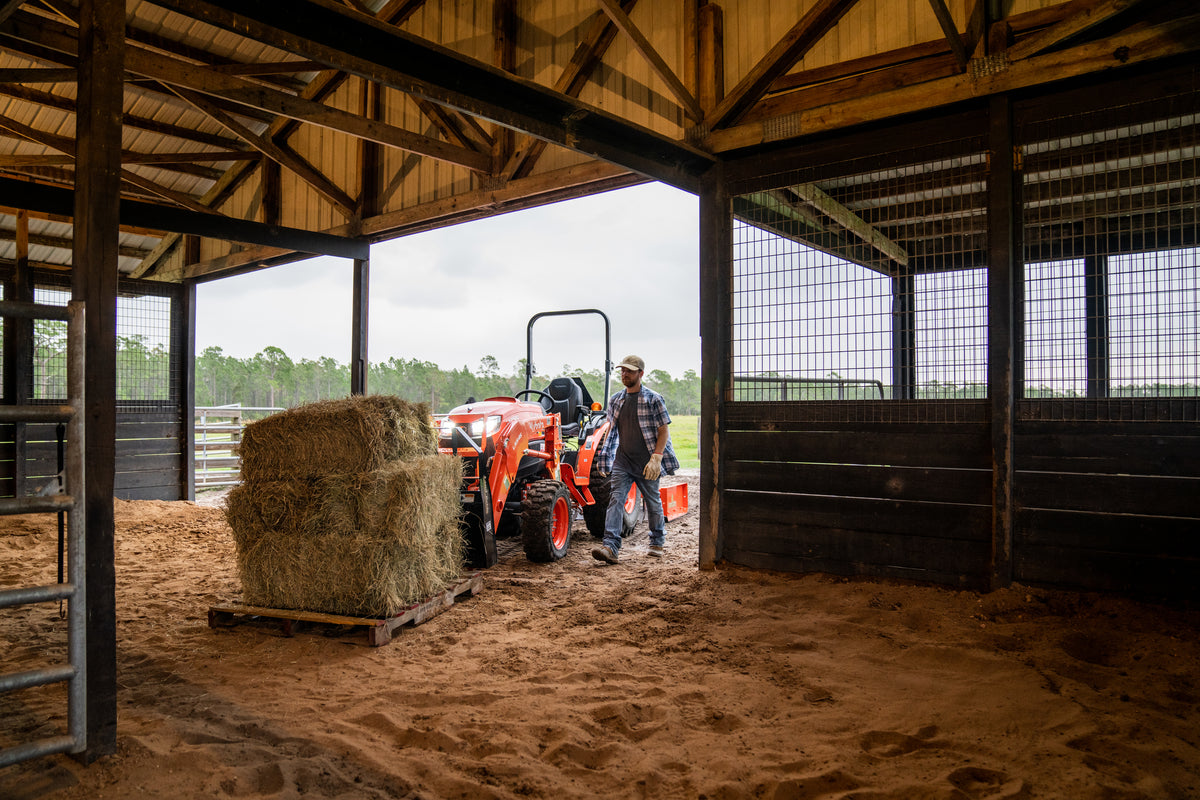

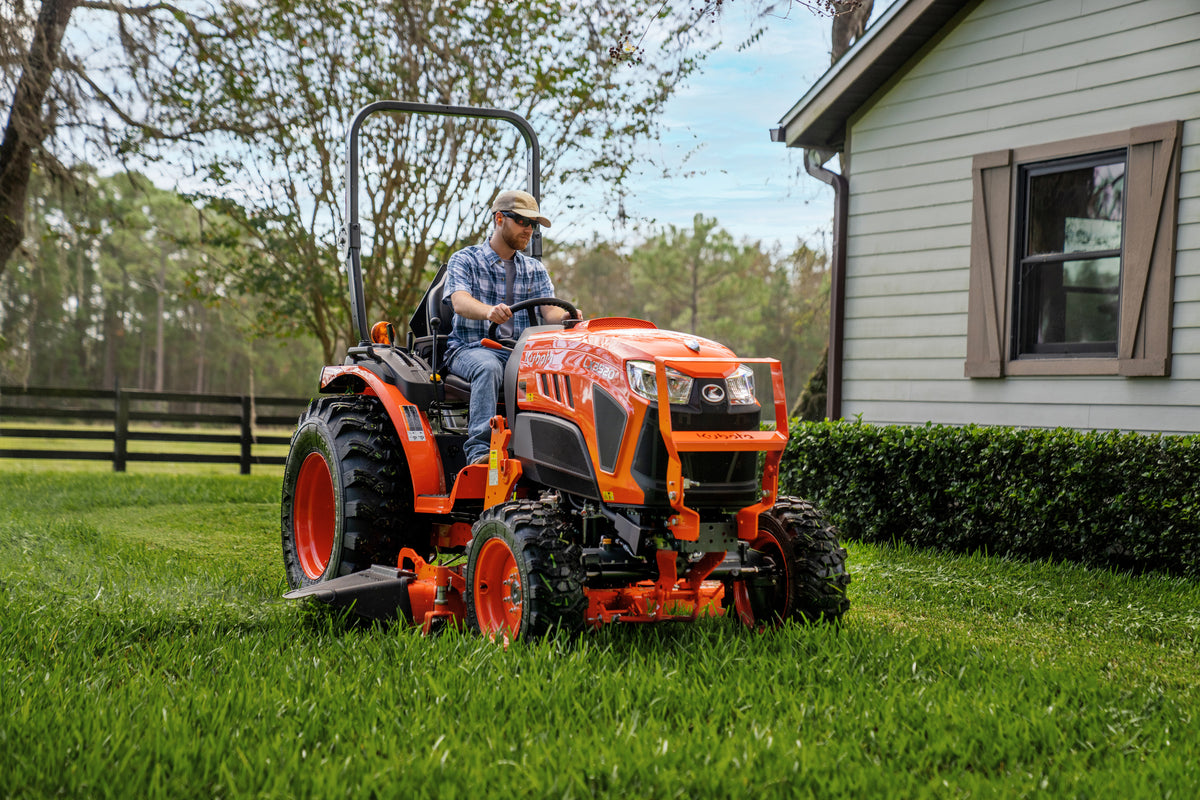

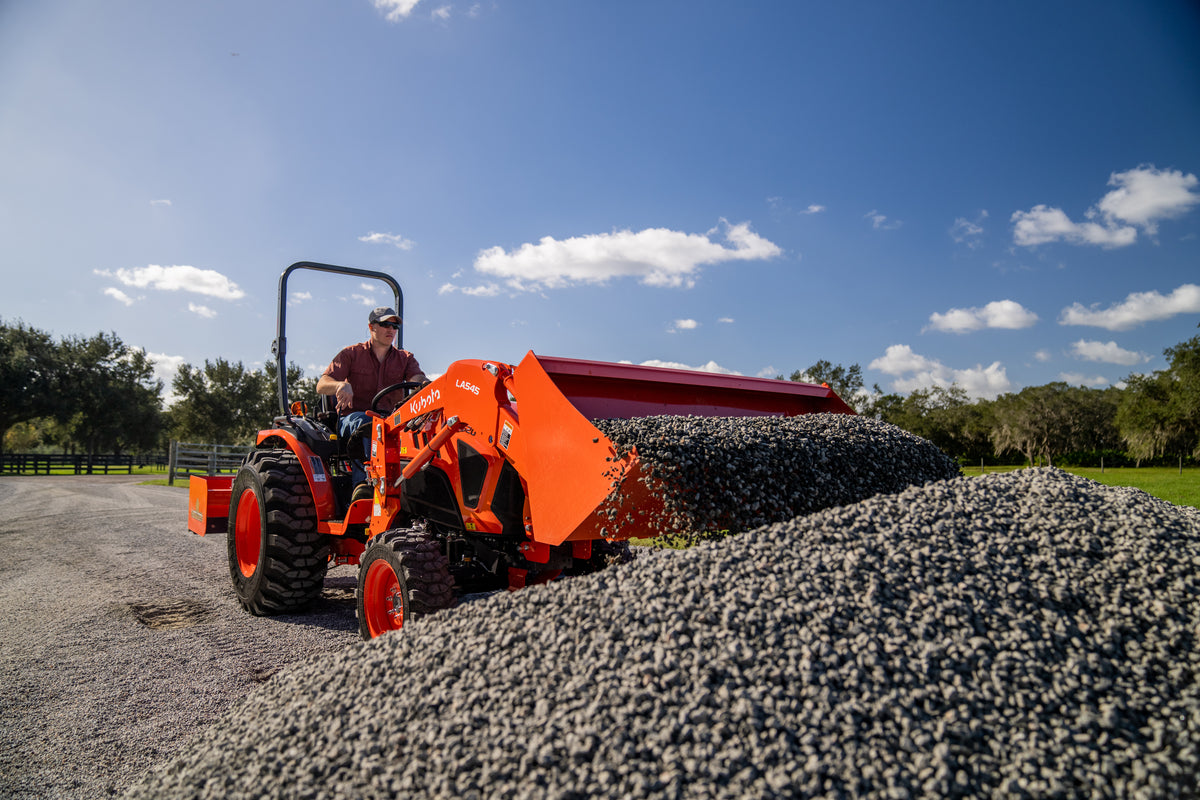

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
None on the yard right now — we can order one.
Key specs
LX2620HSD key specs
| Engine power | 23.3 hp (17.4 kW) |
|---|---|
| PTO power | 19.4 hp (14.5 kW) |
| Transmission | HST (3 ranges) |
| 3-point lift, 610 mm (24 in) behind | 760 kg (1,676 lb) |
| Weight | 805 kg (1,775 lb) |
About this model
About the LX2620HSD
The LX20 gives you the versatility to do more with operability, comfort, and workability. Haul, dig, mow, and snowblow with a wide range of performance-matched implements, powered by a 23.3 gross hp Kubota diesel. With superior travel speed and all-day comfort you’ll take on the toughest jobs with ease. Not too big. Not too small. The LX20 is just right.
Specifications
LX2620HSD specifications
Engine16
| Engine type | Indirect Injection, Vertical, water cooled 3 cylinder diesel engine |
|---|---|
| Engine model | D1305-E4-D36R |
| PTO power | 19.4 hp (14.5 kW) |
| Engine power, gross | 23.3 hp (17.4 kW) |
| Rated engine speed | 2,500 rpm |
| Bore | 78 mm (3.1 in) |
| Stroke | 88 mm (3.5 in) |
| Displacement | 1,261 cc (77 cu in) |
| Air pre-cleaner | 4.5 inch Paper filter with (dual element) |
| Lubrication | Forced lubrication |
| Cooling system | Pressurized radiator |
| Radiator fan | Radial air flow |
| Fuel tank | 27 L (7.1 US gal) |
| Cooling system capacity | 4.3 L (4.5 US qt) |
| Engine lubricant oil capacity | 4 L (4.2 US qt) |
| Transmission oil capacity | 15 L (4 US gal) |
PTO3
| PTO type | Independent |
|---|---|
| Rear, PTO/engine speed | 540 rpm |
| Mid, rated engine speed | 2,500 rpm |
Transmission and drive7
| Clutch | N / A |
|---|---|
| Transmission | HST (3 ranges) |
| Differential lock | Standard |
| Brakes | Multi-plate wet disc |
| Final drive | Spur gear |
| Forward (R1) | 18 km/h (11.2 mph) |
| Reverse (R1) | 13.5 km/h (8.4 mph) |
Hydraulics9
| Hydraulic system | Open center |
|---|---|
| Pump type | Dual pump |
| Total pump output | 33.1 L/min (8.7 US gpm) |
| Hydraulic outlet | Rear outlet |
| 3-point hitch | Category I |
| Control system | Position control |
| Steering | Hydraulic power steering |
| 3-point lift capacity, at the lift points | 970 kg (2,139 lb) |
| 3-point lift capacity, 610 mm (24 in) behind the lift points | 760 kg (1,676 lb) |
Dimensions and weight13
| Standard tire size, front R1 | 7-12 |
|---|---|
| Standard tire size, front R4 | 23x8.50-14 |
| Standard tire size, front R14 | 23x8.50-12 |
| Standard tire size, rear R1 | 12.4-16 |
| Standard tire size, rear R4 | 12.4-16 |
| Standard tire size, rear R14 | 14-17.5 |
| Overall length, without the 3-point hitch | 2,586 mm (101.8 in) |
| Overall width, at the narrowest tread | 1,365 mm (53.7 in) |
| Overall height | 2,245 mm (88.4 in) |
| Wheelbase | 1,666 mm (65.6 in) |
| Ground clearance | 370 mm (14.6 in) |
| Weight | 805 kg (1,775 lb) |
| Turning radius, with brake | 2.1 m (6.9 ft) |
From Kubota Canada’s specifications for the LX2620HSD, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
Compare
The LX20 series
This model
LX2620HSD
- 23.3 hp
- 19.4 hp PTO
- 760 kg lift at 24 in
LX2620HSDCC
- 23.3 hp
- 19.4 hp PTO
- 760 kg lift at 24 in
LX2620SUHSD
- 23.3 hp
- 19.4 hp PTO
- 760 kg lift at 24 in
LX3520HSDCC
- 34.9 hp
- 28.7 hp PTO
- 890 kg lift at 24 in
LX4020HSDCC
- 39.8 hp
- 31.2 hp PTO
- 890 kg lift at 24 in
LX4020HSDRC
- 39.8 hp
- 32.6 hp PTO
- 890 kg lift at 24 in
