TractorsNew
Kubota LX3520HSDRC

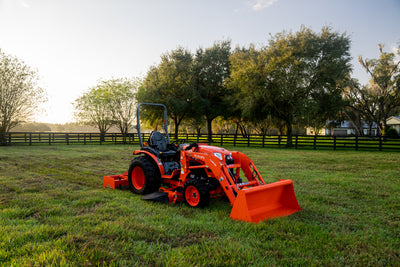

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
None on the yard right now — we can order one.
Key specs
LX3520HSDRC key specs
| Engine power | 34.9 hp (26 kW) |
|---|---|
| PTO power | 28.7 hp (21.4 kW) |
| Transmission | HST (3 ranges) |
| 3-point lift, 610 mm (24 in) behind | 890 kg (1,962 lb) |
| Weight | 994 kg (2,191 lb) |
About this model
About the LX3520HSDRC
The LX20 gives you the versatility to do more with operability, comfort, and workability. Haul, dig, mow, and snowblow with a wide range of performance-matched implements, powered by a 34.9 gross hp Kubota diesel. With superior travel speed and all-day comfort you’ll take on the toughest jobs with ease. Not too big. Not too small. The LX20 is just right.
Specifications
LX3520HSDRC specifications
Engine16
| Engine type | Direct injection, vertical, water-cooled, 4-cylinder diesel with turbo charger |
|---|---|
| Engine model | V1505-CR-TE5-D40R5 |
| PTO power | 28.7 hp (21.4 kW) |
| Engine power, gross | 34.9 hp (26 kW) |
| Rated engine speed | 2,700 rpm |
| Bore | 78 mm (3.1 in) |
| Stroke | 78.4 mm (3.1 in) |
| Displacement | 1,498 cc (91.4 cu in) |
| Air pre-cleaner | Paper filter with (dual element) |
| Lubrication | Forced lubrication |
| Cooling system | Pressurized radiator |
| Radiator fan | Radial air flow |
| Fuel tank | 32 L (8.5 US gal) |
| Cooling system capacity | 4.3 L (4.5 US qt) |
| Engine lubricant oil capacity | 4.7 L (5 US qt) |
| Transmission oil capacity | 24 L (6.3 US gal) |
PTO3
| PTO type | Independent |
|---|---|
| Rear, PTO/engine speed | 540 rpm |
| Mid, rated engine speed | 2,460 rpm |
Transmission and drive7
| Clutch | N / A |
|---|---|
| Transmission | HST (3 ranges) |
| Differential lock | Standard |
| Brakes | Multi-plate wet disc |
| Final drive | Spur gear |
| Forward (R1) | 27.4 km/h (17 mph) |
| Reverse (R1) | 22.6 km/h (14 mph) |
Hydraulics9
| Hydraulic system | Open center |
|---|---|
| Pump type | Dual pump |
| Total pump output | 35.8 L/min (9.5 US gpm) |
| Hydraulic outlet | Rear outlet |
| 3-point hitch | Category I |
| Control system | Position control |
| Steering | Hydraulic power steering |
| 3-point lift capacity, at the lift points | 1,150 kg (2,535 lb) |
| 3-point lift capacity, 610 mm (24 in) behind the lift points | 890 kg (1,962 lb) |
Dimensions and weight13
| Standard tire size, front R1 | 7-12 |
|---|---|
| Standard tire size, front R4 | 23x8.50-14 |
| Standard tire size, front R14 | 23x8.50-14 |
| Standard tire size, rear R1 | 12.4-16 |
| Standard tire size, rear R4 | 12.4-16 |
| Standard tire size, rear R14 | 14-17.5 |
| Overall length, without the 3-point hitch | 2,580 mm (101.6 in) |
| Overall width, at the narrowest tread | 1,365 mm (53.7 in) |
| Overall height | 2,240 mm (88.4 in) |
| Wheelbase | 1,695 mm (66.7 in) |
| Ground clearance | 225 mm (8.9 in) |
| Weight | 994 kg (2,191 lb) |
| Turning radius, with brake | 2.3 m (7.5 ft) |
From Kubota Canada’s specifications for the LX3520HSDRC, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
Compare
Tractors near this size
We carry only the LX3520HSDRC from Kubota’s LX20N series, so this row shows the tractors on our site nearest in engine power, two smaller and two larger.
L3302HST
- 33 hp
- 26.1 hp PTO
- 650 kg lift at 24 in
LX3520HSDCC
- 34.9 hp
- 28.7 hp PTO
- 890 kg lift at 24 in
This model
LX3520HSDRC
- 34.9 hp
- 28.7 hp PTO
- 890 kg lift at 24 in
L3770 ProCab
- 37 hp
- 28 hp PTO
- 1,200 kg lift at 24 in

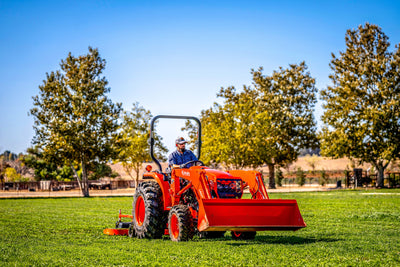

L3902HST
- 37.5 hp
- 30.3 hp PTO
- 650 kg lift at 24 in
