TractorsNew
Kubota MX5400 Cab
The MX5400 with Kubota's cab, in hydrostatic or gear drive: a utility tractor for raking, rotary cutting, material handling, feeding and moving bales, arena grooming, finish mowing and snow removal, whatever the weather.

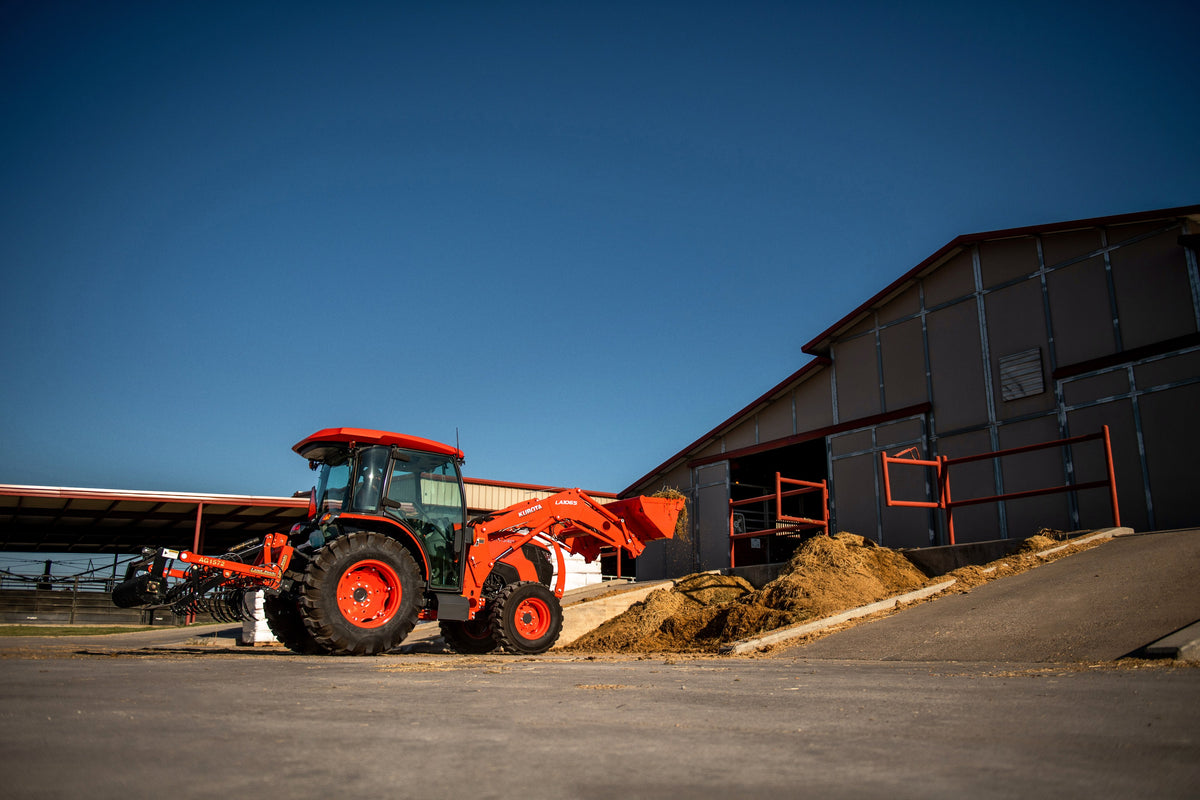

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
None on the yard right now — we can order one.
Key specs
MX5400 key specs
| Engine power | 55.5 hp (41.4 kW) gear drive; 57 hp (42.5 kW) HST |
|---|---|
| PTO power | 46.5 hp (34.7 kW) |
| Transmission | Gear drive or HST; 8 forward, 8 reverse (gear drive); 3 ranges (HST) |
| 3-point lift, 610 mm (24 in) behind | 1,050 kg (2,310 lb) |
| Weight | Cab: 1,928 kg (4,251 lb) gear drive; 1,936 kg (4,268 lb) HST |
About this model
About the MX5400
Stay comfortable during all seasons Canada has to offer with the MX cab. Equipped with heat, AC, rear window defogger and even comes radio ready.
Engineered and tested for Canadian climate, the Kubota CRS diesel engine provides efficient power and reliability. Designed with you in mind, you’ll find easily accessible maintenance points so you can focus on getting the job done.
Specifications
MX5400 specifications
Engine14
| Engine model | V2403CR-T |
|---|---|
| Engine type | CRS, direct injection, liquid cooled diesel |
| Air pre-cleaner | Dry-dual element |
| Aspiration | Turbocharged |
| Engine make | KUBOTA |
| Rated engine speed | 2,700 rpm |
| Engine power, gross | 55.5 hp (41.4 kW) gear drive; 57 hp (42.5 kW) HST |
| Engine power, net | 53 hp (39.5 kW) gear drive; 53.8 hp (40.1 kW) HST |
| PTO power | 46.5 hp (34.7 kW) |
| Displacement | 2,434 cc (148.6 cu in) |
| Alternator | 130 A |
| Fuel tank | 45 L (11.9 US gal) |
| Cylinders | 4 |
| Fuel | Diesel |
PTO2
| PTO type | Live independent, hydraulic PTO with PTO brake, wet clutch |
|---|---|
| Rear PTO speed | 540 rpm |
Transmission and drive30
| Clutch | Dry single plate (gear drive); none (HST) |
|---|---|
| Main gears | Partially synchronized (3rd & 4th), gear drive |
| Shuttle | Synchronized (gear drive); hydrostatic pedal (HST) |
| Transmission | Gear drive or HST |
| Differential lock | Rear standard (mechanical) |
| Brakes | Mechanical wet disc |
| Drive | 4WD |
| Speeds | 8 forward, 8 reverse (gear drive); 3 ranges (HST) |
| Gear drive, first, forward | 1.7 km/h (1.1 mph) |
| Gear drive, first, reverse | 1.6 km/h (1 mph) |
| Gear drive, second, forward | 2.4 km/h (1.5 mph) |
| Gear drive, second, reverse | 2.2 km/h (1.4 mph) |
| Gear drive, third, forward | 3.9 km/h (2.4 mph) |
| Gear drive, third, reverse | 3.6 km/h (2.2 mph) |
| Gear drive, fourth, forward | 5.8 km/h (3.6 mph) |
| Gear drive, fourth, reverse | 5.3 km/h (3.3 mph) |
| Gear drive, fifth, forward | 8.2 km/h (5.1 mph) |
| Gear drive, fifth, reverse | 7.5 km/h (4.7 mph) |
| Gear drive, sixth, forward | 11.6 km/h (7.2 mph) |
| Gear drive, sixth, reverse | 10.7 km/h (6.6 mph) |
| Gear drive, seventh, forward | 18.9 km/h (11.7 mph) |
| Gear drive, seventh, reverse | 17.3 km/h (10.7 mph) |
| Gear drive, eighth, forward | 27.9 km/h (17.3 mph) |
| Gear drive, eighth, reverse | 25.6 km/h (15.9 mph) |
| HST, low range, forward | 6.7 km/h (4.2 mph) |
| HST, low range, reverse | 6 km/h (3.7 mph) |
| HST, medium range, forward | 13 km/h (8.1 mph) |
| HST, medium range, reverse | 11.8 km/h (7.3 mph) |
| HST, high range, forward | 28.5 km/h (17.7 mph) |
| HST, high range, reverse | 25.8 km/h (16 mph) |
Hydraulics7
| Control system | Position (std), Draft (opt) |
|---|---|
| 3-point hitch | Category I & II |
| Power steering pump | 18.6 L/min (4.9 US gpm) |
| Pump flow | 35.8 L/min (9.5 US gpm) |
| Steering | Hydrostatic Power Steering |
| 3-point lift capacity, 610 mm (24 in) behind the lift points | 1,050 kg (2,310 lb) |
| Remote valves | Maximum 3 (opt) |
Dimensions and weight11
| Ground clearance | 385 mm (15.2 in) |
|---|---|
| Overall height | 2,355 mm (92.7 in) |
| Wheelbase | 1,895 mm (74.6 in) |
| Overall length, without the 3-point hitch | 3,195 mm (125.9 in) |
| Overall width, at the narrowest tread | 1,770 mm (69.7 in) |
| Tread width, front | 1,325 mm (52.2 in) |
| Tread width, rear | 1,375 mm (54.1 in) |
| Turning radius, with brake | 2.7 m (8.9 ft) |
| Tires, standard, front | 9.5-16 |
| Tires, standard, rear | 14.9-26 |
| Weight, cab | 1,928 kg (4,251 lb) gear drive; 1,936 kg (4,268 lb) HST |
Operator station and other4
| 4WD drive system | Bevel gear type |
|---|---|
| Deck type | Flat |
| Hood type | Full open hood |
| Pedal type | Hanging pedals |
From Kubota Canada’s specifications for the MX5400, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
Compare
The MX series

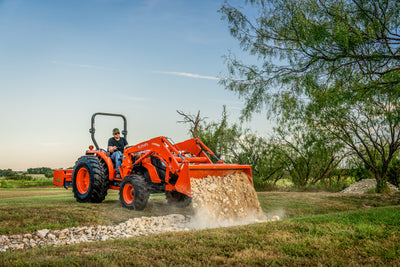

MX4900
- 50.3 hp
- 41.3 hp PTO
- 1,050 kg lift at 24 in

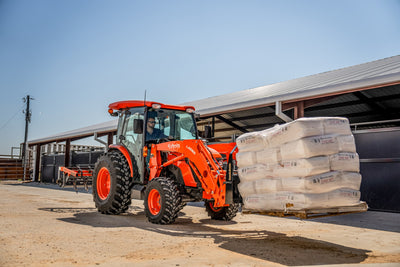

MX4900 Cab
- 50.3 hp
- 41.3 hp PTO
- 1,050 kg lift at 24 in
This model
MX5400 Cab
- 55.5 hp
- 46.5 hp PTO
- 1,050 kg lift at 24 in
MX5400HSTRC
- 57 hp
- 46.5 hp PTO
- 1,050 kg lift at 24 in
MX6000HSTCC
- 63.4 hp
- 51.8 hp PTO
- 1,050 kg lift at 24 in
MX6000HSTRC
- 63.4 hp
- 51.8 hp PTO
- 1,050 kg lift at 24 in
