Kubota MX4900 Cab
The MX4900 with Kubota's cab, in hydrostatic or gear drive: a utility tractor for raking, rotary cutting, material handling, feeding and moving bales, arena grooming, finish mowing and snow removal, whatever the weather.

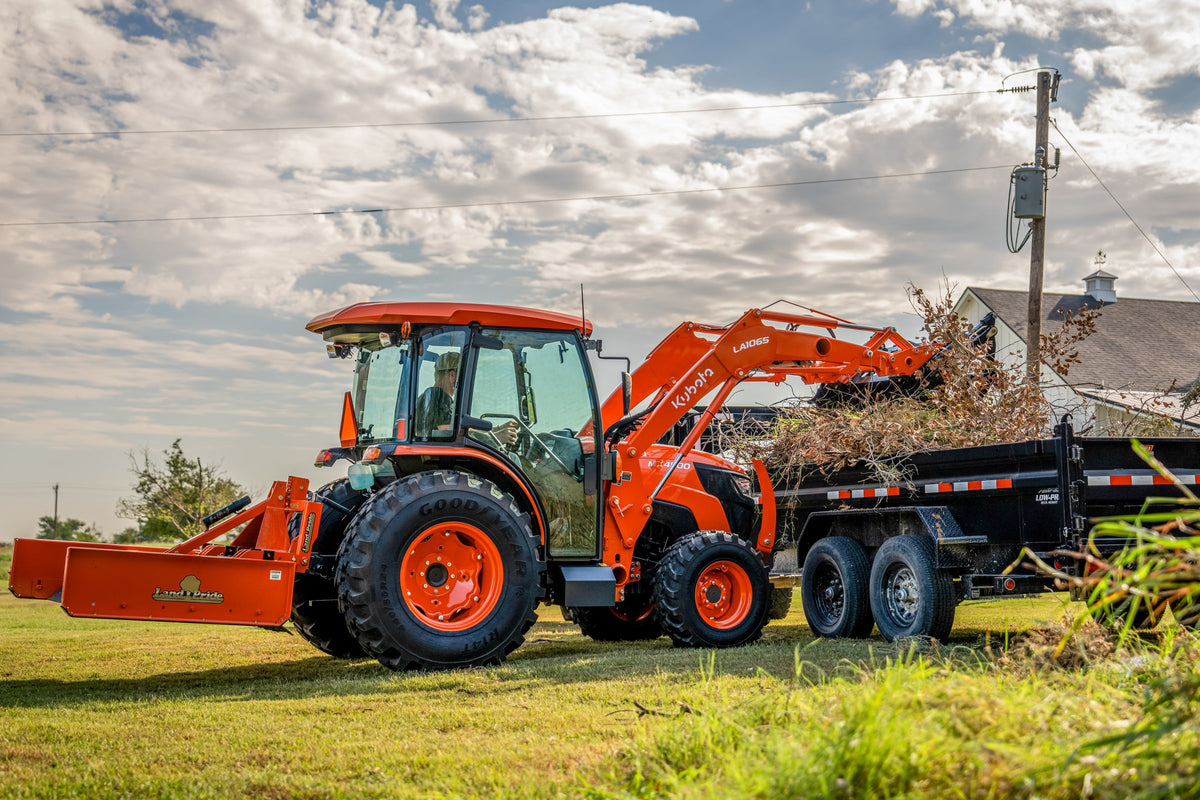

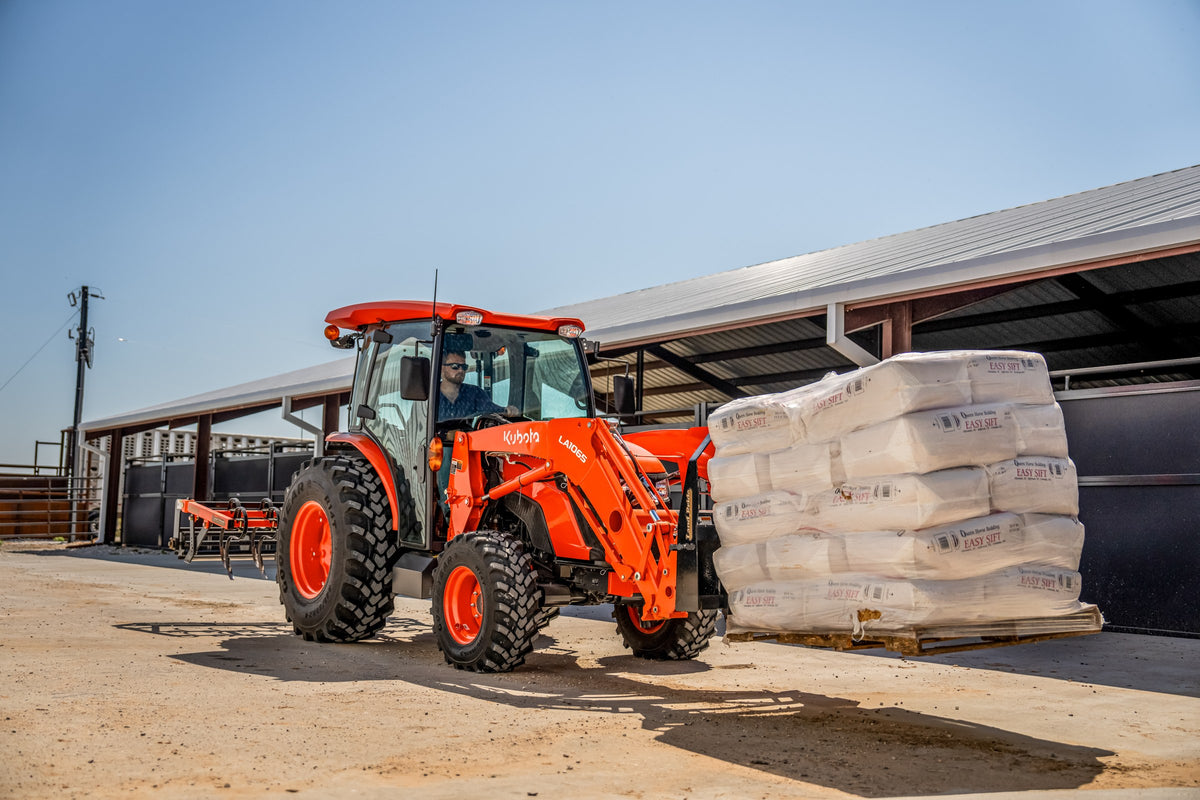

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
MX4900 Cab key specs
| Engine power | 50.3 hp (37.5 kW) gear drive; 51.8 hp (38.6 kW) HST |
|---|---|
| PTO power | 41.3 hp (30.8 kW) |
| Transmission | Gear drive or HST; 8 forward, 8 reverse (gear drive); 3 ranges (HST) |
| 3-point lift, 24 in (610 mm) behind | 2,310 lb (1,050 kg) |
| Weight | Cab: 4,251 lb (1,928 kg) gear drive; 4,268 lb (1,936 kg) HST |
About the MX4900 Cab
Stay comfortable during all seasons Canada has to offer with the MX cab. Equipped with heat, AC, rear window defogger and even comes radio ready.
Engineered and tested for Canadian climate, the Kubota CRS diesel engine provides efficient power and reliability. Designed with you in mind, you’ll find easily accessible maintenance points so you can focus on getting the job done.
MX4900 Cab specifications
Engine13
| Engine model | V2403CR-T |
|---|---|
| Engine make | Kubota |
| Engine type | Liquid-cooled, 4-cylinder diesel |
| Engine power, gross | 50.3 hp (37.5 kW) gear drive; 51.8 hp (38.6 kW) HST |
| Engine power, net | 47.7 hp (35.6 kW) gear drive; 48.5 hp (36.2 kW) HST |
| PTO power | 41.3 hp (30.8 kW) |
| Aspiration | Turbocharged |
| Displacement | 2,434 cc (148.6 cu in) |
| Rated engine speed | 2,700 rpm |
| Air pre-cleaner | Dry-dual element |
| Fuel tank | 45 L (11.9 US gal) |
| Alternator | 130 A |
| Cylinders | 4 |
PTO2
| PTO type | Live independent, hydraulic PTO with PTO brake, wet clutch |
|---|---|
| Rear PTO speed | 540 rpm |
Transmission and drive30
| Transmission | Gear drive or HST |
|---|---|
| Drive | 4WD |
| Main gears | Partially synchronized (3rd & 4th), gear drive |
| Shuttle | Synchronized (gear drive); hydrostatic pedal (HST) |
| Clutch | Dry single plate (gear drive); none (HST) |
| Brakes | Mechanical wet disc |
| Differential lock | Rear standard (mechanical) |
| Speeds | 8 forward, 8 reverse (gear drive); 3 ranges (HST) |
| Gear drive, first, forward | 1.7 km/h (1.1 mph) |
| Gear drive, first, reverse | 1.6 km/h (1 mph) |
| Gear drive, second, forward | 2.4 km/h (1.5 mph) |
| Gear drive, second, reverse | 2.2 km/h (1.4 mph) |
| Gear drive, third, forward | 3.9 km/h (2.4 mph) |
| Gear drive, third, reverse | 3.6 km/h (2.2 mph) |
| Gear drive, fourth, forward | 5.8 km/h (3.6 mph) |
| Gear drive, fourth, reverse | 5.3 km/h (3.3 mph) |
| Gear drive, fifth, forward | 8.2 km/h (5.1 mph) |
| Gear drive, fifth, reverse | 7.5 km/h (4.7 mph) |
| Gear drive, sixth, forward | 11.6 km/h (7.2 mph) |
| Gear drive, sixth, reverse | 10.7 km/h (6.6 mph) |
| Gear drive, seventh, forward | 18.9 km/h (11.7 mph) |
| Gear drive, seventh, reverse | 17.3 km/h (10.7 mph) |
| Gear drive, eighth, forward | 27.9 km/h (17.3 mph) |
| Gear drive, eighth, reverse | 25.6 km/h (15.9 mph) |
| HST, low range, forward | 6.7 km/h (4.2 mph) |
| HST, low range, reverse | 6 km/h (3.7 mph) |
| HST, medium range, forward | 13 km/h (8.1 mph) |
| HST, medium range, reverse | 11.8 km/h (7.3 mph) |
| HST, high range, forward | 28.5 km/h (17.7 mph) |
| HST, high range, reverse | 25.8 km/h (16 mph) |
Hydraulics7
| Pump flow | 9.5 US gpm (35.8 L/min) |
|---|---|
| Power steering pump | 4.9 US gpm (18.6 L/min) |
| 3-point hitch | Category I & II |
| Control system | Position (std), Draft (opt) |
| Steering | Hydrostatic Power Steering |
| 3-point lift capacity, 24 in (610 mm) behind the lift points | 2,310 lb (1,050 kg) |
| Remote valves | Maximum 3 (opt) |
Dimensions and weight11
| Tires, standard, front | 9.5-16 |
|---|---|
| Tires, standard, rear | 14.9-26 |
| Overall length, without the 3-point hitch | 125.9 in (3,195 mm) |
| Overall width, at the narrowest tread | 69.7 in (1,770 mm) |
| Overall height | 92.7 in (2,355 mm) |
| Wheelbase | 74.6 in (1,895 mm) |
| Ground clearance | 15.2 in (385 mm) |
| Tread width, front | 52.2 in (1,325 mm) |
| Tread width, rear | 54.2 in (1,375 mm) |
| Turning radius, with brake | 8.9 ft (2.7 m) |
| Weight, cab | 4,251 lb (1,928 kg) gear drive; 4,268 lb (1,936 kg) HST |
Operator station and other4
| 4WD drive system | Bevel gear type |
|---|---|
| Hood type | Full open hood |
| Pedal type | Hanging pedals |
| Deck type | Flat |
From Kubota Canada’s specifications for the MX4900 Cab, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
