TractorsNew

Kubota L6070 ProCab

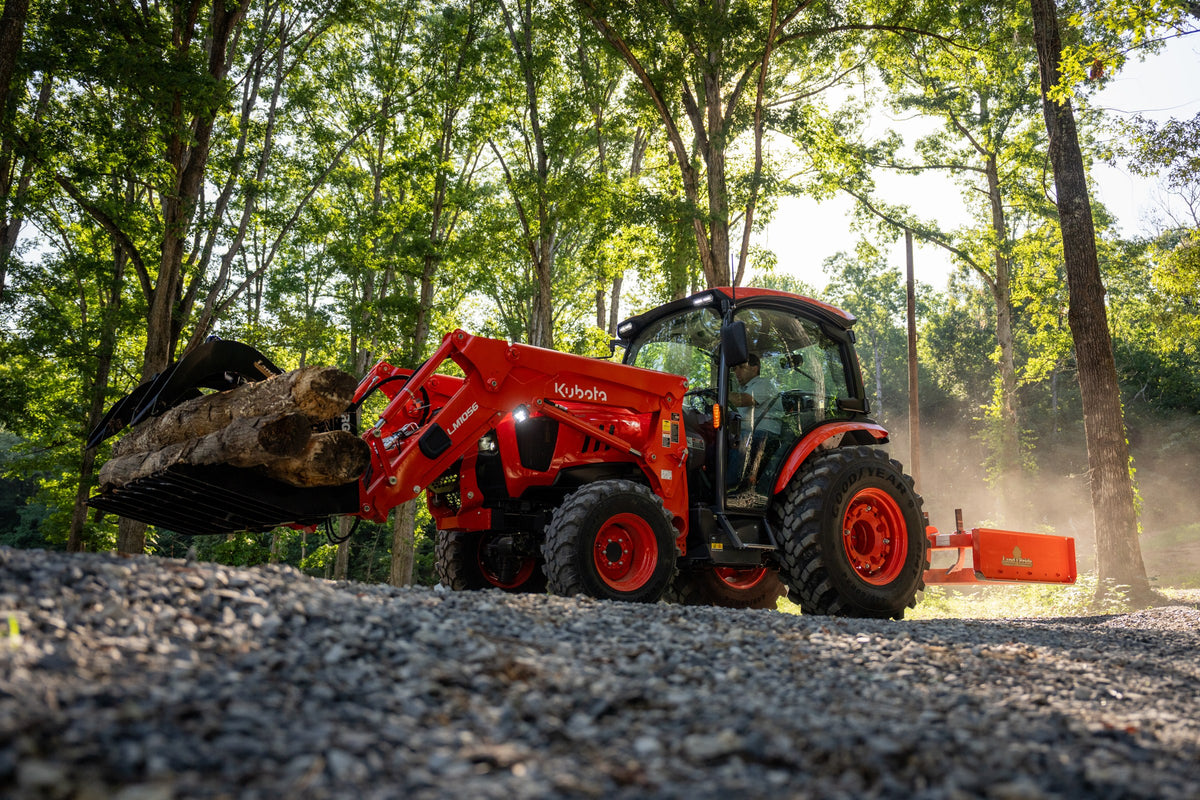

The L6070 with Kubota's ProCab: a larger cab built for all-day work, better visibility, tuned ventilation and up to 8% less noise, LED lighting front and rear, and the loader's main controls on one multi-function lever.

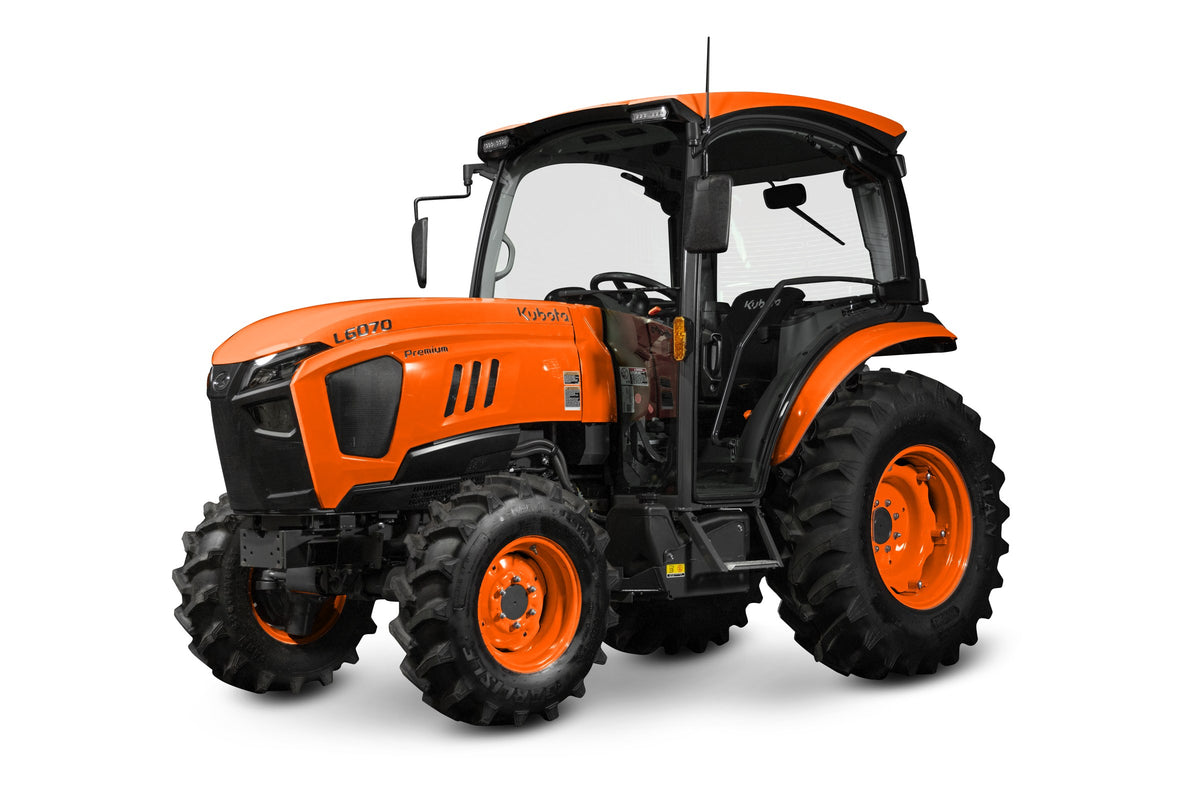

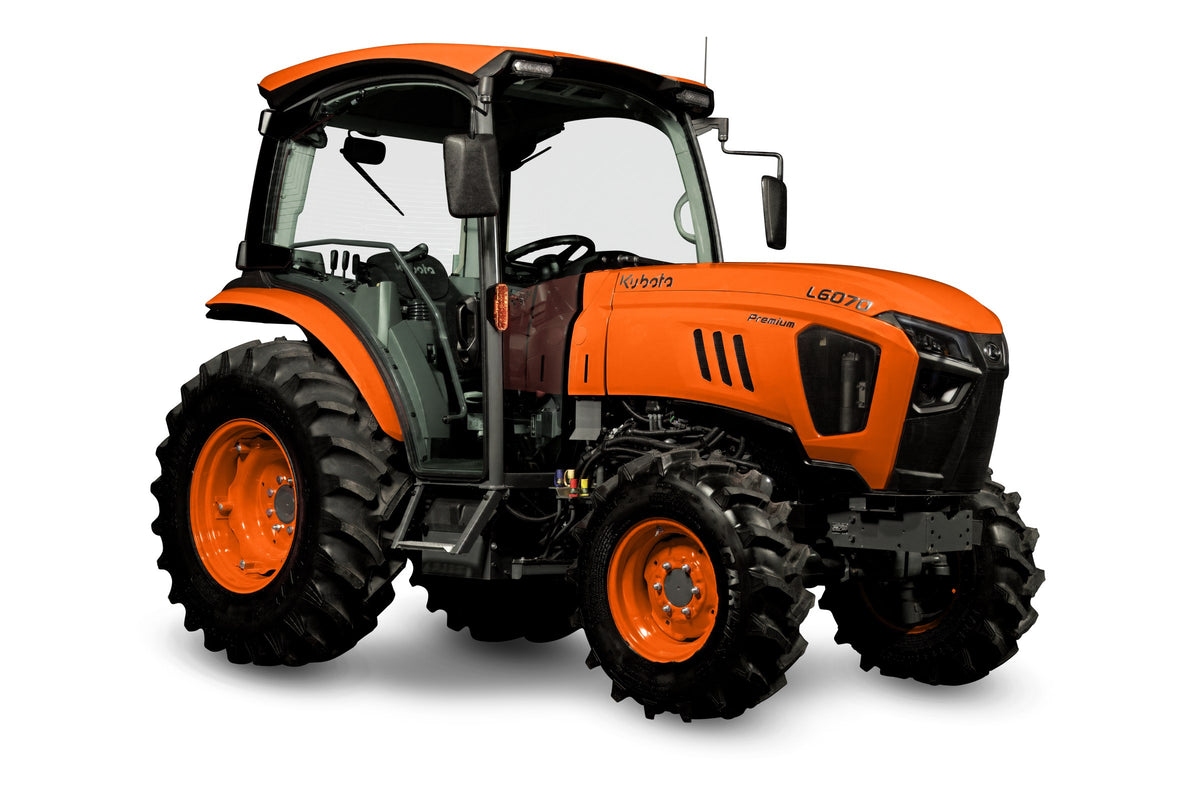

Representative photo of this model.

Request a quote

Tell us what you need it for and we will come back with the options that matter.

None on the yard right now — we can order one.
Key specs

L6070 ProCab key specs

Engine power60 hp (44.7 kW)
PTO power53 hp (39.5 kW)
TransmissionHydrostatic
3-point lift, 24 in (610 mm) behind2,976 lb (1,350 kg)
Weight4,762 lb (2,160 kg), cab
About this model

About the L6070 ProCab

The L70 series features a fully redesigned exterior and larger cab, making your ride smoother and more comfortable. With sleek styling, bright LED headlights, a reimagined operator station, and increased capacities, it’s built to perform and designed to turn heads.

Kubota-built turbo engines —ranging from 39 to 60 HP— paired with the electronic iHST transmission are optimized for power and efficiency, running at lower RPMs to reduce noise and improve fuel efficiency by over 8%. A heavy-duty front axle and increased travel speed of up to 28.6 km/h add productivity and efficiency to every job.

Specifications

L6070 ProCab specifications

Engine11
Engine modelV2403-CR-TIE5
Engine typeDirect injection, Water-Cooled 4-Cycle Diesel, Common Rail System
Displacement2,434 cc (148.5 cu in)
Bore3.4 in (87 mm)
Stroke4 in (102.4 mm)
Rated engine speed2,300 rpm
Engine power, gross60 hp (44.7 kW)
PTO power53 hp (39.5 kW)
Maximum torque180.7 lb-ft (245 N·m)
Cylinders4
Battery12 V; 680 cold-cranking amps; 150 min reserve capacity
PTO3
Mid, rated engine speed2,300 rpm
Rear PTO shaftSAE 1 3/8 in, 6 splines
Rear, PTO/engine speed540 rpm
Transmission and drive3
TransmissionHydrostatic
BrakesWet disc type
Top speed, forward29.8 km/h (18.5 mph)
Hydraulics6
SteeringHydrostatic power steering
Rear remotes3
3-point hitchSAE Category 1,2
Pump flow, implements9.83 US gpm (37.2 L/min)
3-point lift capacity, at the lift points3,858 lb (1,750 kg)
3-point lift capacity, 24 in (610 mm) behind the lift points2,976 lb (1,350 kg)
Dimensions and weight12
Overall length, without the 3-point hitch133.9 in (3,400 mm)
Overall width, at the narrowest tread67.3 in (1,710 mm)
Standard tire size, front9.5-16
Standard tire size, rear14.9-26
Overall height, top of cab93.3 in (2,370 mm)
Wheelbase81.3 in (2,065 mm)
Ground clearance15.4 in (392 mm)
Property size (acres)10-20+
Tread width, front52.2 in (1,325 mm)
Tread width, rear56.3 in (1,430 mm)
Weight, cab4,762 lb (2,160 kg)
Turning radius, with brake9.5 ft (2.9 m)
Operator station and other2
Trim levelPremium
Station typeProCab

From Kubota Canada’s specifications for the L6070 ProCab, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.

Owner information

For L6070 ProCab owners

Operator's manual

Kubota Canada publishes the operator's manual for the L3770, L3970, L4270, L4470, L5070 and L6070.

Open the operator's manual (PDF) ↗
Land Pride attachments

Implements matched to the L6070 ProCab

Kubota's matched-implement brochures and Land Pride's Kubota charts pair these implements with the L6070 ProCab. Each one is rated for the L6070 ProCab's horsepower and 3-point hitch.

  • Land Pride FDR2584 Grooming Mower

    NewClearance

    Land Pride FDR2584 Grooming Mower

    The FDR2584 is Land Pride's 84-inch rear-discharge grooming mower for compact tractors of 15 to 60 hp, on a Category I hitch with a floating, adjustable clevis, and it fits Land Pride's Quick Hitch. Three heat-treated alloy-steel blades run off the 540 rpm ...

    Quote

    1 in stock · Sexsmith

    View unit
  • Land Pride QH16 Quick Hitch

    New

    Land Pride QH16 Quick Hitch

    The QH16 is Land Pride's quick hitch for tractors with a Category I 3-point hitch: it lets you hook on to an implement, often without leaving the seat, and its locks close on the implement's lower pins by themselves. The top hook adjusts from 14-7/8 to 18-7...

    Quote

    3 in stock · Sexsmith

    View unit
  • Land Pride RCR1248 Rotary Cutter

    NewClearance

    Land Pride RCR1248 Rotary Cutter

    The RCR1248 is Land Pride's 48-inch rotary cutter for subcompact and compact tractors of 20 to 60 hp, on a Category I hitch that is quick-hitch ready. It cuts grass, weeds and light brush at heights from 1-1/4 to 10 inches with two free-swinging heat-treate...

    Quote

    1 in stock · Sexsmith

    View unit
  • Land Pride RCR1260 Rotary Cutter

    NewClearance

    Land Pride RCR1260 Rotary Cutter

    The RCR1260 is Land Pride's 60-inch rotary cutter for compact tractors of 20 to 60 hp, on a Category I hitch that is quick-hitch ready. It cuts grass, weeds and light brush at heights from 1-1/4 to 10 inches with two free-swinging heat-treated blades, drive...

    Quote

    1 in stock · Sexsmith

    View unit
  • Land Pride RTR1282 Rotary Tiller

    NewClearance

    Land Pride RTR1282 Rotary Tiller

    The RTR1282 is Land Pride's 82-inch reverse-rotation rotary tiller for compact tractors of 30 to 60 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...

    Quote

    1 in stock · Sexsmith

    View unit
  • Land Pride STB1584 Snow Trip Blade

    NewClearance

    Land Pride STB1584 Snow Trip Blade

    The STB1584 is Land Pride's 84-inch snow trip blade for tractor front-end loaders, sized for tractors of 30 to 70 hp on a universal quick-attach plate. Its 27-inch curved moldboard is 10-gauge steel and angles up to 30 degrees left or right, by hand or with...

    Quote

    2 in stock · Sexsmith

    View unit
  • Land Pride FSP700 Broadcast Spreader

    New

    Land Pride FSP700 Broadcast Spreader

    The FSP700 is Land Pride's 3-point broadcast spreader for tractors of 18 hp and up, on a Category I hitch. Its one-piece polyethylene hopper holds about 9 cubic feet, up to 563 lb, and a spinner driven from the 540 rpm PTO spreads granular material 23 to 54...

    Quote

    None on the yard right now — we can order one.

    Get pricing
  • Land Pride FSP1000 Broadcast Spreader

    New

    Land Pride FSP1000 Broadcast Spreader

    The FSP1000 is Land Pride's largest 3-point broadcast spreader, for tractors of 20 hp and up, on a Category I hitch. Its one-piece polyethylene hopper holds about 12 cubic feet, up to 673 lb, and a spinner driven from the 540 rpm PTO spreads granular materi...

    Quote

    None on the yard right now — we can order one.

    Get pricing

More implements matched to the L Series are in Kubota's brochure. Kubota's L Series matched-implement brochure (PDF) ↗
