Kubota L3970 ProCab
The L3970 with Kubota's ProCab: a larger cab built for all-day work, better visibility, tuned ventilation and up to 8% less noise, LED lighting front and rear, and the loader's main controls on one multi-function lever.

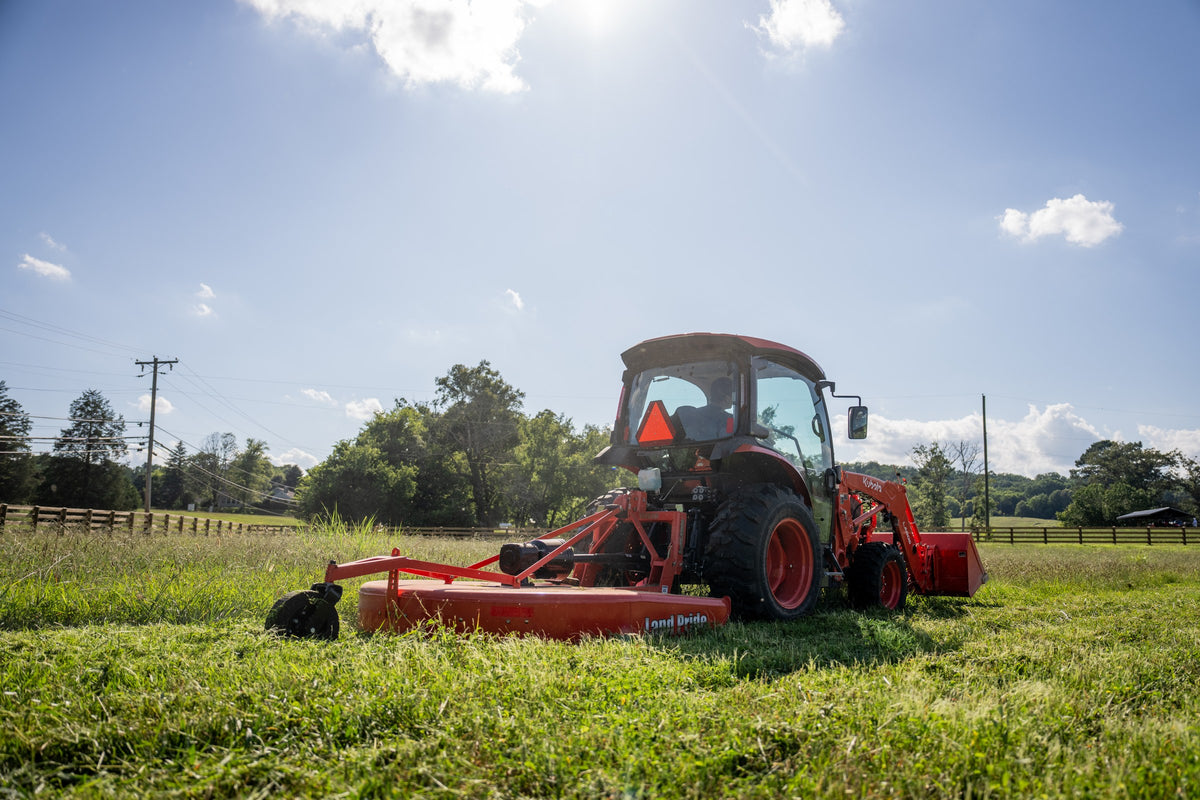

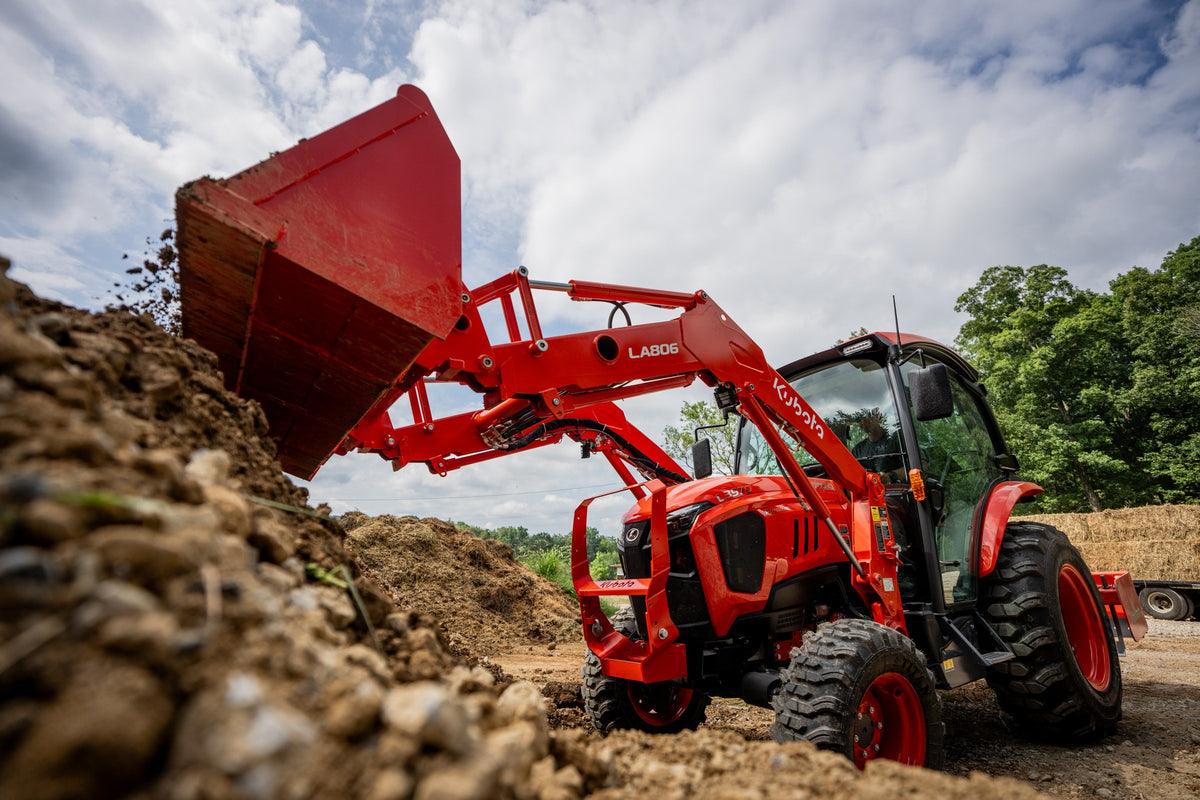

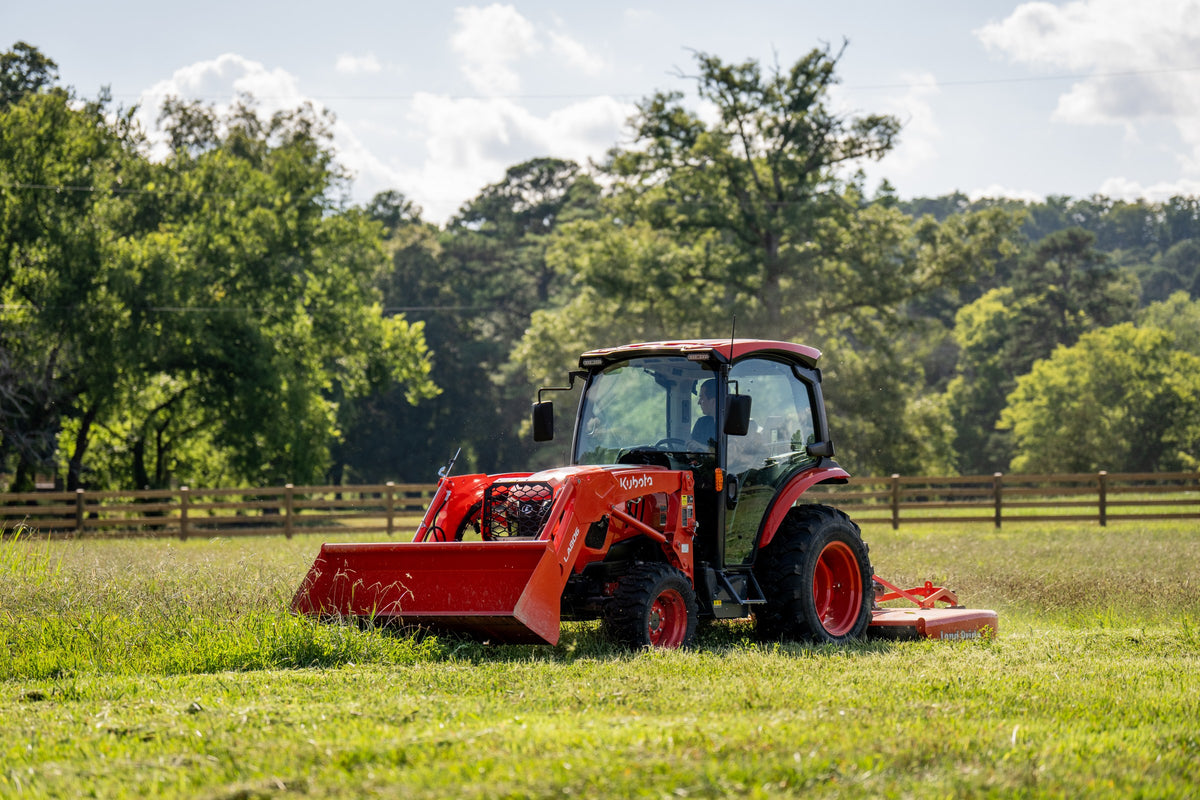

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
L3970 ProCab key specs
| Engine power | 39 hp (29.1 kW) |
|---|---|
| PTO power | 30.9 hp (23 kW) |
| Transmission | Hydrostatic |
| 3-point lift, 24 in (610 mm) behind | 2,646 lb (1,200 kg) |
| Weight | 4,387 lb (1,990 kg), cab |
About the L3970 ProCab
The L70 series features a fully redesigned exterior and larger cab, making your ride smoother and more comfortable. With sleek styling, bright LED headlights, a reimagined operator station, and increased capacities, it’s built to perform and designed to turn heads.
Kubota-built turbo engines —ranging from 39 to 60 HP— paired with the electronic iHST transmission are optimized for power and efficiency, running at lower RPMs to reduce noise and improve fuel efficiency by over 8%. A heavy-duty front axle and increased travel speed of up to 28.6 km/h add productivity and efficiency to every job.
L3970 ProCab specifications
Engine11
| Engine model | D1803-CR-TE5 |
|---|---|
| Engine type | Direct injection, Water-Cooled 4-Cycle Diesel, Common Rail System |
| Displacement | 1,826 cc (111.4 cu in) |
| Bore | 3.4 in (87 mm) |
| Stroke | 4 in (102.4 mm) |
| Rated engine speed | 2,300 rpm |
| Engine power, gross | 39 hp (29.1 kW) |
| PTO power | 30.9 hp (23 kW) |
| Maximum torque | 109.4 lb-ft (148.3 N·m) |
| Cylinders | 3 |
| Battery | 12 V; 680 cold-cranking amps; 150 min reserve capacity |
PTO3
| Mid, rated engine speed | 2,300 rpm |
|---|---|
| Rear PTO shaft | SAE 1 3/8 in, 6 splines |
| Rear, PTO/engine speed | 540 rpm |
Transmission and drive3
| Transmission | Hydrostatic |
|---|---|
| Brakes | Wet disc type |
| Top speed, forward | 29.4 km/h (18.3 mph) |
Hydraulics6
| Steering | Hydrostatic power steering |
|---|---|
| Rear remotes | 3 |
| 3-point hitch | SAE Category 1 |
| Pump flow, implements | 9.83 US gpm (37.2 L/min) |
| 3-point lift capacity, at the lift points | 3,748 lb (1,700 kg) |
| 3-point lift capacity, 24 in (610 mm) behind the lift points | 2,646 lb (1,200 kg) |
Loader and lift1
| Ground contact pressure, property size (acres) | 10-20+ |
|---|
Dimensions and weight12
| Overall length, without the 3-point hitch | 121.9 in (3,095 mm) |
|---|---|
| Overall width, at the narrowest tread | 59.8 in (1,520 mm) |
| Standard tire size, front | 7.0-16 |
| Standard tire size, rear | 12.4-24 |
| Overall height, top of cab | 91.3 in (2,320 mm) |
| Wheelbase | 77 in (1,955 mm) |
| Ground clearance | 13.5 in (342 mm) |
| Property size (acres) | 10-20+ |
| Tread width, front | 45.5 in (1,155 mm) |
| Tread width, rear | 58.3 in (1,480 mm) |
| Weight, cab | 4,387 lb (1,990 kg) |
| Turning radius, with brake | 9.5 ft (2.9 m) |
Operator station and other2
| Trim level | Premium |
|---|---|
| Station type | ProCab |
From Kubota Canada’s specifications for the L3970 ProCab, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
For L3970 ProCab owners
Operator's manual
Kubota Canada publishes the operator's manual for the L3770, L3970, L4270, L4470, L5070 and L6070.
Open the operator's manual (PDF) ↗The L70 series

L3770 ProCab
- 37 hp
- 28 hp PTO
- 2,646 lb lift at 24 in

L3970 ProCab
- 39 hp
- 30.9 hp PTO
- 2,646 lb lift at 24 in

L4270 ProCab
- 42 hp
- 32.5 hp PTO
- 2,756 lb lift at 24 in

L4470 ProCab
- 44 hp
- 36.2 hp PTO
- 2,756 lb lift at 24 in

L5070 ProCab
- 50 hp
- 39.8 hp PTO
- 2,756 lb lift at 24 in

L6070 ProCab
- 60 hp
- 53 hp PTO
- 2,976 lb lift at 24 in
Implements matched to the L3970 ProCab
Kubota's matched-implement brochures and Land Pride's Kubota charts pair these implements with the L3970 ProCab. Each one is rated for the L3970 ProCab's horsepower and 3-point hitch.
-
NewClearance
Land Pride FDR2584 Grooming Mower
The FDR2584 is Land Pride's 84-inch rear-discharge grooming mower for compact tractors of 15 to 60 hp, on a Category I hitch with a floating, adjustable clevis, and it fits Land Pride's Quick Hitch. Three heat-treated alloy-steel blades run off the 540 rpm ...
View unitQuote
-
NewClearance
Land Pride GS1560 Grading Scraper
The GS1560 is Land Pride's 60-inch grading scraper for tractors of 25 to 50 hp, on a Category I hitch or a Category I quick hitch. Two 1/2 x 6 inch high-carbon blades, one behind the other at a 5-degree angle, cut off high spots and fill ruts on lanes and g...
View unitQuote
-
New
Land Pride QH16 Quick Hitch
The QH16 is Land Pride's quick hitch for tractors with a Category I 3-point hitch: it lets you hook on to an implement, often without leaving the seat, and its locks close on the implement's lower pins by themselves. The top hook adjusts from 14-7/8 to 18-7...
View unitQuote
-
NewClearance
Land Pride RB1560 Rear Blade
The RB1560 is Land Pride's 60-inch rear blade for tractors of 17 to 40 hp, on a Category I hitch, and it fits Land Pride's Quick Hitch. The 14-inch moldboard angles forward up to 45 degrees in seven positions and backward up to 30 degrees, either way, and o...
View unitQuote
-
NewClearance
Land Pride RB1684 Rear Blade
The RB1684 is Land Pride's 84-inch rear blade for tractors of 20 to 40 hp, on a Category I hitch, and it fits Land Pride's Quick Hitch. The 14-inch moldboard angles forward up to 45 degrees in seven positions and backward up to 30 degrees, offsets 12 inches...
View unitQuote
-
NewClearance
Land Pride RCR1248 Rotary Cutter
The RCR1248 is Land Pride's 48-inch rotary cutter for subcompact and compact tractors of 20 to 60 hp, on a Category I hitch that is quick-hitch ready. It cuts grass, weeds and light brush at heights from 1-1/4 to 10 inches with two free-swinging heat-treate...
View unitQuote
-
NewClearance
Land Pride RCR1260 Rotary Cutter
The RCR1260 is Land Pride's 60-inch rotary cutter for compact tractors of 20 to 60 hp, on a Category I hitch that is quick-hitch ready. It cuts grass, weeds and light brush at heights from 1-1/4 to 10 inches with two free-swinging heat-treated blades, drive...
View unitQuote
-
NewClearance
Land Pride RTR1250 Rotary Tiller
The RTR1250 is Land Pride's 50-inch reverse-rotation rotary tiller for compact tractors of 15 to 40 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...
View unitQuote
-
New
Land Pride RTR1258 Rotary Tiller
The RTR1258 is Land Pride's 58-inch reverse-rotation rotary tiller for compact tractors of 20 to 50 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...
View unitQuote
-
NewClearance
Land Pride RTR1282 Rotary Tiller
The RTR1282 is Land Pride's 82-inch reverse-rotation rotary tiller for compact tractors of 30 to 60 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...
View unitQuote
-
NewClearance
Land Pride STB1584 Snow Trip Blade
The STB1584 is Land Pride's 84-inch snow trip blade for tractor front-end loaders, sized for tractors of 30 to 70 hp on a universal quick-attach plate. Its 27-inch curved moldboard is 10-gauge steel and angles up to 30 degrees left or right, by hand or with...
View unitQuote
-
NewClearance
Land Pride PD15 Post Hole Digger
The PD15 is a 3-point post hole digger for compact tractors of 20 to 40 hp with a Category I hitch. It runs 48-inch dirt augers in 6, 9 and 12 inch diameters, takes rock augers from 6 to 18 inches, and its Category II driveline carries a shear bolt that pro...
View unitQuote
-
NewClearance
Land Pride LR1672 Landscape Rake
The LR1672 is a 72-inch landscape rake for compact tractors of 20 to 40 hp on a Category I 3-point hitch, and it fits Land Pride's Quick Hitch. Its 36 high-carbon spring-steel teeth sit on 2-inch centres and can be replaced one at a time, and the rake angle...
View unitQuote
-
New
Land Pride FDR1672 Grooming Mower
The FDR1672 is Land Pride's 72-inch rear-discharge grooming mower for compact tractors of 15 to 40 hp, on a Category I hitch with floating clevises top and bottom, and it fits Land Pride's Quick Hitch. Three heat-treated alloy-steel blades run off the 540 r...
Get pricingQuote
-
New
Land Pride FSP700 Broadcast Spreader
The FSP700 is Land Pride's 3-point broadcast spreader for tractors of 18 hp and up, on a Category I hitch. Its one-piece polyethylene hopper holds about 9 cubic feet, up to 563 lb, and a spinner driven from the 540 rpm PTO spreads granular material 23 to 54...
Get pricingQuote
-
New
Land Pride FSP1000 Broadcast Spreader
The FSP1000 is Land Pride's largest 3-point broadcast spreader, for tractors of 20 hp and up, on a Category I hitch. Its one-piece polyethylene hopper holds about 12 cubic feet, up to 673 lb, and a spinner driven from the 540 rpm PTO spreads granular materi...
Get pricingQuote
-
New
Land Pride GS1572 Grading Scraper
The GS1572 is Land Pride's 72-inch grading scraper for tractors of 25 to 50 hp, on a Category I hitch or a Category I quick hitch. Two 1/2 x 6 inch high-carbon blades, one behind the other at a 5-degree angle, cut off high spots and fill ruts on lanes and g...
Get pricingQuote
-
New
Land Pride RB1672 Rear Blade
The RB1672 is Land Pride's 72-inch rear blade for tractors of 20 to 40 hp, on a Category I hitch, and it fits Land Pride's Quick Hitch. The 14-inch moldboard angles forward up to 45 degrees in seven positions and backward up to 30 degrees, offsets 12 inches...
Get pricingQuote
-
New
Land Pride RCR1272 Rotary Cutter
The RCR1272 is Land Pride's 72-inch rotary cutter for compact tractors of 25 to 60 hp, on a Category I hitch that is quick-hitch ready. It cuts grass, weeds and light brush at heights from 1-1/4 to 10 inches with two free-swinging heat-treated blades, drive...
Get pricingQuote
-
New
Land Pride RCR1872 Rotary Cutter
The RCR1872 is Land Pride's 72-inch rotary cutter for tractors of 20 to 65 hp, on a Category I hitch with a floating clevis top link, quick-hitch ready. It cuts grass, weeds and brush up to 2 inches thick at heights from 1-1/2 to 11-1/2 inches with two free...
Get pricingQuote
-
New
Land Pride RTR1266 Rotary Tiller
The RTR1266 is Land Pride's 66-inch reverse-rotation rotary tiller for compact tractors of 20 to 50 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...
Get pricingQuote
-
New
Land Pride RTR1274 Rotary Tiller
The RTR1274 is Land Pride's 74-inch reverse-rotation rotary tiller for compact tractors of 25 to 60 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...
Get pricingQuote
More implements matched to the L Series are in Kubota's brochure. Kubota's L Series matched-implement brochure (PDF) ↗
