Kubota L4802HST

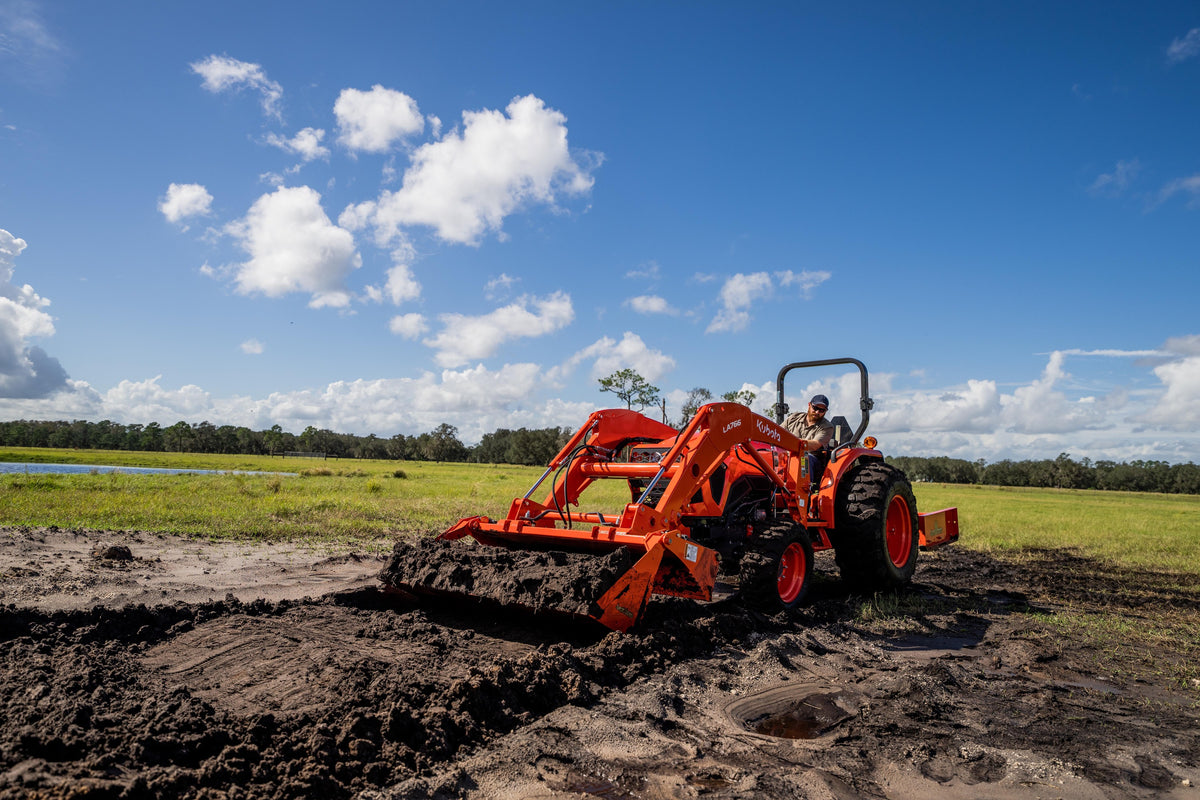

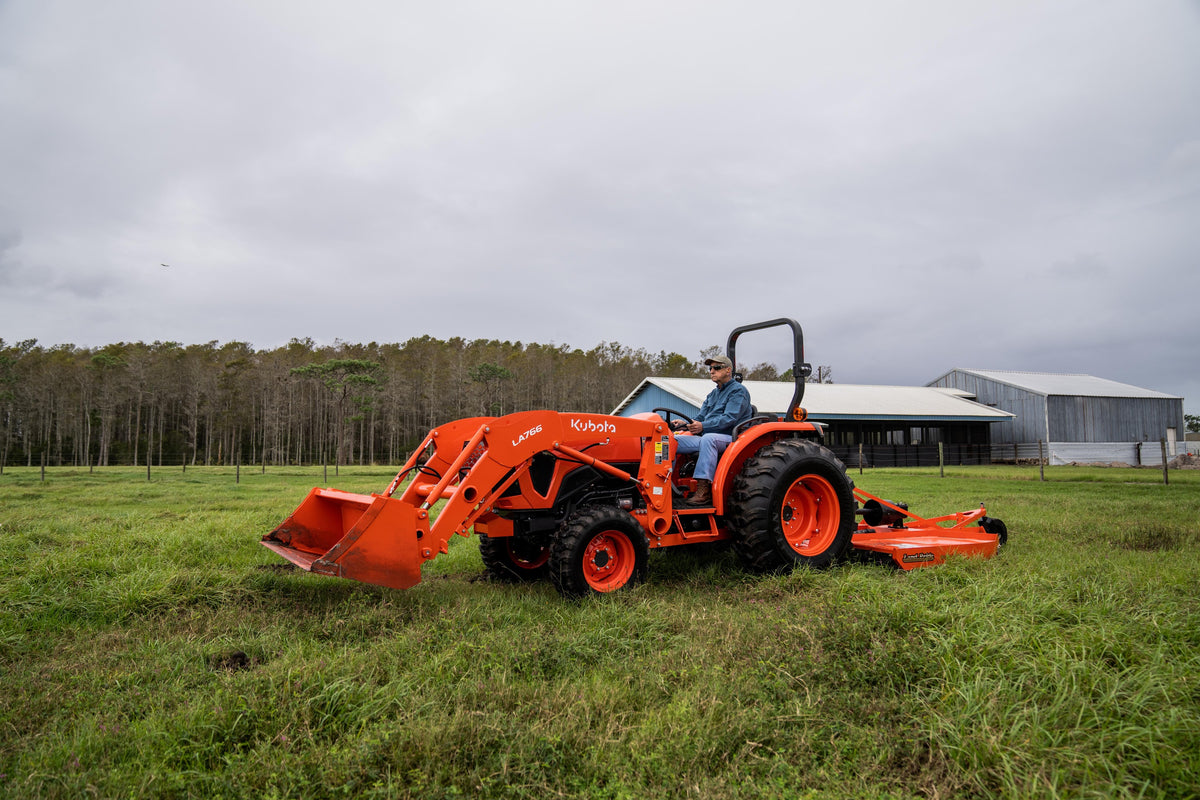

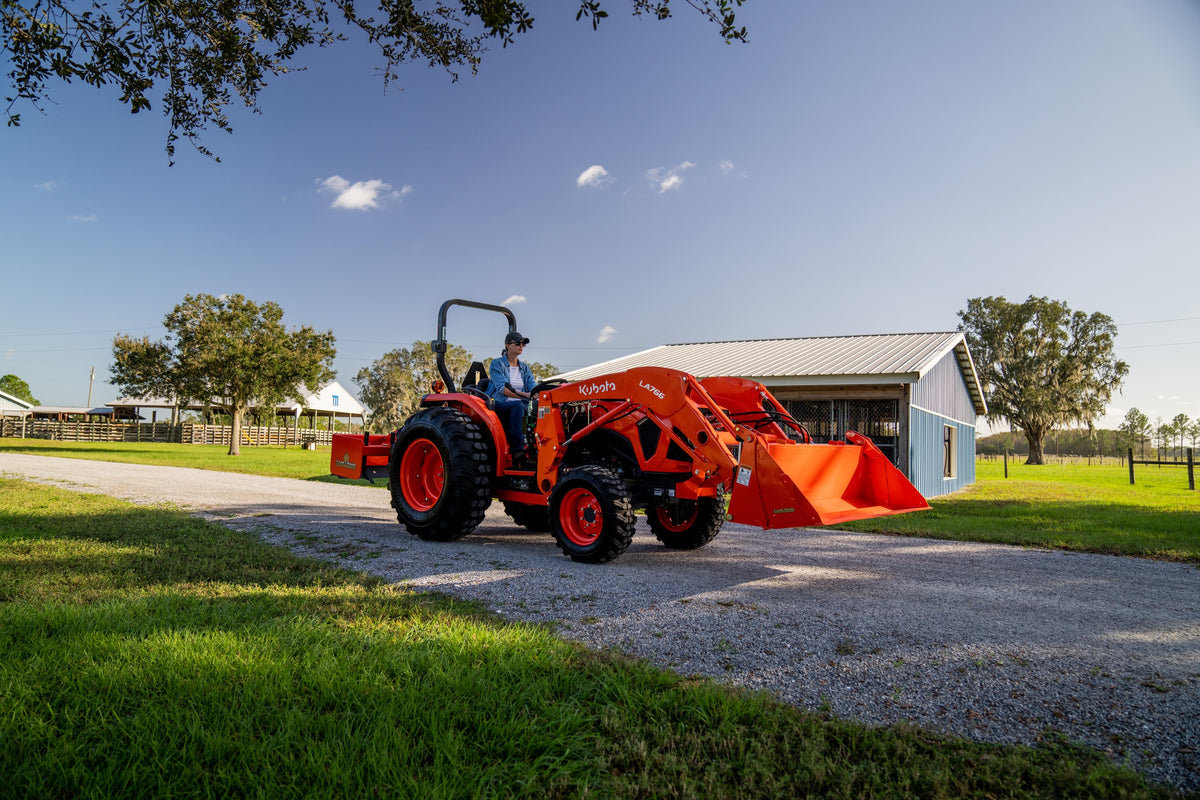

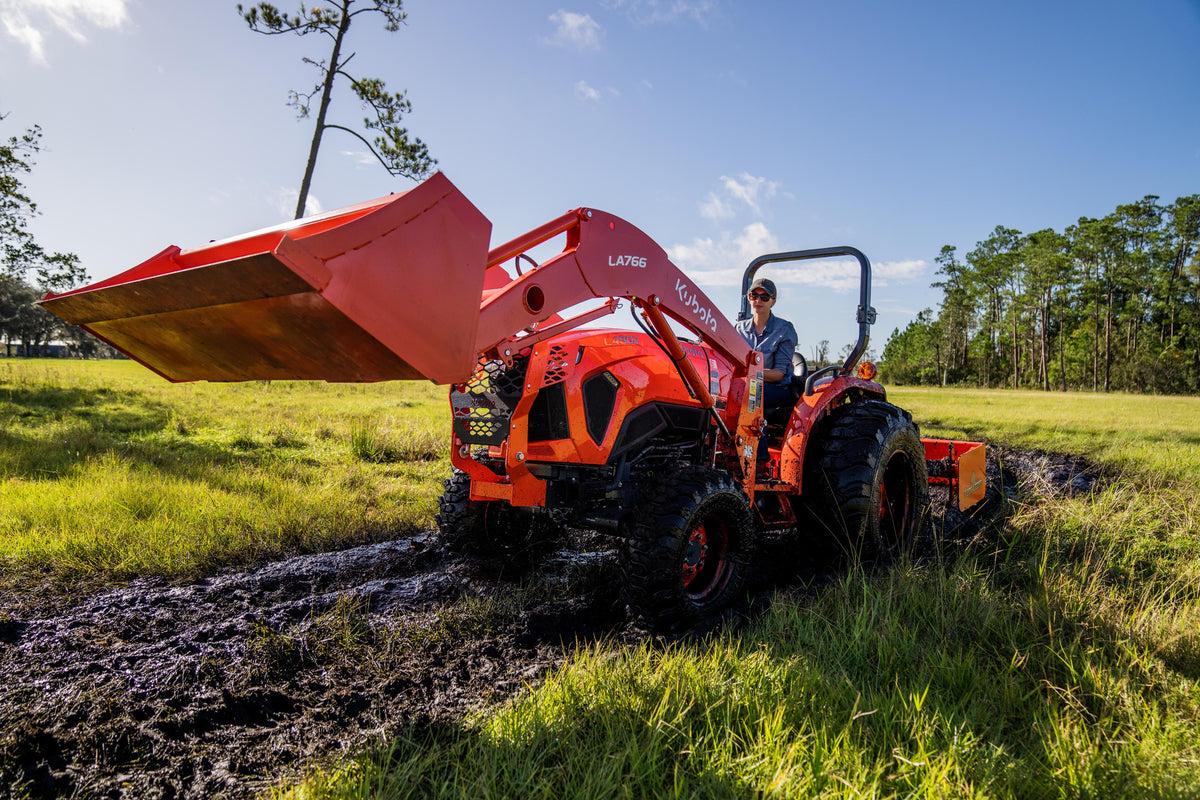

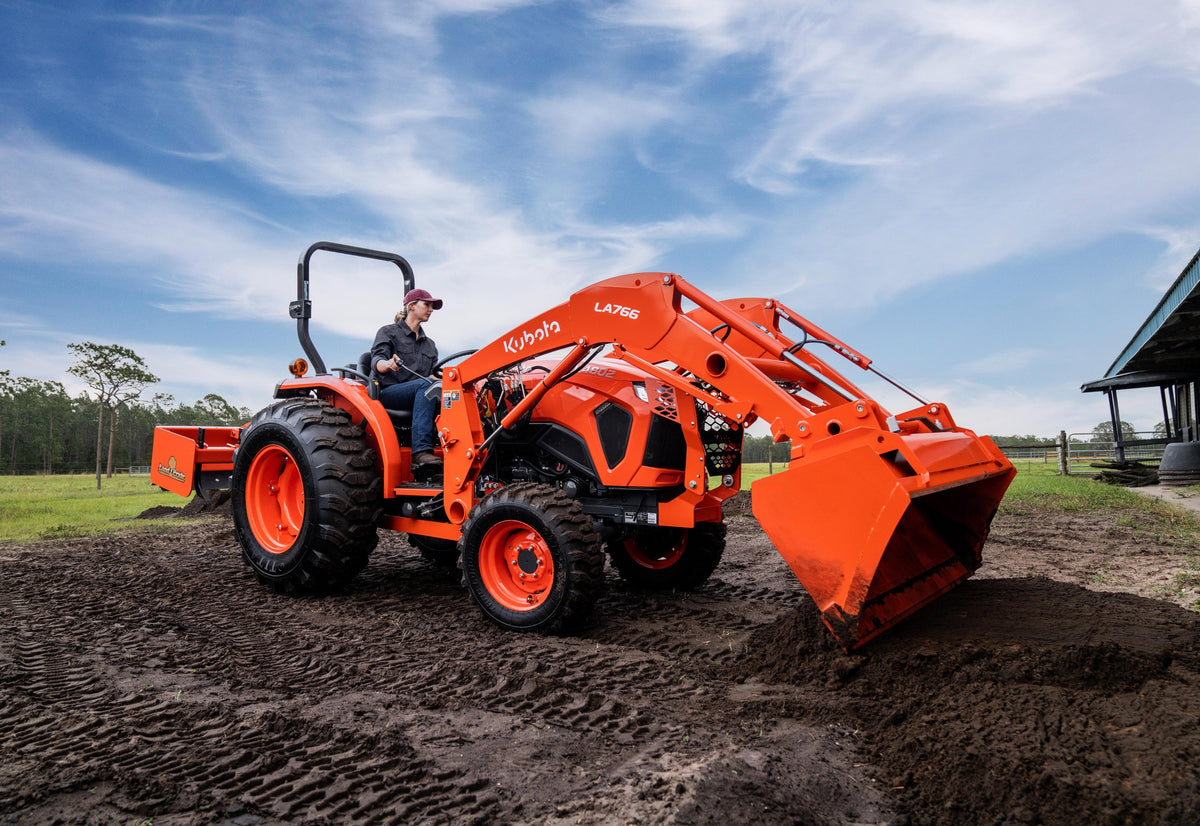

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
L4802 key specs
| Engine power | 48.4 hp (36.1 kW) |
|---|---|
| PTO power | 39 hp (29.1 kW) |
| Transmission | HST; 3 ranges |
| 3-point lift, 24 in (610 mm) behind | 2,320 lb (1,053 kg) |
| Weight | 3,549 lb (1,610 kg) |
About the L4802
L4802 specifications
Engine13
| Engine type | Direct injection, vertical, water-cooled 4-cycle diesel |
|---|---|
| Bore | 3.4 in (87 mm) |
| Stroke | 4 in (102.4 mm) |
| Rated engine speed | 2,600 rpm |
| Engine power, gross | 48.4 hp (36.1 kW) |
| Engine power, net | 46 hp (34.3 kW) |
| PTO power | 39 hp (29.1 kW) |
| Displacement | 2,434 cc (148.5 cu in) |
| Alternator | 45 A |
| Fuel tank | 51 L (13.5 US gal) |
| Cylinders | 4 |
| Battery | 12 V; 600 cold-cranking amps; 120 min reserve capacity |
| Fuel | Diesel |
PTO3
| Rear PTO speed | 540 rpm |
|---|---|
| PTO type | Live independent PTO with hydraulic clutch |
| Engine speed at rated PTO speed | 2,640 rpm |
Transmission and drive6
| Ranges | 3 |
|---|---|
| Transmission | HST |
| Brakes | Mechanical, wet disc type |
| Drive | 4WD |
| Top speed, forward | 25.4 km/h (15.8 mph) |
| Top speed, reverse | 22.9 km/h (14.2 mph) |
Hydraulics8
| 3-point hitch | Category I |
|---|---|
| Lift control | Position control |
| System pressure | 2,560 psi (17.7 MPa) |
| Steering | Hydrostatic power steering |
| 3-point lift capacity, 24 in (610 mm) behind the lift points | 2,320 lb (1,053 kg) |
| 3-point lift capacity, at the lift points | 2,870 lb (1,300 kg) |
| Pump flow, implements | 7.8 US gpm (29.4 L/min) |
| Pump flow, power steering | 4.7 US gpm (17.9 L/min) |
Dimensions and weight11
| Ground clearance | 15.2 in (385 mm) |
|---|---|
| Wheelbase | 72.6 in (1,845 mm) |
| Weight | 3,549 lb (1,610 kg) |
| Overall height, open station | 91.7 in (2,330 mm) |
| Overall length, without the 3-point hitch | 120.3 in (3,055 mm) |
| Overall width, at the narrowest tread | 62.2 in (1,580 mm) |
| Tires, ag (standard), front | 8.3-16 |
| Tires, ag (standard), rear | 14.9-24 |
| Tread width, front | 45.5 in (1,155 mm) |
| Tread width, rear | 60.8 in (1,545 mm) |
| Turning radius, with brake | 8.5 ft (2.6 m) |
From Kubota Canada’s specifications for the L4802, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
The L02 series

L2502HST
- 23.3 hp
- 18.4 hp PTO
- 1,389 lb lift at 24 in

L3302HST
- 33 hp
- 26.1 hp PTO
- 1,433 lb lift at 24 in

L3902HST
- 37.5 hp
- 30.3 hp PTO
- 1,433 lb lift at 24 in

L4802HST
- 48.4 hp
- 39 hp PTO
- 2,320 lb lift at 24 in
Implements matched to the L4802
Kubota's matched-implement brochures and Land Pride's Kubota charts pair these implements with the L4802. Each one is rated for the L4802's horsepower and 3-point hitch.
-
NewClearance
Land Pride FDR2584 Grooming Mower
The FDR2584 is Land Pride's 84-inch rear-discharge grooming mower for compact tractors of 15 to 60 hp, on a Category I hitch with a floating, adjustable clevis, and it fits Land Pride's Quick Hitch. Three heat-treated alloy-steel blades run off the 540 rpm ...
View unitQuote
-
NewClearance
Land Pride GS1560 Grading Scraper
The GS1560 is Land Pride's 60-inch grading scraper for tractors of 25 to 50 hp, on a Category I hitch or a Category I quick hitch. Two 1/2 x 6 inch high-carbon blades, one behind the other at a 5-degree angle, cut off high spots and fill ruts on lanes and g...
View unitQuote
-
New
Land Pride QH16 Quick Hitch
The QH16 is Land Pride's quick hitch for tractors with a Category I 3-point hitch: it lets you hook on to an implement, often without leaving the seat, and its locks close on the implement's lower pins by themselves. The top hook adjusts from 14-7/8 to 18-7...
View unitQuote
-
NewClearance
Land Pride RCR1248 Rotary Cutter
The RCR1248 is Land Pride's 48-inch rotary cutter for subcompact and compact tractors of 20 to 60 hp, on a Category I hitch that is quick-hitch ready. It cuts grass, weeds and light brush at heights from 1-1/4 to 10 inches with two free-swinging heat-treate...
View unitQuote
-
NewClearance
Land Pride RCR1260 Rotary Cutter
The RCR1260 is Land Pride's 60-inch rotary cutter for compact tractors of 20 to 60 hp, on a Category I hitch that is quick-hitch ready. It cuts grass, weeds and light brush at heights from 1-1/4 to 10 inches with two free-swinging heat-treated blades, drive...
View unitQuote
-
NewClearance
Land Pride RTR1250 Rotary Tiller
The RTR1250 is Land Pride's 50-inch reverse-rotation rotary tiller for compact tractors of 15 to 40 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...
View unitQuote
-
New
Land Pride RTR1258 Rotary Tiller
The RTR1258 is Land Pride's 58-inch reverse-rotation rotary tiller for compact tractors of 20 to 50 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...
View unitQuote
-
NewClearance
Land Pride RTR1282 Rotary Tiller
The RTR1282 is Land Pride's 82-inch reverse-rotation rotary tiller for compact tractors of 30 to 60 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...
View unitQuote
-
NewClearance
Land Pride STB1584 Snow Trip Blade
The STB1584 is Land Pride's 84-inch snow trip blade for tractor front-end loaders, sized for tractors of 30 to 70 hp on a universal quick-attach plate. Its 27-inch curved moldboard is 10-gauge steel and angles up to 30 degrees left or right, by hand or with...
View unitQuote
-
New
Land Pride FSP700 Broadcast Spreader
The FSP700 is Land Pride's 3-point broadcast spreader for tractors of 18 hp and up, on a Category I hitch. Its one-piece polyethylene hopper holds about 9 cubic feet, up to 563 lb, and a spinner driven from the 540 rpm PTO spreads granular material 23 to 54...
Get pricingQuote
-
New
Land Pride FSP1000 Broadcast Spreader
The FSP1000 is Land Pride's largest 3-point broadcast spreader, for tractors of 20 hp and up, on a Category I hitch. Its one-piece polyethylene hopper holds about 12 cubic feet, up to 673 lb, and a spinner driven from the 540 rpm PTO spreads granular materi...
Get pricingQuote
-
New
Land Pride GS1572 Grading Scraper
The GS1572 is Land Pride's 72-inch grading scraper for tractors of 25 to 50 hp, on a Category I hitch or a Category I quick hitch. Two 1/2 x 6 inch high-carbon blades, one behind the other at a 5-degree angle, cut off high spots and fill ruts on lanes and g...
Get pricingQuote
-
New
Land Pride RCR1272 Rotary Cutter
The RCR1272 is Land Pride's 72-inch rotary cutter for compact tractors of 25 to 60 hp, on a Category I hitch that is quick-hitch ready. It cuts grass, weeds and light brush at heights from 1-1/4 to 10 inches with two free-swinging heat-treated blades, drive...
Get pricingQuote
-
New
Land Pride RCR1872 Rotary Cutter
The RCR1872 is Land Pride's 72-inch rotary cutter for tractors of 20 to 65 hp, on a Category I hitch with a floating clevis top link, quick-hitch ready. It cuts grass, weeds and brush up to 2 inches thick at heights from 1-1/2 to 11-1/2 inches with two free...
Get pricingQuote
-
New
Land Pride RCR1884 Rotary Cutter
The RCR1884 is Land Pride's 84-inch rotary cutter for tractors of 45 to 90 hp, on a Category I or II hitch, quick-hitch ready. It cuts grass, weeds and brush up to 2 inches thick at heights from 2 to 11 inches with two 1/2 x 4 inch free-swinging high-lift b...
Get pricingQuote
-
New
Land Pride RC2512 Rotary Cutter
The RC2512 is Land Pride's 12-foot folding rotary cutter, a pull-type for tractors of 40 to 100 hp. Its centre deck and two wings each turn two free-swinging heat-treated blades that cut material up to 1-1/2 inches thick at heights from 1-1/2 to 12 inches, ...
Get pricingQuote
-
New
Land Pride RTR1266 Rotary Tiller
The RTR1266 is Land Pride's 66-inch reverse-rotation rotary tiller for compact tractors of 20 to 50 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...
Get pricingQuote
-
New
Land Pride RTR1274 Rotary Tiller
The RTR1274 is Land Pride's 74-inch reverse-rotation rotary tiller for compact tractors of 25 to 60 PTO hp, on a Category I hitch with adjustable lower clevises, and it fits Land Pride's Quick Hitch, where it must sit centred and may need a longer driveline...
Get pricingQuote
More implements matched to the L Series are in Kubota's brochure. Kubota's L Series matched-implement brochure (PDF) ↗
