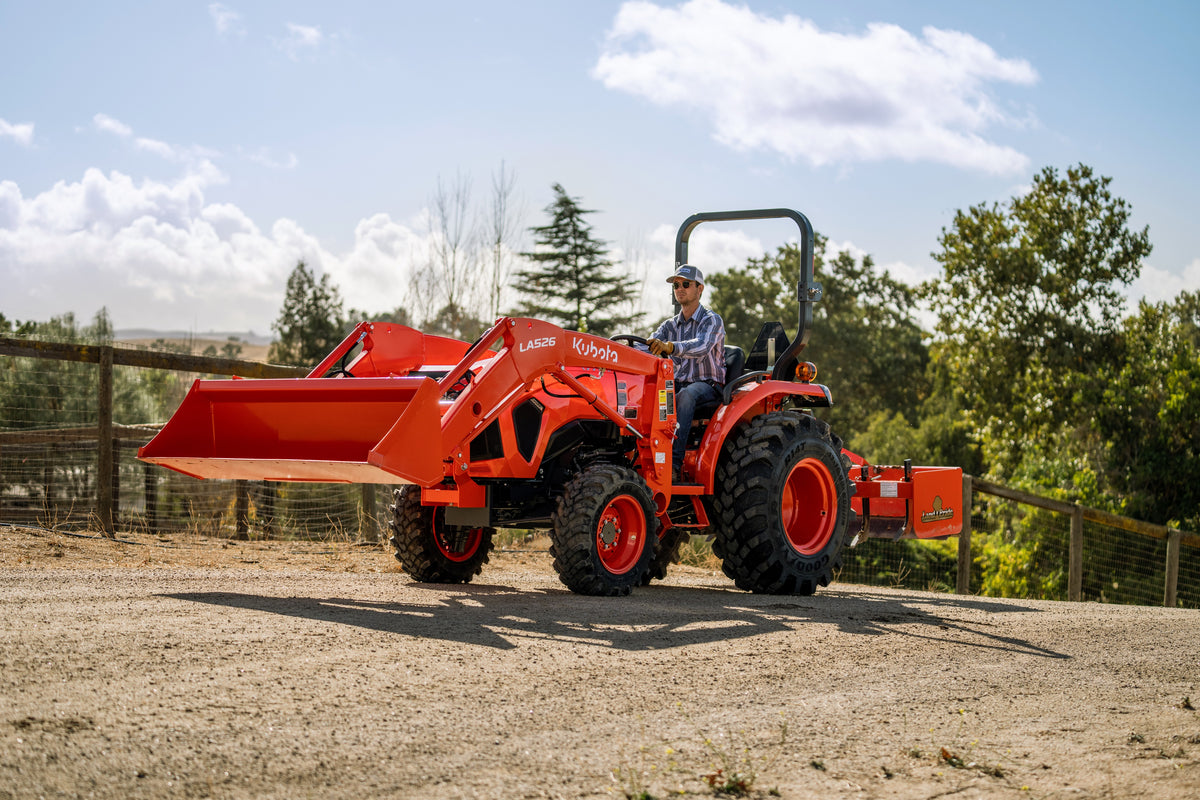

Kubota L3302HST
Representative photo of this model, not the machine on the yard.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
One in stock in Sexsmith, on clearance — S# D3935 (2025).
Key specs
L3302HST key specs
| Engine power | 33 hp (24.6 kW) |
|---|---|
| PTO power | 26.1 hp (19.5 kW) |
| Transmission | HST; 3 ranges |
| 3-point lift, 610 mm (24 in) behind | 650 kg (1,433 lb) |
| Weight | 1,315 kg (2,899 lb) |
About this model
About the L3302HST
The Kubota L02 Series works with a comprehensive offering of loader attachments and performance-matched implements to handle loads of applications. Best of all, it features lasting Kubota durability, comfort and reliability to handle the tough jobs to come.
Specifications
L3302HST specifications
Engine13
| Engine type | Direct injection, vertical, water-cooled 4-cycle diesel |
|---|---|
| Engine power, gross | 33 hp (24.6 kW) |
| Engine power, net | 31.8 hp (23.7 kW) |
| PTO power | 26.1 hp (19.5 kW) |
| Bore | 87 mm (3.4 in) |
| Stroke | 102.4 mm (4 in) |
| Displacement | 1,826 cc (111.4 cu in) |
| Rated engine speed | 2,700 rpm |
| Alternator | 45 A |
| Fuel tank | 42 L (11.1 US gal) |
| Cylinders | 3 |
| Battery | 12 V; 600 cold-cranking amps; 120 min reserve capacity |
| Fuel | Diesel |
PTO3

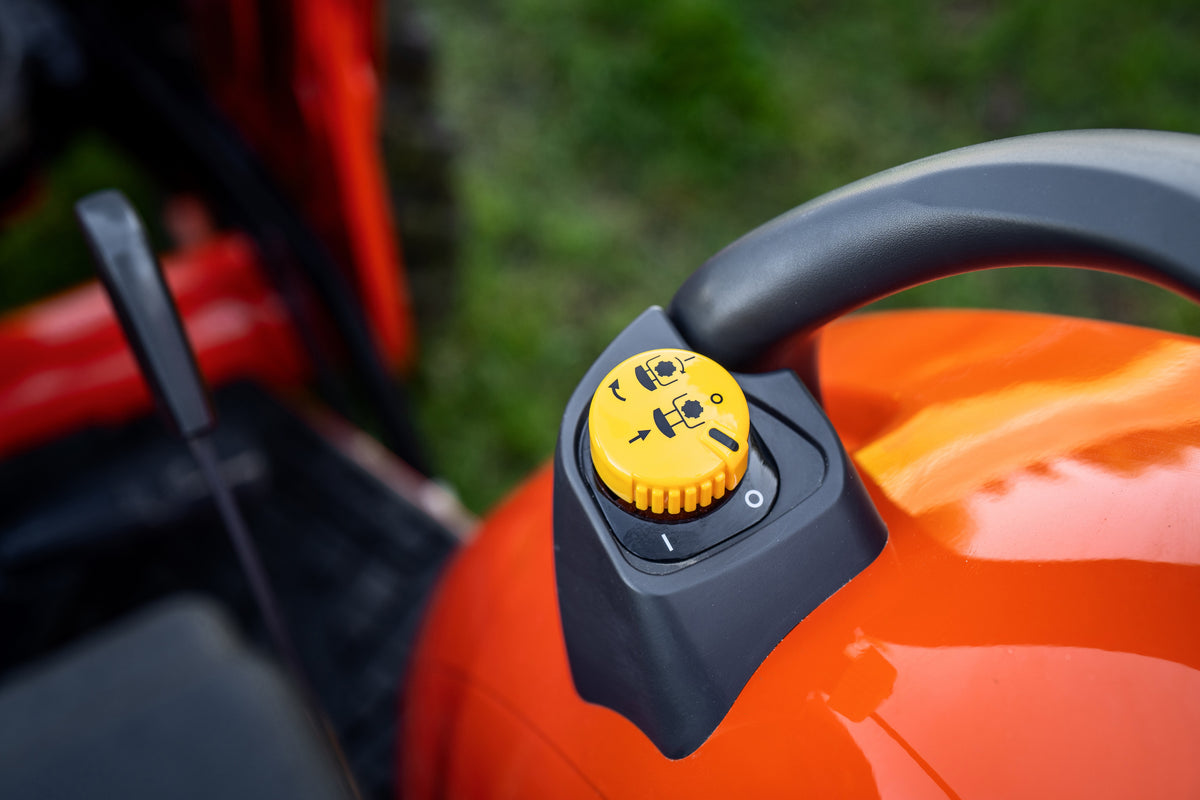

| PTO type | Live independent PTO with hydraulic clutch |
|---|---|
| Rear PTO speed | 540 rpm |
| Engine speed at rated PTO speed | 2,470 rpm |
Transmission and drive6
| Transmission | HST |
|---|---|
| Ranges | 3 |
| Drive | 4WD |
| Brakes | Mechanical, wet disc type |
| Top speed, forward | 22.7 km/h (14.1 mph) |
| Top speed, reverse | 20.5 km/h (12.7 mph) |
Hydraulics8
| Lift control | Position control |
|---|---|

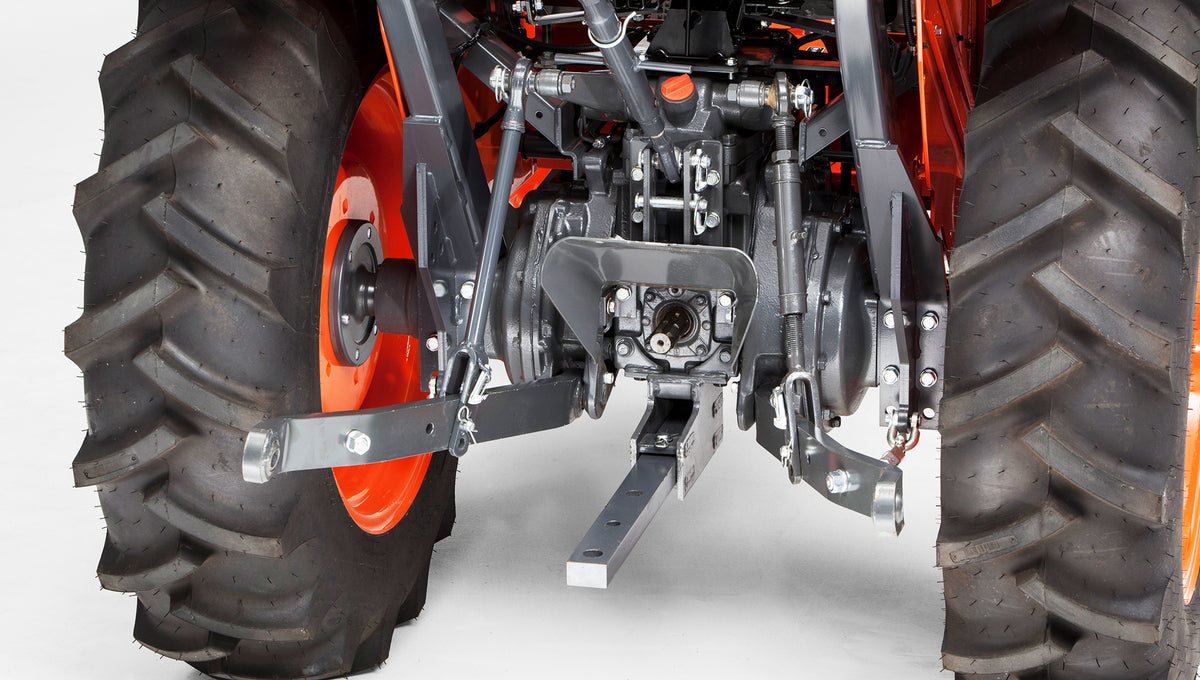

| 3-point hitch | Category I |
| System pressure | 16.2 MPa (2,347 psi) |
| Steering | Integral type power steering |
| Pump flow, implements | 25.7 L/min (6.8 US gpm) |
| Pump flow, power steering | 15.6 L/min (4.1 US gpm) |
| 3-point lift capacity, at the lift points | 900 kg (1,985 lb) |
| 3-point lift capacity, 610 mm (24 in) behind the lift points | 650 kg (1,433 lb) |
Dimensions and weight15
| Tires, ag (standard), front | 7.0-16 |
|---|---|
| Tires, ag (standard), rear | 11.2-24 |
| Tires, turf (option), front | 25x8.50-14 |
| Tires, turf (option), rear | 13.6-16 |
| Tires, industrial (option), front | 27x8.50-15 |
| Tires, industrial (option), rear | 15-19.5 R4 |
| Overall length, without the 3-point hitch | 2,760 mm (108.7 in) |
| Overall width, at the narrowest tread | 1,400 mm (55.1 in) |
| Overall height, open station | 2,330 mm (91.7 in) |
| Wheelbase | 1,610 mm (63.4 in) |
| Ground clearance | 340 mm (13.4 in) |
| Weight | 1,315 kg (2,899 lb) |
| Tread width, front | 1,095 mm (43.1 in) |
| Tread width, rear | 1,115 mm (43.9 in) |
| Turning radius, with brake | 2.5 m (8.2 ft) |
From Kubota Canada’s specifications for the L3302HST, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
Compare
The L02 series
L2502HST
- 23.3 hp
- 18.4 hp PTO
- 630 kg lift at 24 in
This model
L3302HST
- 33 hp
- 26.1 hp PTO
- 650 kg lift at 24 in
L3902HST
- 37.5 hp
- 30.3 hp PTO
- 650 kg lift at 24 in
L4802HST
- 48.4 hp
- 39 hp PTO
- 1,053 kg lift at 24 in
