Kubota SVL97-3 Compact Track Loader

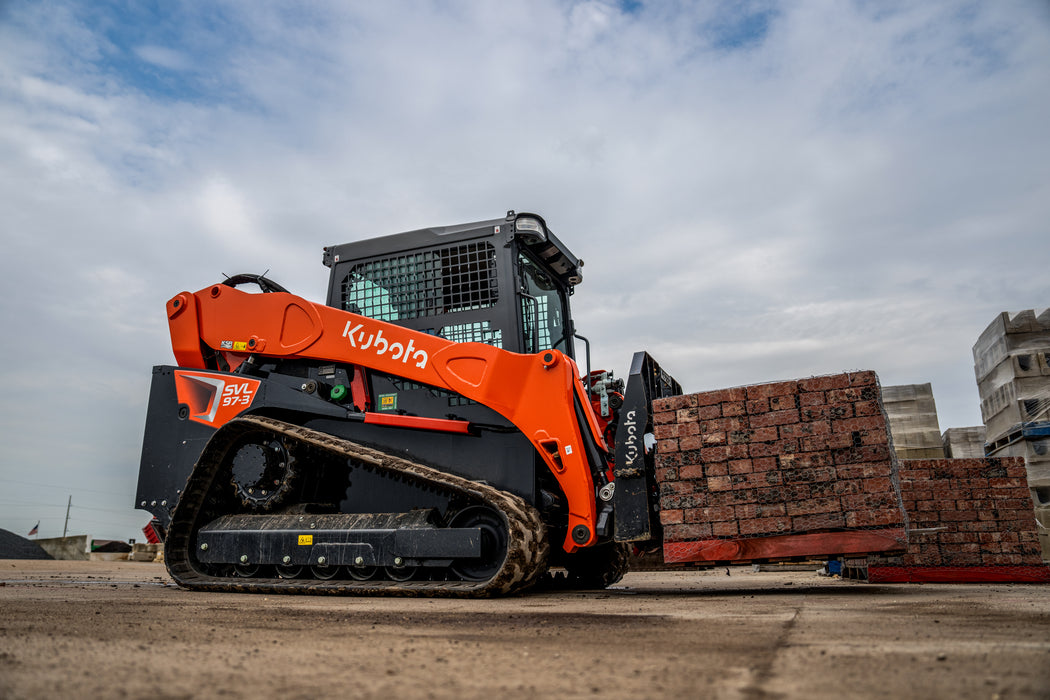

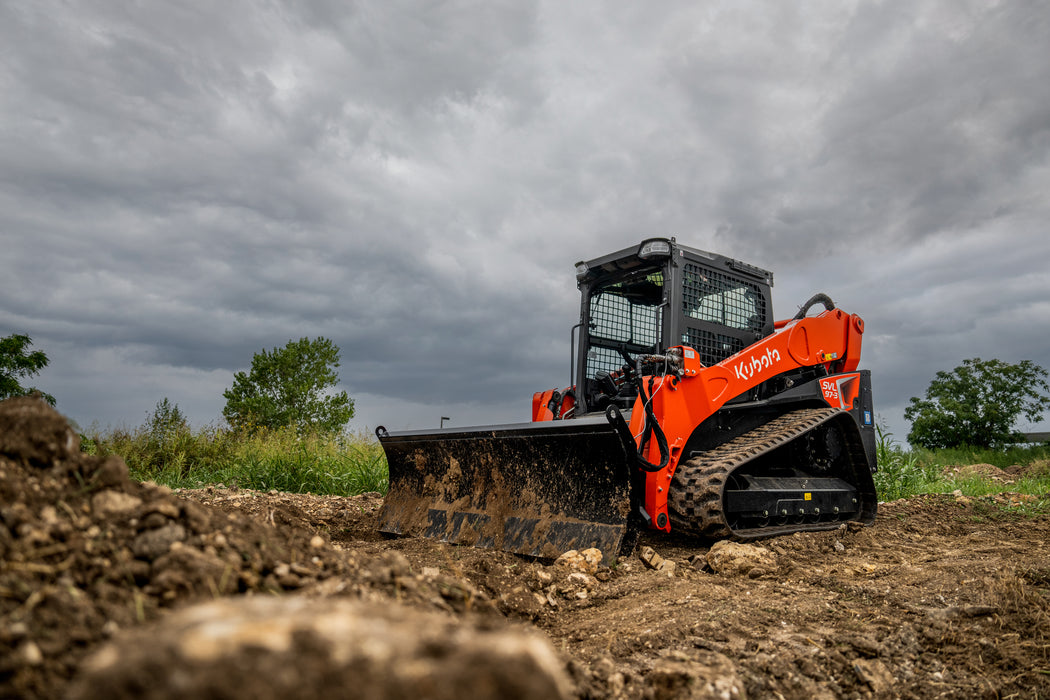

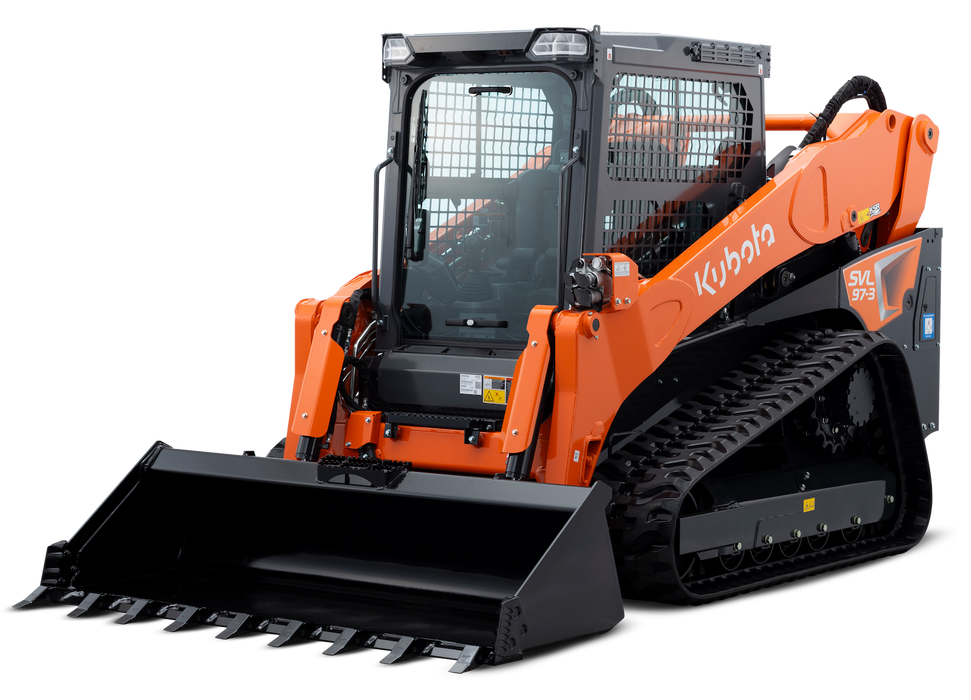

Representative photo of this model, not the machine on the yard.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
One in stock in Sexsmith. 4 on order, arriving January 2027.
Key specs
SVL97-3 key specs
| Rated operating capacity | 1,569 kg (3,459 lb), 35% of tipping load |
|---|---|
| Engine power | 96.4 hp (71.9 kW) |
| Operating weight | 5,411 kg (11,929 lb), with a 75 kg (165 lb) operator |
| Hinge-pin height | 3,264 mm (128.5 in) |
| Auxiliary flow | 90 L/min (23.8 US gpm) standard; 156 L/min (41.2 US gpm) high flow |
About this model
About the SVL97-3
Available through Grande Prairie Kubota in Sexsmith. The SVL97-3 is the full-size machine for operations whose work is bucket, grapple and fork rather than powered attachments — you get the frame, the lift and the stability of the big class without paying for high-flow capacity you won't use. It's the one we point feedlots and land clearing crews toward. If you're running a mulcher or cold planer, step up to the SVL110-3; if you need something that hauls easier, look at the SVL75-3.
Specifications
SVL97-3 specifications

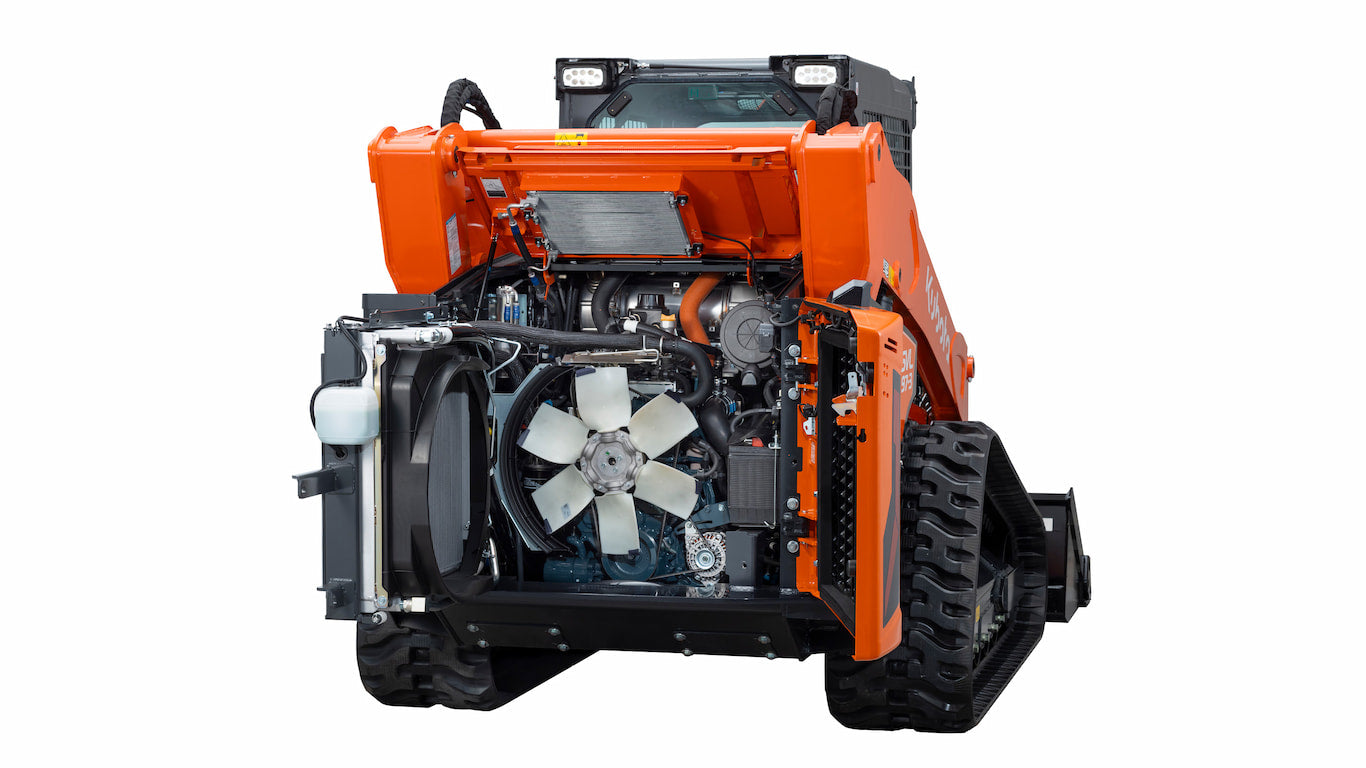

Engine11
| Engine model | V3800-TIE5-L |
|---|---|
| Engine power, gross | 96.4 hp (71.9 kW) |
| Engine power, net | 85.2 hp (63.5 kW) |
| Rated engine speed | 2,500 rpm |
| Displacement | 3,769 cc (230 cu in) |
| Cylinders | 4 |
| Bore | 100 mm (3.9 in) |
| Stroke | 120 mm (4.7 in) |
| Aspiration | Turbocharged |
| Fuel tank | 115.7 L (30.6 US gal) |
| DEF tank | 12.7 L (3.4 US gal) |
Travel5
| Ground contact pressure, standard | 0.34 kg/cm² (4.8 psi) |
|---|---|
| Track rollers (per side) | 5 |
| Maximum traction force | 5,976 kgf (13,174.7 lbf) |
| Travel speed, low | 8.9 km/h (5.5 mph) |
| Travel speed, high | 13.5 km/h (8.4 mph) |
Hydraulics5
| Auxiliary hydraulic flow, standard | 90 L/min (23.8 US gpm) |
|---|---|
| Auxiliary hydraulic flow, high | 156 L/min (41.2 US gpm) |
| Auxiliary hydraulic pressure | 250 kg/cm² (3,553 psi) |
| Hydraulic system capacity | 70 L (18.4 US gal) |
| Hydraulic tank | 40.2 L (10.6 US gal) |
Loader and lift6
| Rated operating capacity (SAE), 35% of tipping load | 1,569 kg (3,459 lb) |
|---|---|
| Rated operating capacity (SAE), 50% of tipping load | 2,242 kg (4,942 lb) |
| Tipping load, straight | 4,483 kg (9,884 lb) |
| Lift arm path | Vertical |
| Breakout force, bucket | 3,468 kgf (7,646 lbf) |
| Breakout force, lift arm | 2,394 kgf (5,277 lbf) |
Dimensions and weight4
| Track width, standard | 450 mm (17.7 in) |
|---|---|
| Ground clearance | 278 mm (10.9 in) |
| Operating weight | 5,411 kg (11,929 lb), with a 75 kg (165 lb) operator |
| Bucket hinge pin height at maximum lift | 3,264 mm (128.5 in) |
Operator station and other1

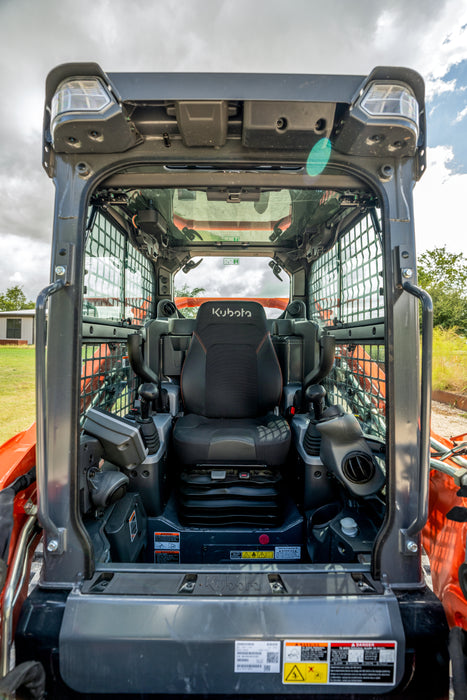

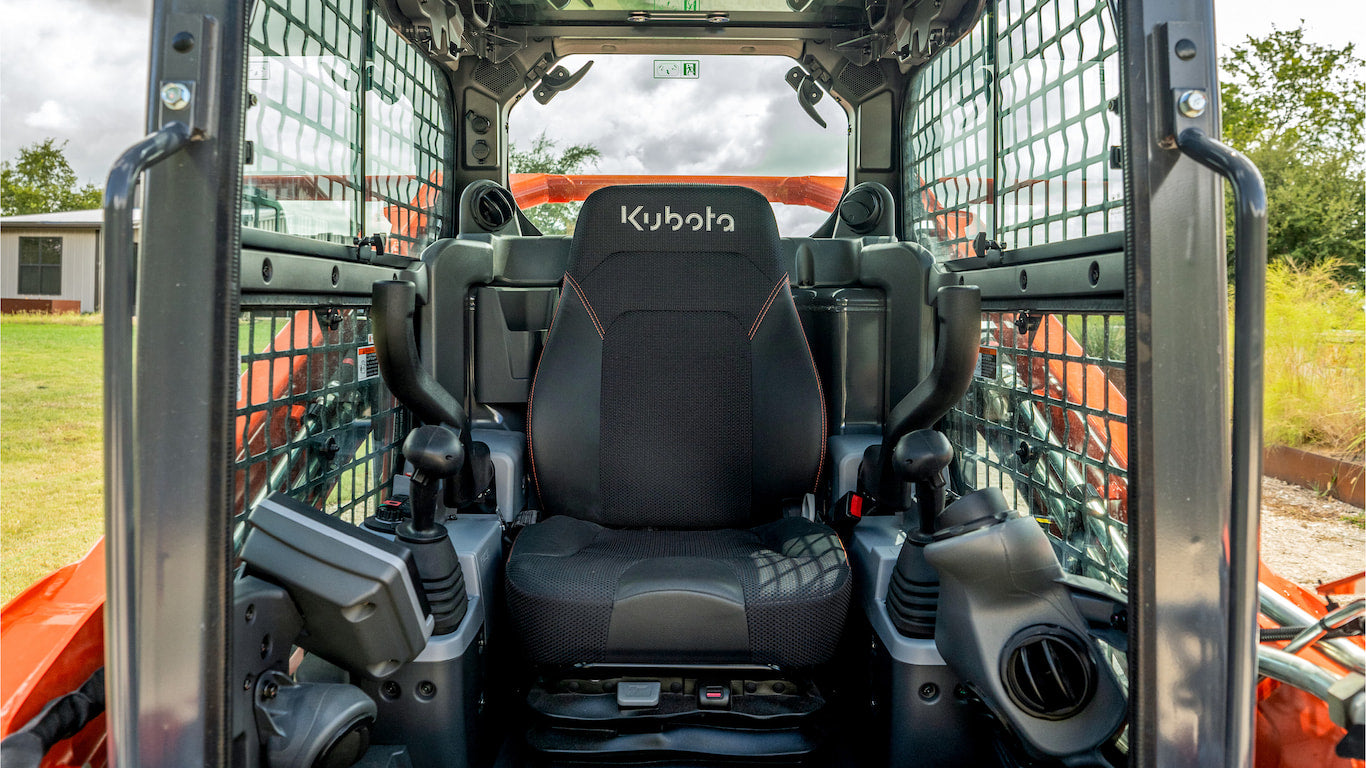

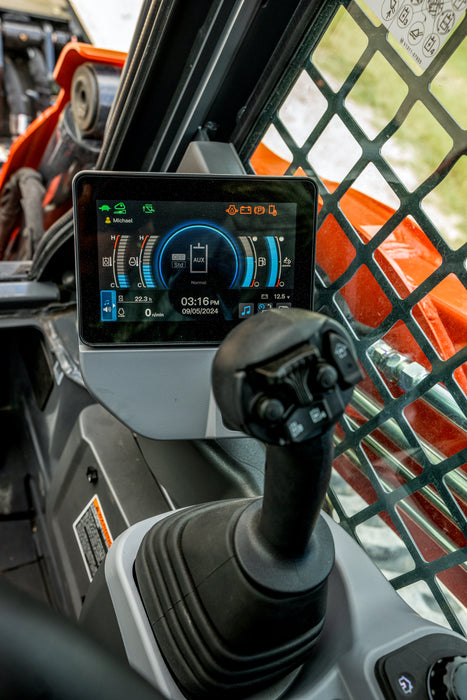

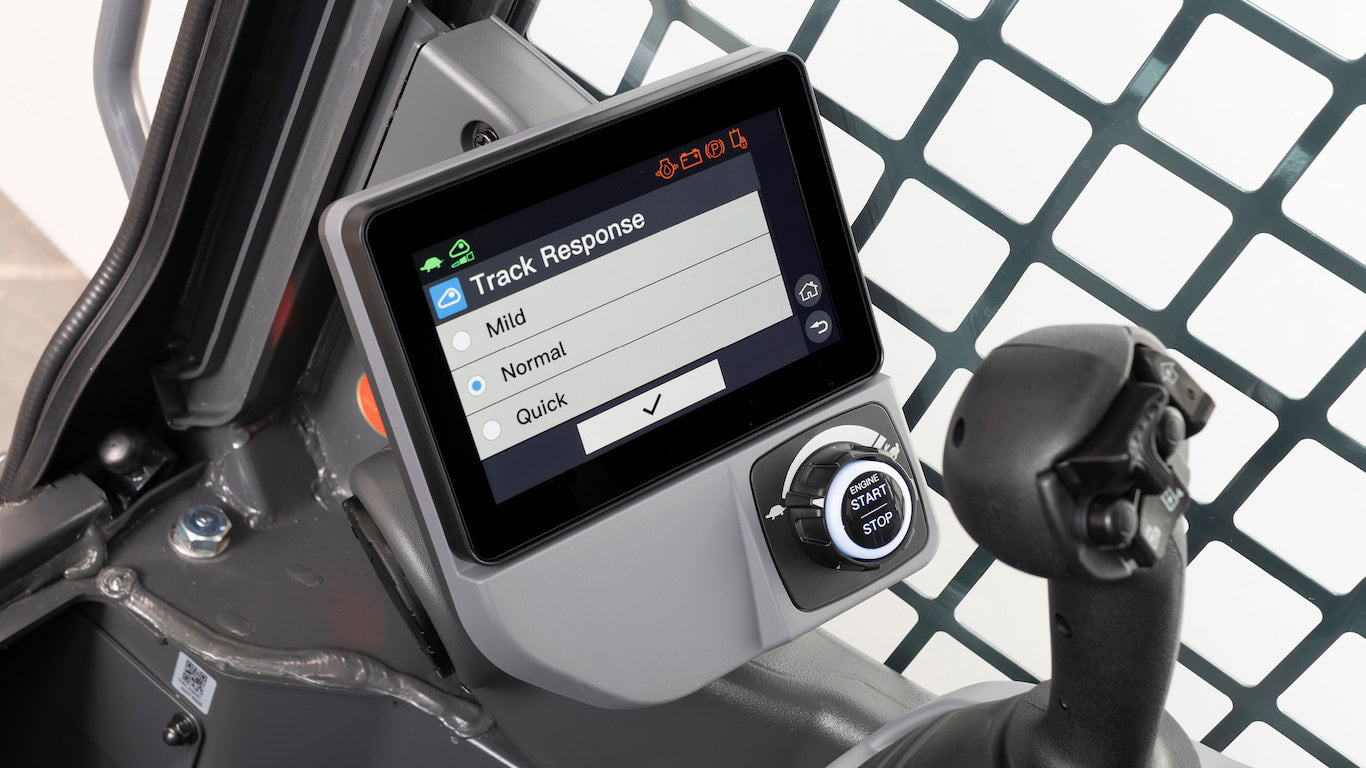

| Operator station | Closed cab |
|---|
From Kubota Canada’s specifications for the SVL97-3, read Oct 27, 2026. Options and attachments change some figures; ask us before you buy.
Compare
Track loaders near this size
This row shows the track loaders on our site nearest in engine power, two smaller and one larger.
SVL65-2S Compact Track Loader
- 953 kg rated capacity
- 68.4 hp
SVL75-3 Compact Track Loader
- 1,129 kg rated capacity
- 71.6 hp
This model
SVL97-3 Compact Track Loader
- 1,569 kg rated capacity
- 96.4 hp
SVL110-3 Compact Track Loader
- 1,678 kg rated capacity
- 112.7 hp
