Compact Track LoadersNew

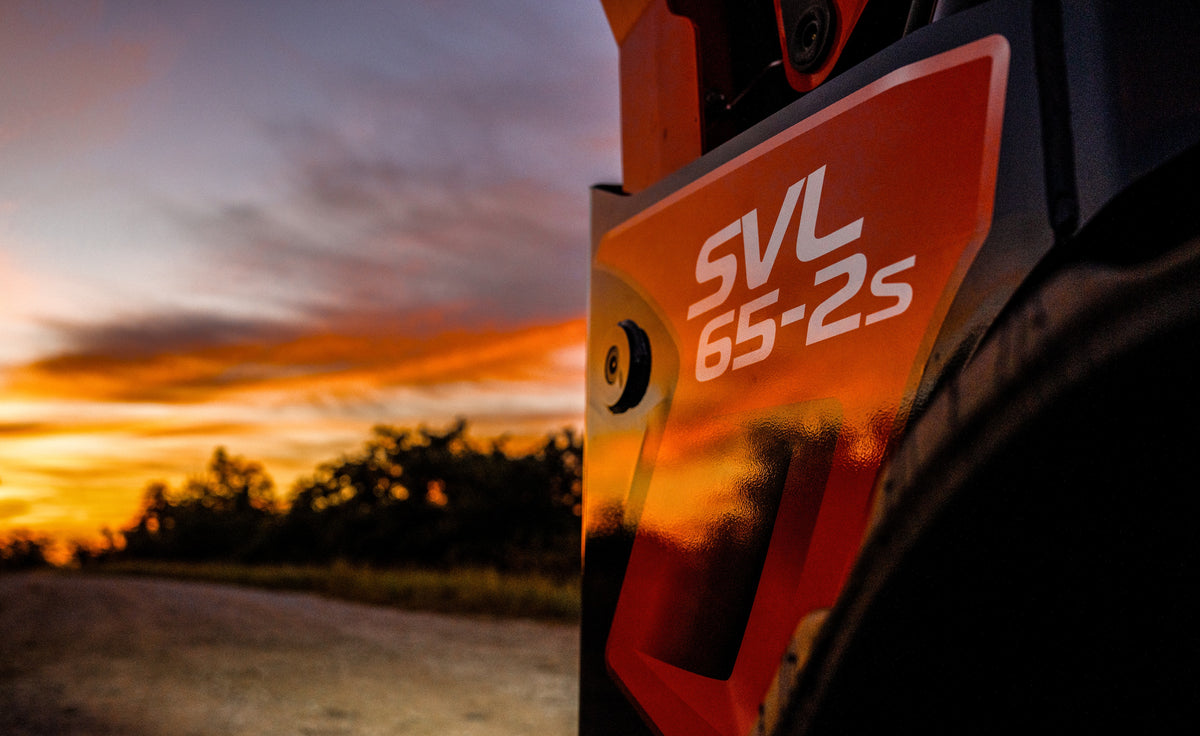

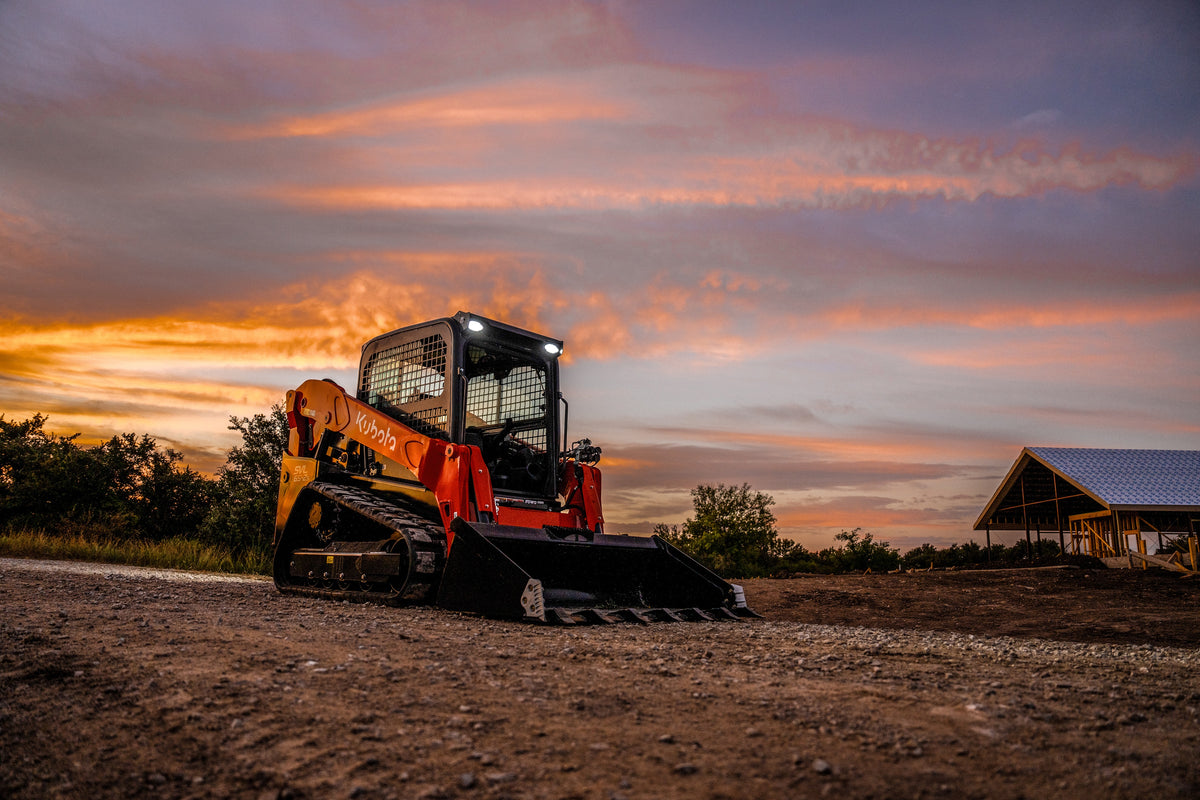

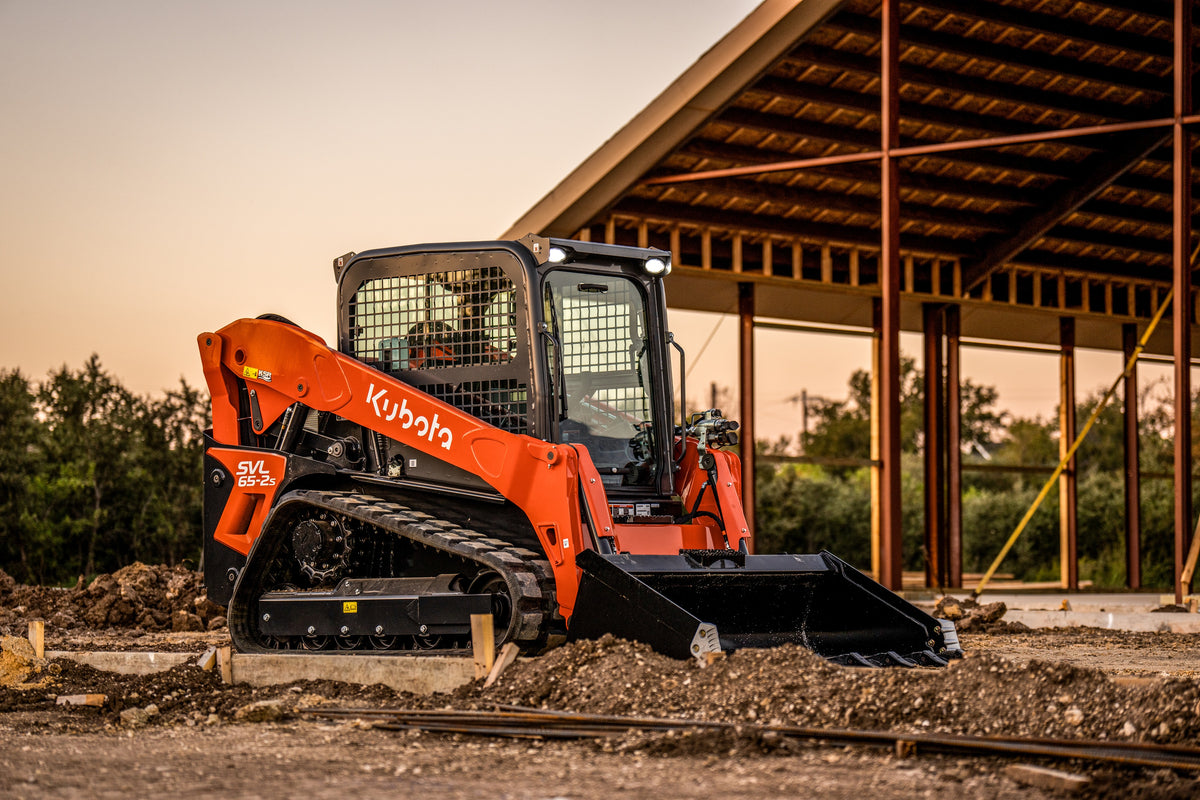

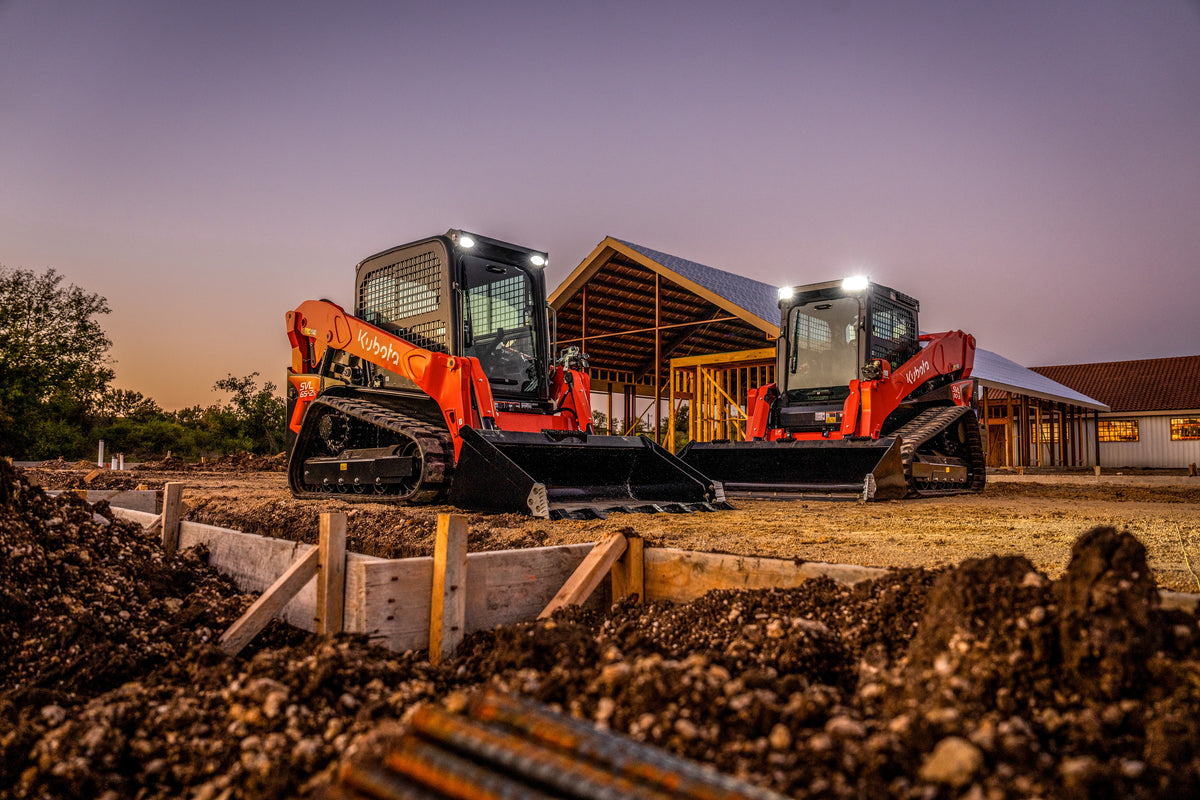

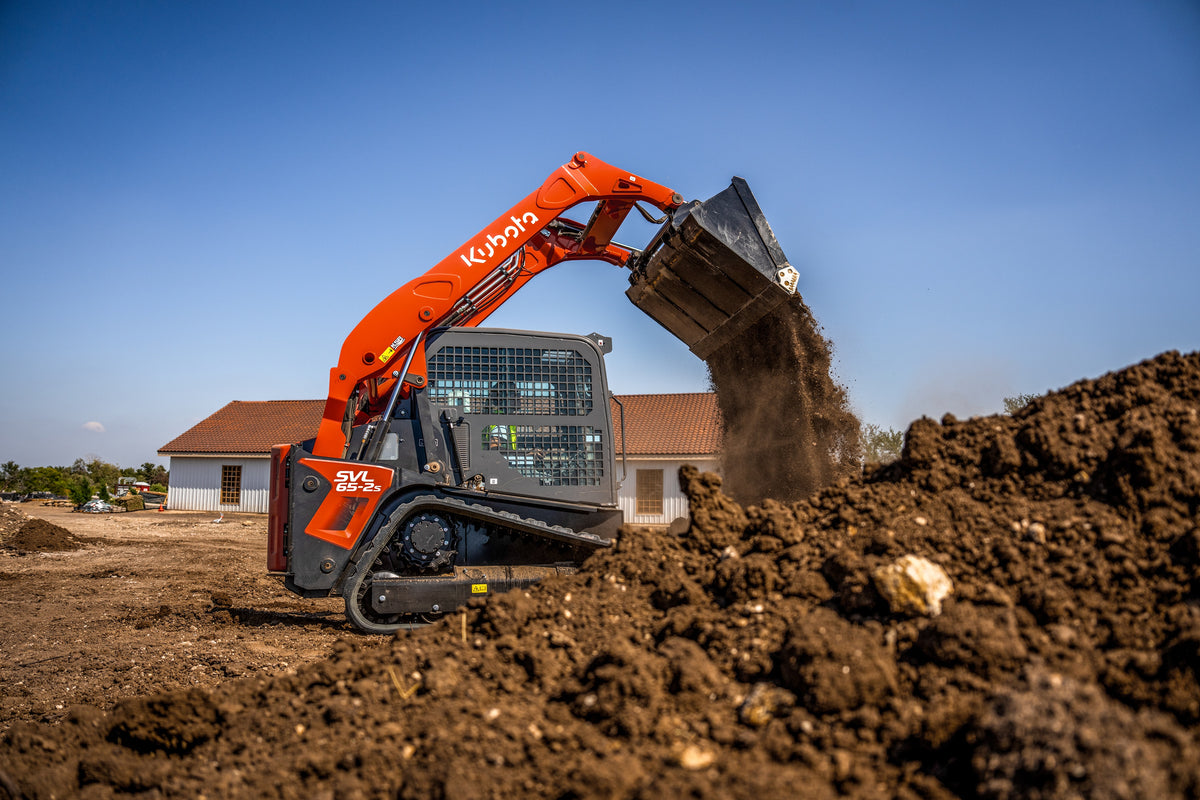

Kubota SVL65-2S Compact Track Loader

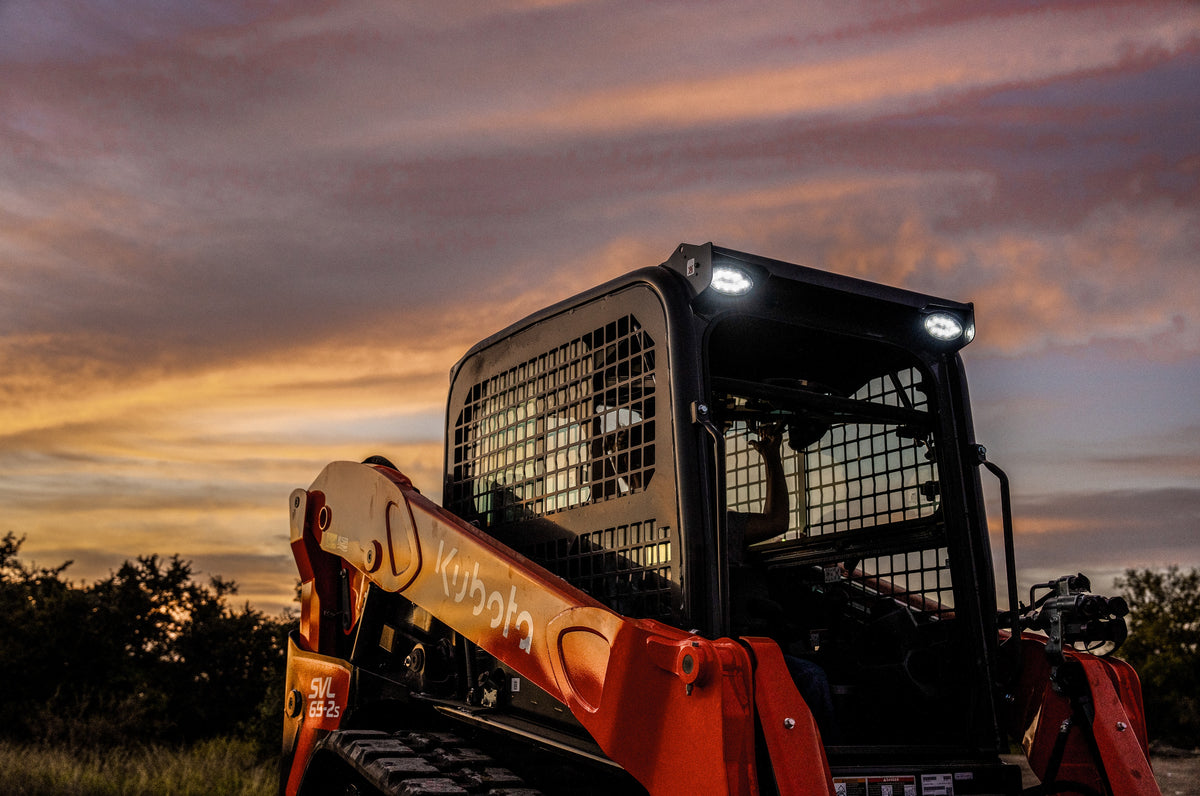

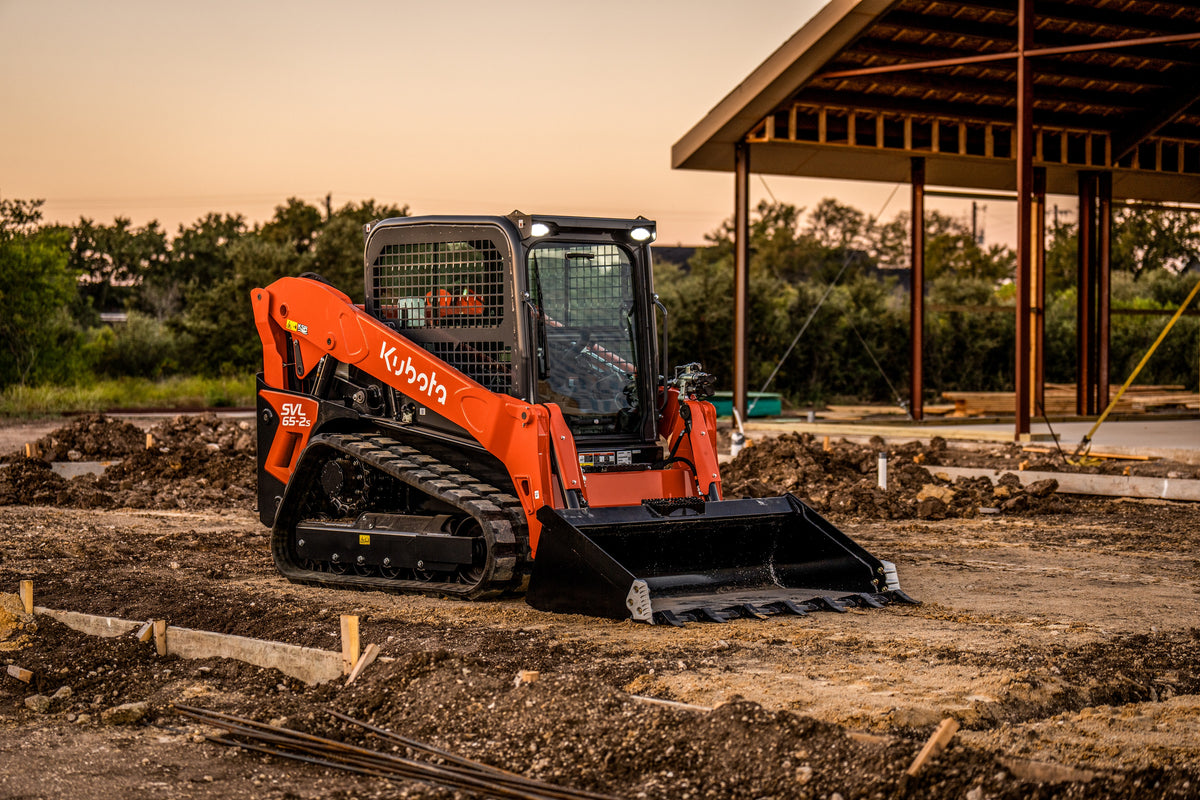

Representative photo of this model, not the machine on the yard.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
2 in stock in Sexsmith.
Key specs
SVL65-2S key specs
| Rated operating capacity | 953 kg (2,100 lb), 35% of tipping load |
|---|---|
| Engine power | 68.4 hp (51 kW) |
| Operating weight | 3,915 kg (8,631 lb), with a 75 kg (165 lb) operator |
| Hinge-pin height | 3,010 mm (118.5 in) |
| Auxiliary flow | 65.8 L/min (17.4 US gpm) standard; 102.2 L/min (27 US gpm) high flow |
About this model
About the SVL65-2S

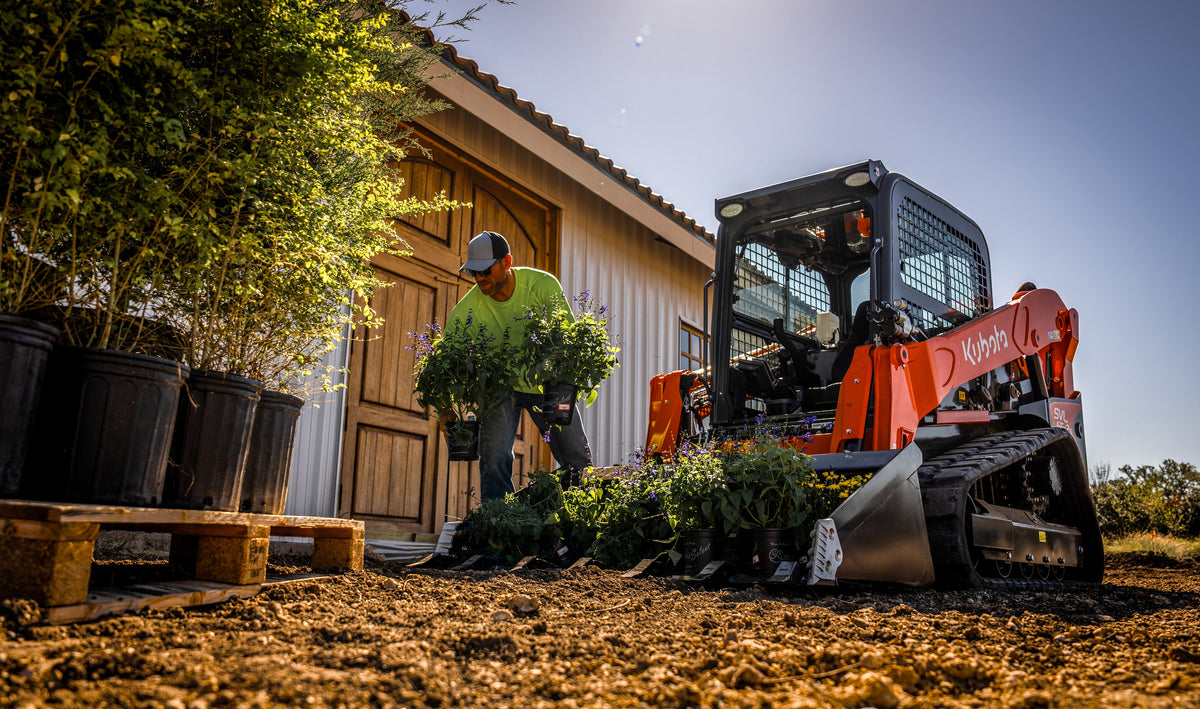

Available through Grande Prairie Kubota in Sexsmith. The SVL65-2S is the one to look at when the yard is tight and the ground is soft. Lower weight means less rutting on lawns, driveways and wet field approaches, and it's an easier haul than the bigger machines. Common choice for acreage owners, landscapers and anyone working in town where the neighbour's grass is right there. If you need more lift and reach, the SVL75-3 is the next step up.
Engineered for Comfort. Built for Power.

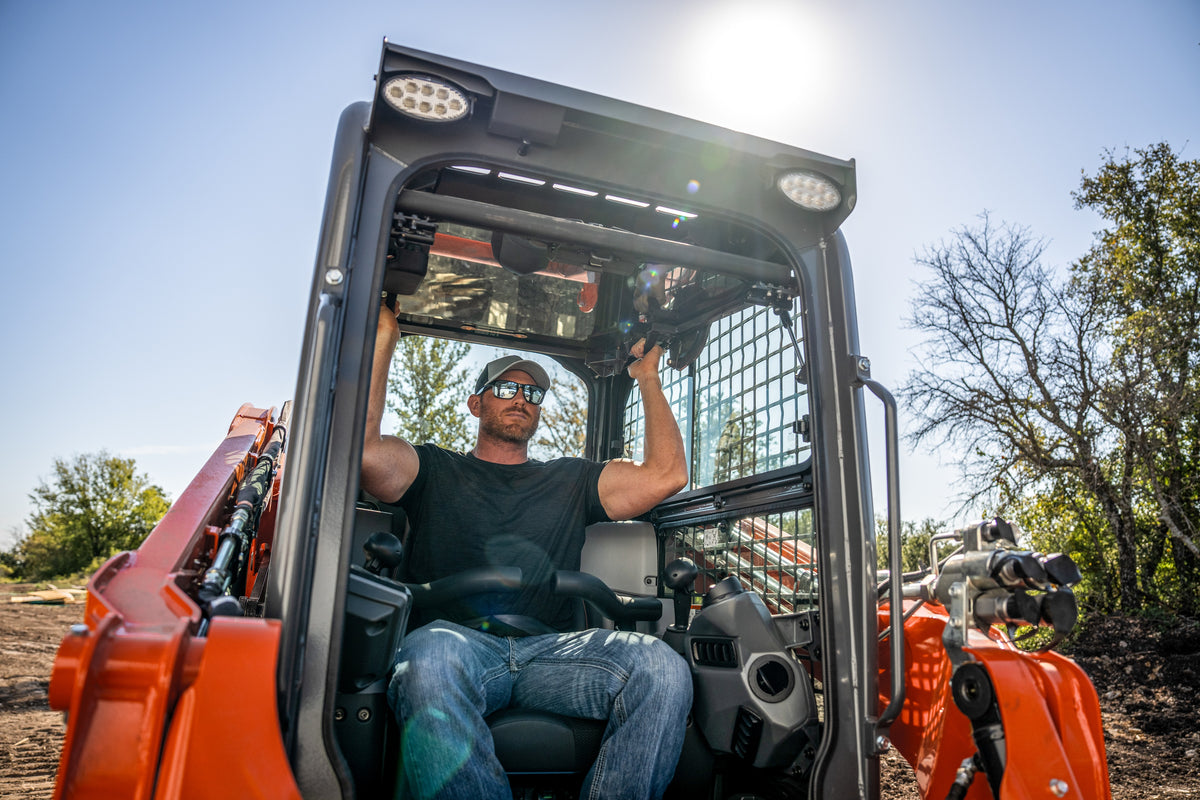

What do you do when you want to make a good thing even better? You lean into its strengths. The new Kubota SVL65-2s compact track loader puts operator comfort front and center, so you can stay productive longer, while enjoying a workday that feels less demanding. The redesigned cab delivers a smoother, more refined ride, improved visibility, and easier access and control. And all of this comes without compromise—inside its versatile compact frame. The SVL65-2s still brings powerful performance that's the bedrock of Kubota's reputation.
Specifications
SVL65-2S specifications
Engine10
| Engine model | V2607-CR-TE4 |
|---|---|
| Engine power, gross | 68.4 hp (51 kW) |
| Rated engine speed | 2,600 rpm |
| Engine power, net | 59.9 hp (44.7 kW) |
| Displacement | 2,615 cc (159.6 cu in) |
| Cylinders | 4 |
| Bore | 87 mm (3.4 in) |
| Stroke | 110 mm (4.3 in) |
| Aspiration | Turbocharged |
| Fuel tank | 82 L (21.7 US gal) |
Travel5
| Ground contact pressure, standard | 0.38 kg/cm² (5.4 psi) |
|---|---|
| Track rollers (per side) | 4 |
| Maximum traction force | 3,813 kgf (8,406 lbf) |
| Travel speed, low | 7.8 km/h (4.9 mph) |
| Travel speed, high | 11.5 km/h (7.1 mph) |
Hydraulics5
| Auxiliary hydraulic flow, standard | 65.8 L/min (17.4 US gpm) |
|---|---|
| Auxiliary hydraulic flow, high | 102.2 L/min (27 US gpm) |
| Auxiliary hydraulic pressure | 230 kg/cm² (3,271 psi) |
| Hydraulic system capacity | 48 L (12.7 US gal) |
| Hydraulic tank | 20 L (5.3 US gal) |
Loader and lift6
| Rated operating capacity (SAE), 35% of tipping load | 953 kg (2,100 lb) |
|---|---|
| Rated operating capacity (SAE), 50% of tipping load | 1,361 kg (3,000 lb) |
| Tipping load, straight | 2,722 kg (6,000 lb) |
| Lift arm path | Vertical |
| Breakout force, bucket | 2,093 kgf (4,614 lbf) |
| Breakout force, lift arm | 1,935 kgf (4,266 lbf) |
Dimensions and weight4
| Track width, standard | 320 mm (12.6 in) |
|---|---|
| Ground clearance | 233 mm (9.2 in) |
| Operating weight | 3,915 kg (8,631 lb), with a 75 kg (165 lb) operator |
| Bucket hinge pin height at maximum lift | 3,010 mm (118.5 in) |
Operator station and other1
| Operator station | Closed cab |
|---|
From Kubota Canada’s specifications for the SVL65-2S, read Oct 27, 2026. Options and attachments change some figures; ask us before you buy.
Compare
Track loaders near this size
This row shows the track loaders on our site nearest in engine power, one smaller and two larger.

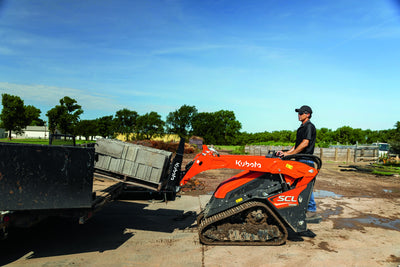

SCL1000 Stand-On Track Loader
- 453 kg rated capacity
- 24.8 hp
This model
SVL65-2S Compact Track Loader
- 953 kg rated capacity
- 68.4 hp
SVL75-3 Compact Track Loader
- 1,129 kg rated capacity
- 71.6 hp
SVL97-3 Compact Track Loader
- 1,569 kg rated capacity
- 96.4 hp
