Utility VehiclesNew
Kubota RTV-X

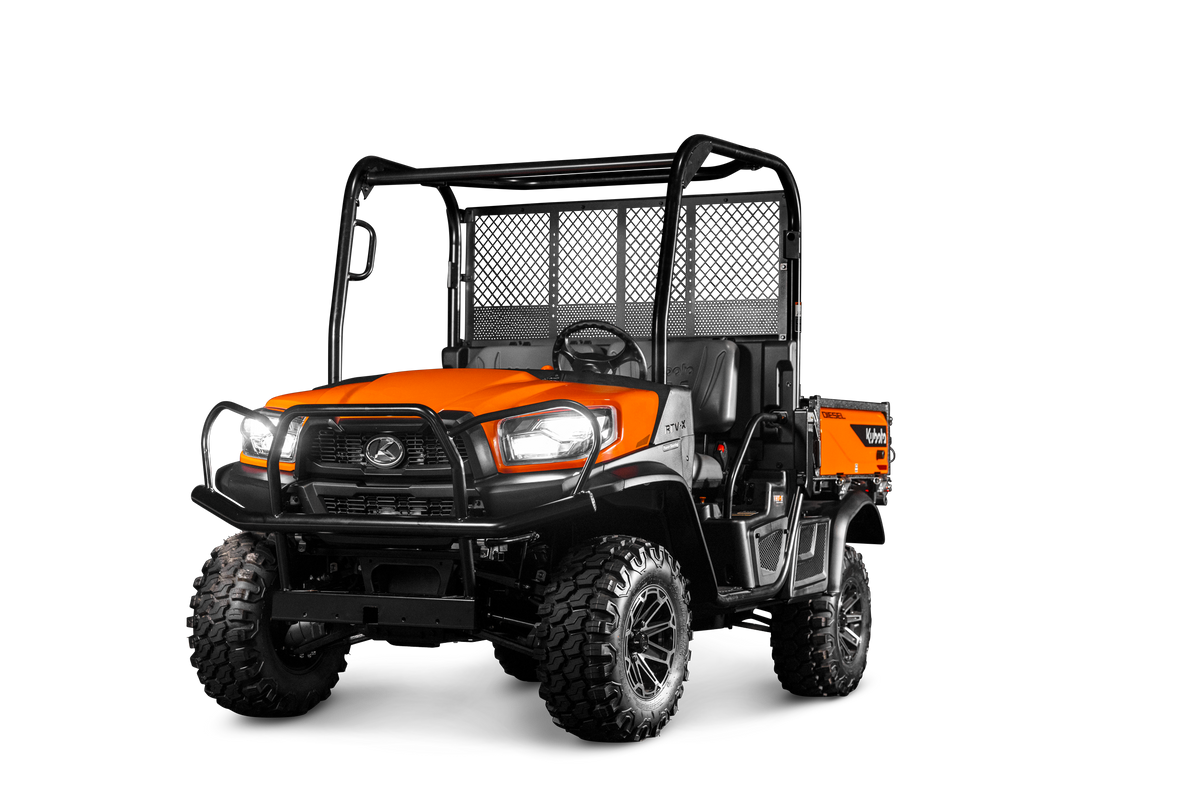

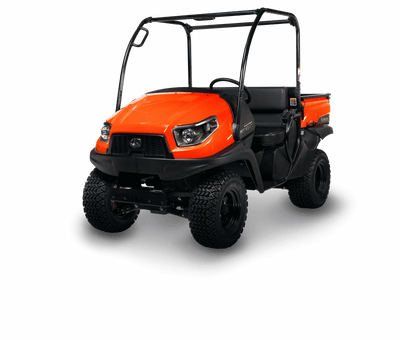

Representative photo of this model, not the machine on the yard.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
One in stock in Sexsmith.
Key specs
RTV-X key specs
| Engine power | 23.3 hp (17.4 kW), Standard |
|---|---|
| Top speed | 40 km/h (25 mph), Standard |
| Cargo box capacity | 500 kg (1,102 lb), Standard |
| Towing capacity | 590 kg (1,300 lb), Standard |
About this model
About the RTV-X
Get ready for a whole new RTV experience. Kubota RTVs have been the best-selling diesel utility vehicles in North America since 2004.* And no wonder. Each year, they set the standard for ruggedness and reliability, proving themselves ready to work day after day under all kinds of conditions. Meet the Kubota RTV-X Series, four rough-and-ready RTV’s that raise the bar on comfort, convenience, and performance. Whether you’re hauling, transporting, or plowing snow, Kubota’s RTV-X has you covered. *Power Products Marketing North American Utility Vehicle Market Reports.
Specifications
RTV-X specifications
Engine9
| Engine make | Kubota |
|---|---|
| Engine model | D1105-E4-UV |
| Engine type | 3-cylinders, 4-cycle, diesel, OHV |
| Displacement | 1,123 cc (68.5 cu in) |
| Engine power, gross | 23.3 hp (17.4 kW) |
| Cooling system | Liquid |
| Battery | 670 cold-cranking amps |
| Headlights | LED low beam (Basic); LED high and low beam (Standard, Premium) |
| Fuel tank | 30 L (7.9 US gal) |
Transmission and drive12
| Transmission | Variable hydro transmission (VHT-X) |
|---|---|
| Gear selection | Hi-Lo range forward, neutral, reverse |
| Top speed | 40 km/h (25 mph) |
| Differential lock - front axle | Limited-slip differential |
| Differential lock - rear axle | Foot operated differential lock |
| Steering | Hydrostatic power steering |
| Type of front suspension | Independent, Dual A-arms with adjustable spring preload |
| Type of rear suspension | Independent with coil over shock |
| Front suspension travel | 205 mm (8 in) |
| Rear suspension travel | 205 mm (8 in) |
| Brakes | Wet-disk brakes |
| Parking brake | Rear wheel, hand operated |
Cargo box7
| Material | Steel |
|---|---|
| Width | 1,465 mm (57.7 in) |
| Length | 1,030 mm (40.5 in) |
| Depth | 285 mm (11.2 in) |
| Volume | 0.43 m³ (15.2 cu ft) |
| Height | 887 mm (34.9 in) |
| Maximum payload capacity | 500 kg (1,102 lb) |
Dimensions and weight16
| Ground clearance, front | 265 mm (10.4 in) |
|---|---|
| Ground clearance, rear | 260 mm (10.3 in) |
| Length | 3,050 mm (120.1 in) Basic; 3,110 mm (122.4 in) Standard; 3,123 mm (123 in) Premium |
| Width | 1,605 mm (63.2 in) |
| Overall height | 2,020 mm (79.5 in) |
| Wheelbase | 2,045 mm (80.5 in) |
| Weight | 930 kg (2,050 lb) Basic; 940 kg (2,072 lb) Standard; 952 kg (2,099 lb) Premium |
| Turning radius | 4 m (13.1 ft) |
| Maximum towing capacity | 590 kg (1,300 lb) |
| Maximum payload capacity | 690 kg (1,521 lb) Basic; 680 kg (1,499 lb) Standard; 668 kg (1,472 lb) Premium |
| Tread centers, front | 1,240 mm (48.8 in) |
| Tread centers, rear | 1,240 mm (48.8 in) |
| Tires, ATV, front | 25x10-12, 6-ply: equipped on camo, available on orange and desert sand |
| Tires, ATV, rear | 25x10-12, 6-ply: equipped on camo, available on orange and desert sand |
| Tires, HDMP, front | 25x10-12, 6-ply: equipped on orange and desert sand, available on camo |
| Tires, HDMP, rear | 25x10-12, 6-ply: equipped on orange and desert sand, available on camo |
Operator station and other11
| Grade | Basic, Standard or Premium |
|---|---|

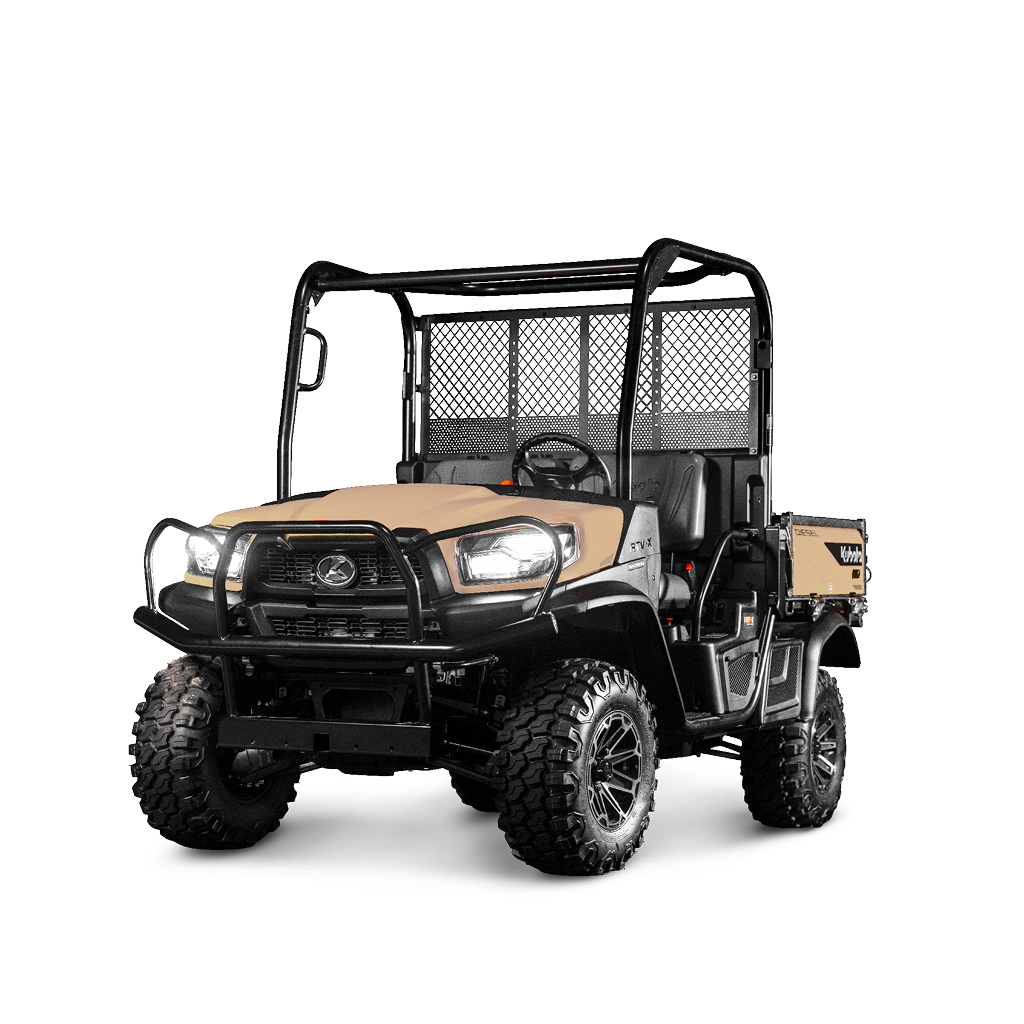

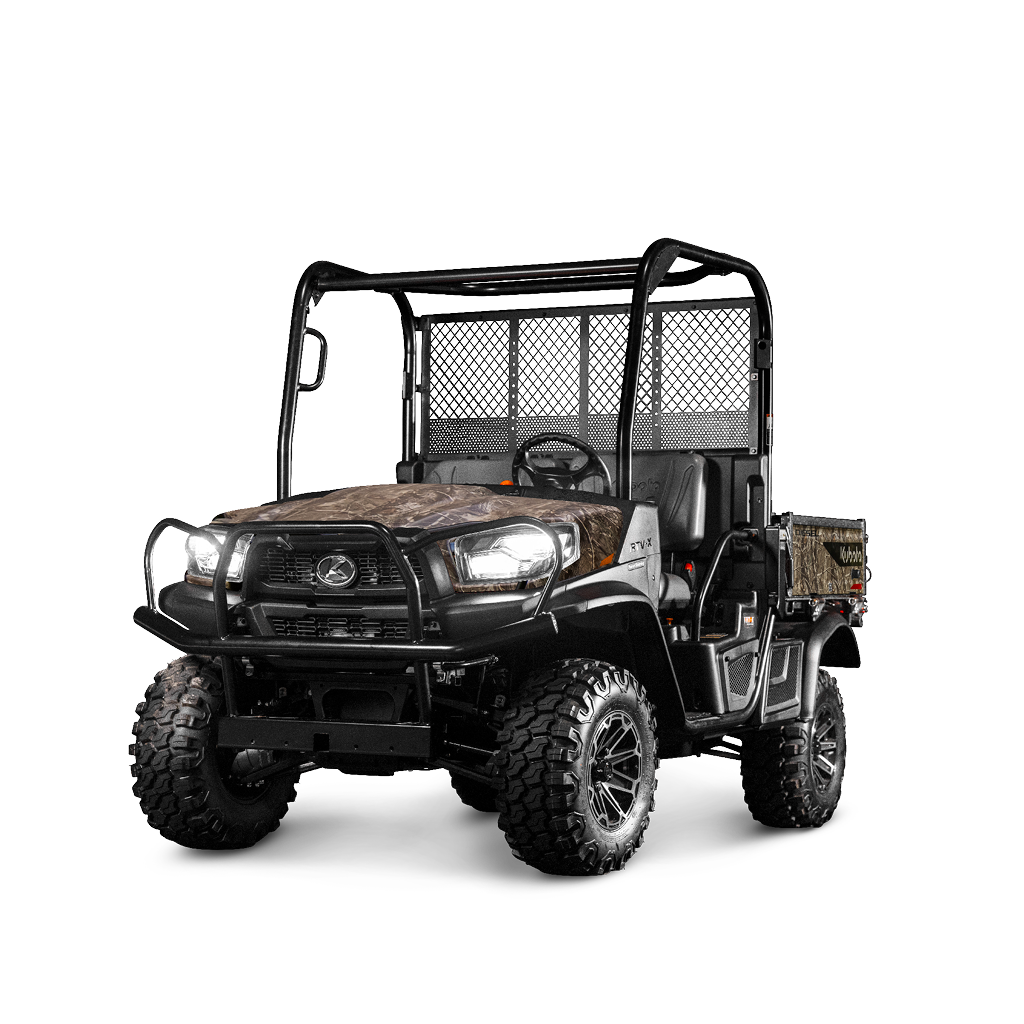

| Body colour | Orange (Basic); orange or camo (Standard); orange, camo or desert sand (Premium) |
| Tubular overhead structure | 50.8 mm (2 in) steel tube |
| Seat belts | 2-point |
| Certification | SAE J2194 and OSHA 1928 ROPS |
| Maximum noise level at operator's ear | 84 dB(A) |
| Hydraulic bed lift | Available (Basic); equipped (Standard, Premium) |
| Spray-on bed liner | Not available (Basic); equipped on camo, available on orange (Standard); equipped (Premium) |
| ProKonvert | Not available (Basic, Standard); equipped (Premium) |
| Alloy wheel | Available (Basic, Standard); equipped on desert sand, available on orange and camo (Premium) |
| Front guard | Basic, Standard or Premium, by grade |
From Kubota Canada’s RTV-X brochure (Nov 2025) for the RTV-X, read Oct 27, 2026. Options and attachments change some figures; ask us before you buy.
Compare
Utility vehicles near this size
This row shows the utility vehicles on our site nearest in weight, two smaller and two larger.
RTV520
- 17.4 hp net
- 40 km/h top speed
- General Purpose

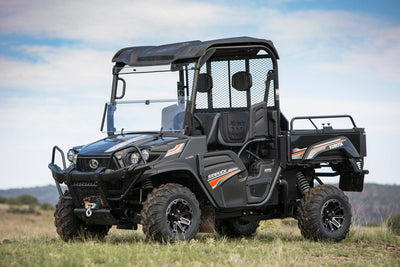

RTV-XG850
- 54 hp net
- 64.4 km/h top speed
- General Purpose
This model

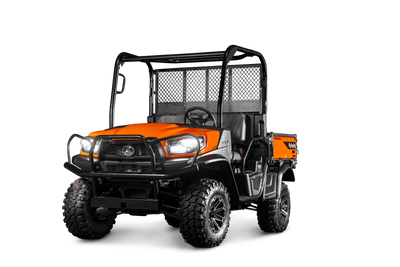

RTV-X
- 23.3 hp
- 40 km/h top speed
- Standard

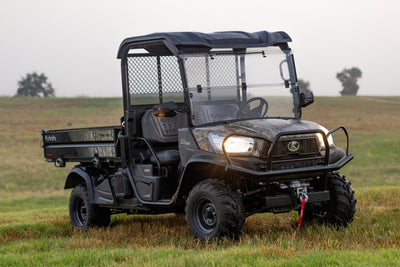

RTV-X1130 Worksite
- 24.8 hp
- 40 km/h top speed

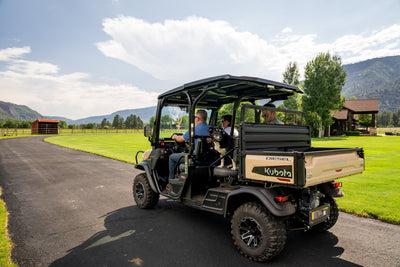

RTV-X CREW
- 23.3 hp
- 40 km/h top speed
- Standard
