Kubota RTV520

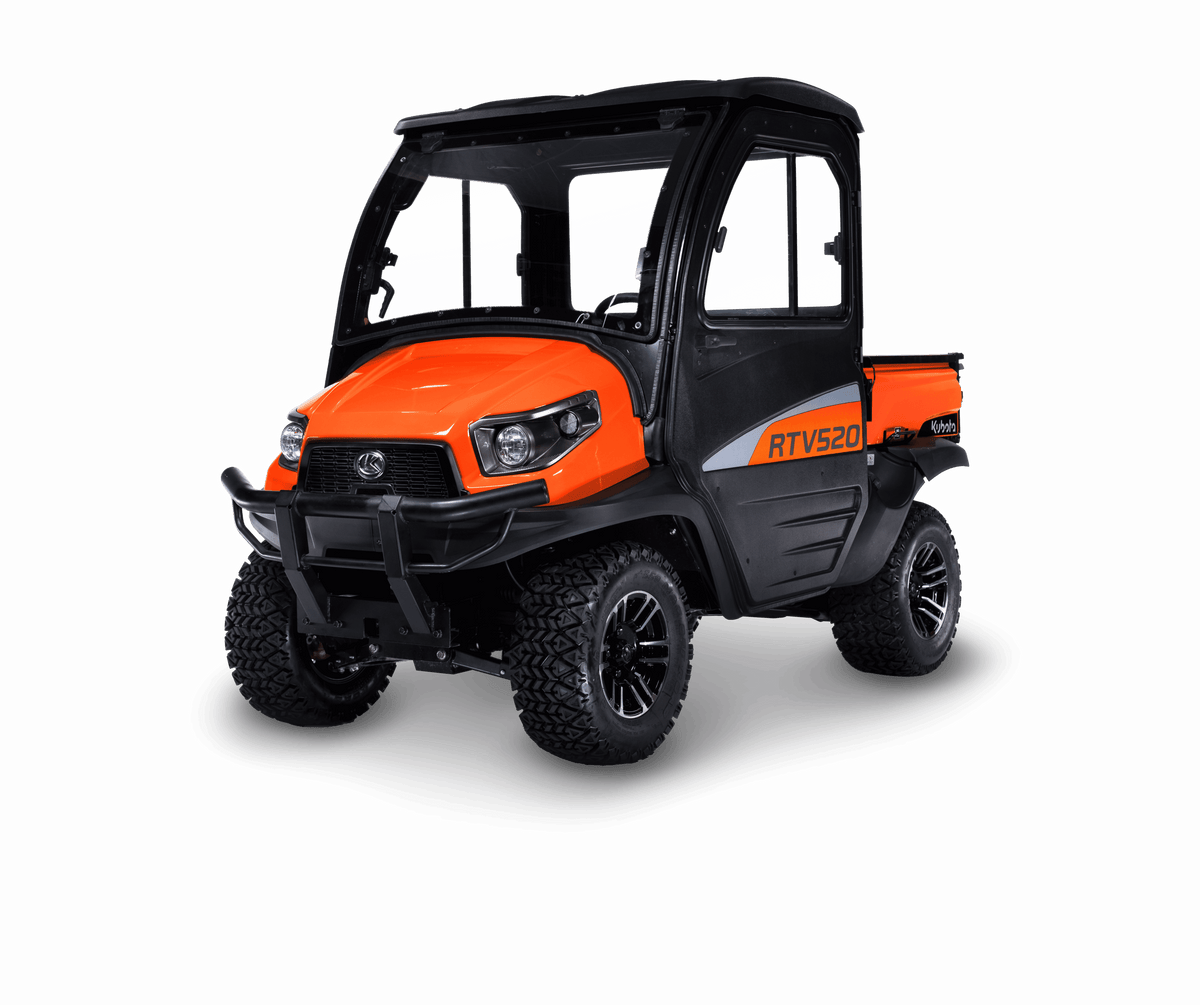

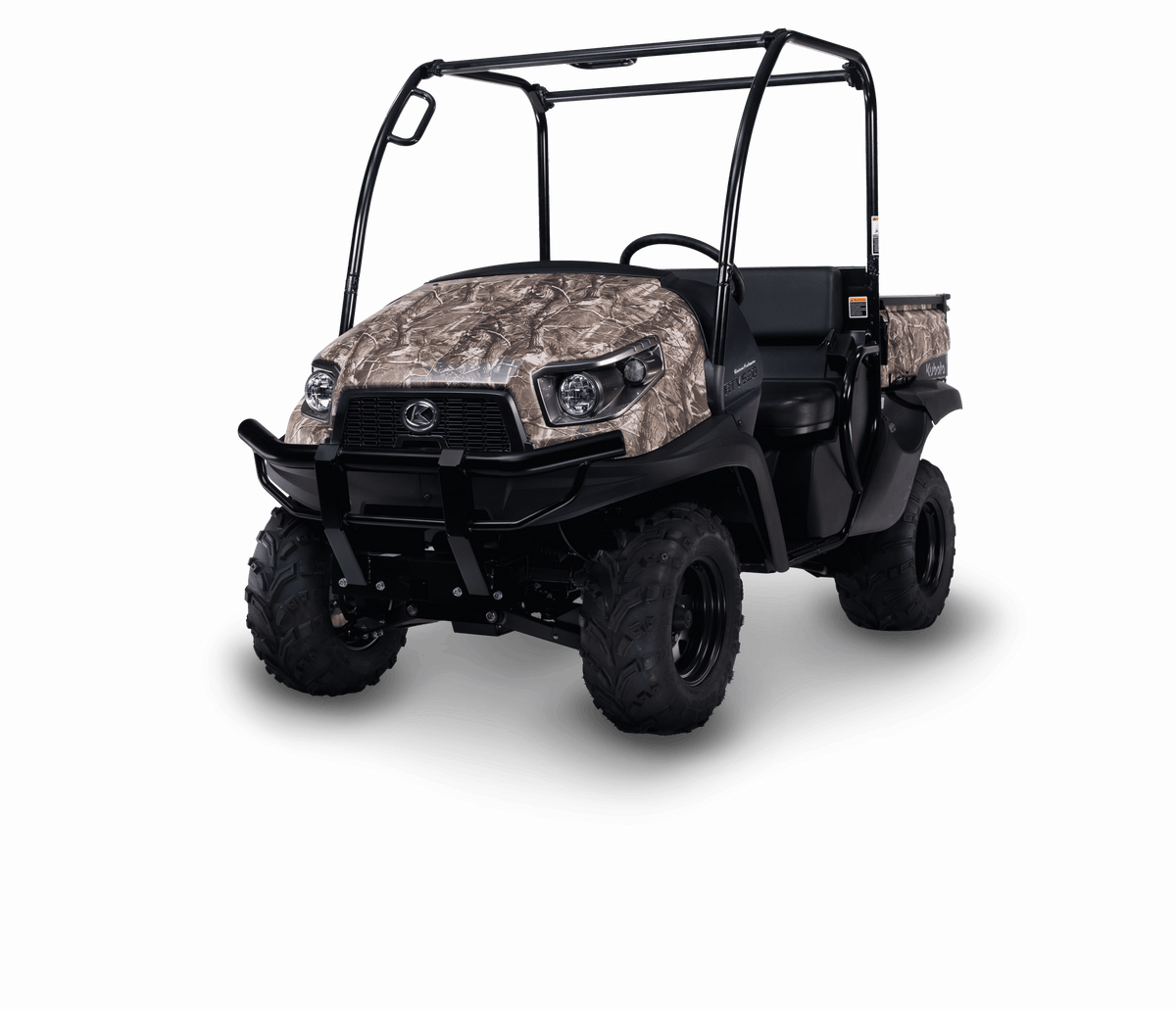

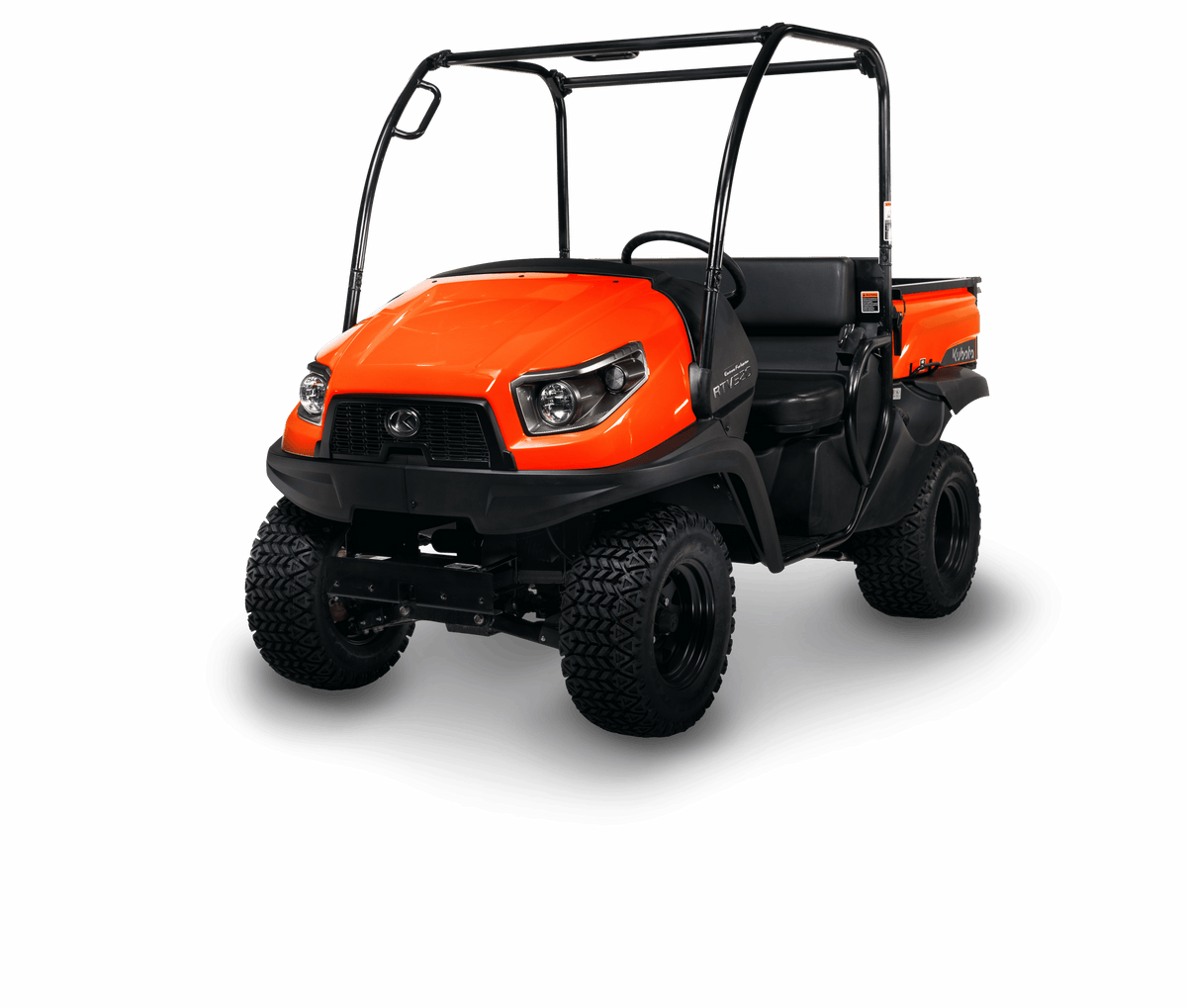

Representative photo of this model, not the machine on the yard.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
RTV520 key specs
| Engine power | 17.4 hp (13 kW), net, General Purpose |
|---|---|
| Top speed | 40 km/h (24.9 mph), General Purpose |
| Cargo box capacity | 440 lb (200 kg), General Purpose |
| Towing capacity | 1,168 lb (530 kg), General Purpose |
About the RTV520
Nimble and mighty. The NEW Kubota RTV520 delivers the rugged versatility to work at home and the job site. It comes with the power to tow, haul and get more done even in tight spaces—as well as the superior build quality to outlast challenging terrain.
RTV520 specifications
Engine4
| Engine type | 2-cylinder, Gas, OHC, Water-cooled, EFI |
|---|---|
| Displacement | 514 cc (31.4 cu in) |
| Engine power, net (SAE J1349) | 17.4 hp (13 kW) |
| Fuel tank | 20 L (5.3 US gal) |
Transmission and drive11
| Top speed | 40 km/h (24.9 mph) |
|---|---|
| Transmission | VHT PLUS Variable Hydro Transmission |
| Wheels | 4 |
| Drive system | 4WD, with 2WD selection |
| Gear selection | Hi-Lo range forward, neutral, reverse |
| Type of rear suspension | Rigid axle, 5-link type |
| Steering | Rack & Pinion |
| Differential lock | Standard; hand operated with mechanical holder |
| Type of front suspension | Independent, Mac-Pherson strut-type |
| Brakes | Dry disc |
| Parking brake | Rear wheel, hand brake |
Cargo box6
| Depth | 11.3 in (286 mm) |
|---|---|
| Length | 33.6 in (854 mm) |
| Width | 40.6 in (1,033 mm) |
| Volume | 8.9 cu ft (0.25 m³) |
| Height | 34.4 in (874 mm) |
| Maximum payload capacity | 440 lb (200 kg) |
Dimensions and weight16
| Overall height | 74 in (1,880 mm) |
|---|---|
| Wheelbase | 70.9 in (1,800 mm) |
| Weight | 1,378 lb (625 kg) General Purpose; 1,393 lb (632 kg) Deluxe |
| Turning diameter | 22.6 ft (6.9 m) |
| Length | 105.1 in (2,670 mm) General Purpose; 111.2 in (2,825 mm) Deluxe, with the front guard |
| Width | 54.7 in (1,390 mm) |
| Maximum towing capacity | 1,168 lb (530 kg) |
| Maximum payload capacity | 937 lb (425 kg) General Purpose; 922 lb (418 kg) Deluxe |
| Tread centers, front | 40.2 in (1,020 mm) |
| Tread centers, rear | 41 in (1,040 mm) |
| Ground clearance, front | 8.9 in (225 mm) |
| Ground clearance, rear | 6.7 in (170 mm) |
| Tires, ATV, front | 24x9-12 ATV, 6PLY |
| Tires, ATV, rear | 24x11-12 ATV, 6PLY |
| Tires, HDWS, front | 24x9-12 HDWS, 6PLY |
| Tires, HDWS, rear | 24x11-12 HDWS, 6PLY |
Operator station and other6
| Body colour | Orange or Realtree Hardwoods camouflage (General Purpose); orange (Deluxe) |
|---|---|
| Alloy wheel | Optional (General Purpose); standard (Deluxe) |
| Speedometer | Optional |
| Front guard | Optional (General Purpose); standard (Deluxe) |
| Headrest | Optional |
| Type | General Purpose or Deluxe |
From Kubota Canada’s specifications for the RTV520, read Oct 27, 2026. Options and attachments change some figures; ask us before you buy.
For RTV520 owners
Operator's manual
Kubota Canada publishes the operator's manual for the RTV520.
Open the operator's manual (PDF) ↗Utility vehicles near this size
We carry only the RTV520 from Kubota’s RTV520 series, so this row shows the two utility vehicles on our site next above it in weight; none of ours is lighter.

RTV520
- 17.4 hp net
- 40 km/h top speed
- General Purpose

RTV-XG850
- 54 hp net
- 64.4 km/h top speed
- General Purpose

RTV-X
- 23.3 hp
- 40 km/h top speed
- Standard
