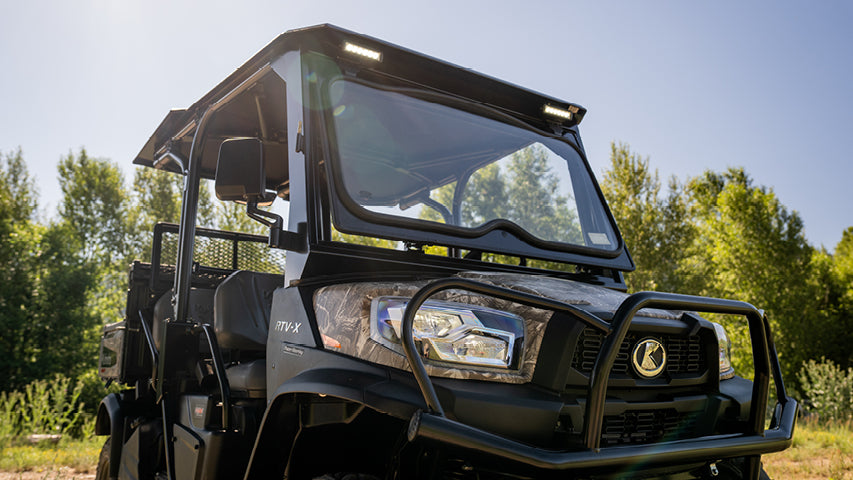

Kubota RTV-X CREW

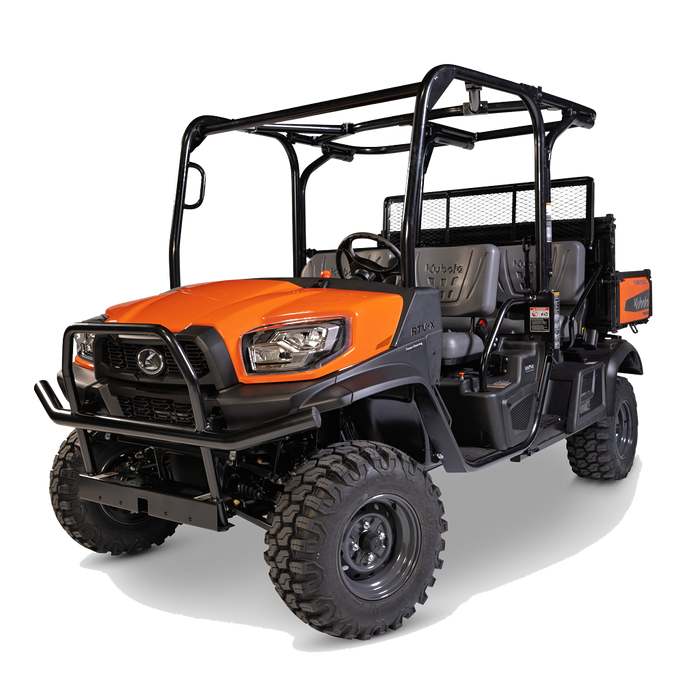

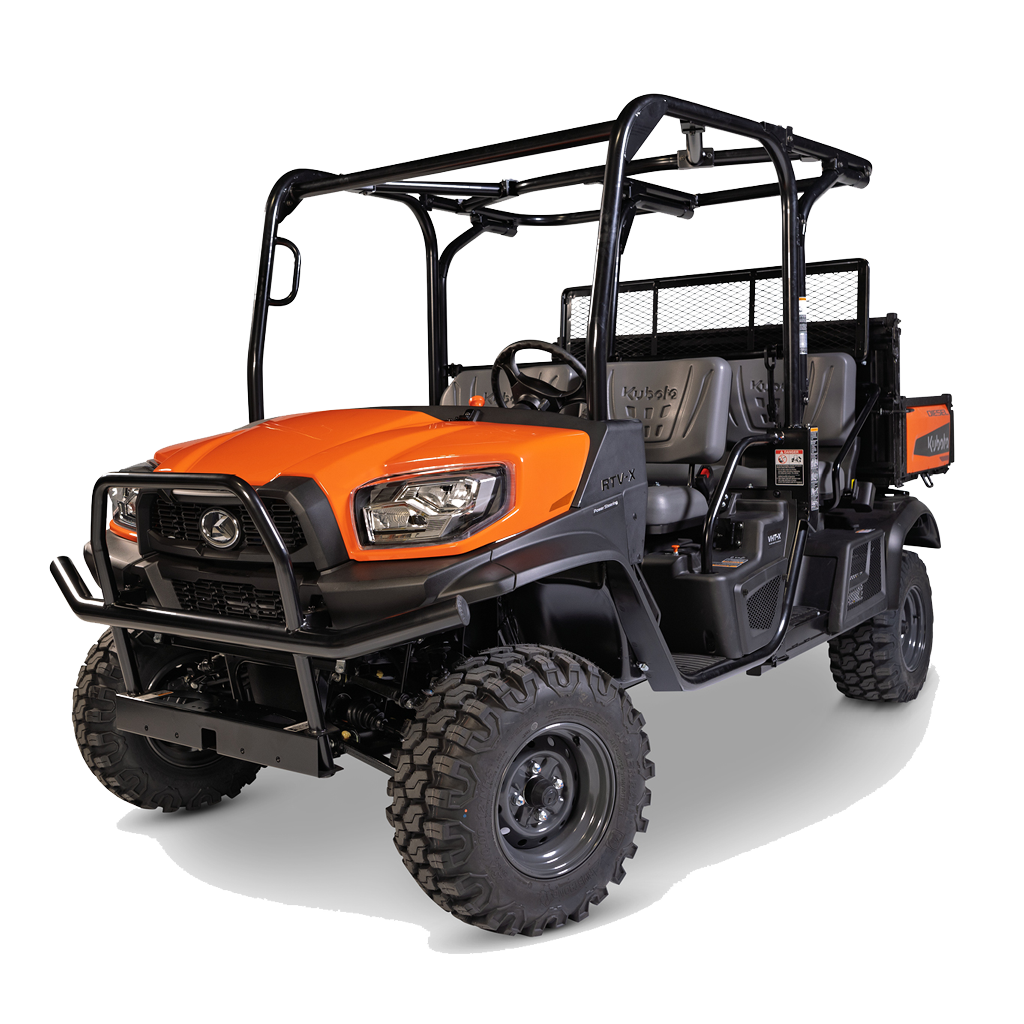

Representative photo of this model, not the machine on the yard.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
RTV-X CREW key specs
| Engine power | 23.3 hp (17.4 kW), Standard |
|---|---|
| Top speed | 40 km/h (25 mph), Standard |
| Cargo box capacity | Standard: 1,102 lb (500 kg) with one row of seats; 661 lb (300 kg) with two |
| Towing capacity | 1,300 lb (590 kg), Standard |
About the RTV-X CREW

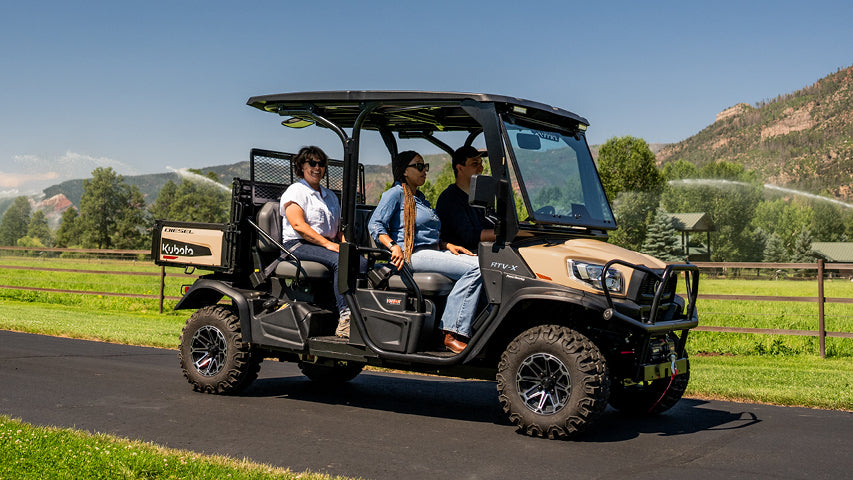

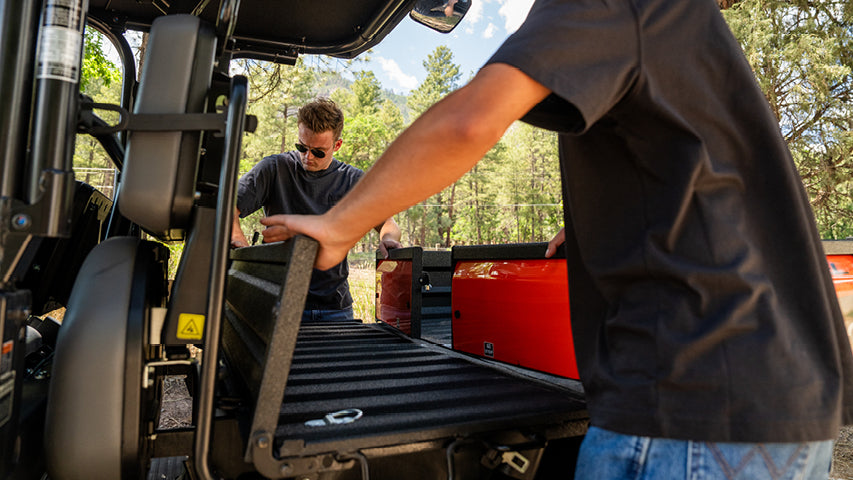

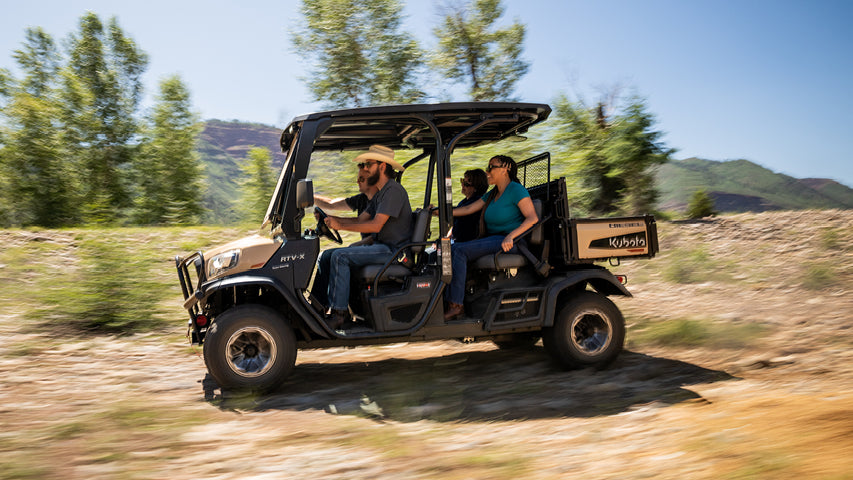

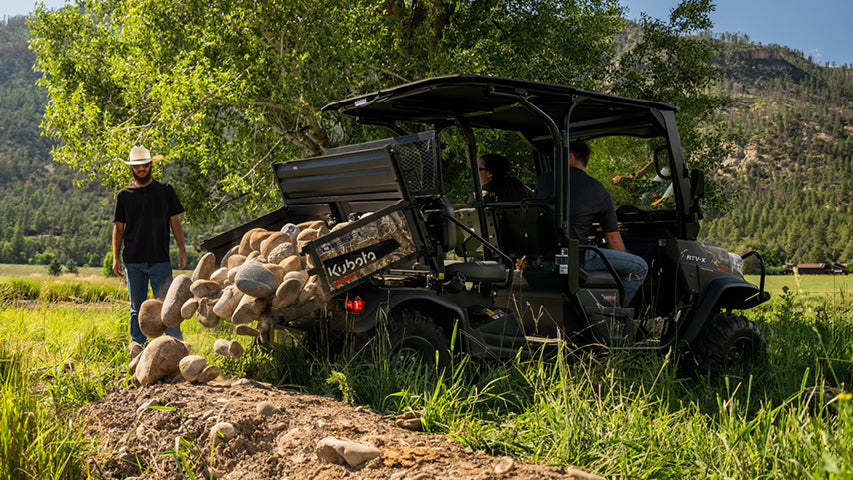

When you need a utility vehicle to do more with the whole crew, you can rely on the productivity and capability of the Kubota RTV-X CREW. The K-Vertible bed supplies maximum flexibility, allowing you to quickly and effortlessly switch from a 2-seater with a high-capacity bed to a 4-seater to transport the whole crew comfortably. Plus, the 23.3 HP Kubota diesel engine and hydraulic cargo bed lift provide the power and reliability for any job.
For more details and specs visit the kubota.ca RTV-X CREW Series page.
RTV-X CREW specifications
Engine9

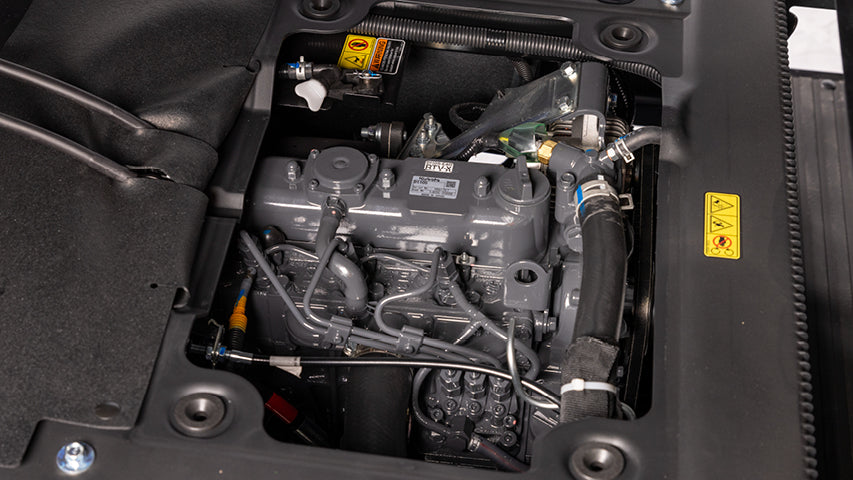

| Engine make | Kubota |
|---|---|
| Engine model | D1105-E4-UV |
| Engine type | 3-cylinders, 4-cycle, diesel, OHV |
| Displacement | 1,123 cc (68.5 cu in) |
| Engine power, gross | 23.3 hp (17.4 kW) |
| Cooling system | Liquid |
| Battery | 670 cold-cranking amps |
| Headlights | LED (High / Low) |
| Fuel tank | 30 L (7.9 US gal) |
Transmission and drive12

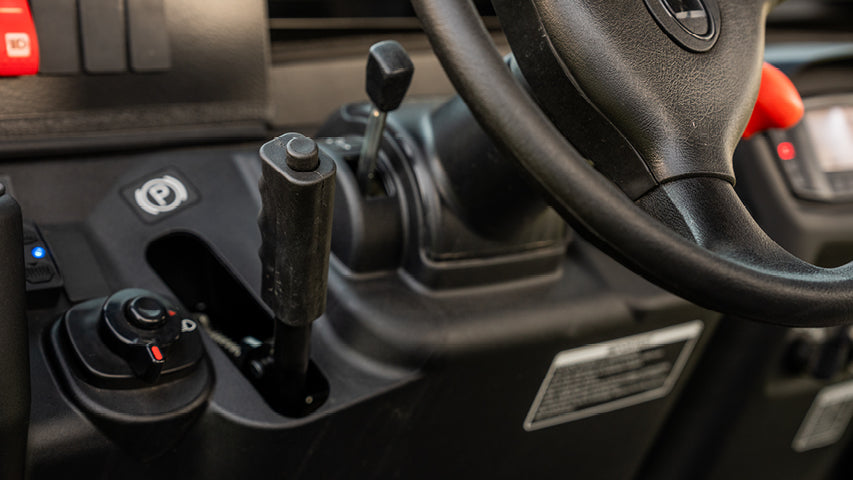

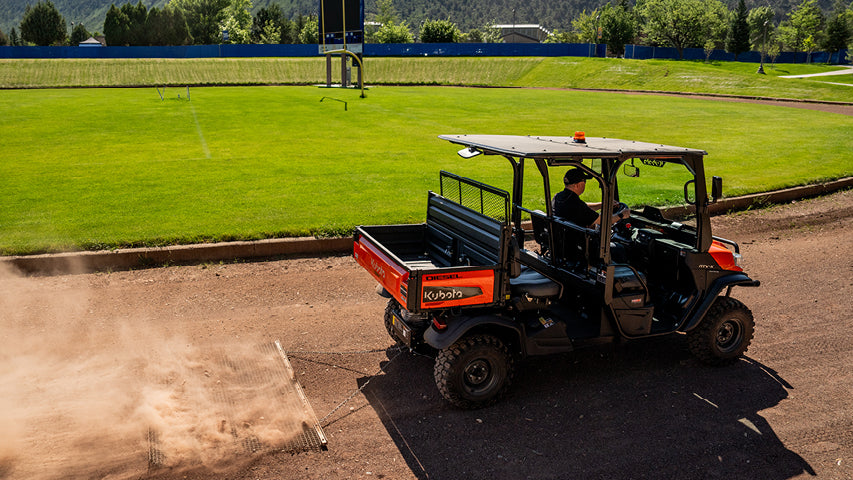

| Transmission | Variable hydro transmission (VHT-X) |
|---|---|
| Gear selection | Hi-Lo range forward, neutral, reverse |
| Top speed | 40 km/h (25 mph) |
| Differential lock - front axle | Limited-slip differential |
| Differential lock - rear axle | Foot operated differential lock |
| Steering | Hydrostatic power steering |
| Type of front suspension | Independent, Dual A-arms with adjustable spring preload |
| Type of rear suspension | Independent with coil over shock |
| Front suspension travel | 8 in (205 mm) |
| Rear suspension travel | 8 in (205 mm) |
| Brakes | Wet-disk brakes |
| Parking brake | Rear wheel, hand operated |

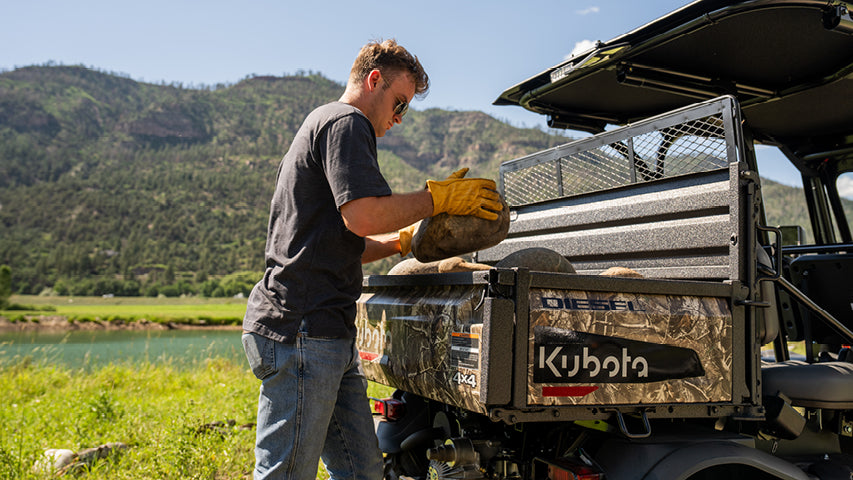

Cargo box7
| Material | Steel |
|---|---|
| Width | 57.7 in (1,465 mm) |
| Length | 51.1 in (1,300 mm) with one row of seats; 26 in (660 mm) with two |
| Depth | 11.2 in (285 mm) |
| Volume | 19.1 cu ft (0.54 m³) with one row of seats; 9.9 cu ft (0.28 m³) with two |
| Height | 35.4 in (900 mm) |
| Maximum payload capacity | 1,102 lb (500 kg) with one row of seats; 661 lb (300 kg) with two |
Dimensions and weight16
| Ground clearance, front | 11.2 in (285 mm) |
|---|---|
| Ground clearance, rear | 9.4 in (240 mm) |
| Length | 142.1 in (3,610 mm) |
| Width | 63.2 in (1,605 mm) |
| Overall height | 79.7 in (2,025 mm) |
| Wheelbase | 98.2 in (2,495 mm) |
| Weight | 2,392 lb (1,085 kg) |
| Turning radius | 17.1 ft (5.2 m) |
| Maximum towing capacity | 1,300 lb (590 kg) |
| Maximum payload capacity | 1,607 lb (729 kg) |
| Tread centers, front | 50.4 in (1,280 mm) |
| Tread centers, rear | 50.4 in (1,280 mm) |

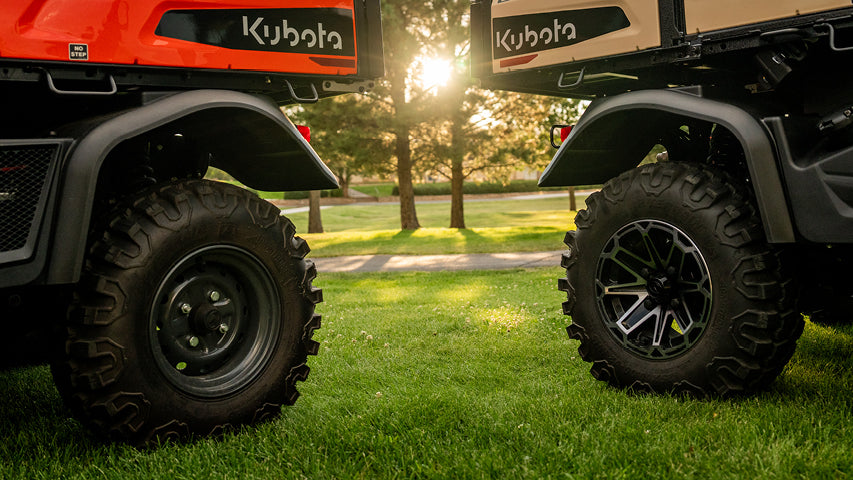

| Tires, ATV, front | 25x10-12, 6-ply: equipped on camo, available on orange and desert sand |
| Tires, ATV, rear | 25x10-12, 6-ply: equipped on camo, available on orange and desert sand |
| Tires, HDMP, front | 25x10-12, 6-ply: equipped on orange and desert sand, available on camo |
| Tires, HDMP, rear | 25x10-12, 6-ply: equipped on orange and desert sand, available on camo |
Operator station and other11
| Grade | Standard or Premium |
|---|---|
| Body colour | Orange or camo (Standard); orange, camo or desert sand (Premium) |
| Tubular overhead structure | 2 in (50.8 mm) steel tube |
| Seat belts | 2-point |
| Certification | SAE J2194 and OSHA 1928 ROPS |
| Maximum noise level at operator's ear | 83 dB(A) |
| Hydraulic bed lift | Equipped |
| Spray-on bed liner | Equipped on camo, available on orange (Standard); equipped (Premium) |
| ProKonvert | Not available |
| Alloy wheel | Available (Standard); equipped on desert sand, available on orange and camo (Premium) |
| Front guard | Standard or Premium, by grade |
From Kubota Canada’s RTV-X brochure (Nov 2025) for the RTV-X CREW, read Oct 27, 2026. Options and attachments change some figures; ask us before you buy.
