Vermeer 605S Signature Baler
Vermeer's 605S round baler in its Signature package: a cammed pickup for high performance across varying crop types, a heavy-duty platform for long, demanding baling days, consistent bale shape and density, and efficient low-horsepower operation.

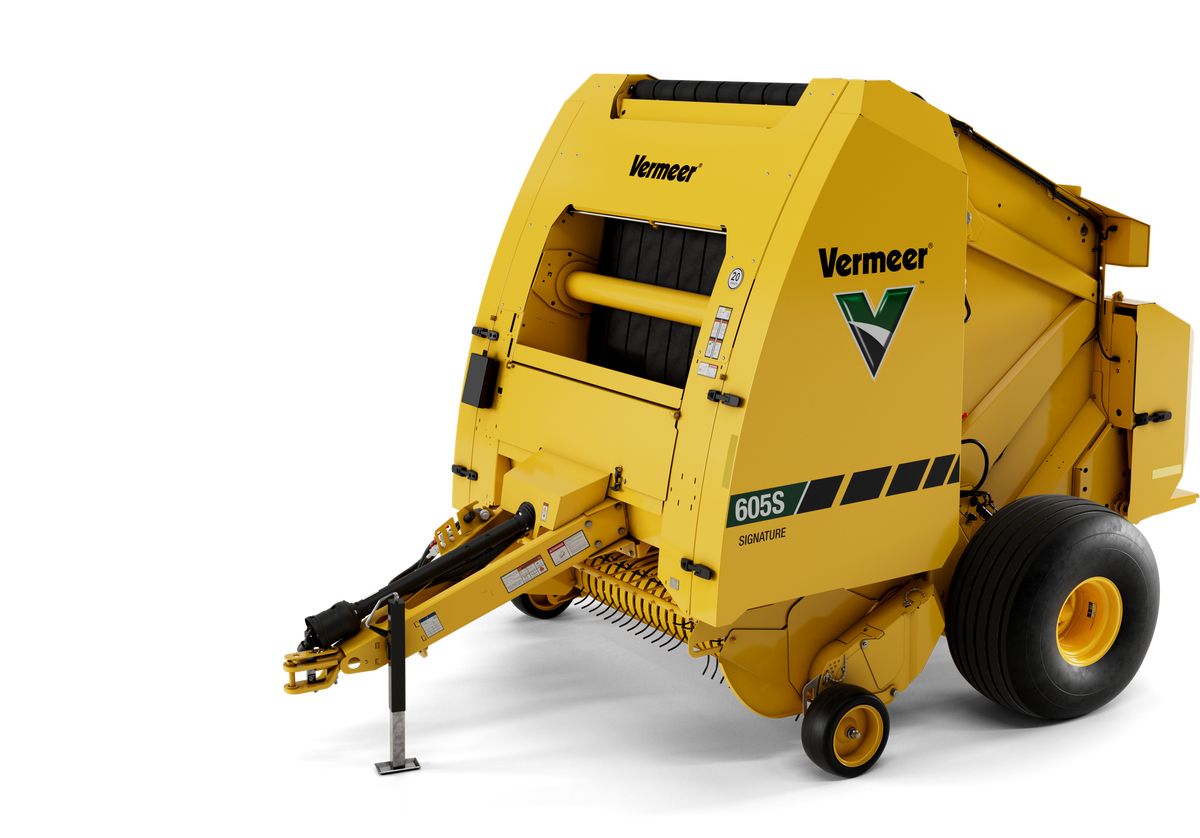

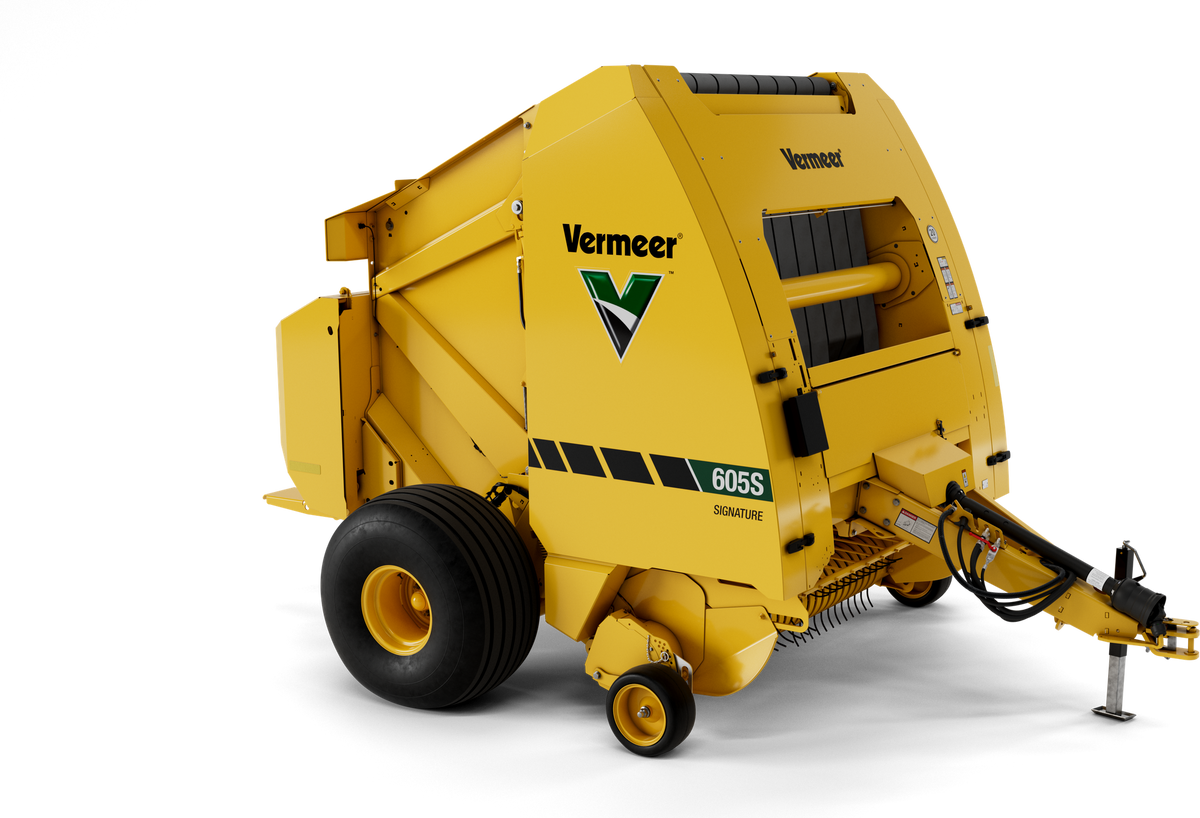

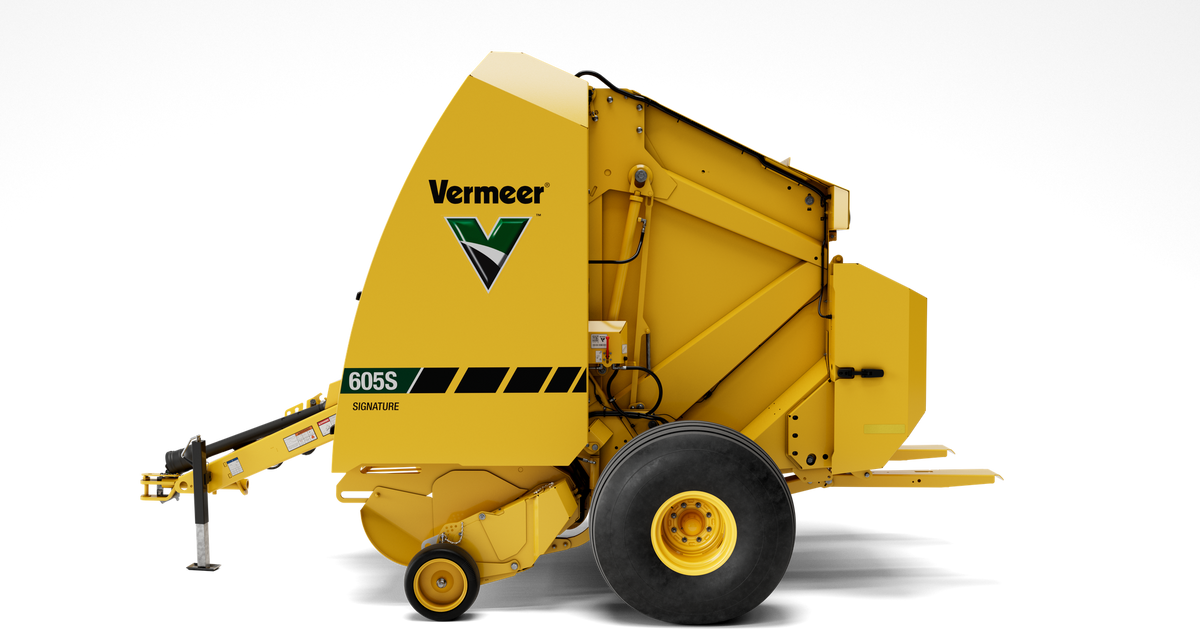

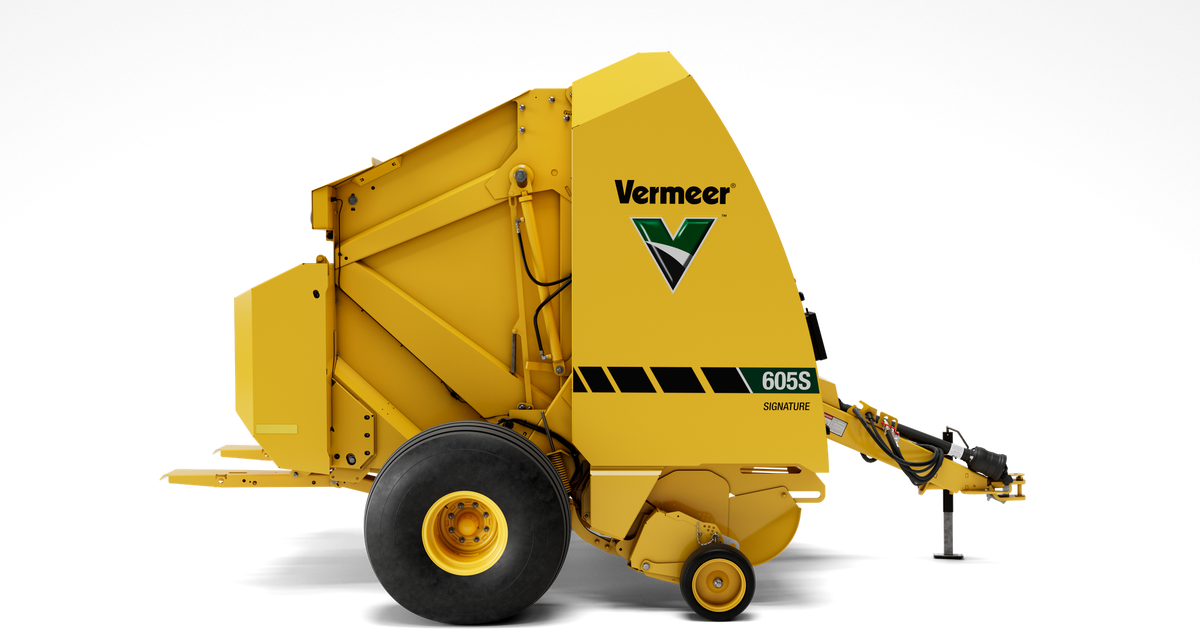

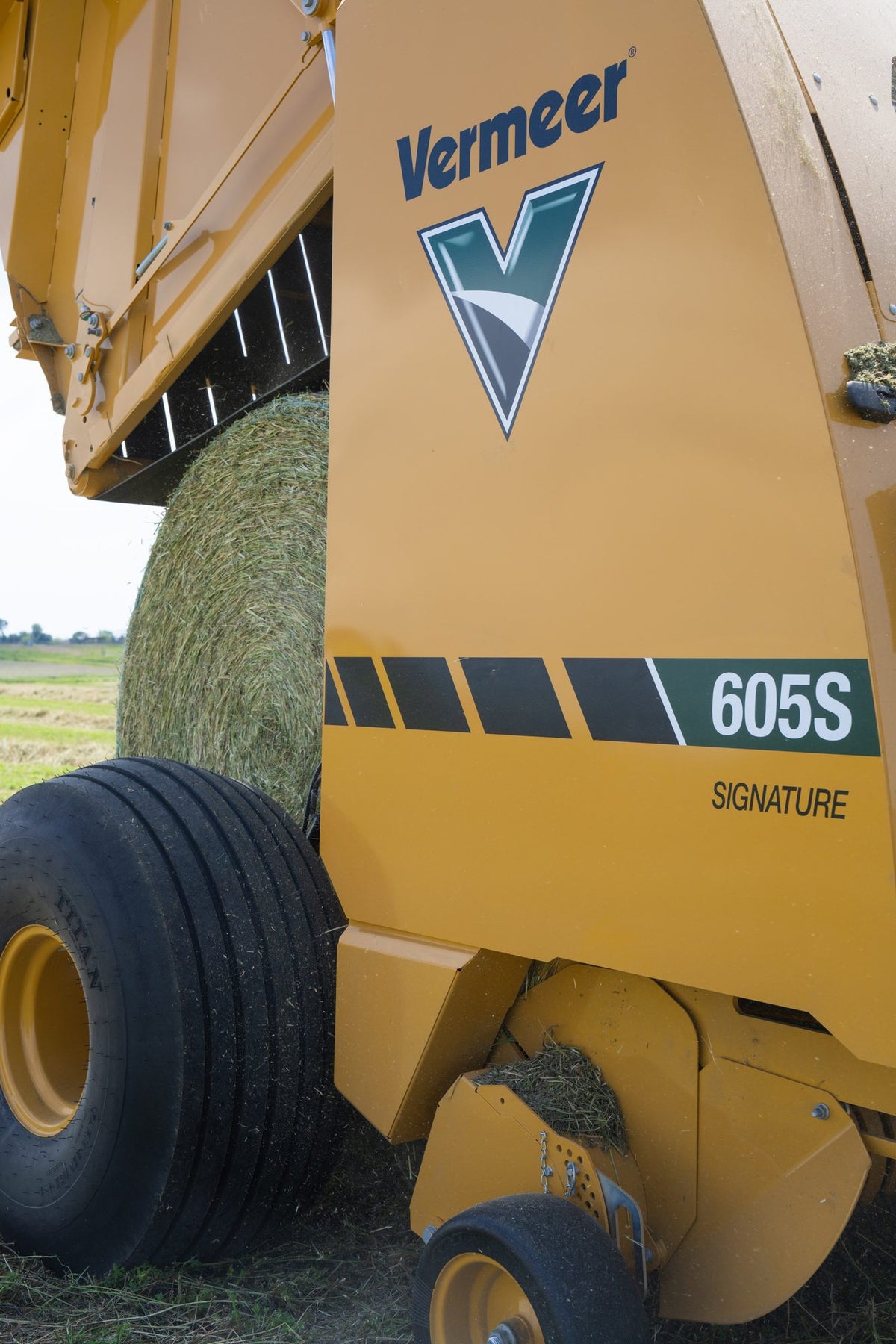

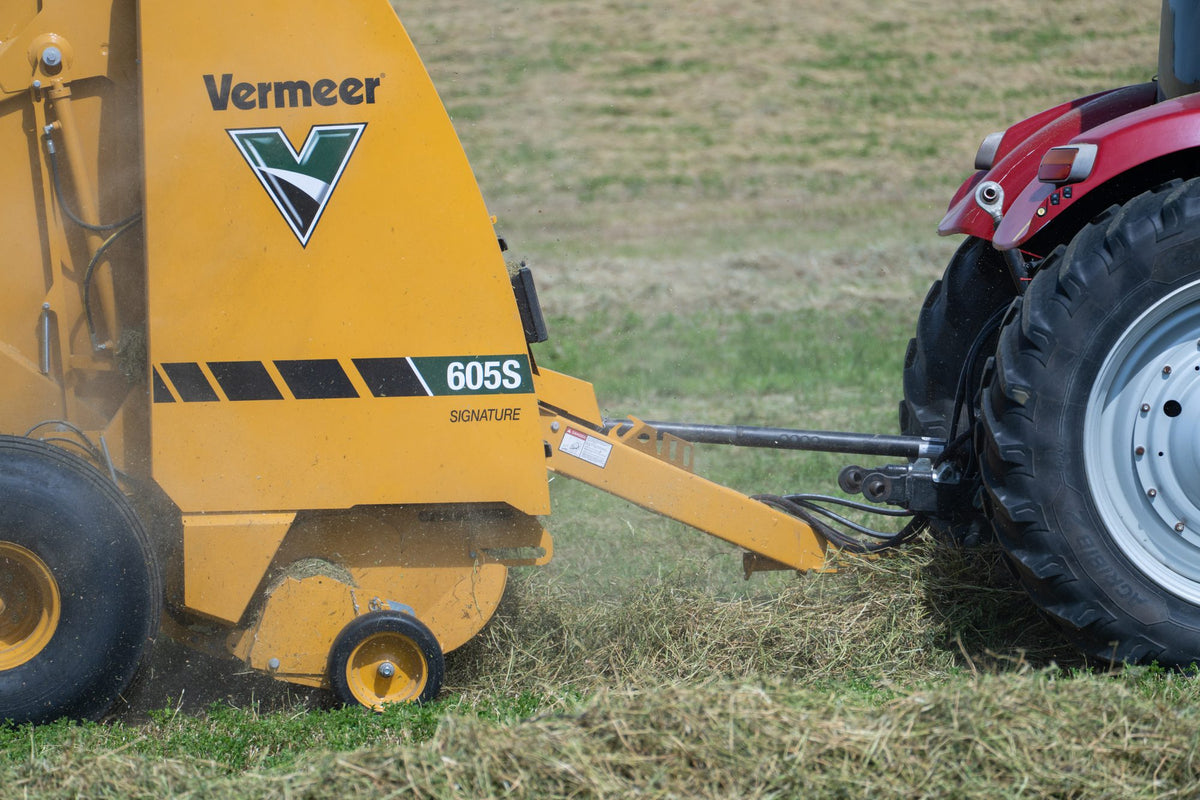

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
605S Signature key specs
| Bale size | 36–72 in (91–183 cm) diameter × 61 in (155 cm) wide |
|---|---|
| Bale weight, maximum | 2,400 lb (1,089 kg) |
| Pickup width | 77 in (196 cm) |
| Tractor PTO power | 95 hp (70.8 kW) min. · 135 hp (100.7 kW) recommended |
| Weight, fully optioned | 9,400 lb (4,264 kg) |
About the 605S Signature

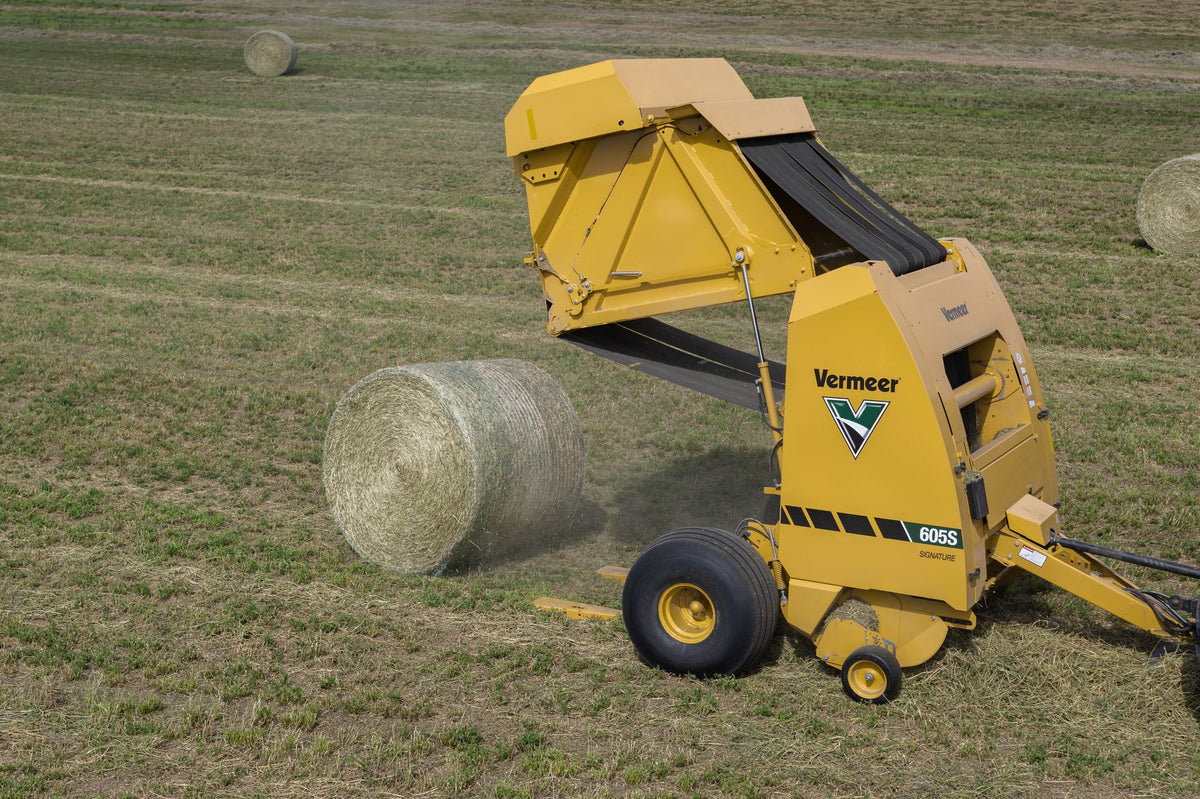

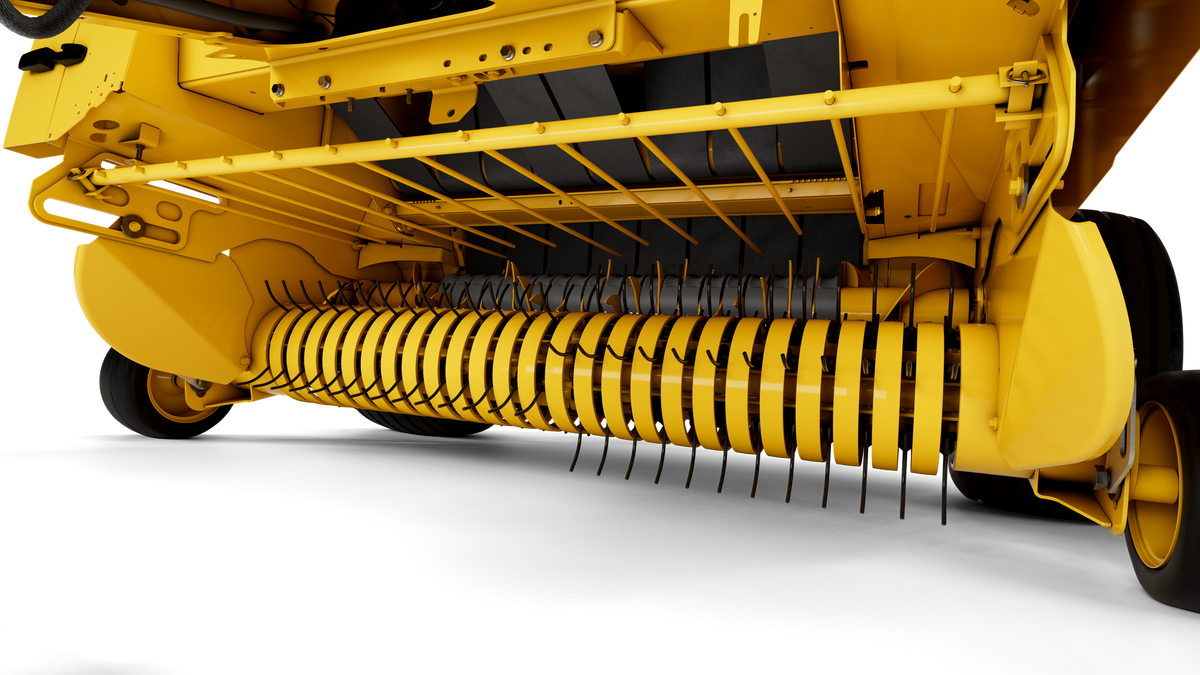

Maximize capacity and feeding consistency with a cammed pickup that actively controls crop flow for smoother intake and reliable performance in heavy or variable crop conditions. Pack more hay into every bale with a density system that delivers tighter, heavier bales — reducing the number of bales you handle and helping preserve nutrition during storage. Simplify baling with optional auto eject, which automatically ties the bale and controls the tailgate sequence, reducing the number of tasks operators need to manage in the cab.
The rotor evenly feeds crop across the chamber to improve bale shape and maintain consistent capacity, especially in light or uneven windrows. Understand what your bales look like before they even leave the chamber with bale shape indicators on the control system. Simple in‑cab density adjustments allow you to make confident changes on the go, delivering consistent, high‑quality bales. No stopping, no guesswork.
605S Signature specifications
Bale size3
| Bale diameter | 36–72 in (91–183 cm) |
|---|---|
| Bale width | 61 in (155 cm) |
| Maximum bale weight | 2,400 lb (1,089 kg) |
Bale chamber13
| Drive roller size | 5.5 in (14 cm) |
|---|---|
| Idler roller size | 3.5, 3.6, 4, 4.8 and 5.5 in (8.9, 9.2, 10, 12 and 14 cm) |
| Start roller size | 5.3 in (13 cm) |
| Belt type | Premium mini rough top |
| Belts | 8 |
| Belt width | 6.8 in (17 cm) |
| Belt length, long | 563.5 in (1,431 cm) |
| Belt length, short | 557 in (1,415 cm) |
| Belt lacing | Alligator rivet |
| Silage kit | Optional |
| Bale density adjustments | Standard through control system monitor |
| Density readings | Digital gauge |
| Cylinder size | 3 in (8 cm) |
Pickup9
| Pickup type | Cammed wide |
|---|---|
| Pickup width, tooth to tooth | 77 in (196 cm) |
| Pickup width, outside the flares | 91 in (231 cm) |
| Tooth bars | 5 |
| Teeth | 65, double rubber mounted |
| Tooth spacing | 3.1 in (7.8 cm) |
| Stripper bands | Poly |
| Flotation | Gauge wheels 7.1-16 HD semi-pneumatic with spring assist |
| Pickup lift | Hydraulic |
Bale tie system6
| Twine system | Optional |
|---|---|
| Netwrap system | Standard |
| Net gauge via control system | Standard |
| Net tension control | Manual |
| Net lift system | Optional |
| Extra roll storage | Standard |
Control system9
| Control system type | Atlas Pro control system |
|---|---|
| Display | 7-in (18-cm) colour touch screen |
| Field records | 50 fields with names |
| Field statistics download | USB |
| Bale shape indicators | Standard-3 |
| Moisture sensing | Standard up to 29% |
| Bales per hour | Standard |
| Auto eject | Optional |
| ISOBUS capability | Standard |
Tractor and drive6
| Driveline | 540 rpm, extended lube, automatic clutch (standard); 1 3/8 1,000 rpm, extended lube, automatic clutch (option) |
|---|---|
| Torque protection pickup | Radial pin clutch |
| Roller chains | Single 80 and 80 |
| Bearing and sprocket configuration | Hex drive shafts and bearings |
| PTO power, minimum | 95 hp (70.8 kW) |
| PTO power, recommended | 135 hp (100.7 kW) |
Dimensions and weight7
| Length, standard | 187 in (475 cm) |
|---|---|
| Length, with net wrap | 187 in (475 cm) |
| Length, with bale ramp | 208 in (528 cm) |
| Height | 121 in (307 cm) |
| Width, standard tires | 129 in (328 cm) |
| Tires | 21.5L-16.1 |
| Weight, fully optioned | 9,400 lb (4,264 kg) |
Features8
| Bale ramp | Hydraulic |
|---|---|
| Auto lube greasing system | Optional |
| Grease bank | Standard |
| Automatic chain lube system | Optional |
| Right-hand door | Optional |
| LED maintenance lights | Optional |
| Fire extinguisher, safety chain | Optional |
| Scale kit | Optional |
From Vermeer’s specifications for the 605S Signature, read Oct 28, 2026. Options and attachments change some figures; ask us before you buy.
The 605S trims
The trims share most of their specifications; each card shows what differs.

605S Rancher Baler
- Pickup type: Camless wide
- PTO power, minimum: 75 hp
- Weight, fully optioned: 9,200 lb

605S Signature Baler
- Pickup type: Cammed wide
- PTO power, minimum: 95 hp
- Auto eject: Optional
- Weight, fully optioned: 9,400 lb

605S Premium Baler
- Pickup type: Cammed wide
- PTO power, minimum: 95 hp
- Auto eject: Standard
- Weight, fully optioned: 9,400 lb
