Vermeer 605S Rancher Baler
Vermeer's 605S round baler in its Rancher package: a camless wide pickup for straightforward maintenance, rubber-mounted pickup teeth and other rugged components, and in-cab operation through the Atlas Pro control system.

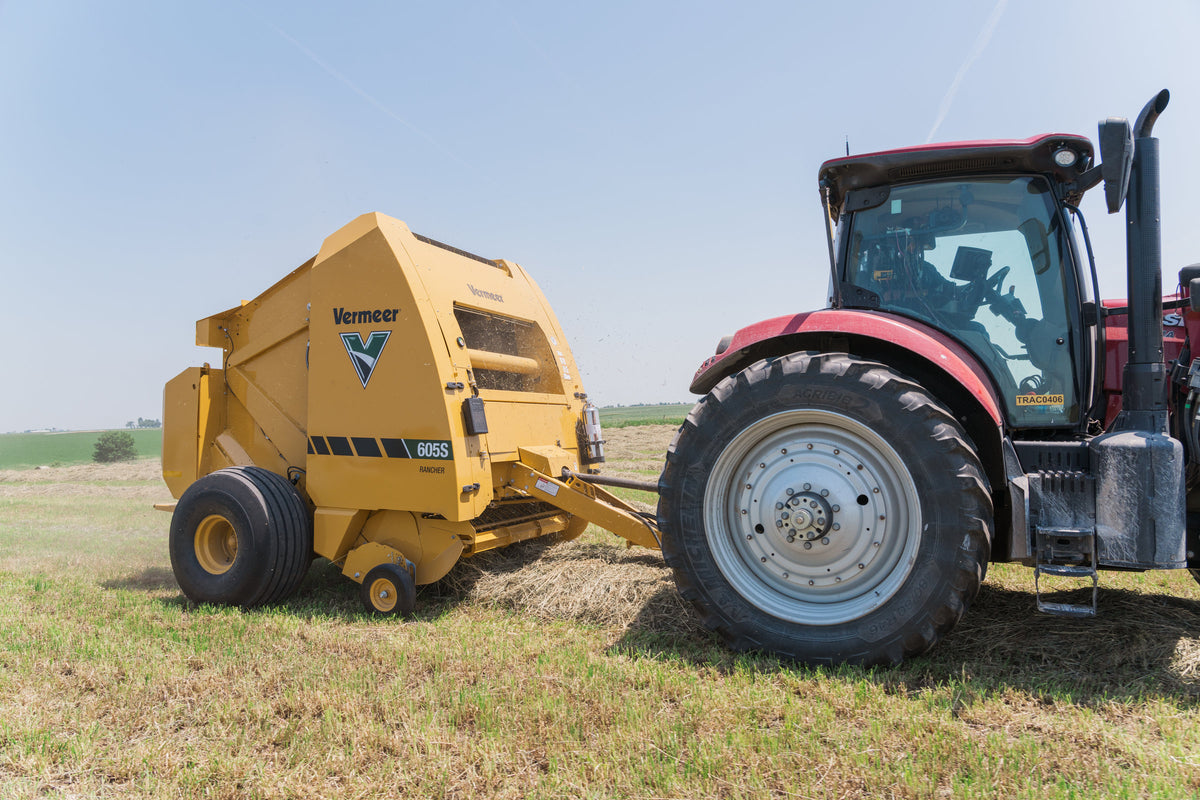

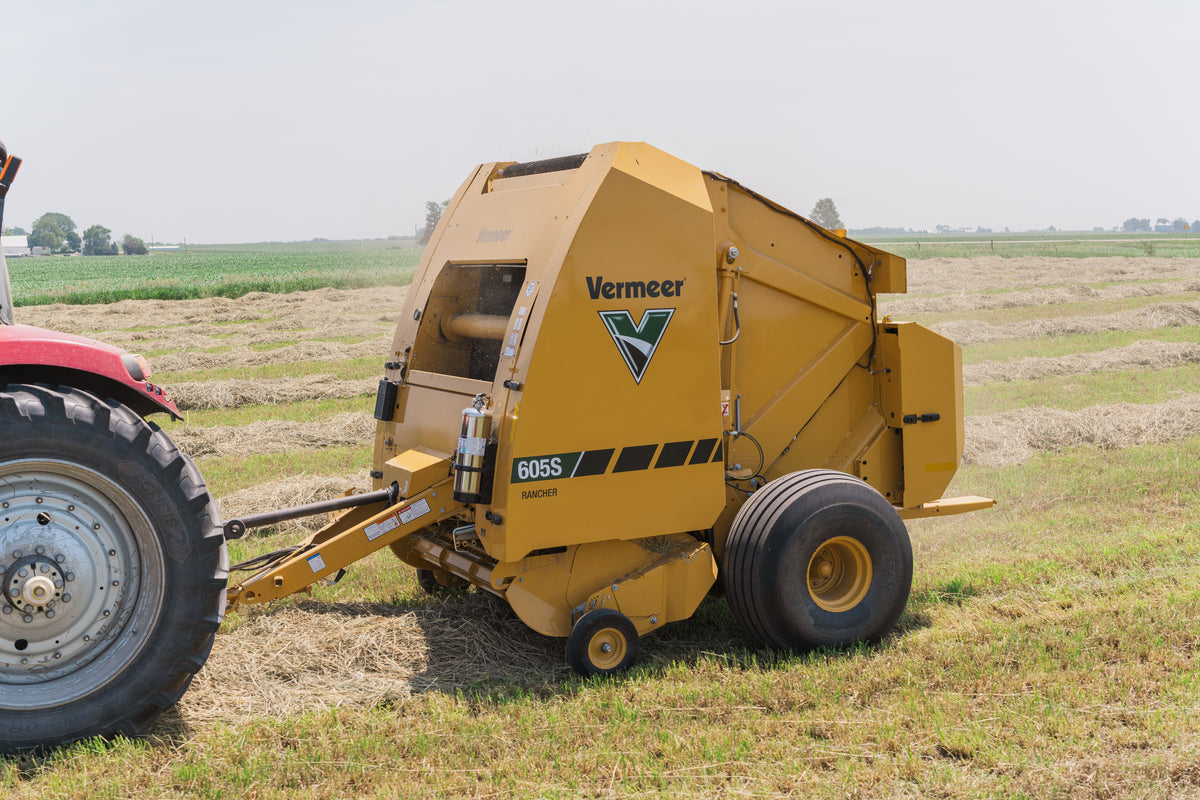

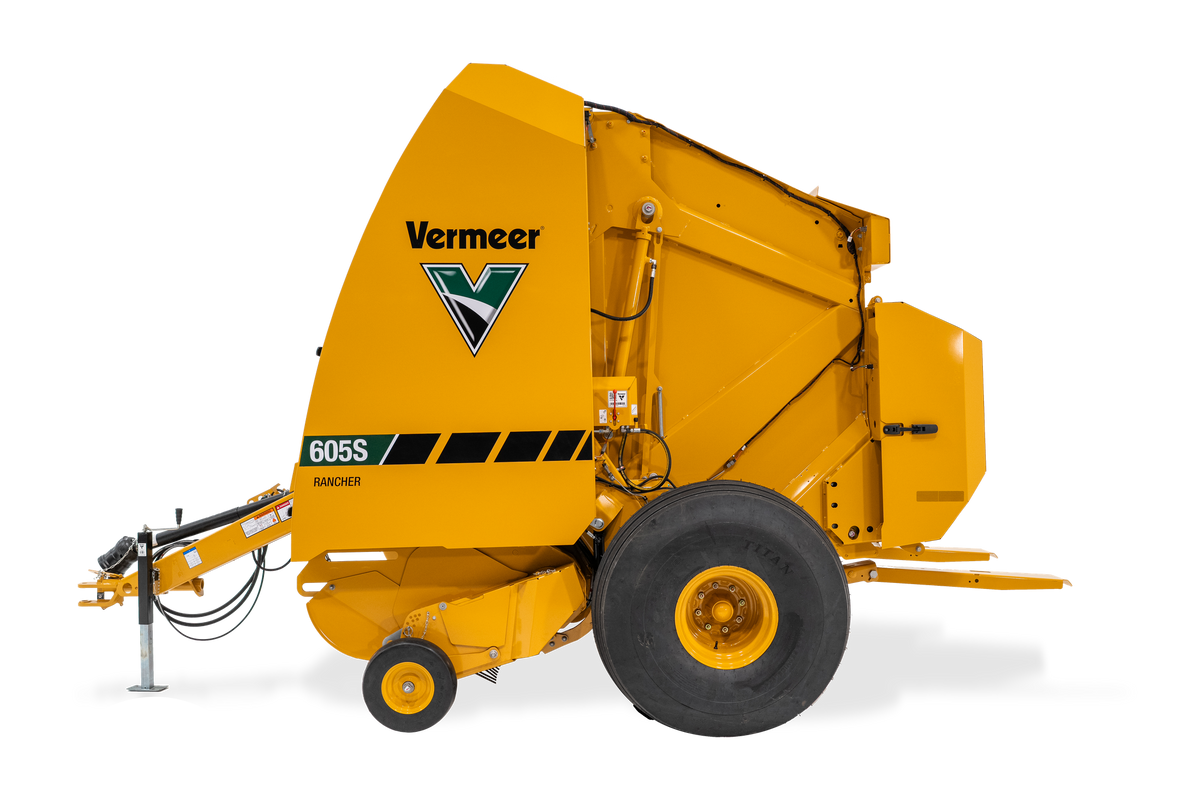

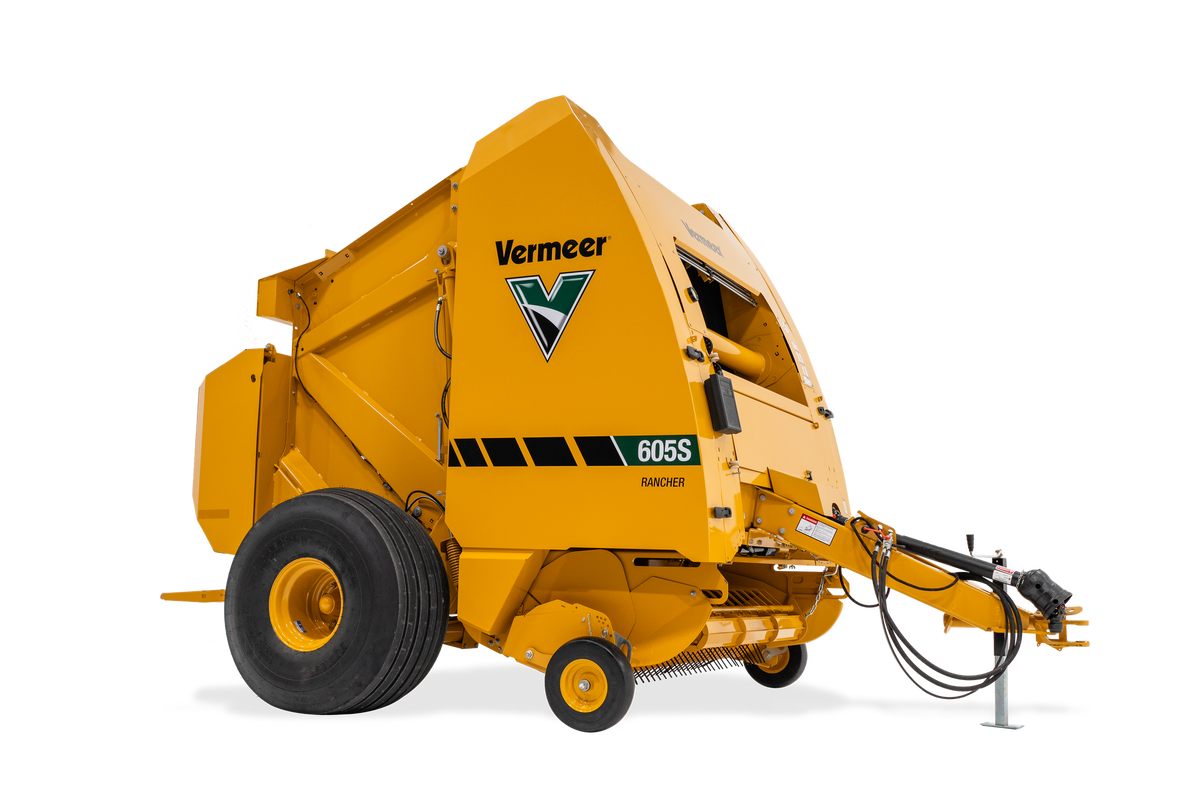

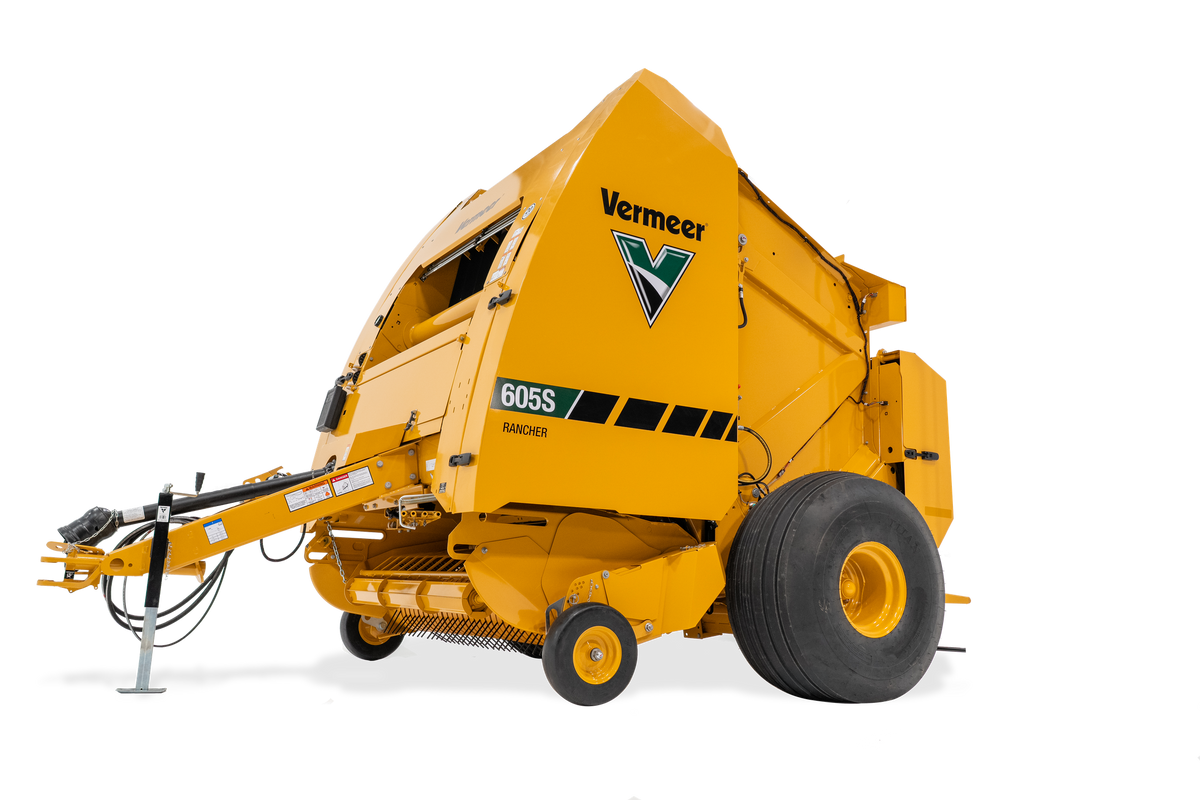

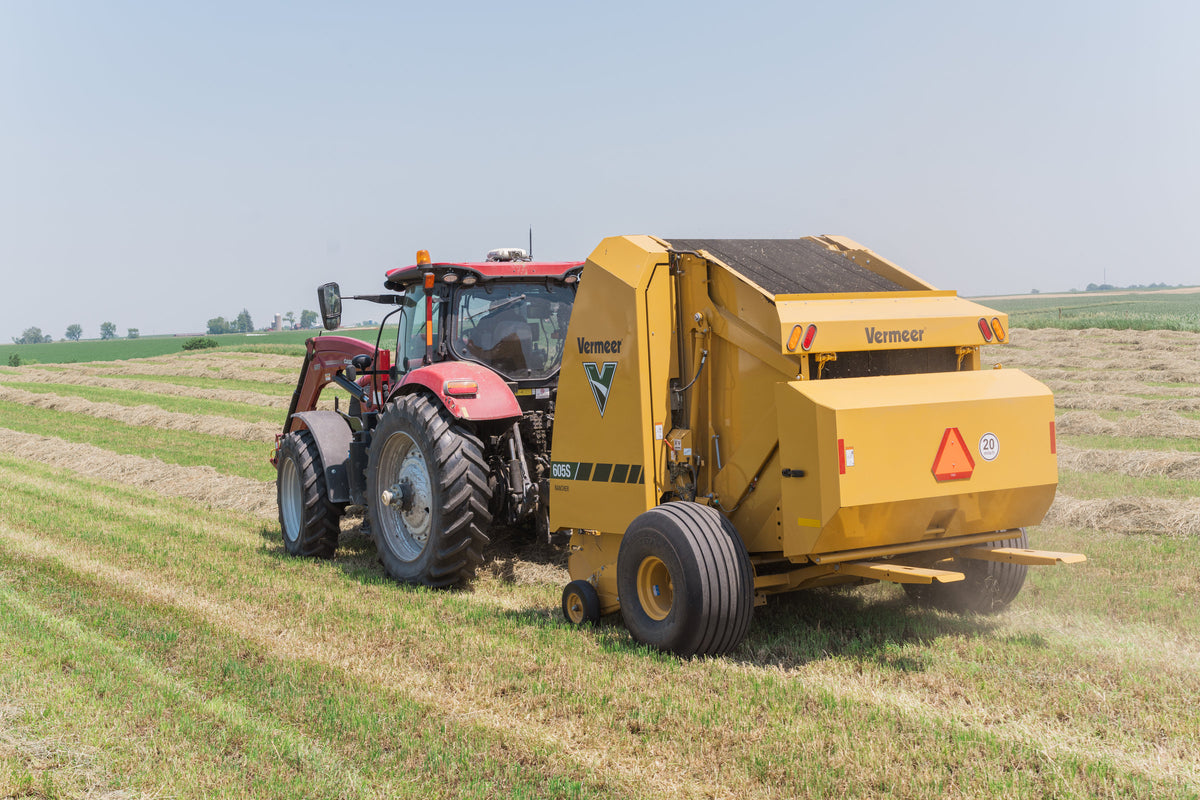

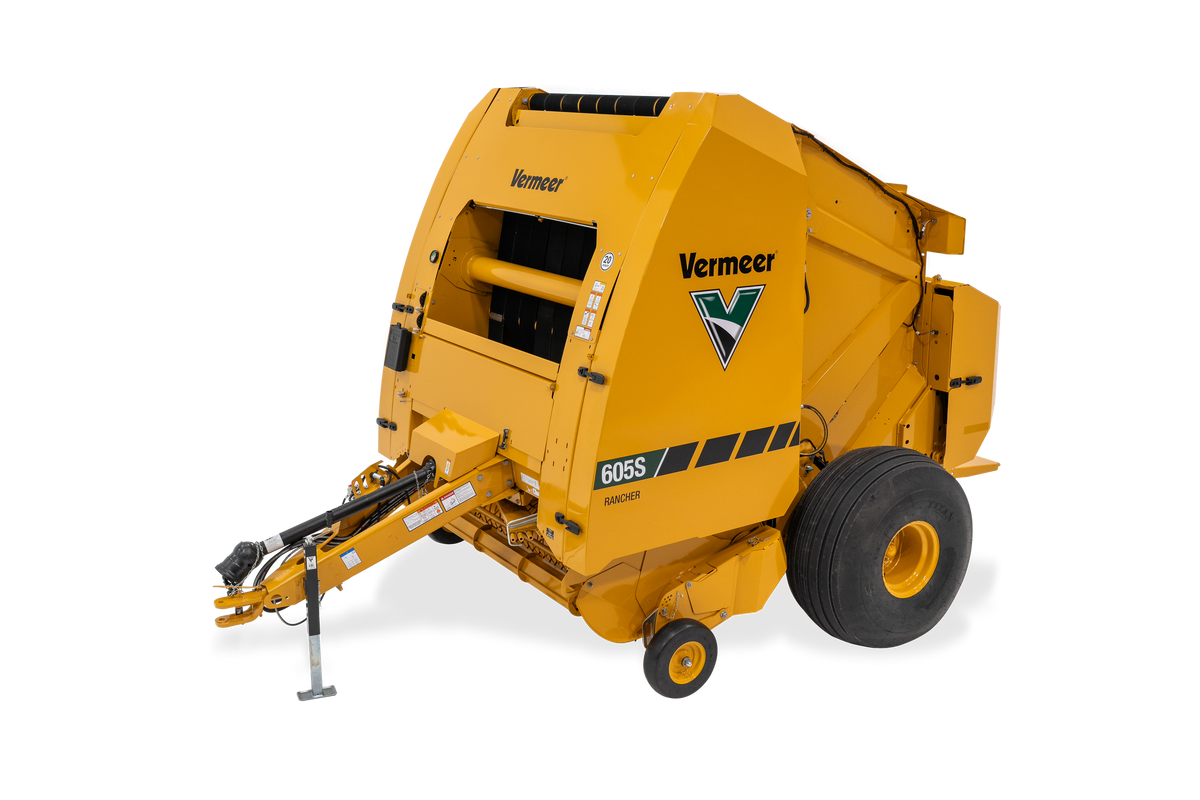

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
605S Rancher key specs
| Bale size | 36–72 in (91–183 cm) diameter × 61 in (155 cm) wide |
|---|---|
| Bale weight, maximum | 2,400 lb (1,089 kg) |
| Pickup width | 77 in (196 cm) |
| Tractor PTO power | 75 hp (55.9 kW) min. · 100 hp (74.6 kW) recommended |
| Weight, fully optioned | 9,200 lb (4,173 kg) |
About the 605S Rancher

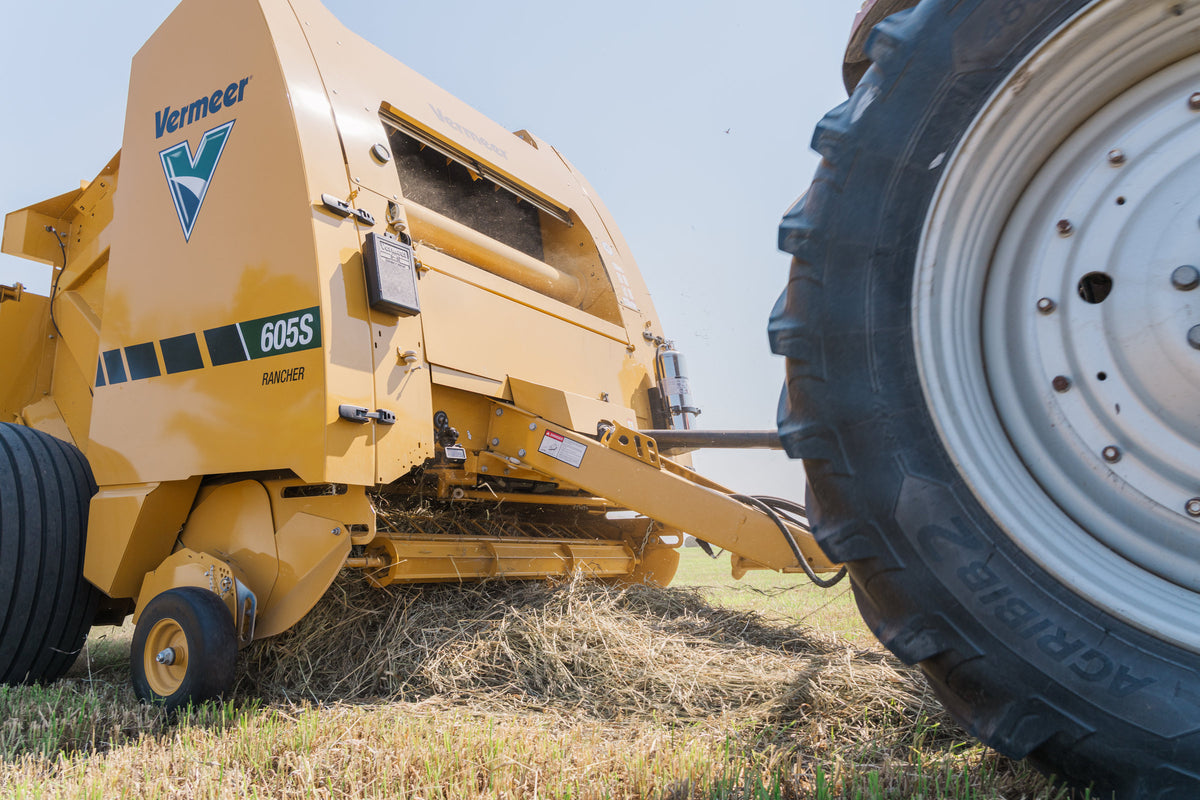

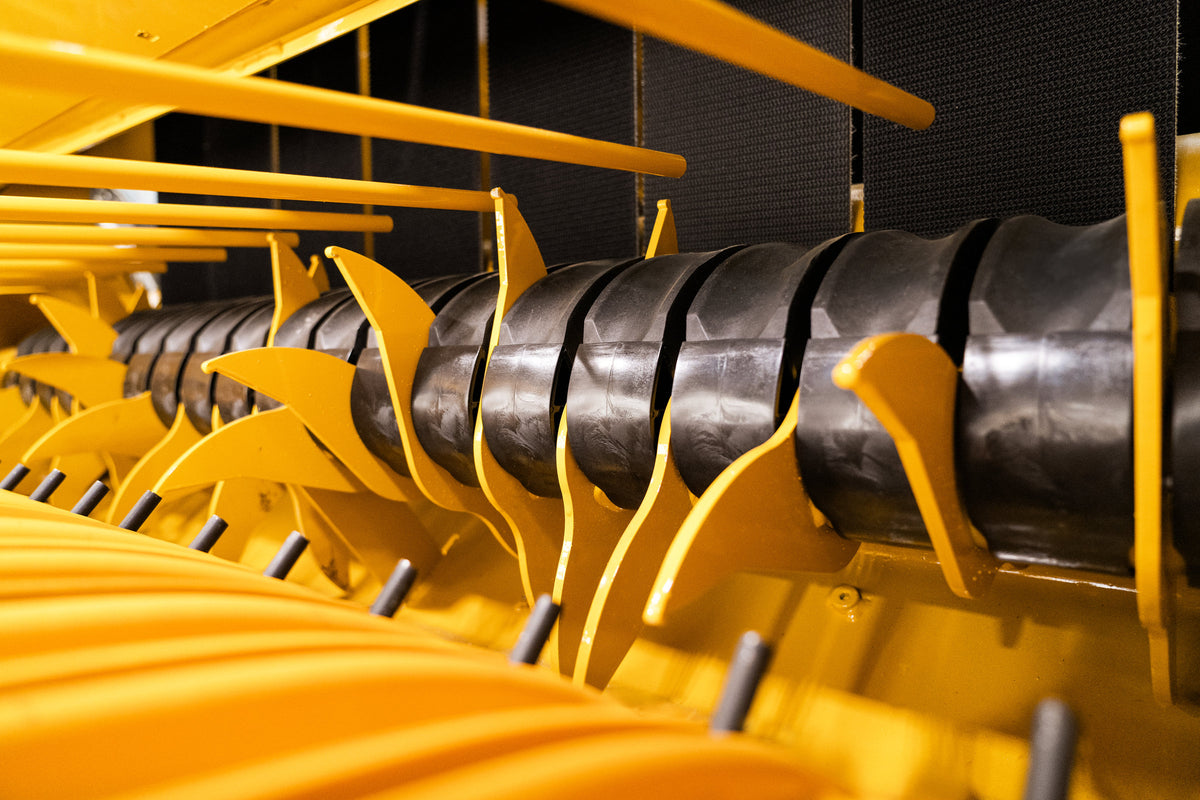

Help minimize maintenance and prolong the life of your machine with a 4-bar camless wide pickup equipped with 56 rubber-mounted pickup teeth for added strength and durability in varying crop types and conditions. Tired of lifting heavy net rolls? No worries. Let the 605S Rancher do the heavy lifting for you with an optional net lift system that raises the netwrap roll into the tailgate using a swing-out arm and switch. Let the optional Auto Lube greasing system help take care of maintenance as it provides automatic lubrication to some critical bearings at user-defined intervals through the Atlas Pro control system.
Set it and forget it. Net tension control is simple to adjust and easily accessible from the rear of the baler. Stay in the cab even when you need to adjust your density. In-cab density adjustments make getting the most out of your crop easy.
605S Rancher specifications
Bale size3
| Bale diameter | 36–72 in (91–183 cm) |
|---|---|
| Bale width | 61 in (155 cm) |
| Maximum bale weight | 2,400 lb (1,089 kg) |
Bale chamber13
| Drive roller size | 5.5 in (14 cm) |
|---|---|
| Idler roller size | 3.5, 3.6, 4, 4.8 and 5.5 in (8.9, 9.2, 10, 12 and 14 cm) |
| Start roller size | 5.3 in (13 cm) |
| Belt type | Premium mini rough top |
| Belts | 8 |
| Belt width | 6.8 in (17 cm) |
| Belt length, long | 563.5 in (1,431 cm) |
| Belt length, short | 557 in (1,415 cm) |
| Belt lacing | Alligator rivet |
| Silage kit | Optional |
| Bale density adjustments | Standard through control system monitor |
| Density readings | Digital gauge |
| Cylinder size | 3 in (8 cm) |
Pickup10
| Pickup type | Camless wide |
|---|---|
| Pickup width, tooth to tooth | 77 in (196 cm) |
| Pickup width, outside the flares | 91 in (231 cm) |
| Tooth bars | 4 |
| Teeth | 60, double rubber-mounted |
| Tooth spacing | 2.8 in (7.1 cm) |
| Stripper bands | Poly |
| Flotation | Gauge wheels 4.8-16 HD semi-pneumatic with spring assist |
| Pickup lift | Hydraulic |
| 3-year pickup warranty | Standard |
Bale tie system5
| Twine system | Optional |
|---|---|
| Netwrap system | Standard |
| Net gauge via control system | Standard |
| Net tension control | Manual |
| Extra roll storage | Standard |
Control system8
| Control system type | Atlas Pro control system |
|---|---|
| Display | 7-in (18-cm) colour touch screen |
| Field records | 50 fields with names |
| Field statistics download | USB |
| Bale shape indicators | Standard, 2 |
| Moisture sensing | Standard up to 29% |
| Bales per hour | Standard |
| ISOBUS capability | Optional |
Tractor and drive6
| Driveline | 540 rpm standard lube, friction clutch |
|---|---|
| Torque protection pickup | Radial pin clutch |
| Roller chains | Single 60 and 80 |
| Bearing and sprocket configuration | Hex drive shafts and bearings |
| PTO power, minimum | 75 hp (55.9 kW) |
| PTO power, recommended | 100 hp (74.6 kW) |
Dimensions and weight7
| Length, standard | 187 in (475 cm) |
|---|---|
| Length, with net wrap | 187 in (475 cm) |
| Length, with bale ramp | 208 in (528 cm) |
| Height | 121 in (307 cm) |
| Width, standard tires | 129 in (328 cm) |
| Tires | 21.5L-16.1 |
| Weight, fully optioned | 9,200 lb (4,173 kg) |
Features7

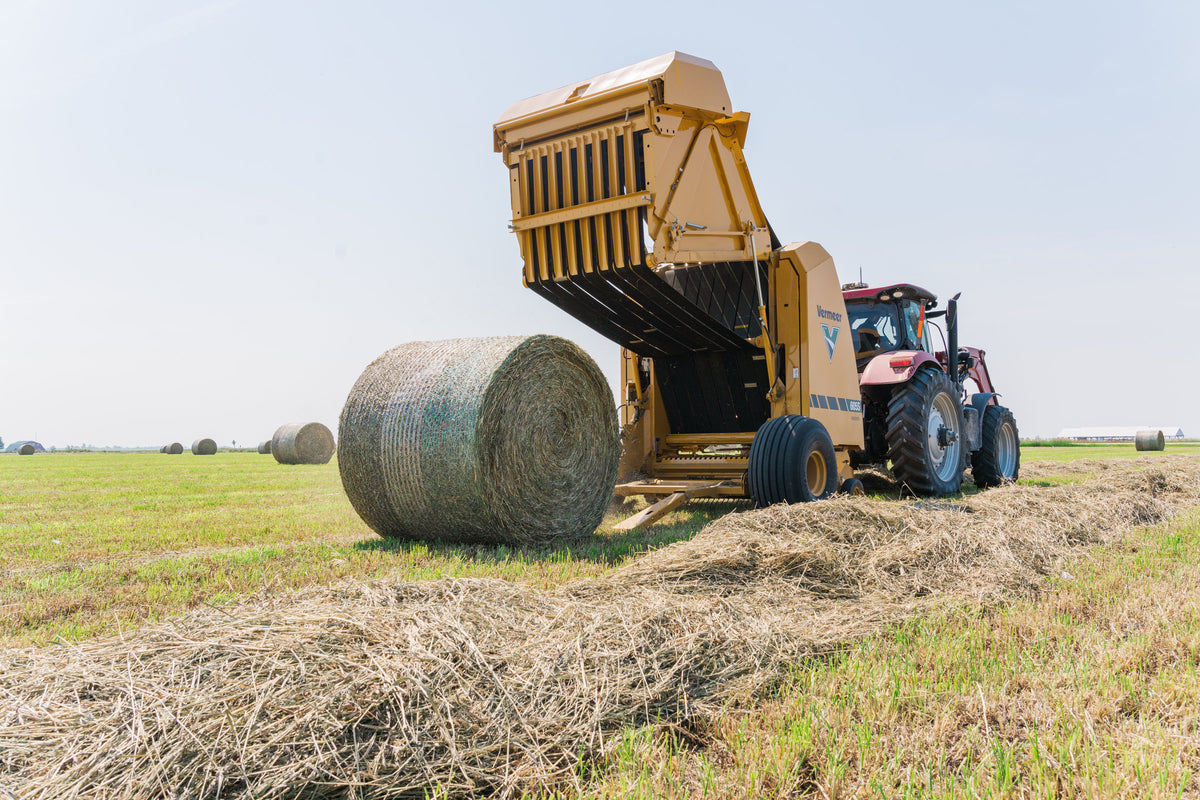

| Bale ramp | Hydraulic |
|---|---|
| Auto lube greasing system | Optional |
| Automatic chain lube system | Optional |
| Right-hand door | Standard |
| LED maintenance lights | Optional |
| Fire extinguisher, safety chain | Optional |
| Scale kit | Optional |
From Vermeer’s specifications for the 605S Rancher, read Oct 28, 2026. Options and attachments change some figures; ask us before you buy.
The 605S trims
The trims share most of their specifications; each card shows what differs.

605S Rancher Baler
- Pickup type: Camless wide
- PTO power, minimum: 75 hp
- Weight, fully optioned: 9,200 lb

605S Signature Baler
- Pickup type: Cammed wide
- PTO power, minimum: 95 hp
- Auto eject: Optional
- Weight, fully optioned: 9,400 lb

605S Premium Baler
- Pickup type: Cammed wide
- PTO power, minimum: 95 hp
- Auto eject: Standard
- Weight, fully optioned: 9,400 lb
