Kubota Z781KWiTW-60

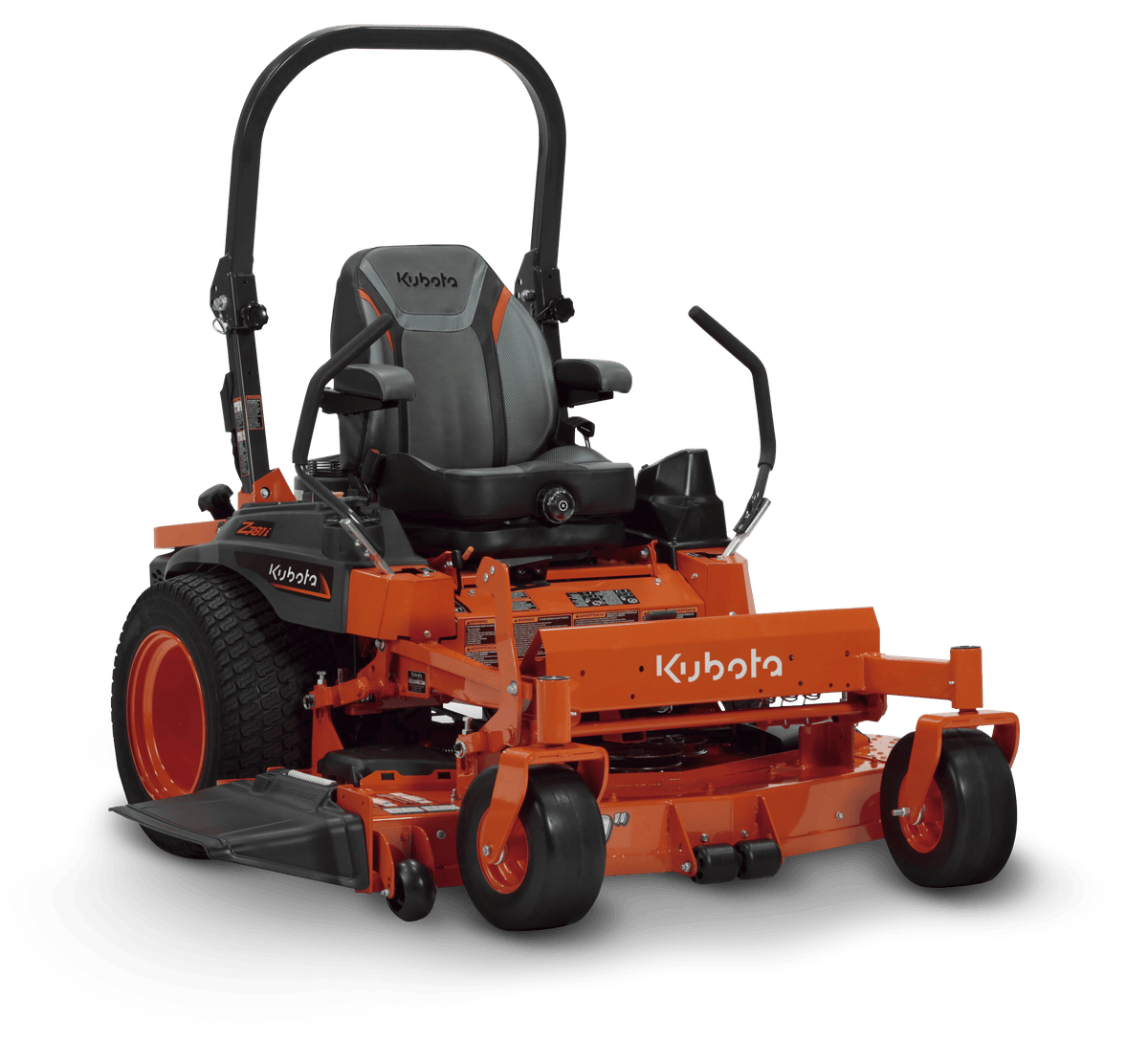

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
Z781KWiTW-60 key specs
| Engine power | 29.5 hp (22 kW), GH860V-F |
|---|---|
| Cutting width | 60 in (1,524 mm) |
| Deck | 3 blades |
| Transmission | Parker HTG14 |
| Top speed | 18 km/h (11.2 mph) |
| Weight with deck | 1,290 lb (585 kg) |
About the Z781KWiTW-60
Designed for the landscape professional the Z700 offers best in class performance, productivity, comfort and the durability that Kubota is know for. For exceptional performance and the most challenging conditions, Kubota has added EFI models to the Z700 Series.
Z781KWiTW-60 specifications
Engine9
| Engine model | GH860V-F |
|---|---|
| Engine type | Gasoline, air-cooled V-Twin |
| Displacement | 852 cc (52 cu in) |
| Engine make | Kawasaki |
| Starting | Key switch |
| Engine power, gross | 29.5 hp (22 kW) |
| Battery | Group U1, 12 V; 300 cold-cranking amps; 410 cranking amps; 45 min reserve capacity |
| Generator | 15 A |
| Fuel tank | 43.9 L (11.6 US gal) |
PTO3
| PTO type | Belt drive |
|---|---|
| PTO clutch | Electromagnetic clutch |
| PTO brake | Dry disc |
Transmission and drive7
| Parking brake | Foot pedal |
|---|---|
| Brake type | Drum disks, foot applied, released |
| Transmission | Parker HTG14 |
| Drive | 2 HST-2 G rotor type |
| Speed control | 2 hand levers |
| Top speed, forward | 18 km/h (11.2 mph) |
| Top speed, reverse | 9 km/h (5.6 mph) |
Mower deck11
| Deck model | RCK60P-781Z |
|---|---|
| Deck lift | Mechanical |
| Deck depth | 6 in (152 mm) |
| Blade drive | Single belt |
| Deck steel thickness | 4.18 mm (8 gauge) |
| Anti-scalp rollers | Rigid |
| Cutting width | 60 in (1,524 mm) |
| Blades | 3 |
| Cutting height | 1–5.5 in (25–140 mm) |
| Deck mounting | Parallel linkage |
| Blade tip speed | 5,669 m/min (18,600 ft/min) |
Dimensions and weight12
| Overall length | 83.9 in (2,131 mm) |
|---|---|
| Wheelbase | 50.9 in (1,293 mm) |
| Overall height, top of open station | 70.1 in (1,780 mm) |
| Overall height, top of open station - folded position | 48.6 in (1,235 mm) |
| Overall width, with the mower deck | 73.8 in (1,875 mm) |
| Overall width, without the mower deck | 53 in (1,345 mm) |
| Weight, with the mower deck | 1,290 lb (585 kg) |
| Tread, front | 37.6 in (954 mm) |
| Tread, rear | 42.7 in (1,085 mm) |
| Standard tire size, front | 13x6.5-6 |
| Standard tire size, rear | 24x12N12 Michelin X Tweel Turf |
| Tire type, front | Flat Free |
Operator station and other2
| Seat | 21.2" high back seat with "Premium Adjustable Suspension", 3" vertical and 6" front to back travel |
|---|---|
| Engine stop system | Key stop |
From Kubota Canada’s specifications for the Z781KWiTW-60, read Oct 27, 2026. Options and attachments change some figures; ask us before you buy.
For Z781KWiTW-60 owners
Operator's manual
Kubota Canada publishes the operator's manual for the Z751KWi, Z781KWi and Z781KWTi.
Open the operator's manual (PDF) ↗Mowers near this size
