TractorsNew

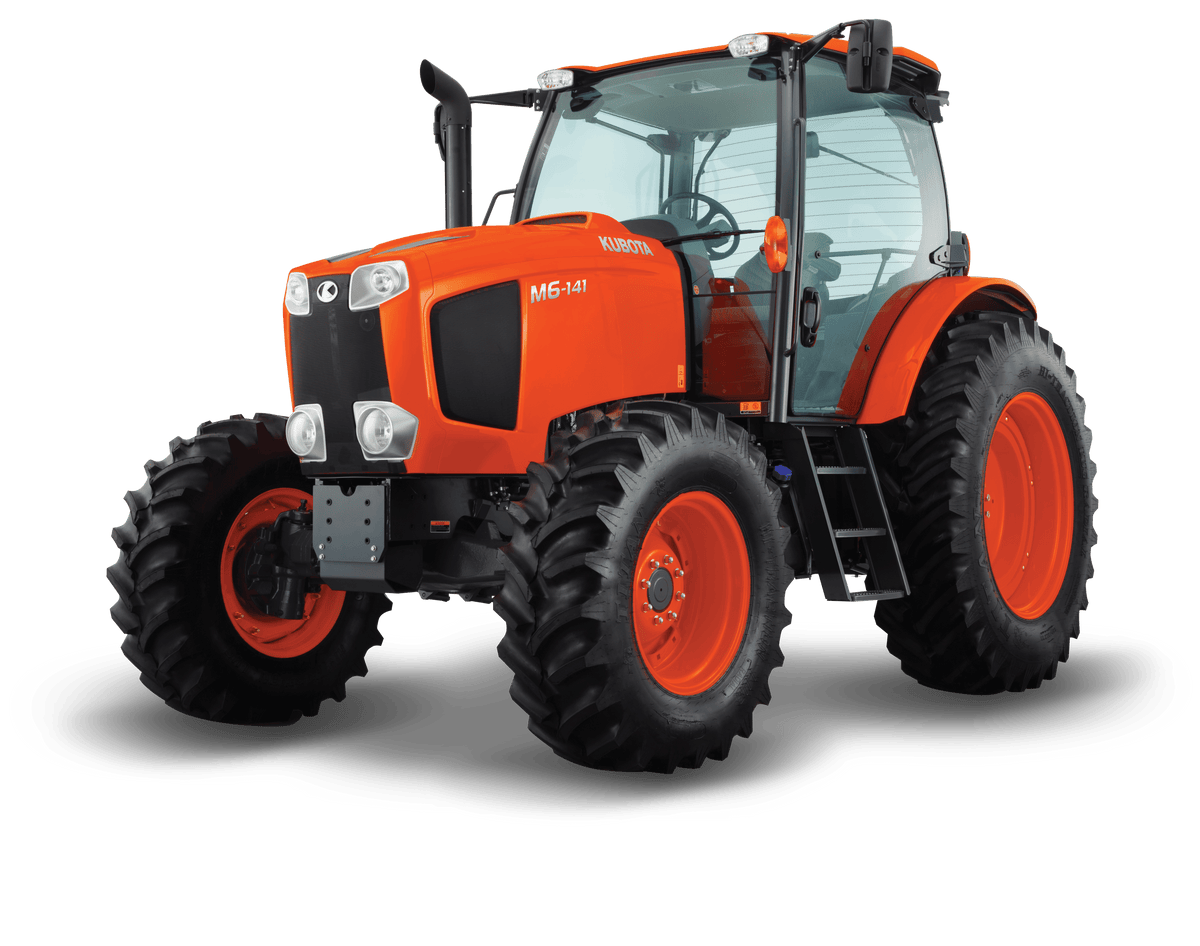

Kubota M6-141-1
Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
None on the yard right now. 1 on order, arriving November 2026.
Key specs
M6-141-1 key specs
| Engine power | 141.4 hp (105.5 kW) |
|---|---|
| PTO power | 114 hp (85 kW) |
| Transmission | Intelli-Shift transmission; 8-speed powershift; 3-speed mechanical shift with clutch button; 24 forward, 24 reverse |
| 3-point lift, 610 mm (24 in) behind | 2,600 kg (5,732 lb), OECD |
| Weight | 5,165 kg (11,387 lb) |
About this model
About the M6-141-1

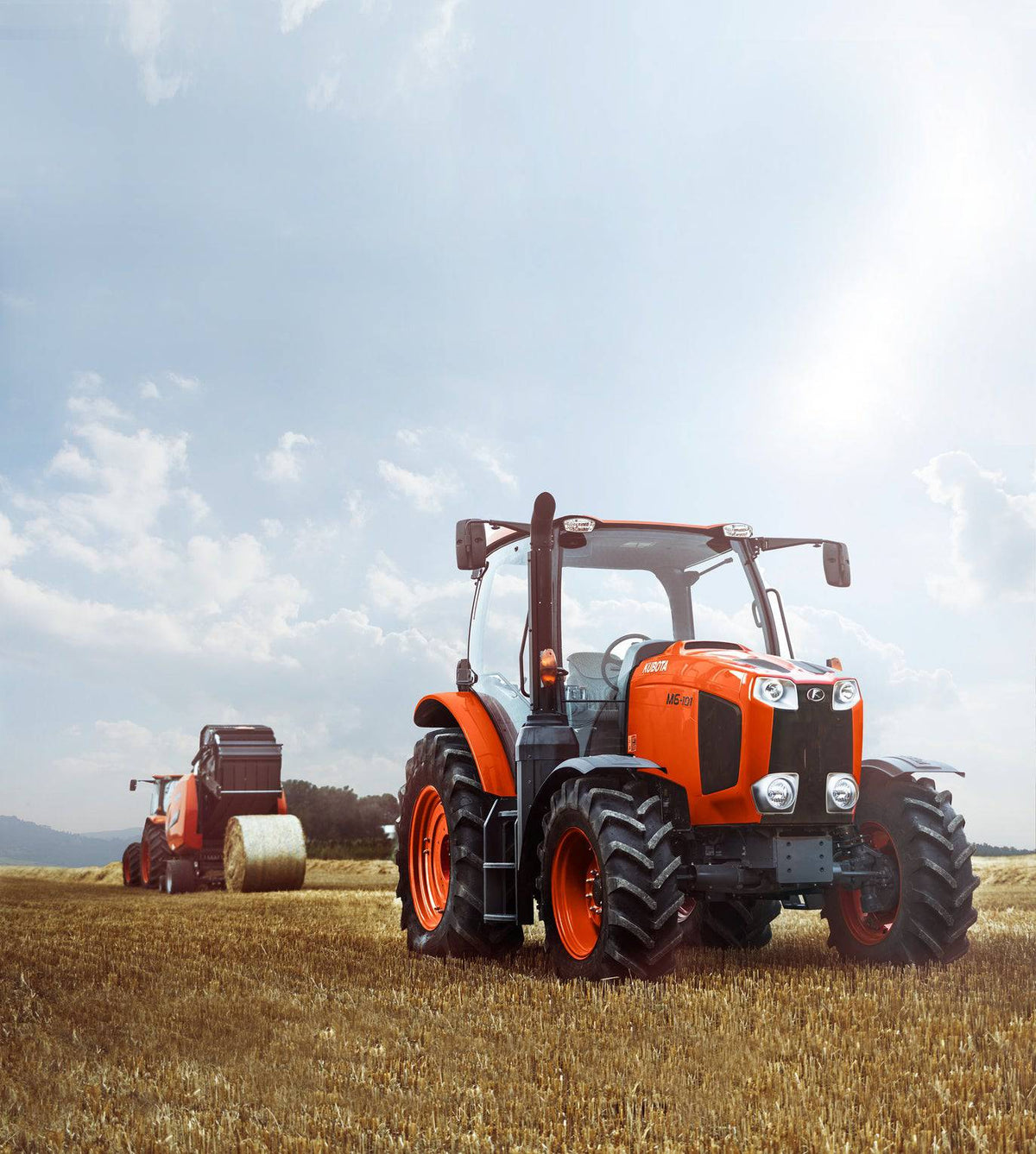

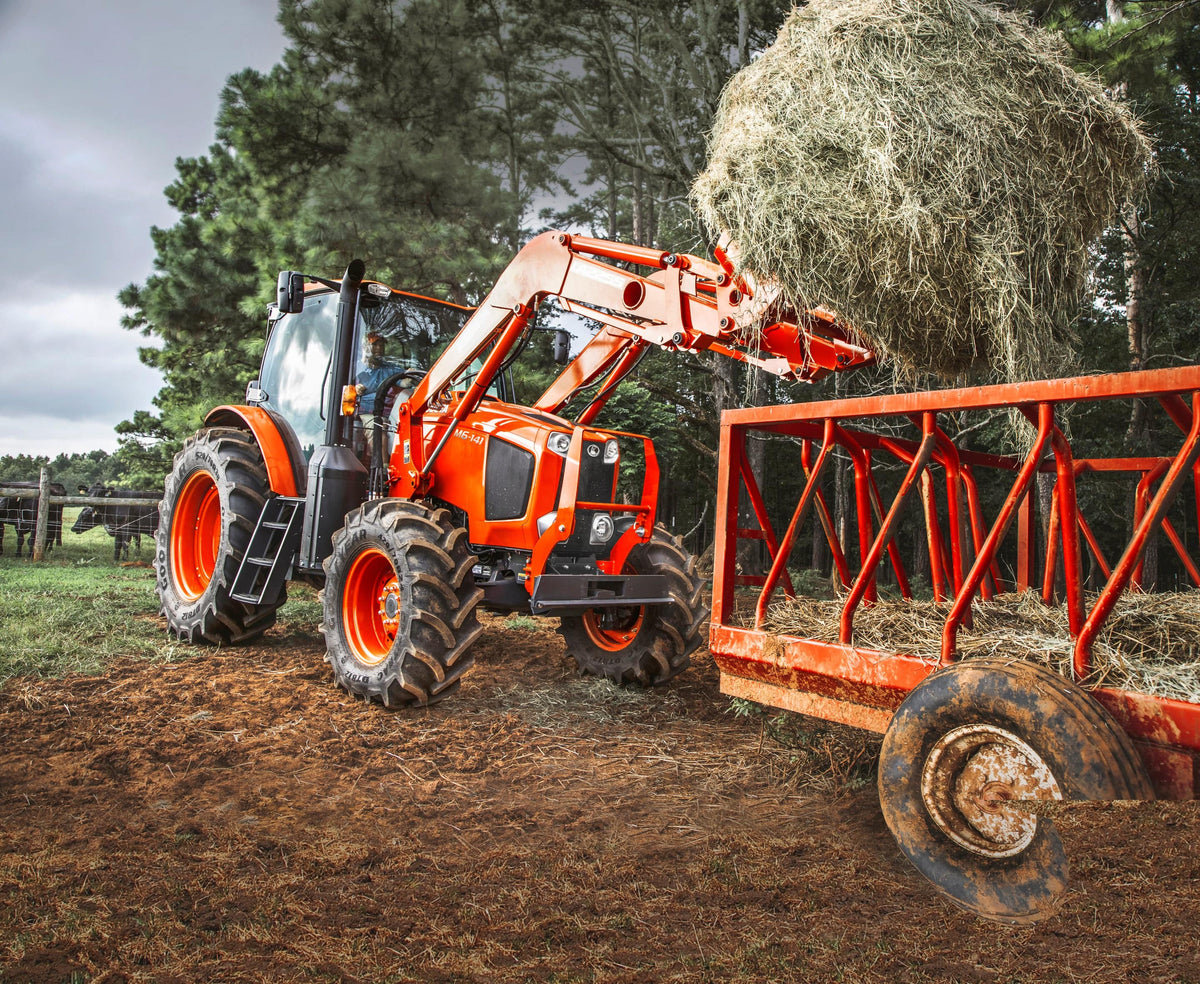

Introducing the M6-1 Series of deluxe mid-size tractors redesigned for operator comfort, smooth operation and maximum efficiency. Ideal for hay and livestock operations, this series provides an intuitive experience of simplified machine operation.
Specifications
M6-141-1 specifications
Engine18
| Engine model | V6108 – TI – CRS |
|---|---|
| Engine type | Common Rail System, direct injection, liquid-cooled |
| Air pre-cleaner | 10" Dry, dual-element |
| Aspiration | Turbocharger with intercooler |
| Bore | 118 mm (4.65 in) |
| Stroke | 140 mm (5.5 in) |
| Exhaust / muffler | Under-hood, corner-post exhaust pipe |
| Engine make | Kubota |
| Rated engine speed | 2,200 rpm |
| Engine power, gross | 141.4 hp (105.5 kW) |
| Engine power, net | 133 hp (99.2 kW) |
| PTO power | 114 hp (85 kW) |
| Displacement | 6,124 cc (374 cu in) |
| Alternator | 130 A |
| Fuel tank | 190 L (50.2 US gal) |
| Cylinders | 4 |
| Battery | 12 V; 1,090 cold-cranking amps; 160 amp-hours |
| DEF tank | 16 L (4.2 US gal) |
PTO3

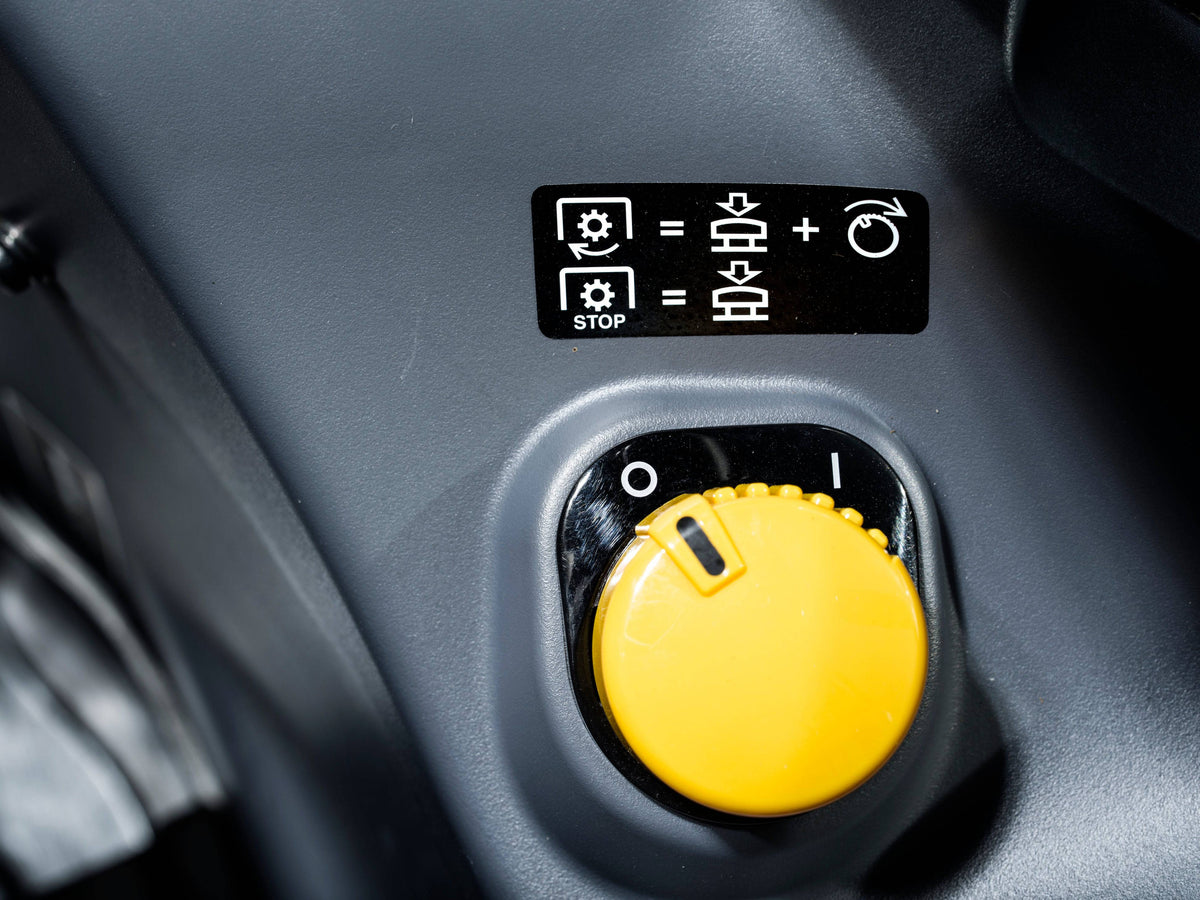

| PTO type | Live-independent PTO, hydraulically operated wet clutch, with PTO brake |
|---|---|
| Rear PTO speed, low range | 540 rpm |
| Rear PTO speed, high range | 1,000 rpm |
Transmission and drive15
| Clutch type, main clutch | Multiple wet disc, electro-hydraulically operated |
|---|---|
| Main gears | 8-speed powershift |
| Top speed | 39.1 km/h (24.3 mph) |
| Range gears | 3-speed mechanical shift with clutch button |
| Shuttle | Microprocessor-controlled electro-hydraulic shuttle |
| Brakes | Hydraulically operated wet disc brakes, with automatic front axle engagement |
| Bi-speed turn | Standard |
| Main clutch diameter | 133 mm (5.2 in) |
| Front wheel drive system | Bevel gear type, on-the-go electro-hydraulic engagement, with electro-hydraulic front differential lock |
| Number of speeds, forward | 24 |
| Number of speeds, reverse | 24 |
| Number of speeds (optional), creep (forward) | 32 |
| Number of speeds (optional), creep (reverse) | 32 |

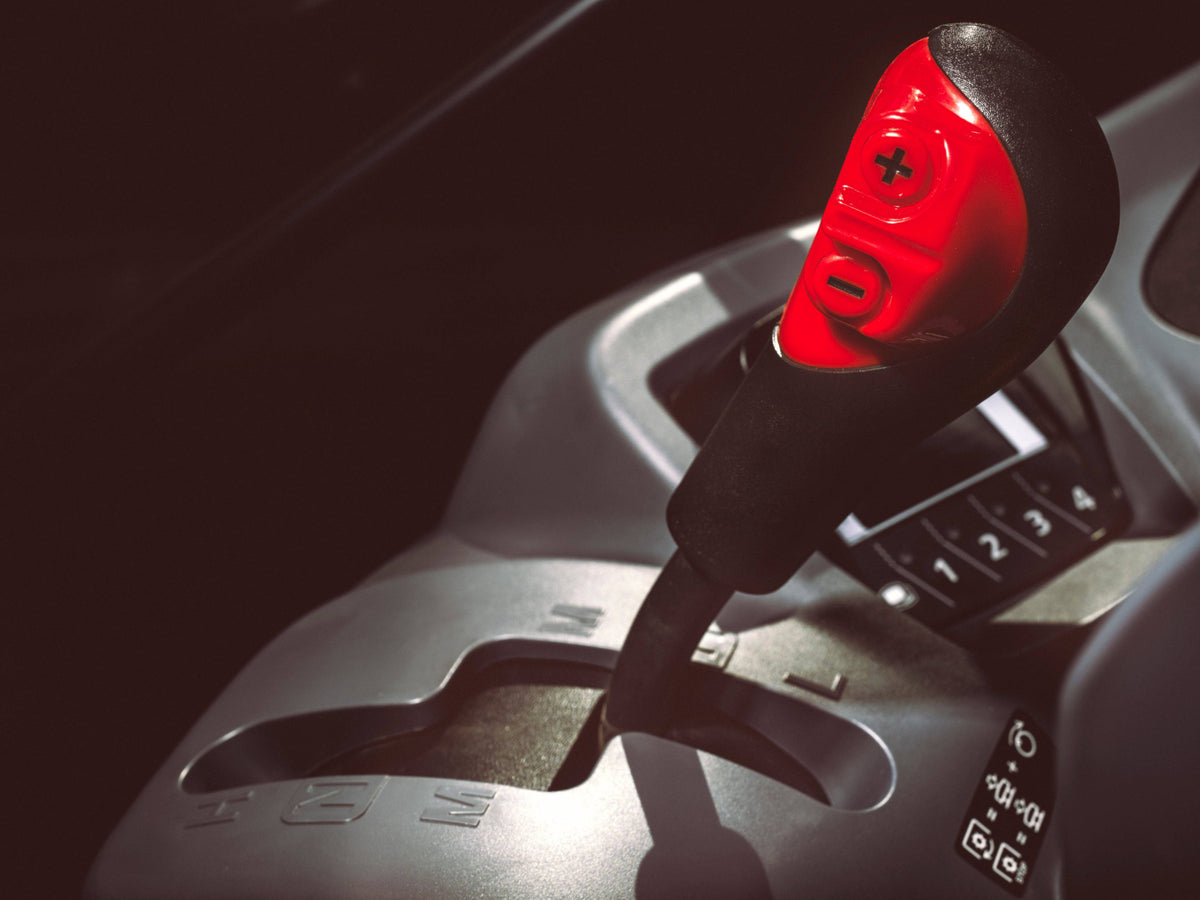

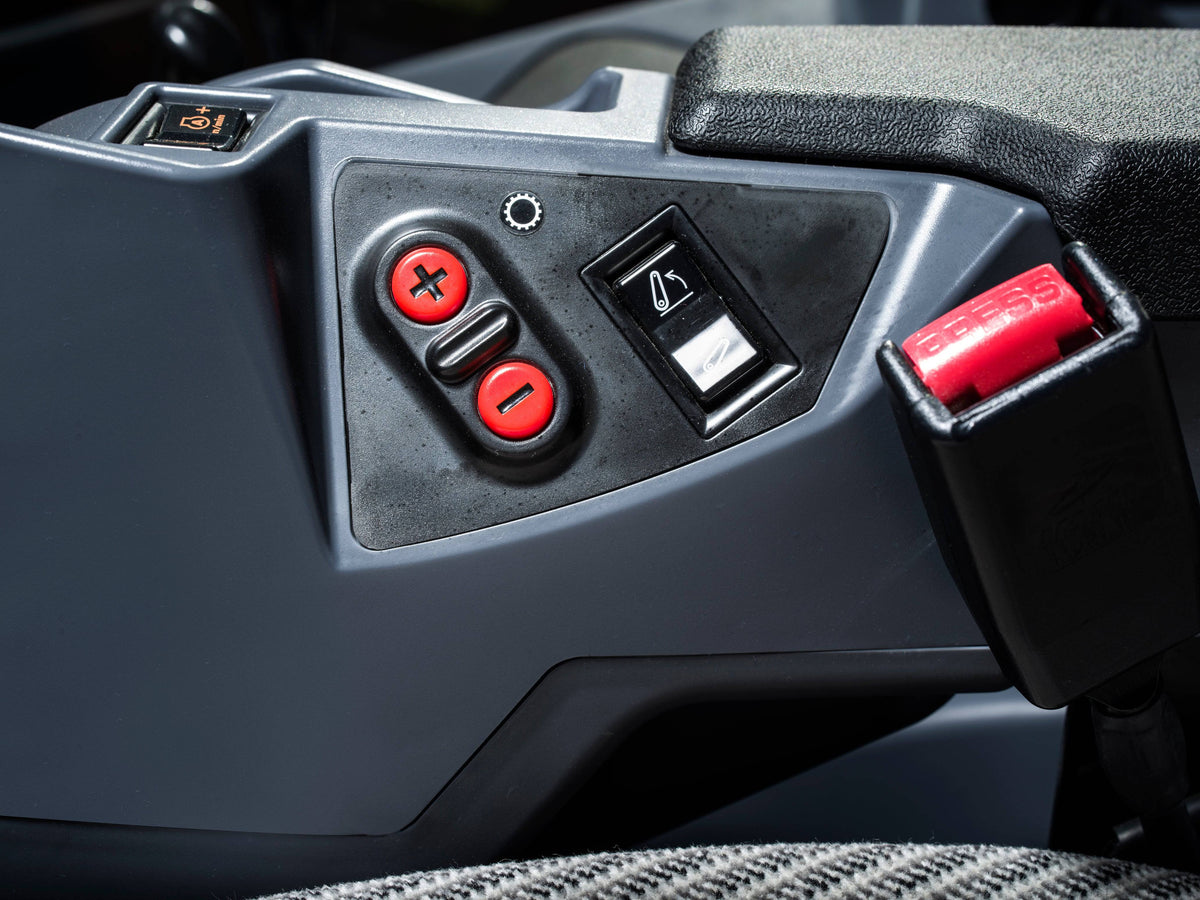

| Main gear shift, type | Intelli-Shift transmission |
| Optional, creep speed | 0.74 km/h (0.46 mph) |
Hydraulics8
| 3-point hitch, category | II |
|---|---|

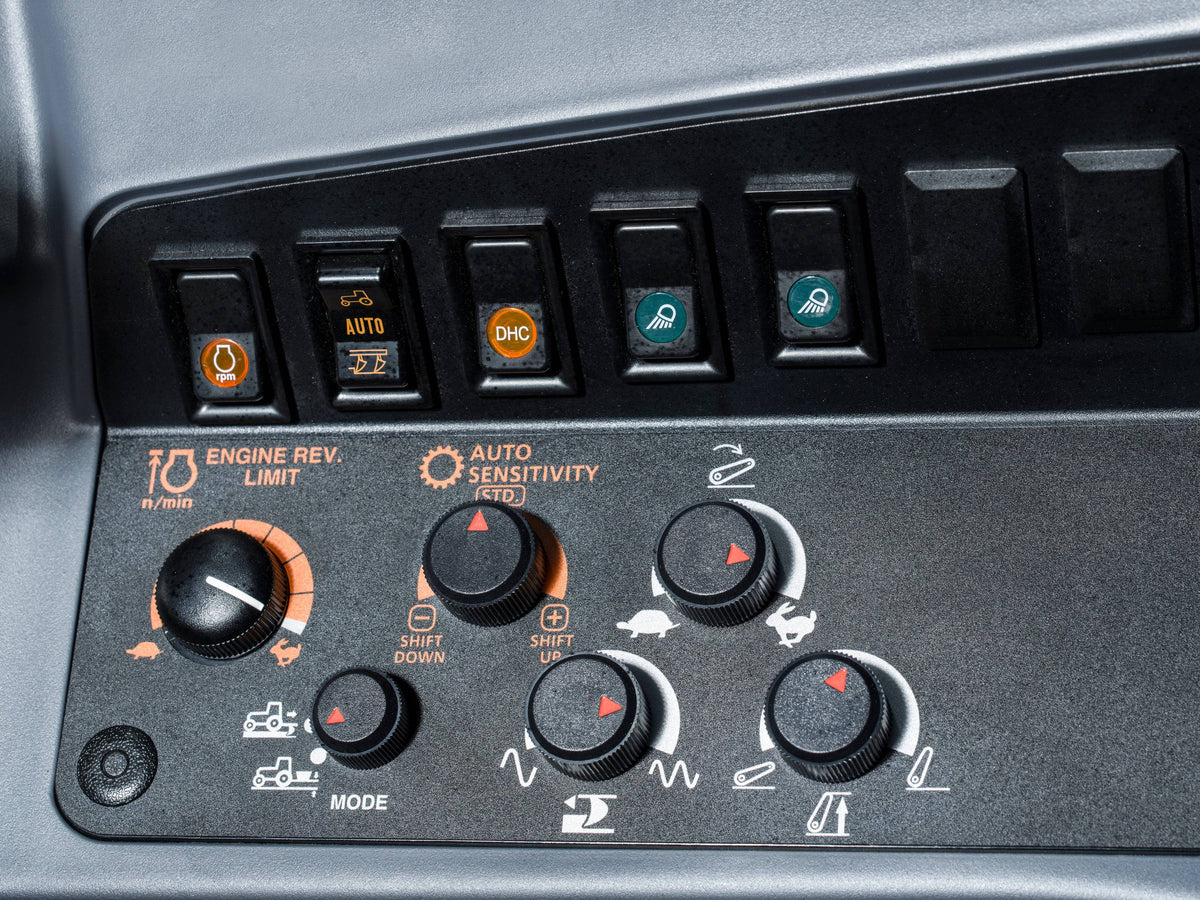

| Control system | Electronic draft control, lower link sensing, left fender-mounted hitch switch standard |
| Steering | Hydrostatic power steering |
| Remote valves | 2 standard (3rd, 4th optional) with built-in flow control |
| 3-point lift capacity, 610 mm (24 in) behind the lift points (SAE) | 3,100 kg (6,834 lb) |
| 3-point lift capacity, 610 mm (24 in) behind the lift points (OECD) | 2,600 kg (5,732 lb) |
| Pump output, hitch & remote | 77.2 L/min (20.4 US gpm) |
| Pump output, power steering | 64.3 L/min (17 US gpm) |
Dimensions and weight11
| Crop clearance | 565 mm (22.2 in) |
|---|---|
| Overall height | 2,875 mm (113.2 in) |
| Overall length | 4,350 mm (171.3 in) |
| Wheelbase | 2,680 mm (105.5 in) |
| Weight | 5,165 kg (11,387 lb) |
| Overall width, at the narrowest tread | 2,180 mm (85.8 in) |
| Tread width, front | 1,775 mm (69.9 in) |
| Tread width, rear | 1,590 mm (62.6 in) |
| Turning radius, without brake | 4.2 m (13.8 ft) |
| Tires, standard, front | 14.9 R24 |
| Tires, standard, rear | 18.4 R38 |
Operator station and other5

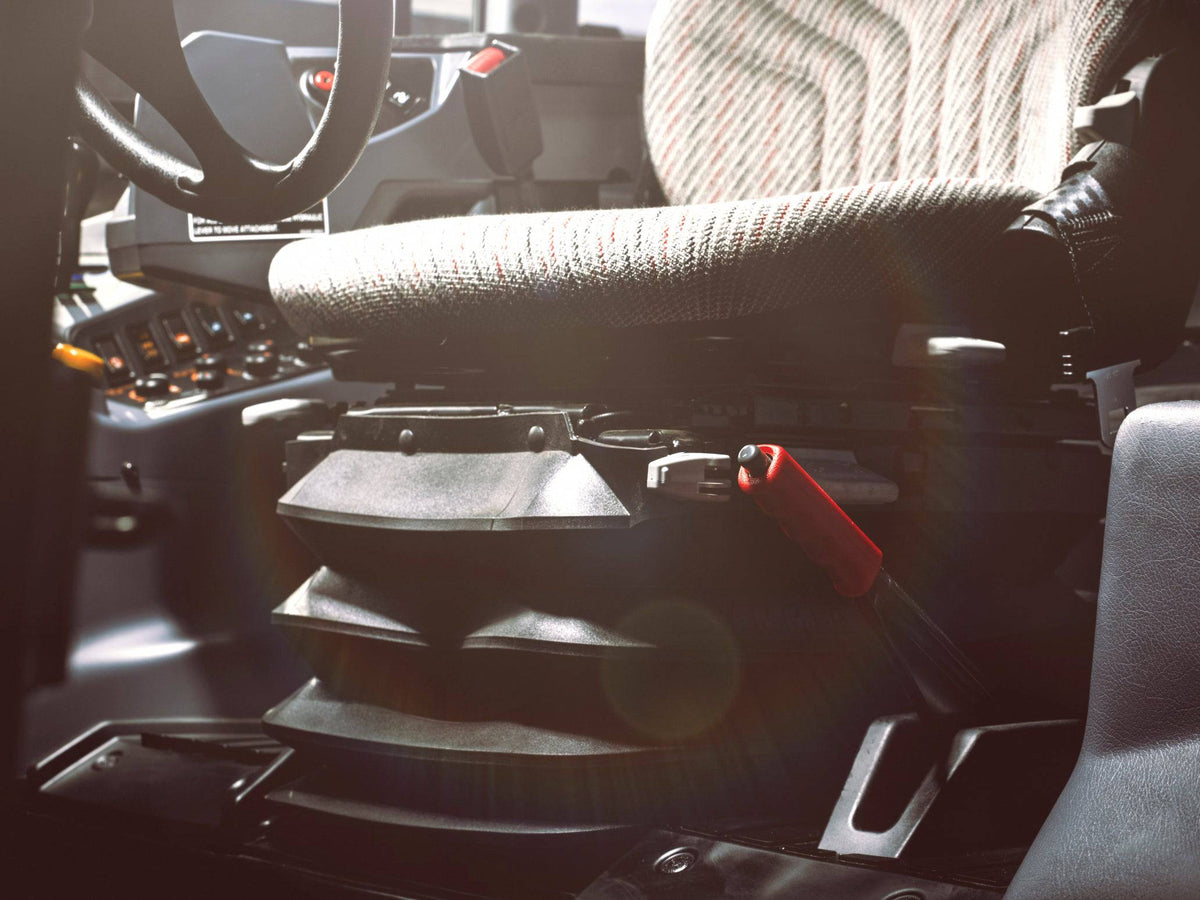

| Seat type | Swivel, reclining, full adjustment (height, weight, fore & aft.), arm rests, retractable seat belt |
|---|---|

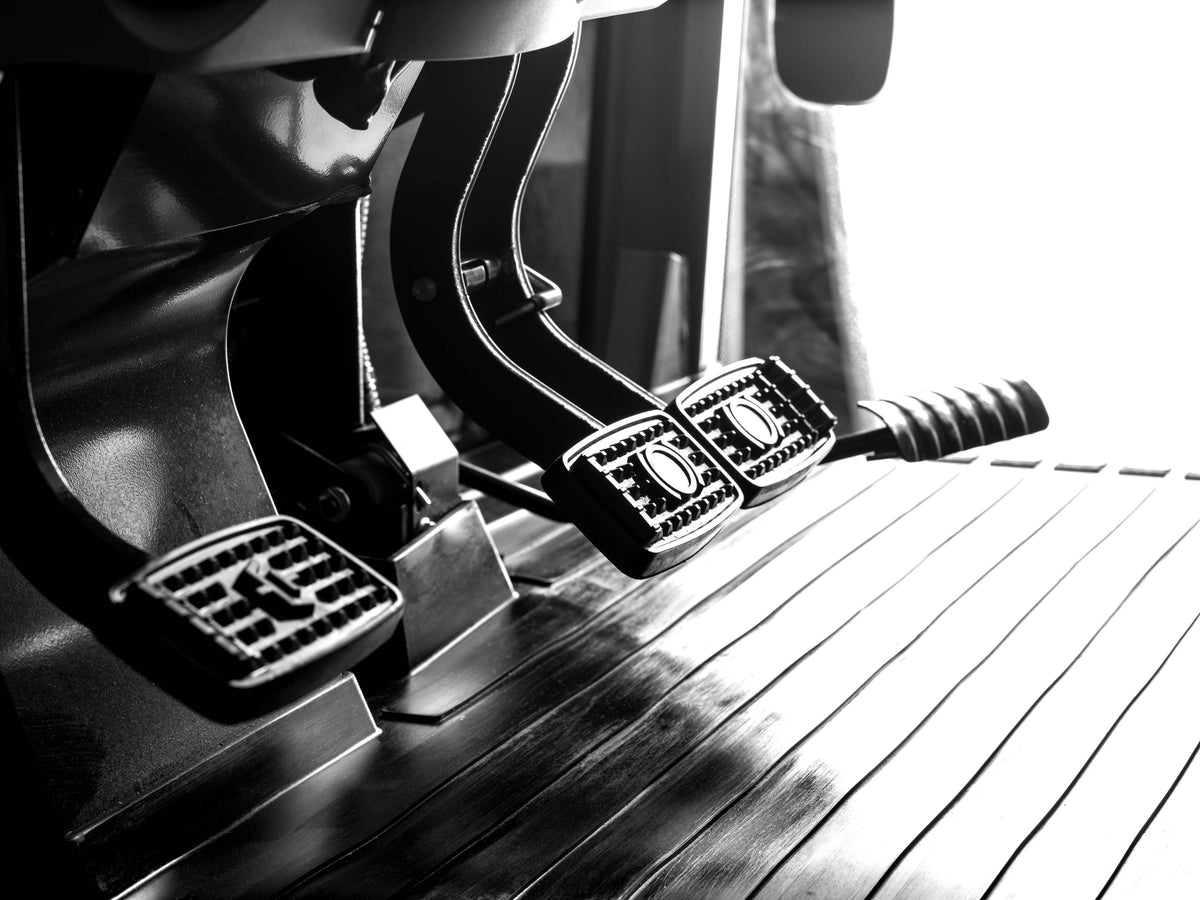

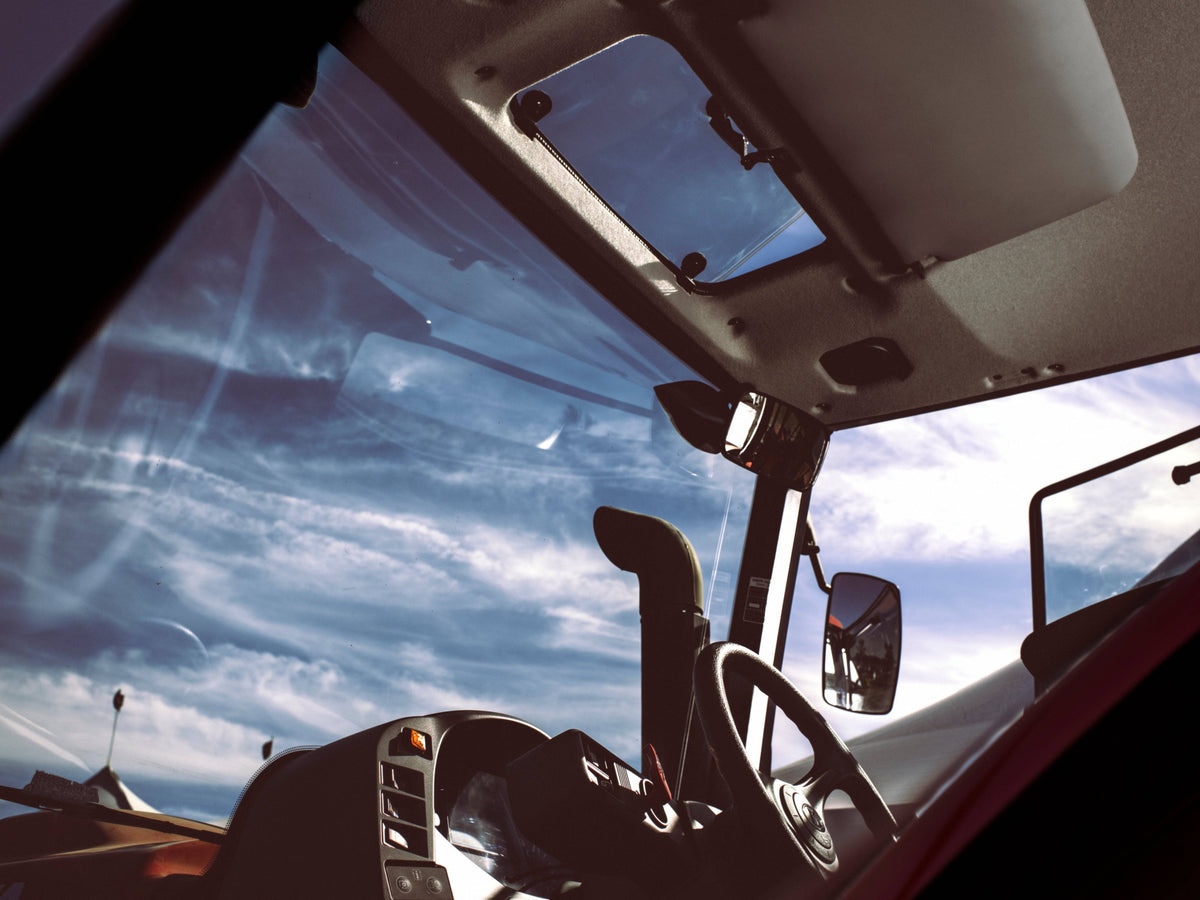

| Operator area | ISO-mounted flat deck, hanging pedals, tilt & telescopic wheel |

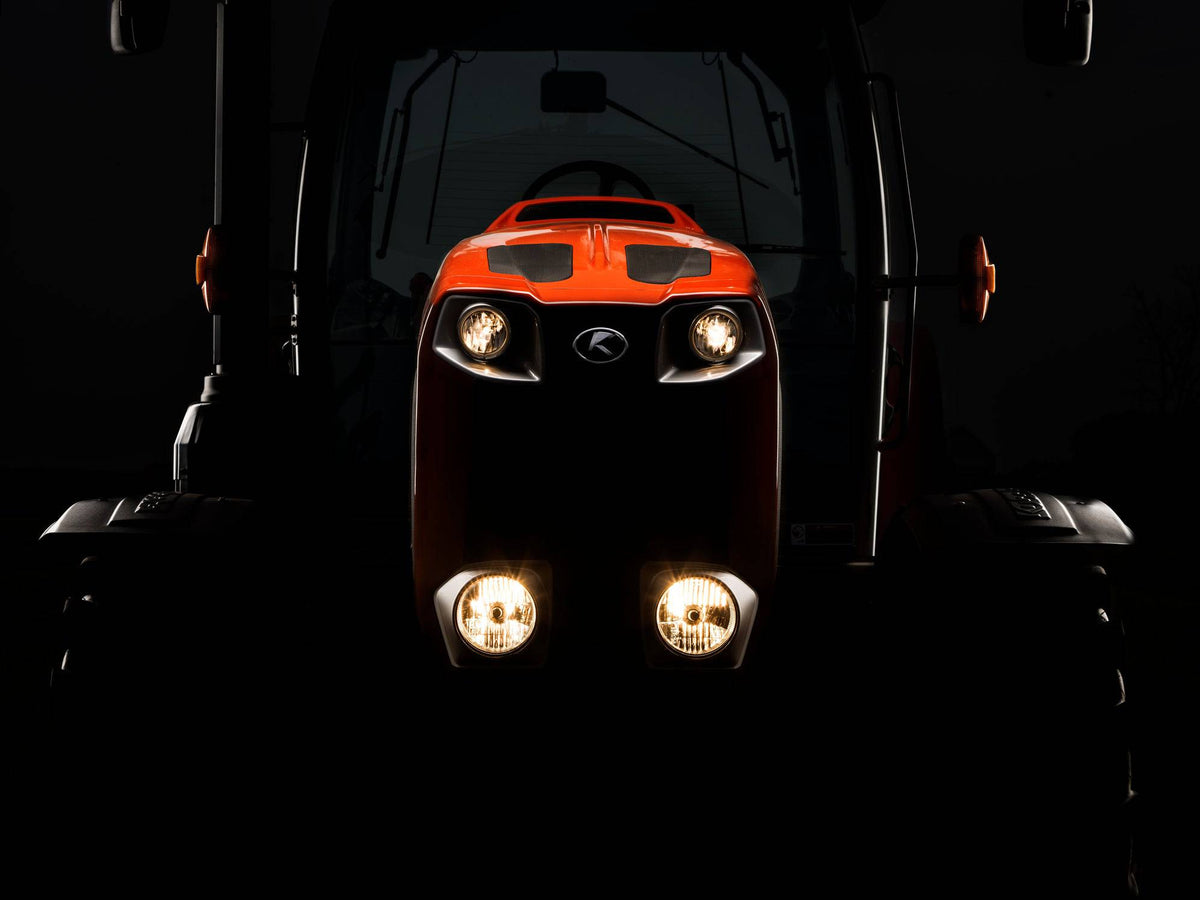

| Lighting | 2 headlights, 4 front working lights, 2 rear working lights, 2 tail lights, 4 safety flashers |

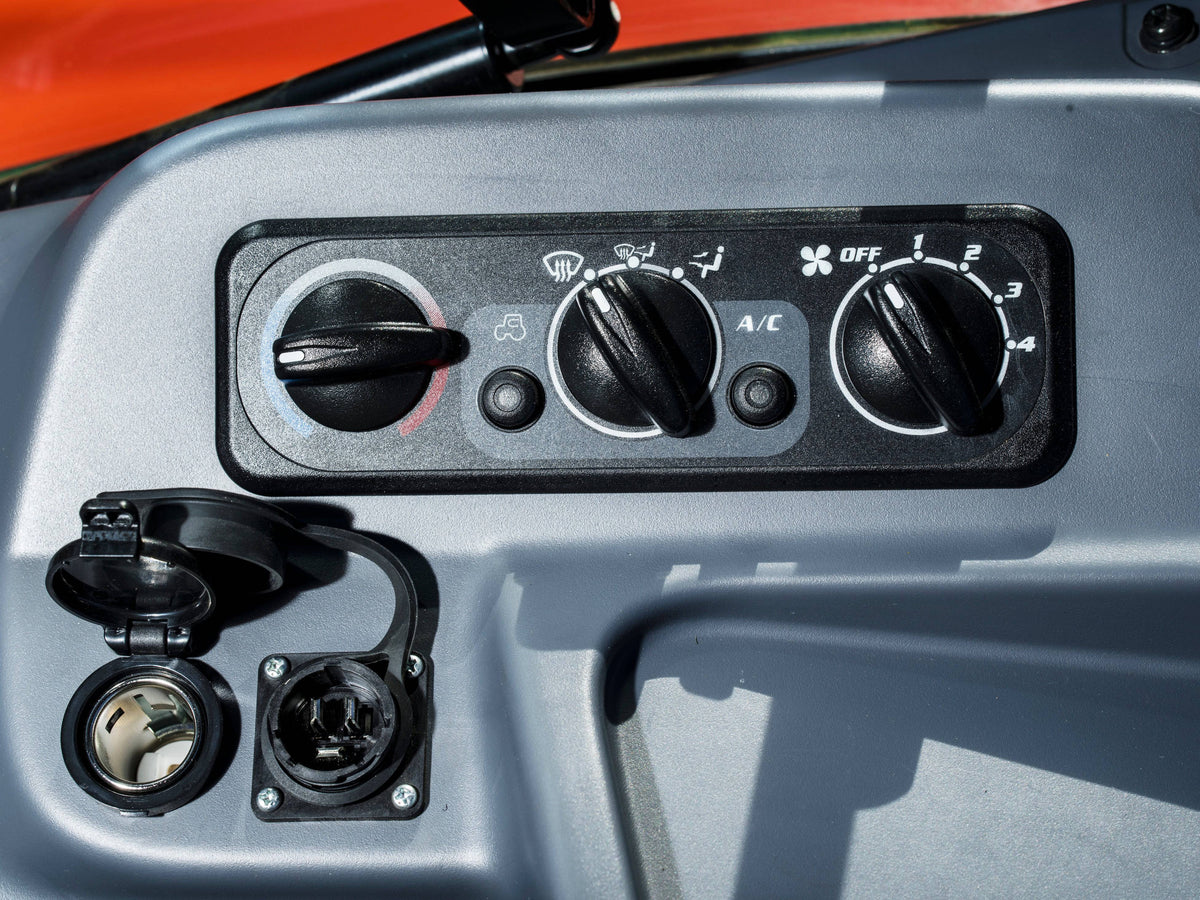

| Standard | Heater/Air conditioner, sun visor, front wiper/washer, rear wiper/washer, beverage holder, 12V. 30 Amp electric outlet, tinted glass, 2 external mirrors, 1 internal mirror, interior light, shuttle lever with tilt & telescopic wheel, roof panel, door glass with IR-cut film |
| Optional | 80" wide axle kit, 3-point high capacity lift cylinders, front weight bumper for 12 weights, front weight bumper for 16 weights (M6-131, M6-141 only), front weights, rear wheel weights, drawbar clevis, rear defogger, 3rd/4th remote valve with flow control, creep speed, additional front worklights (1 each on front safety flasher), additional rear work lights (1 each on tail light), fuel tank guard kit, instructor's seat |
From Kubota Canada’s specifications for the M6-141-1, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
Compare
The M6-1 series
M6-101-1
- 104.5 hp
- 82 hp PTO
- 2,600 kg lift at 24 in
M6-111-1
- 114.1 hp
- 92 hp PTO
- 2,600 kg lift at 24 in
M6-131-1
- 131.6 hp
- 104 hp PTO
- 2,600 kg lift at 24 in
This model
M6-141-1
- 141.4 hp
- 114 hp PTO
- 2,600 kg lift at 24 in
