Kubota M6-101-1
A 104.5 gross hp utility tractor from Kubota's M6-1 series: a loader joystick that also shifts direction, Xpress Restart that lets you stop on the brake alone with no clutch, and a rear PTO that runs from inside or outside the cab.

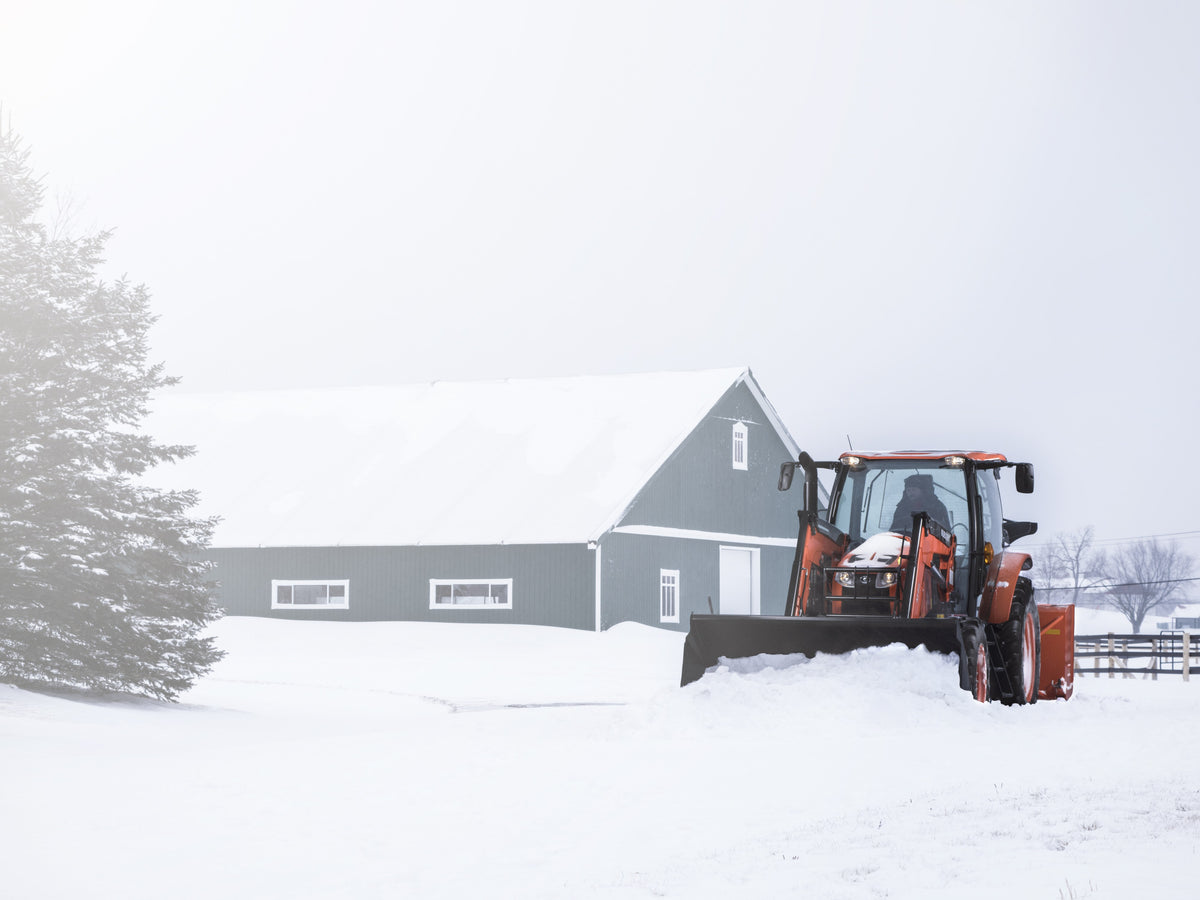

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
M6-101-1 key specs
| Engine power | 104.5 hp (77.9 kW) |
|---|---|
| PTO power | 82 hp (61 kW) |
| Transmission | Intelli-Shift transmission; 8-speed powershift; 3-speed mechanical shift with clutch button; 24 forward, 24 reverse |
| 3-point lift, 24 in (610 mm) behind | 5,732 lb (2,600 kg), OECD |
| Weight | 9,601 lb (4,355 kg) |
About the M6-101-1
Redesigned for maximum comfort, the all new loader joystick fits perfectly in your hand while also being positioned closer to the operator for easier operation. The joystick also features transmission controls for changing the direction of the tractor, as well as the ability to shift up and down through the powershift gears. The operator has full control of the tractor with one hand on the wheel and one on the joystick.
Enjoy a smoother operation with the ability to adjust the shuttle sensitivity. Adjust the setting based on weight of loads and choose how aggressive the transmission shifts between forward and reverse for maximum efficiency.
M6-101-1 specifications
Engine18
| Engine make | Kubota |
|---|---|
| Engine model | V3800 – TI – CRS |
| Engine type | Common Rail System, direct injection, liquid-cooled |
| Aspiration | Turbocharger with intercooler |
| Engine power, gross | 104.5 hp (77.9 kW) |
| Engine power, net | 97.1 hp (72.4 kW) |
| PTO power | 82 hp (61 kW) |
| Displacement | 3,769 cc (230 cu in) |
| Bore | 3.94 in (100 mm) |
| Stroke | 4.72 in (120 mm) |
| Rated engine speed | 2,600 rpm |
| Fuel tank | 190 L (50.2 US gal) |
| Alternator | 130 A |
| Air pre-cleaner | 8" Dry, dual-element |
| Exhaust / muffler | Under-hood, corner-post exhaust pipe |
| Cylinders | 4 |
| DEF tank | 16 L (4.2 US gal) |
| Battery | 12 V; 900 cold-cranking amps; 100 amp-hours |
PTO3
| PTO type | Live-independent PTO, hydraulically operated wet clutch, with PTO brake |
|---|---|
| Rear PTO speed, low range | 540 rpm |
| Rear PTO speed, high range | 1,000 rpm |
Transmission and drive15
| Main gear shift, type | Intelli-Shift transmission |
|---|---|
| Clutch type, main clutch | Multiple wet disc, electro-hydraulically operated |
| Main gears | 8-speed powershift |
| Range gears | 3-speed mechanical shift with clutch button |
| Shuttle | Microprocessor-controlled electro-hydraulic shuttle |
| Top speed | 35.3 km/h (21.9 mph) |
| Brakes | Hydraulically operated wet disc brakes, with automatic front axle engagement |
| Bi-speed turn | Standard |
| Main clutch diameter | 5.2 in (133 mm) |
| Front wheel drive system | Bevel gear type, on-the-go electro-hydraulic engagement, with electro-hydraulic front differential lock |
| Number of speeds, forward | 24 |
| Number of speeds, reverse | 24 |
| Number of speeds (optional), creep (forward) | 32 |
| Number of speeds (optional), creep (reverse) | 32 |
| Optional, creep speed | 0.67 km/h (0.42 mph) |
Hydraulics8
| 3-point hitch, category | II |
|---|---|
| Control system | Electronic draft control, lower link sensing, left fender-mounted hitch switch standard |
| Steering | Hydrostatic power steering |
| Remote valves | 2 standard (3rd, 4th optional) with built-in flow control |
| 3-point lift capacity, 24 in (610 mm) behind the lift points (SAE) | 6,834 lb (3,100 kg) |
| 3-point lift capacity, 24 in (610 mm) behind the lift points (OECD) | 5,732 lb (2,600 kg) |
| Pump output, hitch & remote | 18.7 US gpm (70.9 L/min) |
| Pump output, power steering | 16 US gpm (60.4 L/min) |
Dimensions and weight11
| Crop clearance | 17.7 in (450 mm) |
|---|---|
| Overall height | 109.8 in (2,790 mm) |
| Overall length | 165.4 in (4,200 mm) |
| Wheelbase | 95.9 in (2,435 mm) |
| Weight | 9,601 lb (4,355 kg) |
| Overall width, at the narrowest tread | 82.7 in (2,100 mm) |
| Tread width, front | 62.2 in (1,580 mm) |
| Tread width, rear | 59.8 in (1,520 mm) |
| Turning radius, without brake | 13.1 ft (4 m) |
| Tires, standard, front | 12.4 R24 |
| Tires, standard, rear | 18.4 R30 |
Operator station and other5
| Seat type | Swivel, reclining, full adjustment (height, weight, fore & aft.), arm rests, retractable seat belt |
|---|---|
| Operator area | ISO-mounted flat deck, hanging pedals, tilt & telescopic wheel |
| Lighting | 2 headlights, 4 front working lights, 2 rear working lights, 2 tail lights, 4 safety flashers |
| Standard | Heater/Air conditioner, sun visor, front wiper/washer, rear wiper/washer, beverage holder, 12V. 30 Amp electric outlet, tinted glass, 2 external mirrors, 1 internal mirror, interior light, shuttle lever with tilt & telescopic wheel, roof panel, door glass with IR-cut film |
| Optional | 80" wide axle kit, 3-point high capacity lift cylinders, front weight bumper for 12 weights, front weight bumper for 16 weights (M6-131, M6-141 only), front weights, rear wheel weights, drawbar clevis, rear defogger, 3rd/4th remote valve with flow control, creep speed, additional front worklights (1 each on front safety flasher), additional rear work lights (1 each on tail light), fuel tank guard kit, instructor's seat |
From Kubota Canada’s specifications for the M6-101-1, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
The M6-1 series

M6-101-1
- 104.5 hp
- 82 hp PTO
- 5,732 lb lift at 24 in

M6-111-1
- 114.1 hp
- 92 hp PTO
- 5,732 lb lift at 24 in

M6-131-1
- 131.6 hp
- 104 hp PTO
- 5,732 lb lift at 24 in

M6-141-1
- 141.4 hp
- 114 hp PTO
- 5,732 lb lift at 24 in
Implements matched to the M6-101-1
Kubota's matched-implement brochures and Land Pride's Kubota charts pair these implements with the M6-101-1. Each one is rated for the M6-101-1's horsepower and 3-point hitch.
-
New
Land Pride QH20 Quick Hitch
The QH20 is Land Pride's quick hitch for tractors with a Category II 3-point hitch: it lets you hook on to an implement, often without leaving the seat, and its locks close on the implement's lower pins by themselves. It takes bushings to fit Category II hi...
