TractorsNew
Kubota BX2390S
The BX2390 as a tractor-loader-backhoe: 21.6 gross hp, a 3-cylinder diesel and standard 4WD from Kubota's BX90 series, tested in Canada down to −35 °C.

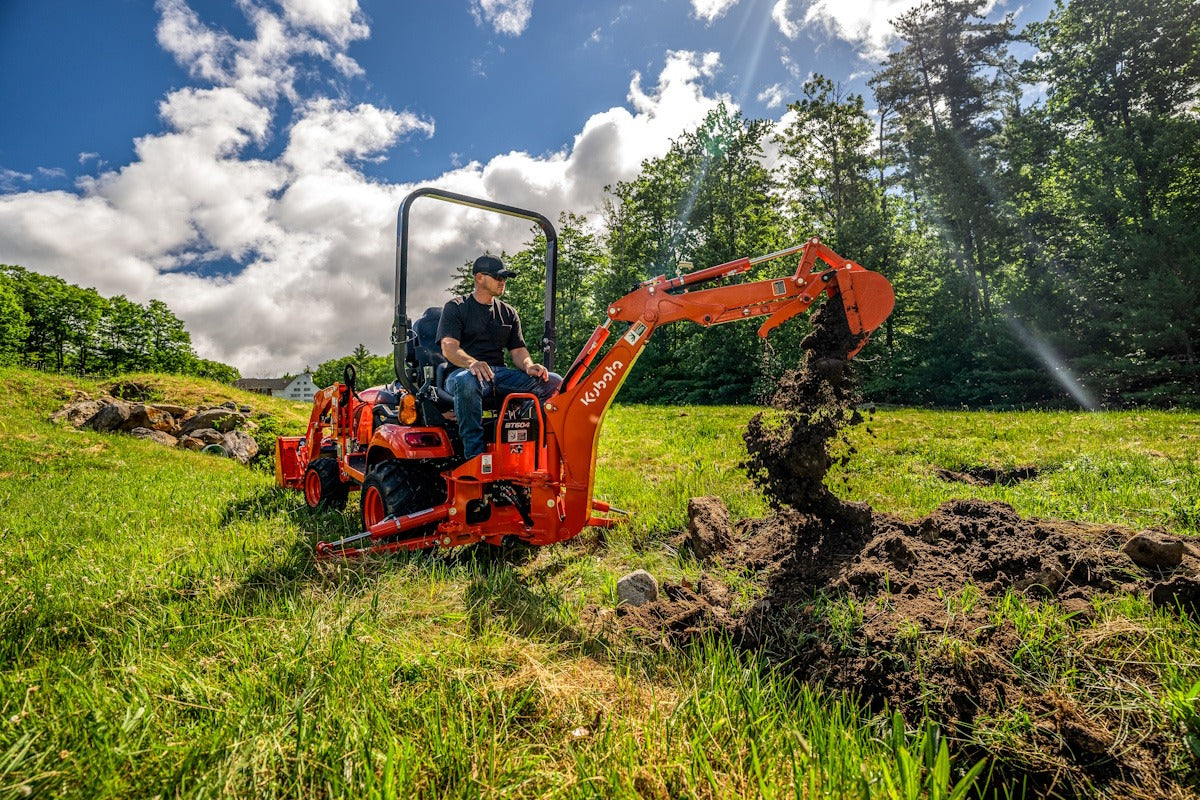

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
None on the yard right now — we can order one.
Key specs
BX2390S key specs
| Engine power | 21.6 hp (16.1 kW) |
|---|---|
| PTO power | 17.6 hp (13.1 kW) |
| Transmission | 2-range HST, High-Low gear shift |
| 3-point lift, 610 mm (24 in) behind | 431 kg (950 lb) |
| Weight | 725 kg (1,598 lb) |
About this model
About the BX2390S
The BX90S backhoe model includes a dedicated secondary seat, providing a comfortable, purpose-built operating position for backhoe work. Quickly and easily switch from driving to digging by flipping the seats, lowering the patented auto-locking stabilizers and pulling two pins.
The chassis-mounted backhoe provides exceptional strength and durability while the boom and swing cushion valves reduce shock to the operator and machine. The BX2690S offers increased backhoe lift capacity and breakout force for a step up in performance to more demanding work.
Specifications
BX2390S specifications
Engine10
| Engine model | D902 |
|---|---|
| Engine type | Mechanical indirect injection, 4 cycle diesel |
| Cooling system | Liquid-cooled |
| Rated engine speed | 3,200 rpm |
| Engine power, gross | 21.6 hp (16.1 kW) |
| PTO power | 17.6 hp (13.1 kW) |
| Displacement | 898 cc (54.8 cu in) |
| Fuel tank | 25 L (6.6 US gal) |
| Cylinders | 3 |
| Headlights | LED |
PTO5
| Mid-PTO | Standard |
|---|---|
| Rear PTO speed | Standard |
| PTO type | Live independent PTO (with hydraulic clutch) |
| Rear, PTO/engine speed | 540 rpm |
| Mid, rated engine speed | 2,629 rpm |
Transmission and drive6
| Transmission | 2-range HST, High-Low gear shift |
|---|---|
| Brakes | Wet disc |
| Drive | 4WD |
| Cruise control | Standard |
| At rated engine rpm (turf), forward | 13.5 km/h (8.4 mph) |
| At rated engine rpm (turf), reverse | 10.5 km/h (6.5 mph) |
Hydraulics8
| 3-point hitch | Category I (Optional) |
|---|---|
| Stabilizers | Turnbuckle |
| Loader valve | Standard |
| Total pump output | 23.6 L/min (6.2 US gpm) |
| Steering | Hydrostatic Power Steering |
| 3-point lift capacity, 610 mm (24 in) behind the lift points | 431 kg (950 lb) |
| 3-point hitch, type | Quarter-Inching |
| Rear remote valves | 0 |
Dimensions and weight13
| Tires, front | 18x8.5-10 |
|---|---|
| Tires, rear | 26x12-12 |
| Tire type, front | Turf (R3), Industrial (R4), Hybrid (R14) |
| Tire type, rear | Turf (R3), Industrial (R4), Hybrid (R14) |
| Overall height | 2,184 mm (86 in) |
| Ground clearance | 213 mm (8.4 in) |
| Overall width | 1,130 mm (44.5 in) |
| Wheelbase | 1,400 mm (55.1 in) |
| Turning radius | 2.3 m (90 in) |
| Weight | 725 kg (1,598 lb) |
| Overall length, with 3 pt hitch | 2,425 mm (95.5 in) |
| Tread width, front | 930 mm (36.6 in) |
| Tread width, rear | 820 mm (32.2 in) |
Operator station and other2
| Trim level | Standard |
|---|---|
| Tilt steering wheel | Standard |
From Kubota Canada’s specifications for the BX2390S, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
Compare
The BX90 series
BX2190
- 19.3 hp
- 15.7 hp PTO
- 431 kg lift at 24 in
BX2390
- 21.6 hp
- 17.2 hp PTO
- 405 kg lift at 24 in
This model
BX2390S
- 21.6 hp
- 17.6 hp PTO
- 431 kg lift at 24 in
BX2690
- 23.9 hp
- 18.7 hp PTO
- 407 kg lift at 24 in
BX2690S
- 23.9 hp
- 18.7 hp PTO
- 407 kg lift at 24 in
