MowersNew
Kubota ZD1211R-3-60R
A diesel zero-turn from Kubota's ZD1200-3 series: a 3-cylinder Kubota D1105 diesel, a 60-inch rear-discharge Kubota ProDeck on a hydraulic lift, and a deluxe suspension seat with lumbar support.

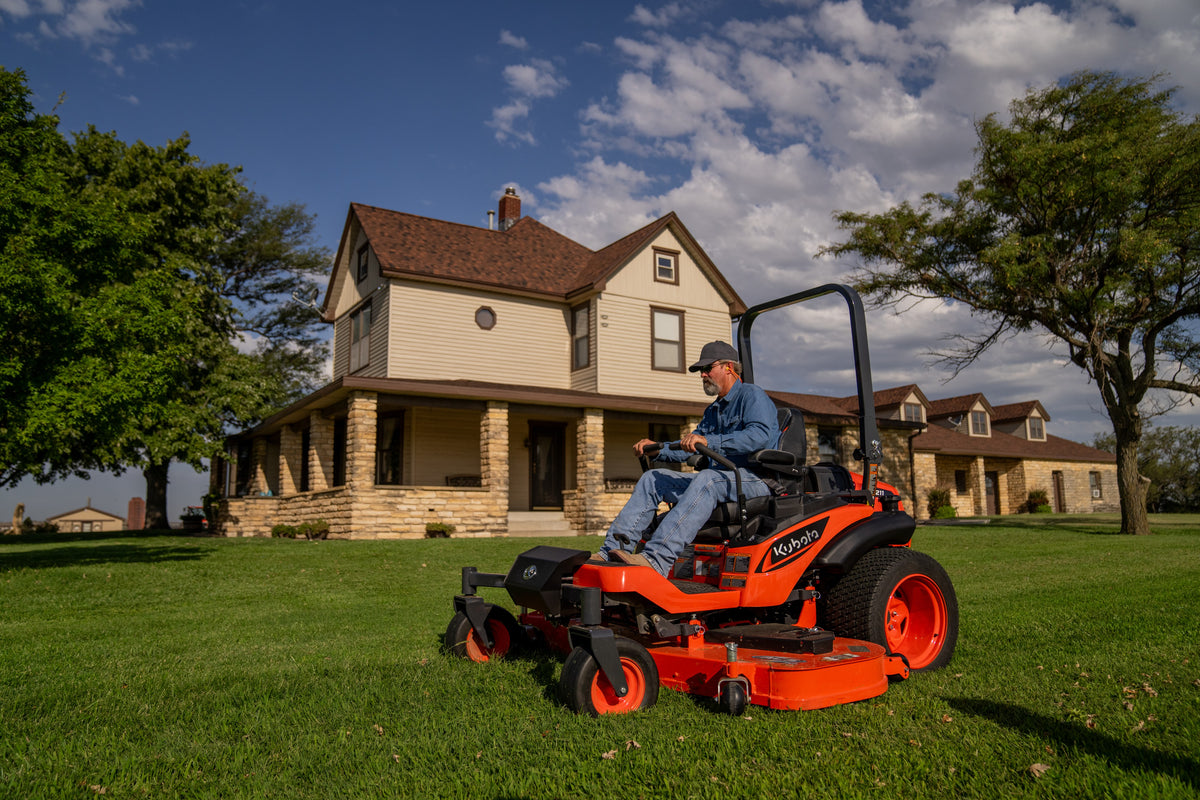

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
None on the yard right now — we can order one.
Key specs
ZD1211R-3-60R key specs
| Engine power | 23.3 hp (17.4 kW), Kubota D1105-E4-ZD-2 |
|---|---|
| Cutting width | 60 in (1,524 mm) |
| Deck | Kubota ProDeck, 3 blades |
| Transmission | 2-HST with gear reduction |
| Top speed | 17 km/h (10.6 mph) |
| Weight with deck | 780 kg (1,720 lb) |
About this model
About the ZD1211R-3-60R
With the ZD Series' long wheelbase, wide large-diameter rear tires, and fuel tanks mounted above the tires and below the seat, the result is outstanding stability on a variety of terrains.
The ZD1200 mowers have the oscillating front axle for a smoother ride and increased operator control on rough and uneven terrain.
Specifications
ZD1211R-3-60R specifications
Engine10
| Engine model | Kubota D1105-E4-ZD-2 |
|---|---|
| Engine type | Diesel, liquid-cooled (3cyl.) |
| Displacement | 1,123 cc (68.53 cu in) |
| Engine power, gross | 23.3 hp (17.4 kW) |
| Manufacturer | Kubota |
| Starting | Key switch |
| Battery | 12 V maintenance-free; 430 cold-cranking amps; 80 min reserve capacity |
| Alternator | AC Dynamo: 14 Amps @ 14 Volts |
| Fuel gauge | Standard |
| Fuel tank | 49 L (13 US gal) |
PTO3
| PTO type | Shaft drive |
|---|---|
| PTO clutch | Hydraulic independent PTO clutch with wet multi disks |
| PTO brake | Wet single disk |
Transmission and drive5
| Drive | 2-HST with Gear reduction |
|---|---|
| Speed control | 2-hand levers |
| Top speed, forward | 17 km/h (10.6 mph) |
| Top speed, reverse | 8.5 km/h (5.3 mph) |
| Parking brake | Wet multi disks, foot applied, released |
Mower deck13
| Deck model | RCK60RP-1200Z |
|---|---|
| Deck type | Kubota ProDeck |
| Discharge | Rear discharge |
| Deck lift | Hydraulic |
| Deck depth | 140 mm (5.5 in) |
| Blade drive | Multi-belt |
| Deck steel thickness | 4.2 mm (0.16 in) |
| Anti-scalp rollers | Swivel |
| Cutting width | 60 in (1,524 mm) |
| Blades | 3 |
| Cutting height | 25–127 mm (1–5 in) |
| Deck mounting | Quick joint, parallel linkage |
| Blade tip speed | 5,151 m/min (16,900 ft/min) |
Dimensions and weight13
| Overall length | 2,260 mm (89 in) |
|---|---|
| Wheelbase | 1,440 mm (56.7 in) |
| Overall height, top of open station | 2,000 mm (78.7 in) |
| Overall height, top of open station - folded position | 1,640 mm (64.6 in) |
| Overall width, with the mower deck | 1,600 mm (63 in) |
| Overall width, without the mower deck | 1,510 mm (59.4 in) |
| Weight, with the mower deck | 780 kg (1,720 lb) |
| Tread, front | 1,064 mm (41.9 in) |
| Tread, rear | 1,210 mm (47.6 in) |
| Standard tire size, front | 15x6.5-8 |
| Standard tire size, rear | 26x12.0-16 |
| Tire type, front | Smooth semi-pneumatic, Low profile tire |
| Tire type, rear | Low profile tire |
Operator station and other4
| Seat | Deluxe suspension seat with Reclining and lumbar support |
|---|---|
| Hour meter | Standard |
| Engine stop system | Key stop |
| Water temperature indicator | Standard |
From Kubota Canada’s specifications for the ZD1211R-3-60R, read Oct 27, 2026. Options and attachments change some figures; ask us before you buy.
Compare
The ZD1200-3 series

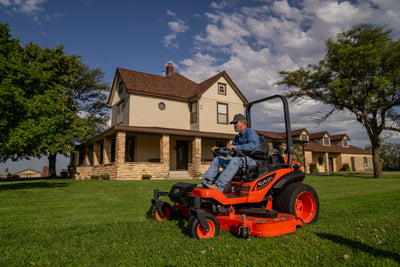

ZD1211-3-60
- 23.3 hp
- 60 in deck
ZD1211L-3-72
- 23.3 hp
- 72 in deck
This model
ZD1211R-3-60R
- 23.3 hp
- 60 in deck
ZD1211RL-3-72R
- 23.3 hp
- 72 in deck
