Kubota Z232KW-42

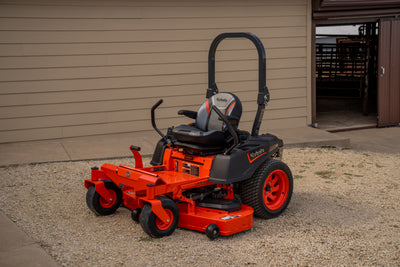

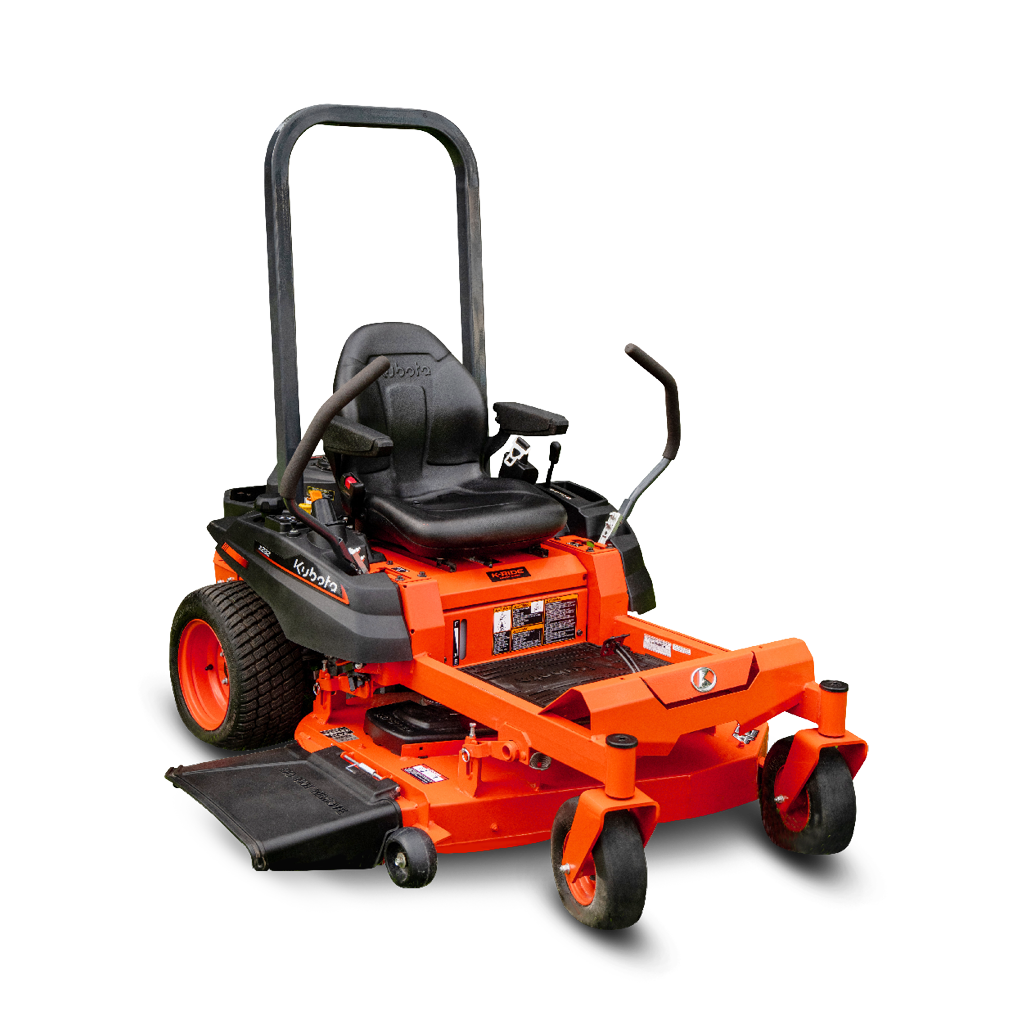

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
None on the yard right now — we can order one.
Key specs
Z232KW-42 key specs
| Engine power | 21.5 hp (16 kW), Kawasaki FR Series |
|---|---|
| Cutting width | 42 in (1,067 mm) |
| Deck | Side discharge, 2 blades |
| Transmission | Hydro-Gear ZT-2200 |
| Top speed | 10.5 km/h (6.5 mph) |
| Weight with deck | 292 kg (643 lb) |
About this model
About the Z232KW-42
The Kubota Z202 is the ultimate residential zero-turn mower, offering unprecedented style, comfort and performance. Its powerful engines and rugged transmission help you tackle any terrain. Plus, its new sliding high-backed seat keeps you comfortable, even on the longest mowing jobs.
Specifications
Z232KW-42 specifications
Engine9
| Engine model | Kawasaki FR Series |
|---|---|
| Engine type | Air cooled 2 cylinders |
| Engine power, gross | 21.5 hp (16 kW) |
| Displacement | 726 cc (44.3 cu in) |
| Starting | Key switch |
| Fuel tank | 13.6 L (3.6 US gal) |
| Fuel | Gasoline |
| Fuel gauge | Sight window |
| Battery | Group U1, 12 V; 300 cold-cranking amps; 410 cranking amps; 45 min reserve capacity |
PTO3
| PTO type | Belt drive |
|---|---|
| PTO clutch | Electric clutch |
| PTO brake | Dry disc |
Transmission and drive6
| Transmission | Hydro-Gear ZT-2200 |
|---|---|
| Drive | 2-HST with Gear reduction |
| Speed control | 2-hand lever |
| Top speed, forward | 10.5 km/h (6.5 mph) |
| Top speed, reverse | 6.4 km/h (4 mph) |
| Parking brake | Cog style parking lock / Hand lever |
Mower deck12
| Deck model | RCK42P-122Z |
|---|---|
| Discharge | Side discharge |
| Deck lift | Mechanical |
| Deck depth | 114 mm (4.5 in) |
| Blade drive | Belt drive |
| Deck steel thickness | 3.4 mm (0.14 in) |
| Anti-scalp rollers | Rigid |
| Cutting width | 42 in (1,067 mm) |
| Blades | 2 |
| Deck mounting | Parallel linkage |
| Blade tip speed | 5,395 m/min (17,700 ft/min) |
| Cutting height | 38.1–107.95 mm (1.5–4.25 in) |
Dimensions and weight10
| Overall length | 1,890 mm (74.4 in) |
|---|---|
| Overall height | 1,693 mm (66.7 in) |
| Wheelbase | 1,236 mm (48.7 in) |
| Overall width, with the mower deck | 1,400 mm (55.1 in) |
| Overall width, without the mower deck | 1,076 mm (42.4 in) |
| Weight, with the mower deck | 292 kg (643 lb) |
| Tread, front | 616 mm (24.3 in) |
| Tread, rear | 885 mm (34.8 in) |
| Tires, front | 11x4-5 pneumatic |
| Tires, rear | 18x7.5-10 |
Operator station and other2
| Seat suspension | N / A |
|---|---|
| Hour meter | Hour meter |
From Kubota Canada’s specifications for the Z232KW-42, read Oct 27, 2026. Options and attachments change some figures; ask us before you buy.
