Kubota M62
Kubota's 63 gross hp tractor-loader-backhoe. Stabilizer pads that turn by hand from road pads to steel anchors, no tools needed, and an LCD panel that keeps the machine's working status and vitals in view.

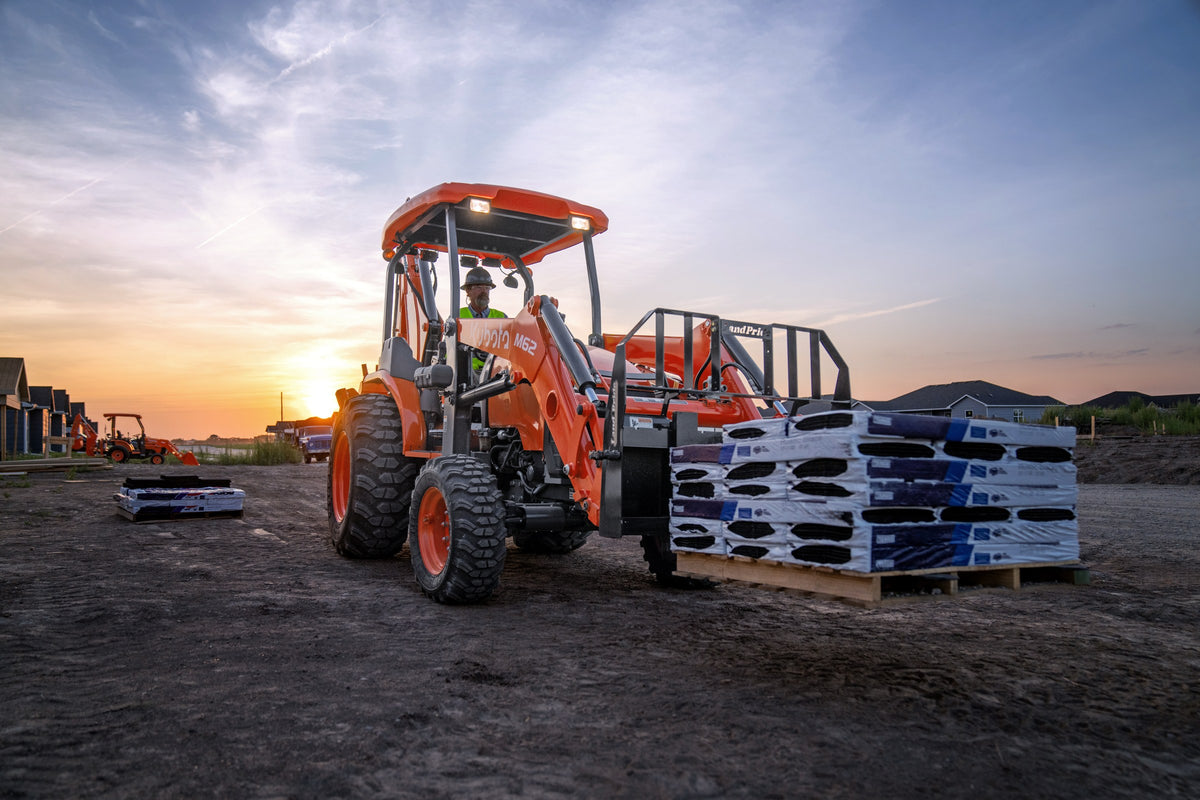

Representative photo of this model.
Request a quote
Tell us what you need it for and we will come back with the options that matter.
M62 key specs
| Engine power | 63 hp (47 kW) |
|---|---|
| PTO power | 46 hp (34.3 kW) |
| Transmission | HST Plus (6 range); Infinite |
| 3-point lift, 24 in (610 mm) behind | 2,756 lb (1,250 kg) |
| Weight | 8,925 lb (4,048 kg), power unit + 2 implements |
About the M62
Now you can save time when repositioning during backhoe operations. The backhoe crawling mode lets you creep forward or backward with the touch of a finger while remaining at the backhoe controls. It’s so simple, you won’t even need to change the seat position!
The backhoe's quick coupler lets you quickly switch buckets and get back to digging. The L47/M62 Quick Coupler is compatible with select Kubota compact excavator buckets.
M62 specifications
Engine9
| Air pre-cleaner | Dual element |
|---|---|
| Rated engine speed | 2,700 rpm |
| Engine power, gross | 63 hp (47 kW) |
| Engine power, net | 59.1 hp (44.1 kW) |
| PTO power | 46 hp (34.3 kW) |
| Displacement | 2,434 cc (148.5 cu in) |
| Emission certification | EPA Final Tier 4 |
| Fuel tank | 67 L (17.7 US gal) |
| Cylinders | 4 |
PTO2
| PTO type | Independent |
|---|---|
| Rear, PTO/engine speed | 540 rpm |
Transmission and drive6
| Top speed | 24.9 km/h (15.5 mph) |
|---|---|
| Range gears | Seat side, right |
| Transmission | HST Plus (6 range) |
| Brakes | Wet disc |
| Differential lock - rear axle | Standard |
| Speeds | Infinite |
Hydraulics5
| 3-point hitch | Optional |
|---|---|
| Pump flow | 30.9 US gpm (116.9 L/min) |
| Steering | Hydrostatic |
| Lift control type, position control | Standard |
| 3-point lift capacity, 24 in (610 mm) behind the lift points | 2,756 lb (1,250 kg) |
Dimensions and weight7
| Wheelbase | 80.7 in (2,050 mm) |
|---|---|
| Standard tire size, front | 10x16.5–R4 |
| Standard tire size, rear | 17.5L–24 R4 |
| Tread width, front | 56.7 in (1,440 mm) |
| Tread width, rear | 57.6 in (1,462 mm) |
| Turning radius, without brake | 10.8 ft (3.3 m) |
| Weight, power unit + 2 implements | 8,925 lb (4,048 kg) |
Operator station and other10
| Back up alarm | Standard |
|---|---|
| FOPS | Standard |
| Open station | 4 post |
| Deck type | Walk-through deck |
| Loader-integrated reinforced frame | Standard |
| Glow plug | Super glow |
| Reversible seat | Standard |
| Hard nose slanted hood | Standard |
| Horn | Standard |
| Tilt steering wheel | Standard |
From Kubota Canada’s specifications for the M62, read Oct 24, 2026. Options and attachments change some figures; ask us before you buy.
For M62 owners
Operator's manual
Kubota Canada publishes the operator's manual for the L47TL and M62TL.
Open the operator's manual (PDF) ↗The TLB series

L47
- 47.1 hp
- 33 hp PTO
- 2,756 lb lift at 24 in

M62
- 63 hp
- 46 hp PTO
- 2,756 lb lift at 24 in
