MowersNewClearanceOne of one · S# 20109
2025 Kubota F2690

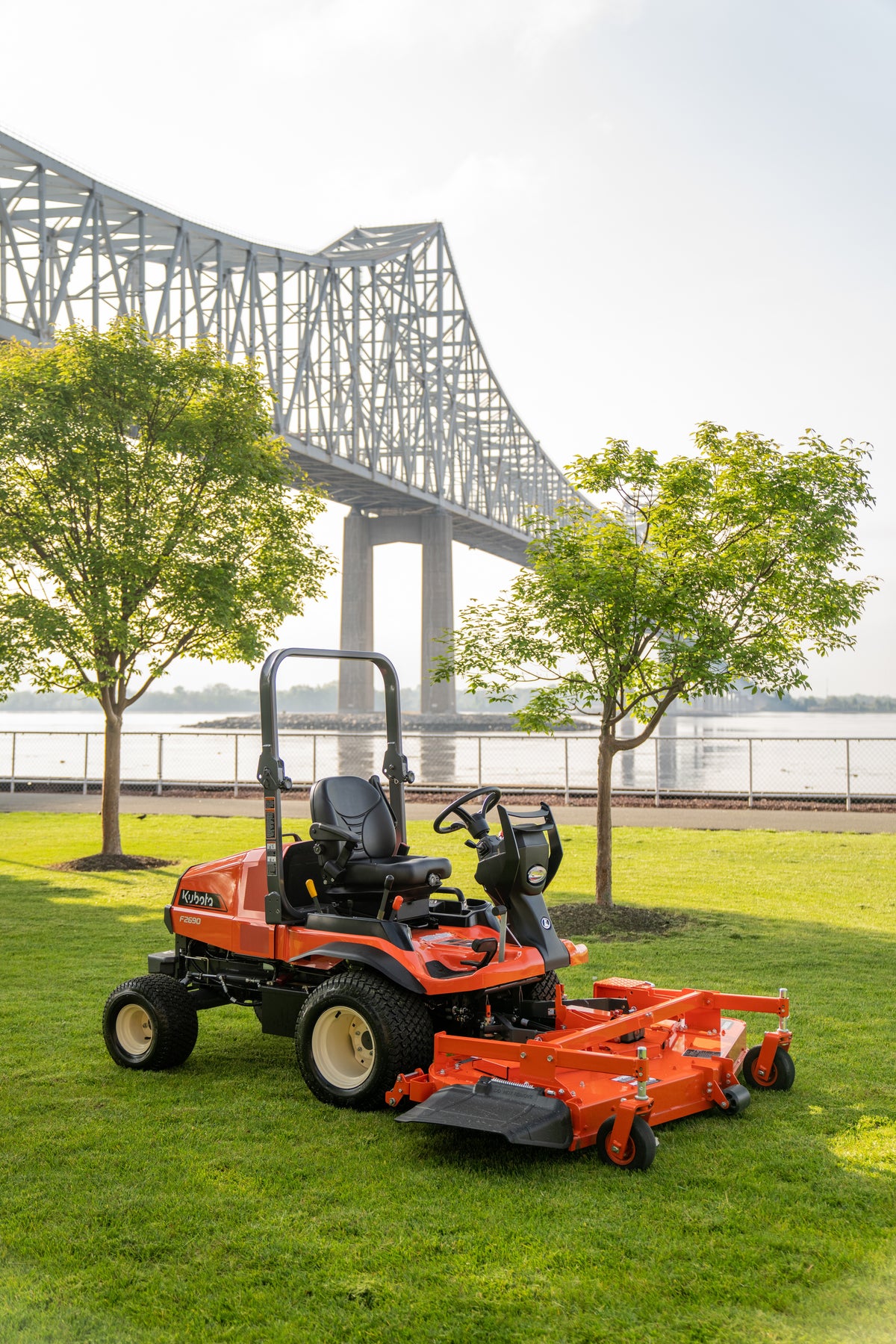

Representative photo of this model, not the machine on the yard.
Clearance pricing — ask us
Tell us what you need it for and we will come back with the options that matter.
Key specs
F2690 key specs
| Engine power | 24.8 hp (18.5 kW), D1105 |
|---|---|
| Transmission | HST (F2 / R2) |
| Top speed | 20 km/h (12.5 mph) |
| Weight | 730 kg (1,606 lb) |
About this model
About the F2690
Whatever your mowing application, there’s a Kubota F90-Series mower that can do the job with power, precision, and efficiency, with the highest-ever horsepower among all Kubota front-mount mowers. And all offer powerful yet more economical performance, greater safety, easier maintenance, superior operator comfort as well as a higher level of productivity and reliability making them the right choice to meet all your mowing needs.
Specifications
F2690 specifications
Engine10
| Engine make | Kubota |
|---|---|
| Engine model | D1105 |
| Engine type | Liquid-cooled diesel (3 cyl) |
| Engine power, gross | 24.8 hp (18.5 kW) |
| Displacement | 1,123 cc (68.6 cu in) |
| Air cleaner, type | Dual element |
| Fuel | Diesel |
| Alternator | 12 V, 40A |
| Fuel tank | 61 L (16.1 US gal) |
| Fuel gauge | LCD Display |
PTO3
| PTO type | Independent live, Shaft drive |
|---|---|
| PTO speed | 2,545 rpm |
| PTO clutch | Wet multi discs, hydraulic |
Transmission and drive11
| Drive | 4WD |
|---|---|
| Transmission | HST (F2 / R2) |
| 4WD - mode select | Auto-assist 4WD with dual acting overrunning clutch / locked (4WD) |
| Cruise control | Optional |
| Top speed, forward | 20 km/h (12.5 mph) |
| Top speed, reverse | 11 km/h (6.8 mph) |
| Differential lock | Standard |
| Turn assist brake | Optional |
| Brakes, system | Wet discs |
| Steering, type | Hydrostatic power |
| Steering, tilt steering wheel | Standard |
Mower deck3
| Deck lift | Hydraulic 2-point hitch |
|---|---|
| Tilt assist | Standard |
| Weight transfer system | Standard |
Dimensions and weight10
| Tires, front | 24x12-12 |
|---|---|
| Tires, rear | 18x9.5-8 |
| Tread, front | 1,047 mm (41.2 in) |
| Tread, rear | 997 mm (39.3 in) |
| Wheelbase | 1,300 mm (51.2 in) |
| Overall length | 2,450 mm (96.5 in) |
| Overall width | 1,370 mm (53.9 in) |
| Overall height | 1,985 mm (78.1 in) |
| Weight | 730 kg (1,606 lb) |
| Ground clearance | 185 mm (7.3 in) |
Operator station and other5
| Roll-over protective structure (ROPS) | Standard (ISO21299 and OSHA) |
|---|---|
| Tachometer | LCD Display |
| Toolbox | Standard |
| Seat | Reclining suspension seat |
| Beverage holder | Standard |
From Kubota Canada’s specifications for the F2690, read Oct 27, 2026. Options and attachments change some figures; ask us before you buy.
